The NetworkHD 120 series takes the award-winning 100 series and elevates to a new level. The 120 series components support both video encoding/decoding. With 4K resolution, video transmissions look better than ever and use up to 6x less bandwidth. AV stream are fully secure over the network using AES 128-bit encryption methods, ensuring any sensitive data cannot be maliciously accessed. Of course, the series would not be complete without retaining the powerful video wall and Multiview processing. The 120 series does one better by adding screen rotation and mosaic video wall ability.
TAILORED FOR MULTIPLE MARKETS
The NetworkHD™ 100 Series utilizes low bandwidth, infinitely scalable technology with the addition of powerful video wall support up to 16×16 for the best all-round solution for commercial AV installations. A 100 Series encoder can either be paired with a 100 Series decoder for matrix switching to individual screens or for video wall decoding, with both decoders including HDMI and analog audio breakout outputs, or an NHD-150-RX decoder for multiview monitoring.
Low Bandwidth Encoding

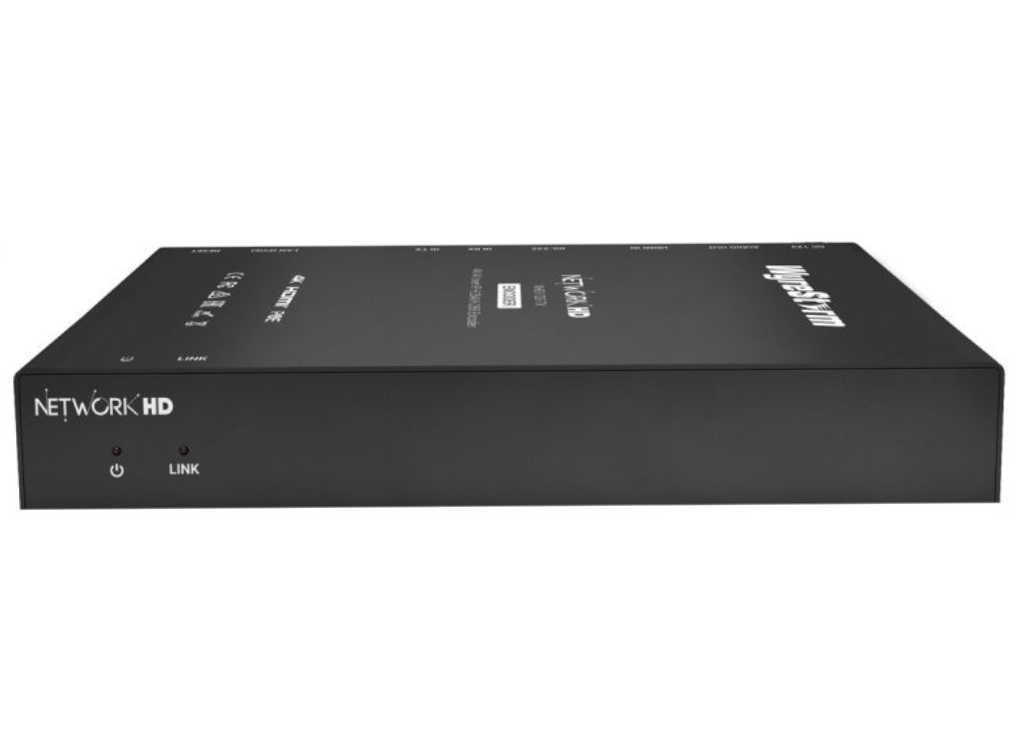

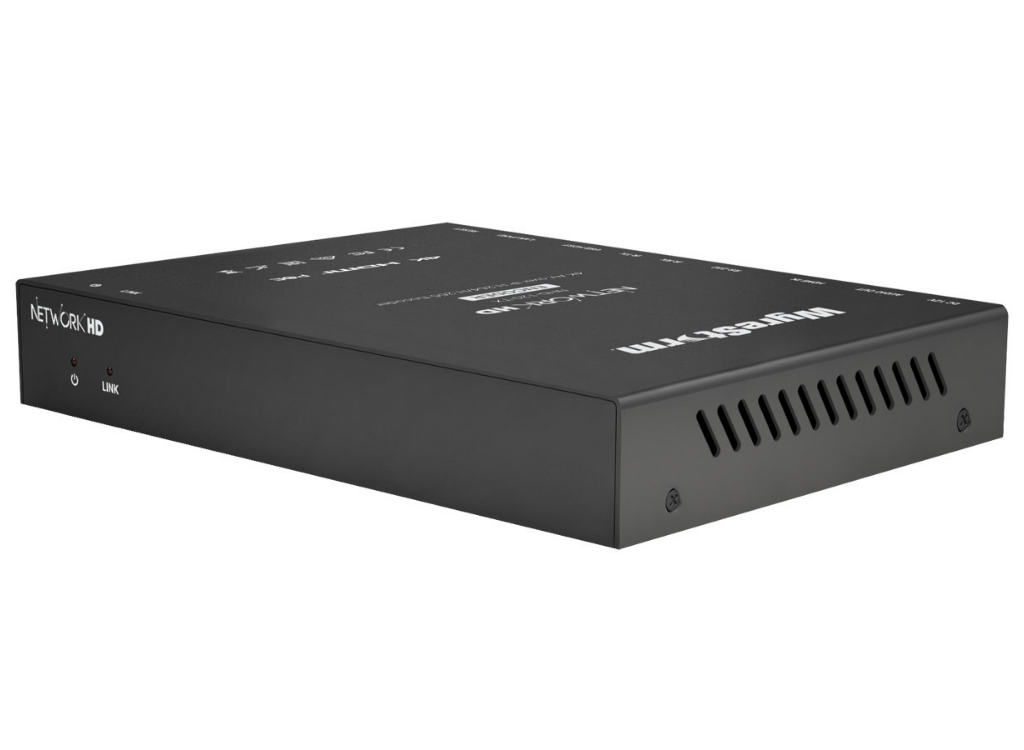

The NHD-120-TX can encode AV signal using low bandwidth compression technology. Using this technology provides incredibly efficient video streams.
4K Resolution
The NHD-120-TX is now supporting 4K content that ensures compatibility with the HDMI v1.4 HDCP 2.2 video source, while a built-in scaler ensures hassle-free mixing of the latest 4K displays and 1080p screens within an installation.
AES Encryption
Security is key in today’s world. The NetworkHD 120 series support AES 128-bit AV encryption over the network. Data sent from an NHD-120-TX is encapsulated using advanced methods to ensure that sensitive or private data cannot be accessed by 3rd-parties.
Video Walls
Create captivating large format video walls with the ability to process up to 256 screens (16×16). Easily adjust for screen bezels to ensure the video is picture-perfect.
The 120 series also allows you to create mosaic video walls with image rotation.
SECURITY
Equipped with the latest security protocols including SSH and HTTPS. Data and communications from the 120 series in encrypted end-to-end.
POWERFUL ROUTING ENGINE
Boasting the ultimate in signal flexibility, the 120 Series can discretely deliver audio, infrared, and RS-232 streams separate to the video via a modular IP network. True signal breakaway can create custom assignments.
NHD CONTROL APP COMPATIBLE
Compatible with the NetworkHD Touch and Companion Control apps. Control source, matrix and video wall switching with preview streams of each encoder.
In the Box
1x NHD-120 Encoder or Decoder
2x 3-pin Terminal Block
4x Wall Mounting Brackets
2x Rack Mounting Brackets
1x IR Transmitter
1x IR Receiver
1x Quickstart Guide
| Category | Specification |
|---|---|
| AUDIO & VIDEO | |

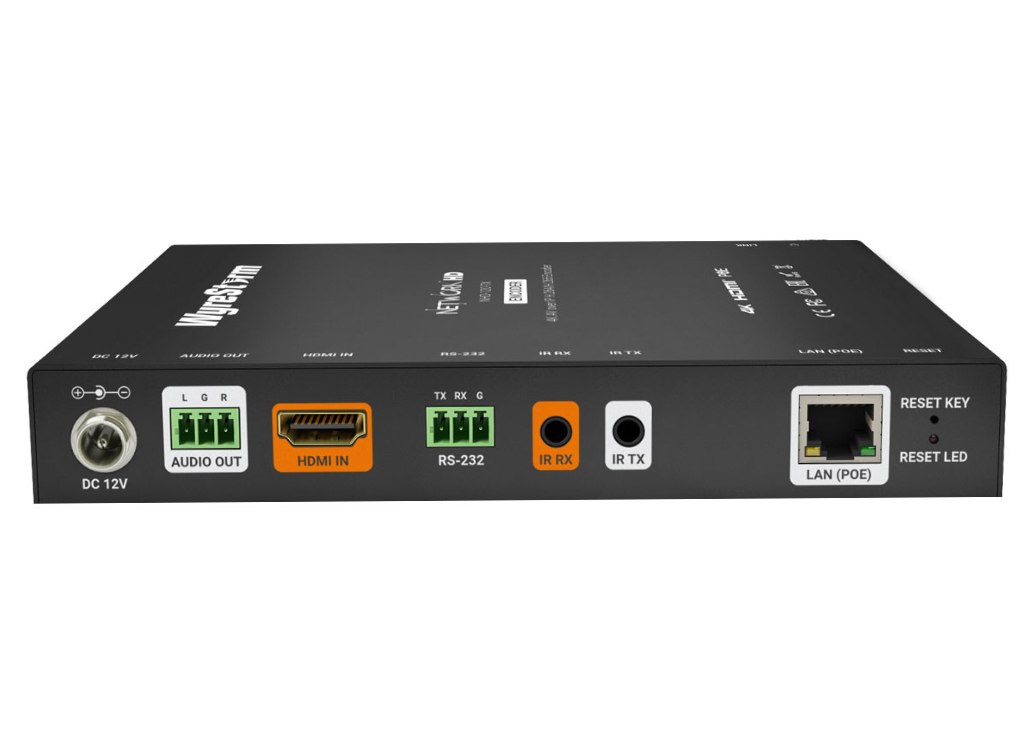

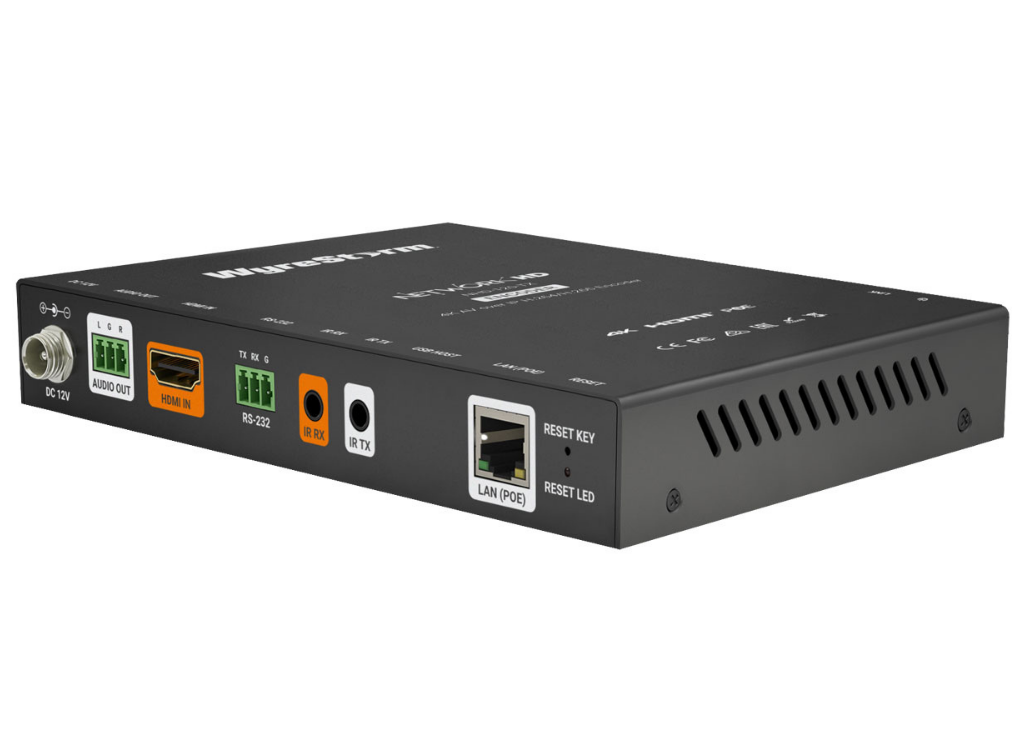

| Inputs | TX: 1 x HDMI 19-pin HDMI type A RX: 1x 8-pin RJ-45 female |
| Outputs | TX: 1x 3-pin Phoenix Analog Audio (de-embed from HDMI input) RX: 1x HDMI 19-pin HDMI type A, 1x 3-pin Phoenix Analog Audio |
| End to End Latency | 1080p: High Quality Mode: ~250ms, Low Latency Mode: ~80ms 4K: High Quality Mode: ~300ms, Low Latency Mode: ~150ms |
| Audio Formats | LPCM/MPEG4 AAC stereo, 48KHz |
| Video Resolution (Max) | 1920x1080p @ 60Hz, 3840x2160p @ 30Hz 4:2:0 8bit |
| Maximum Pixel Clock | 297MHz |
| COMMUNICATION & CONTROL | |
| HDMI | HDMI 1.4 |
| RS-232 | 1x 3-Pin Phoenix – API controlled from CTL |
| LAN | 1x 8-pin RJ-45 female |
| IR | 1x IR TX: 3.5mm TS Jack Socket 1x IR RX: 3.5mm TS Jack Socket IR signals bi-directional passthrough or via API commands |
| Security Protocols | AES 128 |
| POWER | |
| Power Supply | 12V DC 1A |
| Max Power Consumption | 3.6W (DC adapter) |
| ADDITIONAL FEATURES | |
| Video Content Support | Supports up to 4K @ 30Hz video content, all SD/HD formats, including interlaced content |
| Analog Audio De-Embed | For easy connection to external audio DSP or amplifier |
| Image Scaling | Mixed resolution displays throughout an installation |
| Seamless Video Switching | No black screens or freeze frames |
| Scalable I/O | Utilizing multicast technology |
| Flexible IP Address Settings | AutoIP/Static/DHCP |
| Customizable Controls | CEC, IR, or RS-232 control of connected devices |
| Video Wall Support | Up to 16×16 video walls, image scaling, bezel compensation, and rotation |
| Mosaic Video Walls | Custom screen orientation |
| Custom "No Source" Image | Idle image upload for branded downtime |
| Independent Routing | Breakaway, independent routing of all video, audio, IR, and RS-232 streams |
| Infrared Signal Generation | API support for Hex Pronto format |
| Firmware and Settings | Batch firmware update and batch settings for faster installations |
| HDCP Compliance | HDCP 2.2 compliant |
| PoE Compliance | IEEE 802.3af PoE compliant PD |
| Mounting Options | Includes Wall and Rack mounting brackets |
