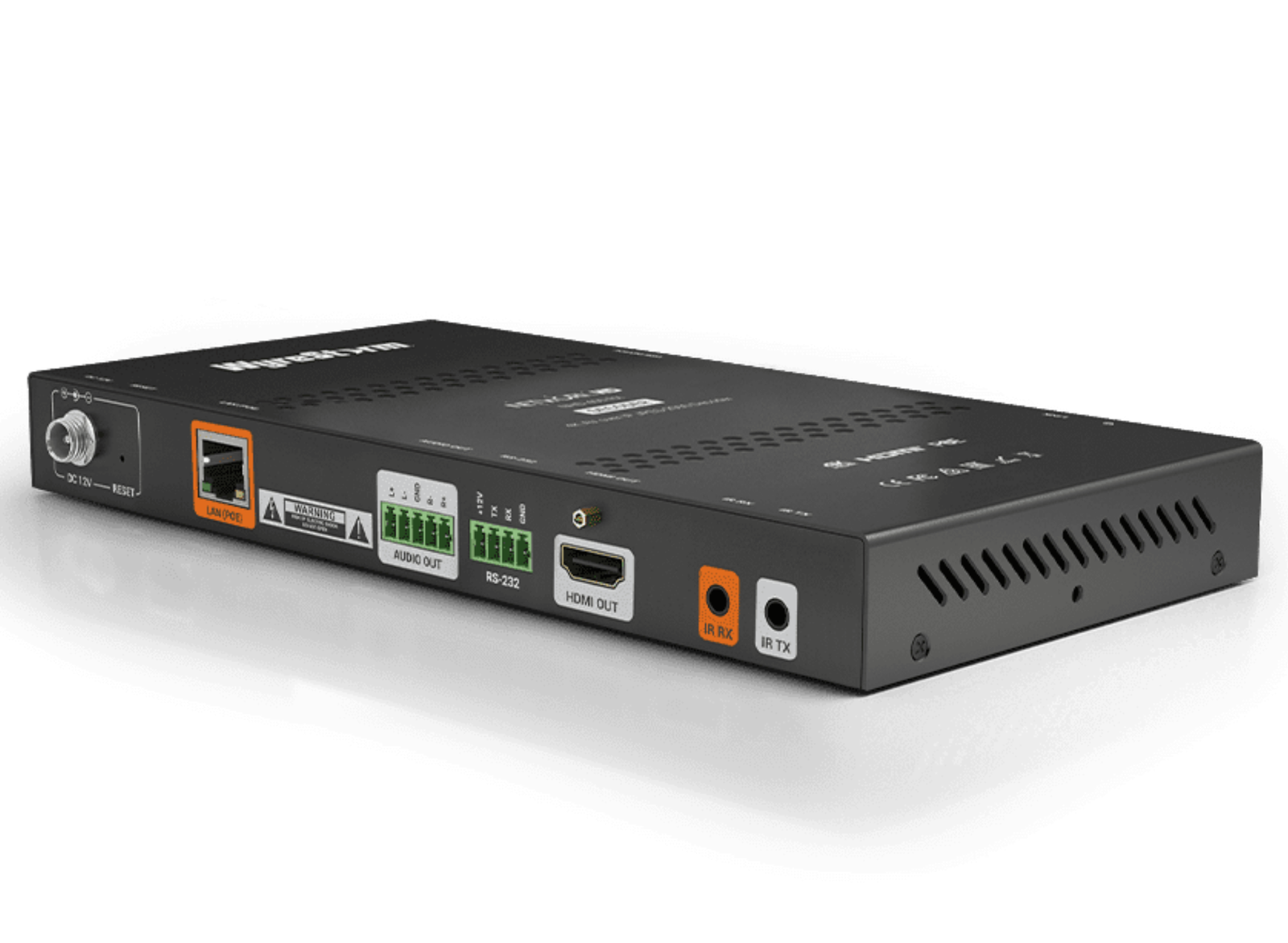

WyreStorm brings stunning 4K HDR video, 4K/2K auto-scaling, multi-channel audio and audio matrixing to IP with the NetworkHD 400 Series’ NHD-400-RX AVoIP decoder. Used in conjunction with a 400 Series encoder, the NHD-400-RX seamlessly handles mixed resolution sources, content and display devices for matrix and video wall functionality up to 16×16 with image rotation and bezel compensation.
Featuring incredibly low latency, the 400 Series is the ideal AV over IP solution for systems where high quality and low latency are key requirements, making it perfect for both residential and commercial applications.
4K UHD AND HDR SUPPORT
Delivering visually lossless 4K UHD content with HDR and HDCP 2.2 support ensures compatibility with the latest UHD video sources, while a built-in scaler ensures hassle-free mixing of the latest 4K displays and 1080p screens within an installation.
CUSTOM VIDEO WALL STYLES
Supporting traditional video walls, as well as customizable mosaic styles, perfect for building captivating & creative digital signage. JPEG2000 encoding ensuring distribution integrity and video latency of less than a single frame makes the 400 Series ideal for live environments.
POWERFUL ROUTING ENGINE
Boasting the ultimate in signal flexibility, the 400 Series can discretely deliver audio, infrared and USB streams separate to the video via a modular IP network. True signal breakaway can create custom assignments, desirable in both commercial and residential applications.
MULTICHANNEL AUDIO SUPPORT
Multichannel HDMI audio supporting formats such as Dolby Atmos and DTS-X and compatibility with AV receivers and audio processors offers an unlimited single-solution distribution option for home cinemas and dedicated home theatres.
In the Box
1x NHD-400-RX Decoder
1x IR Emitter
1x IR Receiver
2x Wall Mounting Brackets
2x Rack Mounting Brackets
1x Quickstart Guide

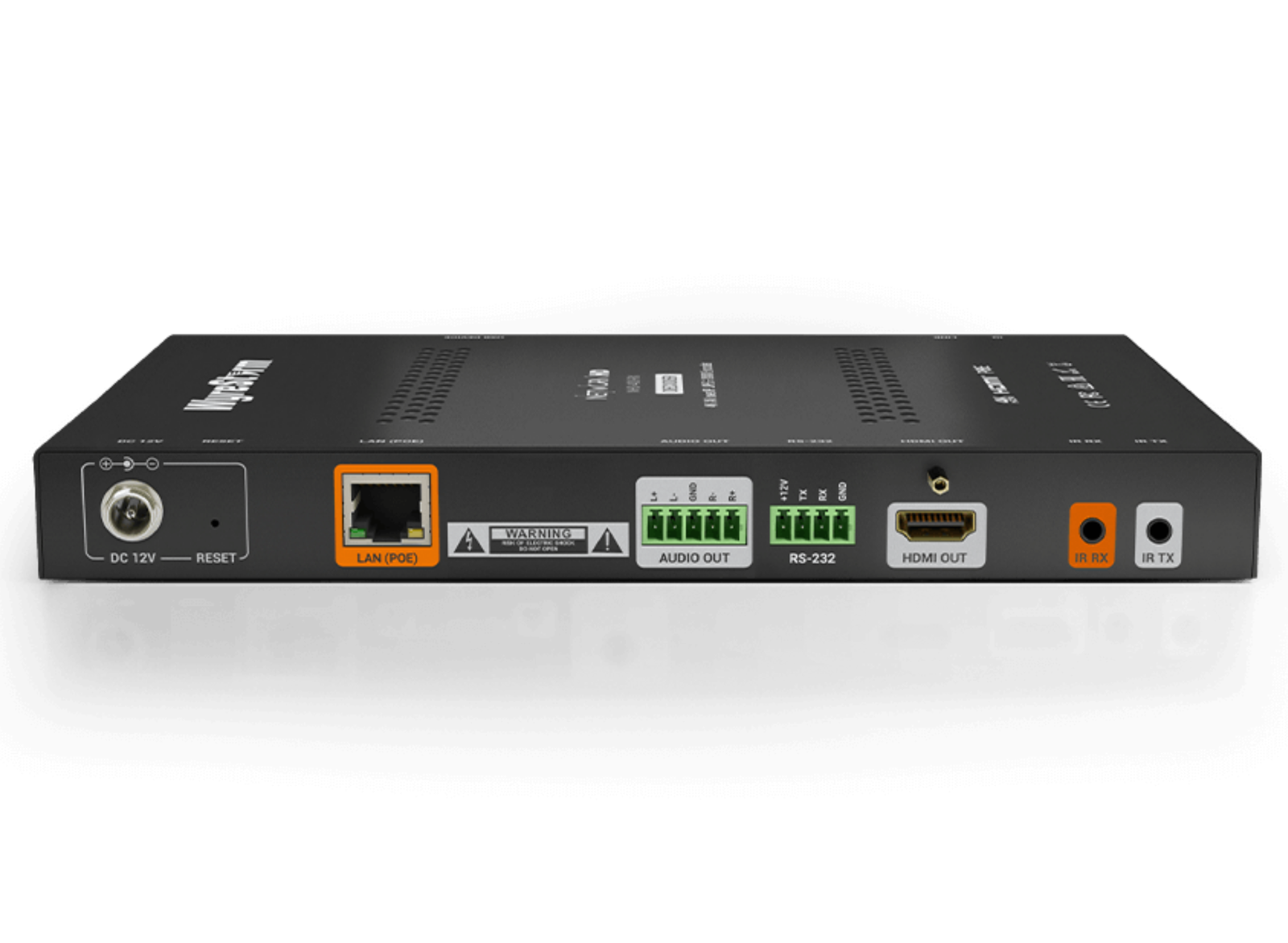

| Inputs | 1x 8-pin RJ-45 female (Transmission from TX) | Outputs | 1x HDMI Out 19-pin type A 1x Audio Out: 5-Pin Phoenix |
| Audio Formats | 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos | Output Video Encoding | JPEG 2000 |
| Encoding Data Rate | Max: 850Mbps | End to End Latency (Max) | 1 video frame latency (pass-through mode) 16ms @60fps 2 video frames latency (scaler/VW mode) 33ms @60fps |
| Video Resolutions (Max) | 1920x1080p @60Hz 12bit 4:4:4/RGB 3840x2160p @30Hz 12bit 4:2:2 HDR10 HLG 3840x2160p @30Hz 8bit 4:4:4/RGB 3840x2160p @60Hz 8bit 4:2:0 |
Supported Standards | HDR10 | HLG | BT.2020 | BT.709 | 3D Video |
| Maximum Pixel Clock | 300MHz | HDMI | HDCP 2.2 | CEC |

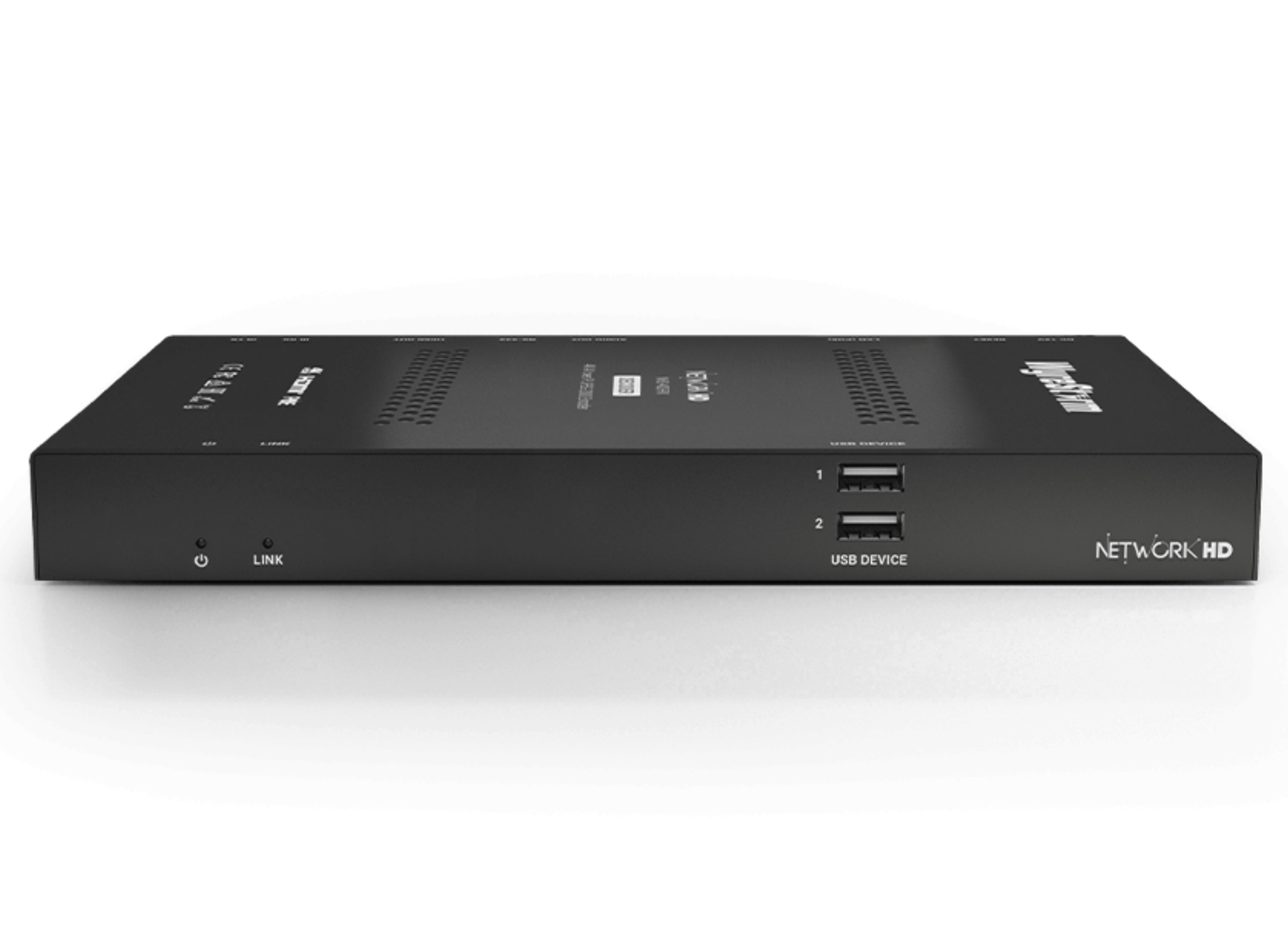

| Ethernet | 1x LAN (PoE): 8-pin RJ-45 ANSI/TIA-568 8P8C, 1000Base-T, PoE PD (IEEE 802.3af) | USB | 2x USB Device: USB Type A | Power: 5v 500ma per port | Data Rate: Max 9MB/s |
| IR | 1x IR TX: 3.5mm (1/8in) TS Mono | 1x IR RX: 3.5mm (1/8in) TRS Stereo | Bidirectional Over Ethernet | RS-232 | 1x RS-232: 4-pin Phoenix | 2 Way (RX only) |
| Power Supply | 12V DC 1A | PoE | IEEE 802.3af (15.4W at PSE) |
| Max Power Consumption | 8W (with PSU) |
