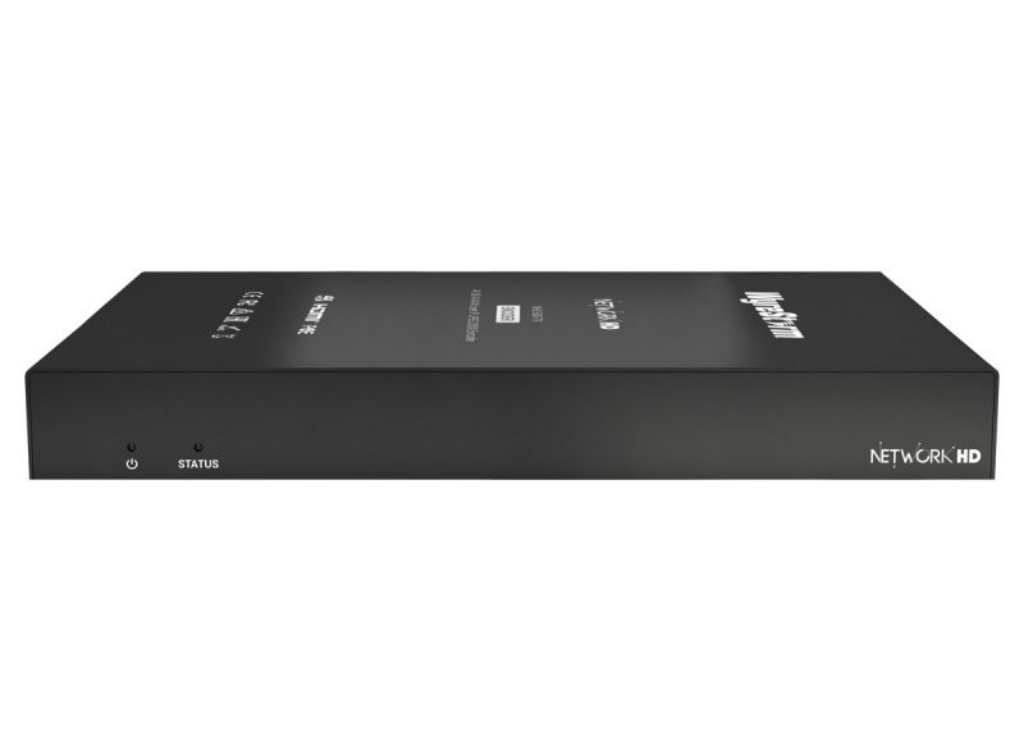

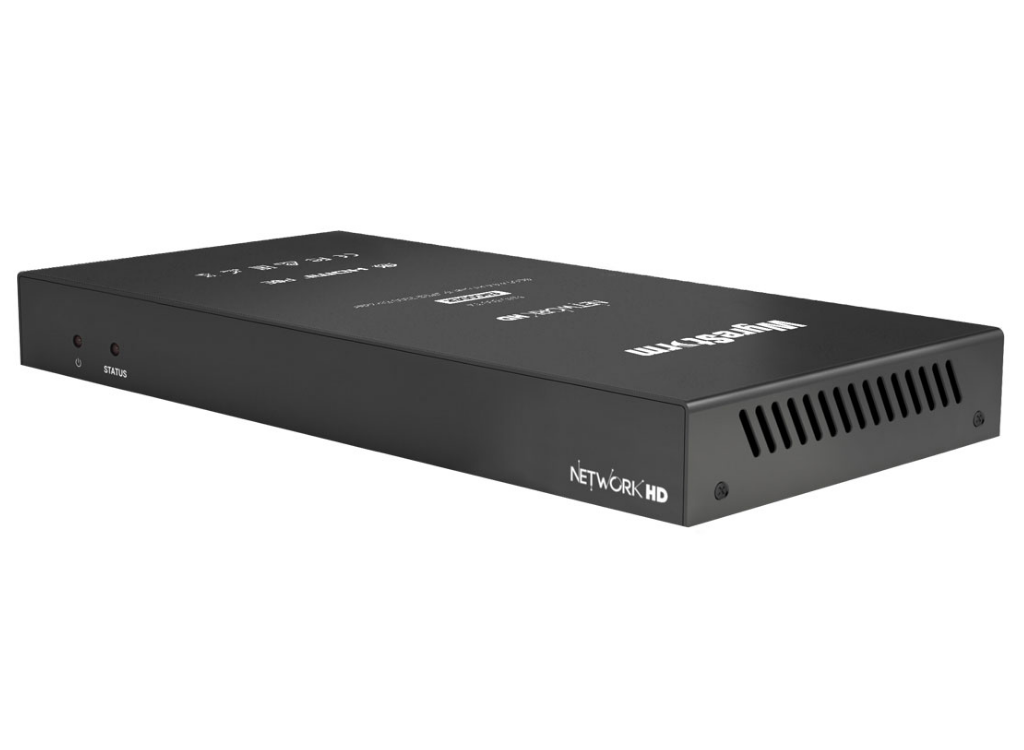

WyreStorm NHD-500-TX 500 Series 4K60 NetworkHD 500 Multicast Encoder
The NetworkHD 500s series is an HDMI 2.0 AV over IP solution. Capable of encoding up to 4K60 including Dolby Vision, HDR10 and HLG content. The 500 series comes loaded with a number of advanced features such as the flexibility of Ethernet or Fiber as a transport method. Ultra-low latency encoding and incredibly fast matrix switching speeds enhance the experience. A powerful routing engine allows audio, video, USB and control signals to be discretely sent to any endpoint. Create captivating video walls up to 16×16 in size and control them with the tap of a button in the amazing NetworkHD Touch control app.
PERFORMANCE & VERSATILITY
Introducing the all-new NetworkHD 500 series. The 500 series take what you know and love about the 400 series and improves in almost every way! Full HDMI 2.0 encoding/decoding, faster switching speeds, higher quality preview streams and fiber connectivity are just some of the major advances that have been made.
HDMI 2.0 ENCODING
Capable of encoding full HDMI 2.0 content. This includes 4K60 4:4:4 8bit and high dynamic range video including Dolby Vision, HDR10 & HLG up to 12bit 4:2:2 at 60Hz over a 1GbE network.
ETHERNET OR FIBER
Equipped with both Ethernet and Fiber outputs, the 500 series offers flexibility for any installation. Ethernet can support transmissions up to 100m (328ft) and fiber is capable of a stunning 550m (1800ft) using OM3 MMF.
AUDIO RETURN CHANNEL
Audio Return Channel (ARC) via HDMI allows audio from a display to transmit over the network to a 500 series encoder for connection to a compatible AVR. ARC supports up to Dolby Digital Plus and DTS 5.1 formats. Have an older display? Take advantage of the Toslink passthrough to transmit audio in the same way.
VIDEO WALLS
Create captivating large format video walls with the ability to process up to 256 screens (16×16). Easily adjust for screen bezels to ensure the video is picture-perfect. The 500 series also allow you to create mosaic style walls with rotated screens!
SECURITY
Equipped with the latest security protocols including SSH and HTTPS. Data and communications from the 500 series in encrypted end-to-end.
ULTRA LOW-LATENCY
4ms when in passthrough mode allows content to be distributed without any perceivable delay.
NETWORKHD TOUCH
The 500s are fully compatible with the NetworkHD Touch control app. Effortlessly control matrix and video wall switching with preview streams of each encoder.
In the Box
1x NHD-500-TX or NHD-500-RX
1 x IR Emitter
1x IR Receiver
1x Pair of Rack Brackets
2x Pair of Wall Brackets
1x 3-pin Terminal Block
1x 5-pin Terminal Block
-
| Category |
Specification |
| AUDIO & VIDEO |
|

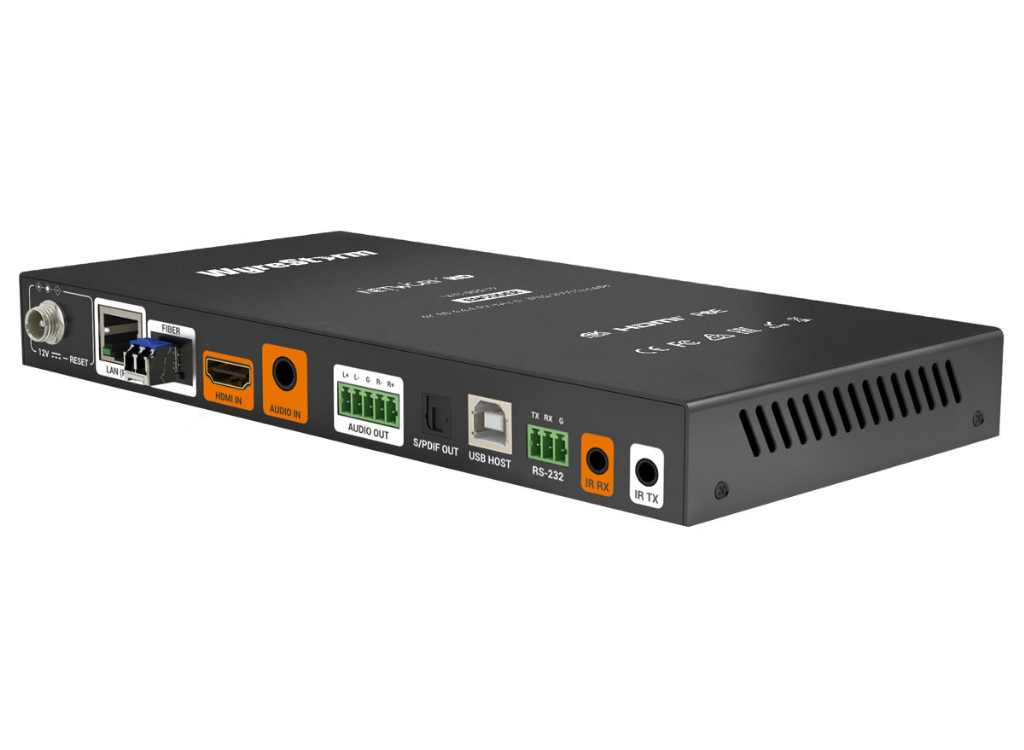

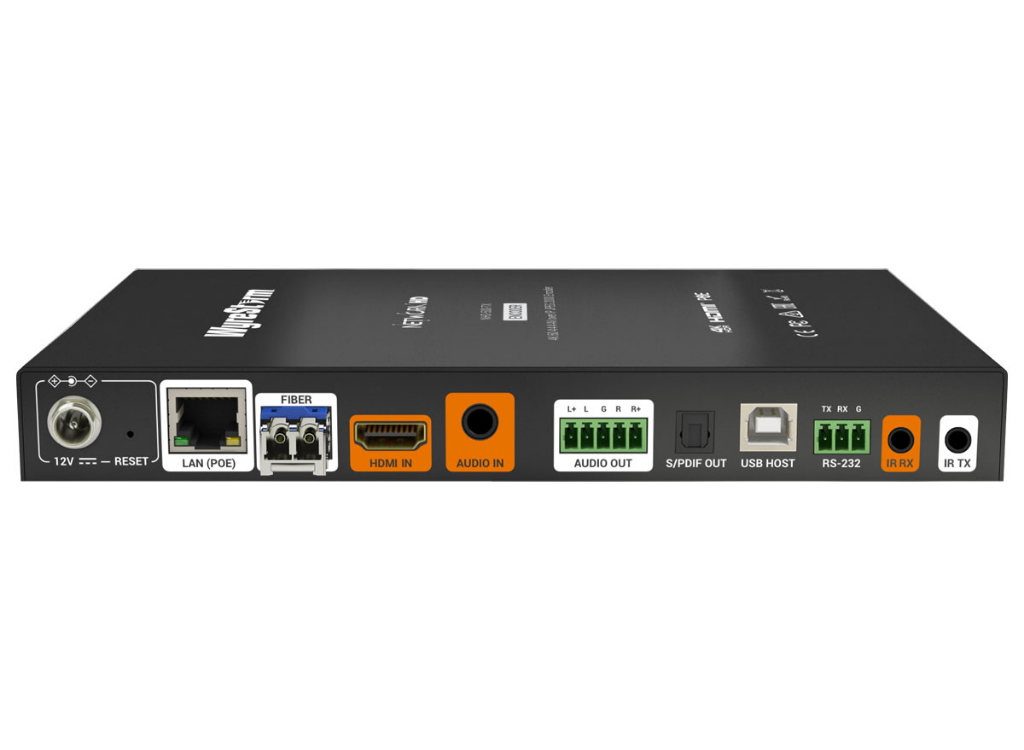

| Inputs |
TX: 1 x HDMI 2.0b, 1 x 3.5mm TRS Audio |
| Outputs |
TX: 1 x 5-pin Balanced Audio, 1 x S/PDIF Digital; RX: 1 x HDMI 2.0b, 1 x 5-Pin Balanced Audio |
| Video Resolution (Max) |
4096x2160p @ 60Hz 8bit 4:4:4 or RGB, 3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision/HDR/HLG, 1920x1080p @60Hz 12bit |
| Audio Formats |
Passthrough: 2ch PCM, up to DTS:X and Dolby Atmos; ARC: 2ch PCM, up to Dolby Digital+ and DTS 5.1 |
| Supported Standards |
DCI, RGB, USB |
| Maximum Pixel Clock |
600MHz |
| Output Video Encoding |
JPEG 2000 |
| Encoding Data Rate |
Max 850Mbps |
| End-to-End Latency |
4ms video latency (pass-through mode), 1-2 video frames latency (scaler/VW mode) |
| COMMUNICATION & CONTROL |
|
| HDMI |
HDMI 2.0, HDCP 2.2, CEC, EDID, ARC |
| LAN |
1x 1GbE 8-Pin RJ45, 1x 1Gb SFP (1000Base-SX: 550m using OM3 MMF, 1000Base-LX: 5km using SMF, 1000Base-LX10: 10km using SMF) |
| IR |
1x IR TX 3.5mm TS Mono Jack (API Programmable), 1x IR RX 3.5mm TRS Stereo Jack (API Programmable) |
| RS-232 |
1x 3-Pin Phoenix Connector (2-way, API Programmable) |
| Security Protocols |
AES 256, SSH, HTTPS |
| USB |
TX: 1 x USB 2.0 Type H; RX*: 2 x USB HID Type A, 1 x USB 2.0 Type A (up to 200Mbps upstream) (with firmware package 7.6)
|
| POWER |
Power Supply: 12V DC 1A, 802.3af PoE Compliant |
-
