2 inputs and powerful HDBaseT 3.0 transmission result is this powerful switching transmitter, perfect for higher education classroom/lecture hall and corporate environments. Automatic or manual switching of HDMI or USB-C and CEC power triggering via HDBaseT means a simple user experience when it matters most. Further functionality allows USB devices to be routed back to the source via USB host (or natively via USB-C) alongside 3 additional USB device ports locally available for a total of 6 devices that can simultaneously used in conjunction with each input. Rounding out it’s long feature list, the SW-120-TX3 boasts 60 watts of charging over the connected USB-C device.
UNCOMPRESSED SIGNAL TRANSMISSION
HDBaseT 3.0 technology is here, sporting the very latest in high-speed transmissions with the increased bandwidth from 10Gbps to an outstanding 18Gbps over a dedicated category cable up to an astonishing 100m/328ft!
PACKED WITH FEATURES
It’s not just an HDBaseT switcher; it’s a versatile powerhouse. Beyond seamless switching, it sends power trigger commands and delivers high-speed charging of up to 60 watts for devices like laptops and tablets. With remarkable flexibility, it can seamlessly power the receiver or draw power from it. It’s truly the ultimate in-wall command center.
AUDIO DE-EMBED AND PASSTHROUGH
The SW-120-TX3 offers both source audio de-embed from HDMI and a separate independent audio pass-through lane to send separate audio down to the RX simultaneously.
API-DRIVEN INTELLIGENCE
Featuring a unique API, the SW-120-TX3 intelligently recognizes whether a RS-232 command is to be passed down to the receiver or whether it is to control it from a controller such as the SYN-KEY10.
In the Box
1x SW-120-TX3 HDBaseT 3.0 Transmitter
1x 3-pin Terminal Block
1x 2m USB-C to USB-C Cable with Locking Connector (5Gbps)
4x Wall Mounting Brackets
4x Mounting Screws
1x Quickstart Guide
*20v 6a PSU Sold Separately

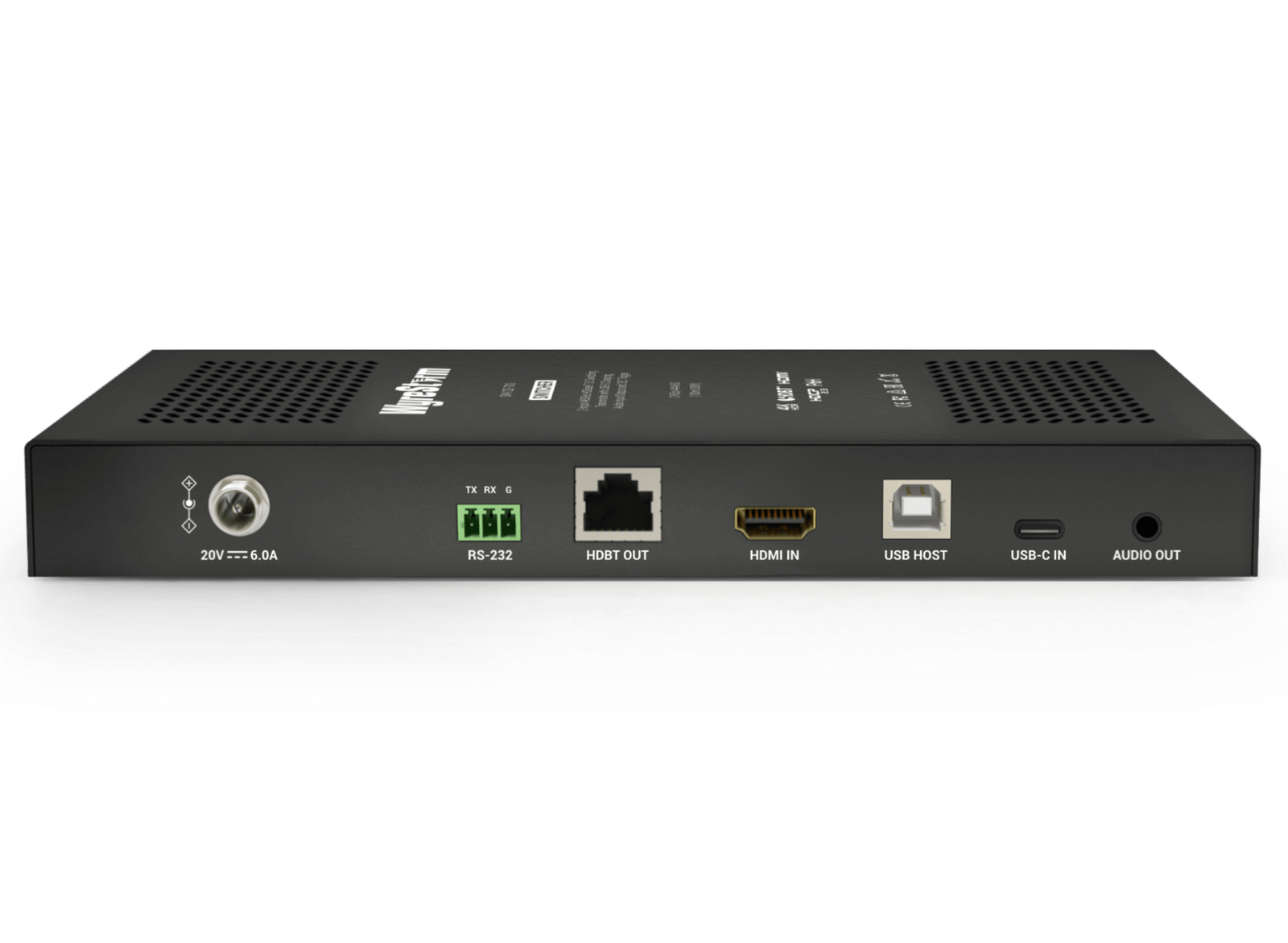

| Inputs | 1x HDMI: 19-pin Type A Female 1x USB-C (USB Alt Mode/Host) 3x USB Type A (Device) 1x RS-232: 3-pin Phoenix (Shared; API Control) 1x Line-In 3.5mm (1/8in) TRS Stereo 1x Type B host |
Outputs | 1 x HDBT: 8-pin RJ45 1 x Audio Out 3.5mm (1/8in) TRS Stereo 1x RS-232: 3-pin Phoenix (Shared; Passthrough) |
| Max Pixel Clock | 600MHz | Video Resolution (Max) | 1920x1080p @60Hz 12bit 3840×2160 @60Hz 4:4:4 8bit 5120×2160 @30Hz 5120×2160 @60Hz 4:2:0 |
| Supported Standards | DCI | RGB | HDR10 | Dolby Vision | HLG | BT.2020 | BT.2100 | Audio Formats | 1x Audio In: 3.5mm (1/8in) TRS Stereo 2ch audio over HDBaseT | 1-way to RX |
| HDMI | HDMI | HDCP 2.3 | EDID | CEC Pass-through | HDBaseT | HDMI | USB | HDCP 2.3 | EDID | 2-way PoH | Bidirectional RS-232 | CEC |
| USB | 1x Type B (Host) | Maximum data throughput: 300Mbps | RS-232 | 1x RS-232: 3-pin Phoenix |
| Power Supply | 20V DC 6A (Sold separately) | Max Power Consumption | 10.46W |
| Description | Downloads |
|---|---|
| Datasheet | Download |
