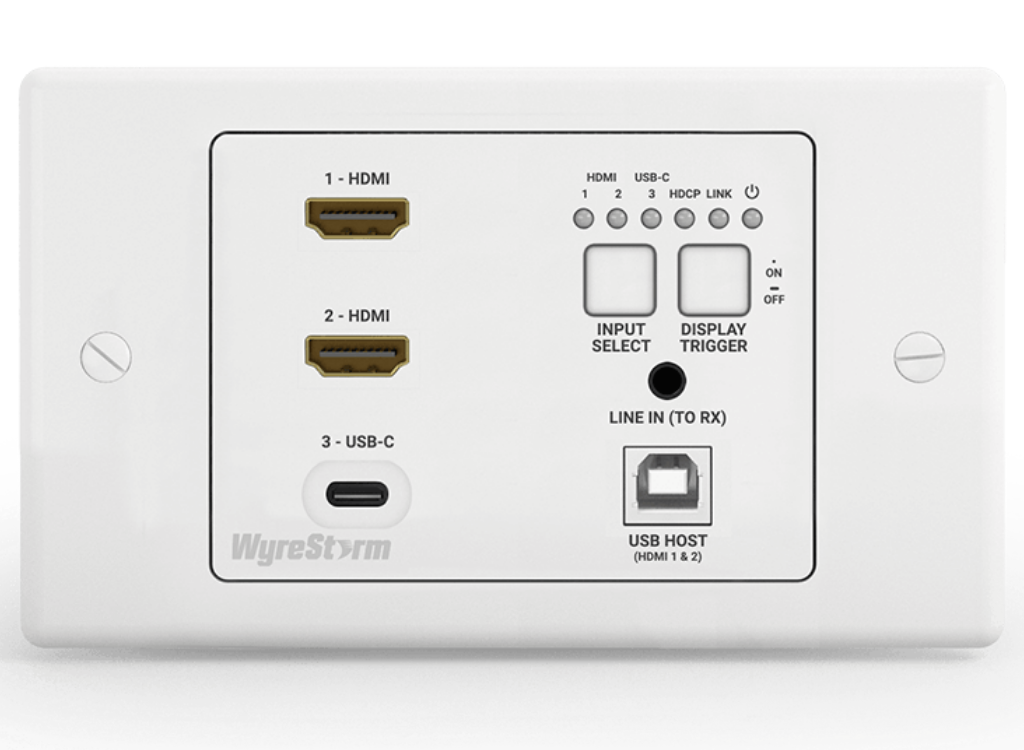

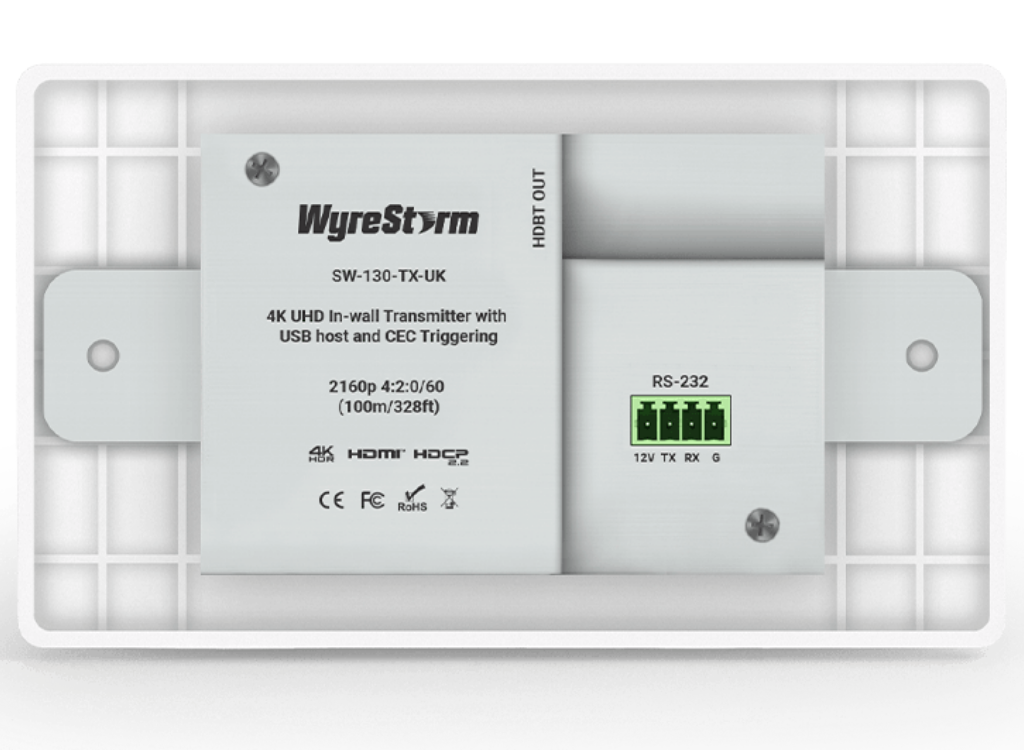

WyreStorm SW-130-TX-UK 3-Input In-wall HDBaseT Transmitter (2-gang UK)
3 inputs and powerful HDBaseT transmission result is this powerful switching transmitter, perfect for corporate meeting and classroom environments. Automatic or manual switching of 2 HDMI’s or USB-C and CEC power triggering via HDBaseT mean a simple user experience when it matters most. Further functionality allows USB devices to be routed back to the source via USB host (or natively via USB-C) and charging for the connected USB-C device.
3-INPUT SWITCHING TRANSMITTER
Setting a new standard for in-wall HDBaseT transmission, the SW-130-TX-US brings features of the WyreStorm range of professional switchers and packs them into a 2-gang form factor. Automatic or manual switching of the 3 connected sources (2 HDMI and USB-C) is possible with the USB-C supporting alt-mode functionality allowing a portable device such as a tablet or phone to be connected and send its content at up to 4K/30. HDCP 2.2 is also supported for the transmission of encrypted content.
FEATURES TURNED UP TO 11
It’s not all about the A/V when it comes to HDBaseT; with increased functionality on all fronts, the SW-130-TX can be used to send power triggers to a compatible connected screen, allowing centralized control and is PoH compatible meaning it can be passively powered over HDBaseT from a compatible receiver. The SW-130-TX can even power & charge a phone or tablet connected to the USB-C port so you don’t run out of juice mid-flow (max. 5v 2A)
HDCP 2.2 COMPATIBLE
The industry’s latest encryption standard designed to stop the illegal copying & distribution of 4K UHD content; no longer unique to residential solutions WyreStorm presentation switchers are fully compliant with HDCP 2.2, enabling you to de-centralize source devices within an installation.
USB 2.0 PASS-THROUGH
HDBaseT2.0 affords the addition of USB 2.0 pass-through, offering not only KVM functionality for extension of a keyboard/mouse or touchscreen but also full data transfer capabilities. The SW-130-TX has a USB host port allowing USB device data to be routed into the selected laptop (via HDMI). Going further, it can send USB device data natively through the USB-C port allowing a single cable to be used for A/V and USB device connectivity.
In the Box
1x SW-130-TX-UK In-wall Transmitter
1x 4‐pin Phoenix Male Connector
1x USB host cable (Type A-B)
1x Decora face plate (SW-130-TX-UK)
4x Retaining screws (SW-130-TX-UK)
1x Quickstart guide
-
| Category |
Specification |
| Transmission |
HDBaseT Class C |
| End to End Latency |
10µs |
| Max Transmission Bit Rate |
10.2Gbps |
| Video |
HDMI (v2.0b) TMDS |
| Inputs |
2x HDMI In (19-pin type A), 1x USB-C In (USB 3.1c) |
| Outputs |
1x HDBT Out (8-pin RJ45) |
| Max Pixel Clock |
HDMI & HDBaseT: 340MHz |
| Video Resolutions (Max) |
1920x1080p @60Hz, 2560x1440p @60Hz, 3840x2160p @30Hz (8bit 4:4:4), 3840x2160p @30Hz (10bit 4:2:0 HDR), 3840x2160p @30Hz (12bit 4:2:2 HDR) |
| Supported Standards |
DCI, RGB, HDR, HDR10, Dolby Vision, HLG, BT.2020, BT.2100 |
| Audio |
1x Audio In: 3.5mm TRS Stereo, 2ch PCM, DTS-X, Dolby Atmos |
| Maximum Sampling Rate |
192KHz |
| Maximum Audio Channels |
32 |
| Audio Return Channel (ARC) |
Not Supported |
| Communication & Control |
USB Host (Type B), HDMI (Alt-mode, HDCP 2.2, EDID, CEC, USB), RS-232, PoH |
| HDCP |
Pass-Through, HDCP 2.3 Supported |
| EDID |
Pass-Through, from RX |
| CEC |
One-way display trigger to RX |
| Auto Low Latency Mode (ALLM) |
Supported |
| Variable Refresh Rate (VRR) |
Supported |
| Power Supply |
12V DC 1A (not included) |
| Max Power Consumption |
7.8W |
| PoH |
Supported, 1-way from RX |
| Additional Features |
HDBaseT switcher for video conferencing, compatible with DVI-I and DP++, CEC trigger, RS-232 control, TS-280 touchscreen support |
-
