Xantech HDMI 4K 2x1 Switcher with Audio Breakout and EDID Management | XT-SW21-4K18G
SKU: XT-SW21-4K18G
£199.00 (Excl. VAT)
- Description
- Specifications
- Downloads
-

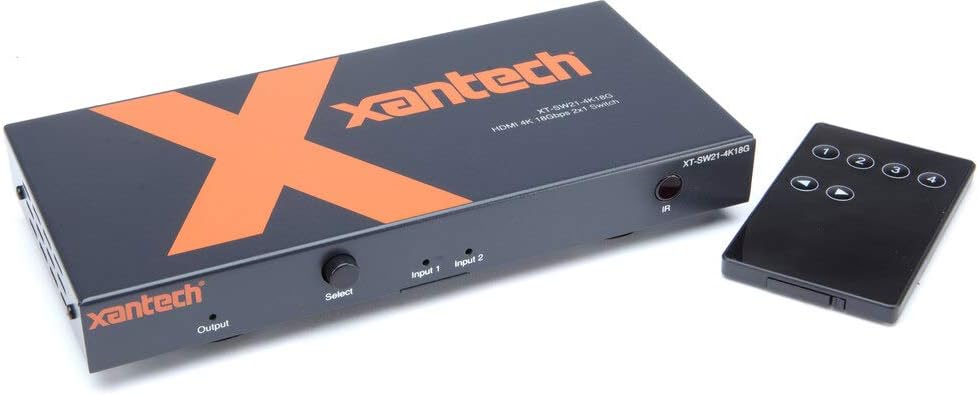

Xantech HDMI 4K 2x1 Switcher with Audio Breakout and EDID Management
The XT-SW21-4K18G 4K HDMI 2.0 switcher distributes
two HDMI sources to a single output. Supports video resolutions up to 4K @ 60Hz 4:4:4.
The XT-SW21-4K18G 4K HDMI 2.0 switcher distributes 2x HDMI sources to a single output. The switcher supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4. The 2-Way switcher also includes the advanced features of audio breakout, EDID management and RS-232 control for integration with third-party control systems.
Important Note: This product uses Xantech’s legendary 12v IR signal to ensure reliability. We recommend using any of Xantech’s IR receivers and emitters. This product is also compatible with all ELAN controller IR outputs.
HDCP 2.2
HDCP2.2 is the next generation of copy protection required to allow the playback of the latest 4K source media.
4K
A 4K display has four times the number of pixels than your current Full HD 1080p display so the image is of much higher clarity and detail.

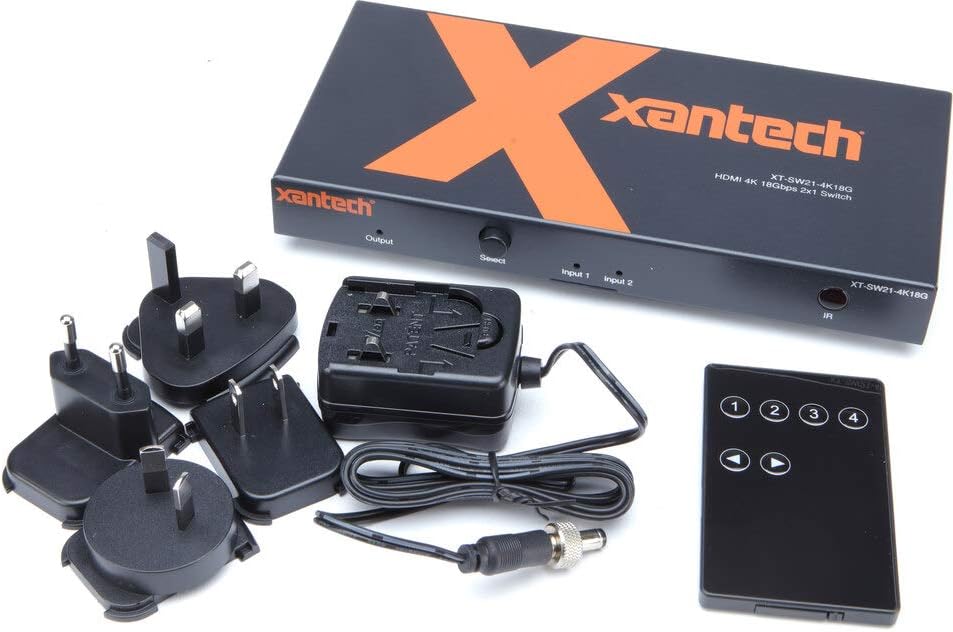

Package Contents
1x XT-SW21-4K18G
1x 5V/1A DC Power Supply
1x Remote Control
1x Mounting Kit
1x Quick Reference Guide
Xantech XT-SW21-4K18G Features at a Glance
Features 2x HDMI inputs that can be switched to a single HDMI output
Supports full HDMI 2.0 specification 4K UHD video (4K @ 60Hz 4:4:4)
Supports 3D signal display
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports all known HDMI audio formats including Dolby TrueHD®, Dolby Atmos®, Dolby Digital Plus® and DTS-HD® Master Audio Transmission
HDMI audio breakout to analog L/R audio and coaxial digital outputs concurrently*
Supports CEC bypass (Consumer Electronics Control)
Controlled via front panel, IR and RS-232
Advanced EDID management
HDCP 2.2 compliant -

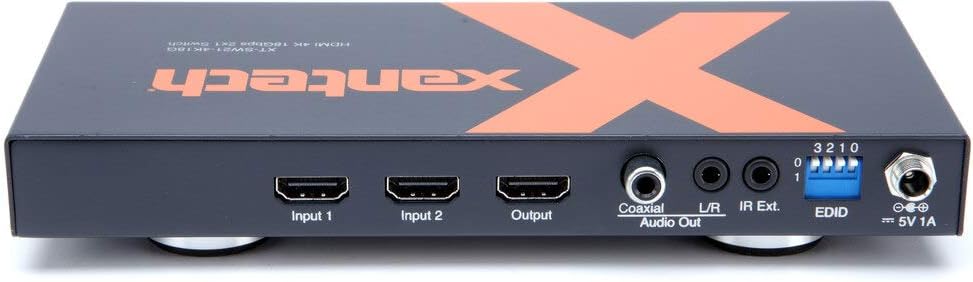

Specification Details Video Input Connectors 2 x HDMI Type A, 19-pin, female Video Output Connectors 1 x HDMI Type A, 19-pin, female Audio Output Connectors 1 x RCA (SPDIF), 1 x 3.5mm stereo jack (L/R) IR Input Ports 1 x 12V 3.5mm stereo jack EDID 4-Pin DIP switch Dimensions (with connections) 197 x 104 x 30mm Dimensions (without connections) 197 x 94 x 23mm Individual Weight 0.5kg (excluding accessories) Carton / Box Dimensions 291 x 153 x 85 mm Shipping Weight 1.0kg Operating Temperature 32°F to 104°F (0°C to 40°C) Storage Temperature -4°F to 140°F (-20°C to 60°C) Power Supply 5V / 1A DC, screw type connector Shipping Info Length: 11.6 inches, Width: 6.2 inches, Height: 3.4 inches, Weight: 1.9 lbs UPC 042777797028 -
Description Downloads Xantech HDMI 4K 2x1 Switcher with Audio Breakout and EDID Management | XT-SW21-4K18G User Manual Downloads
