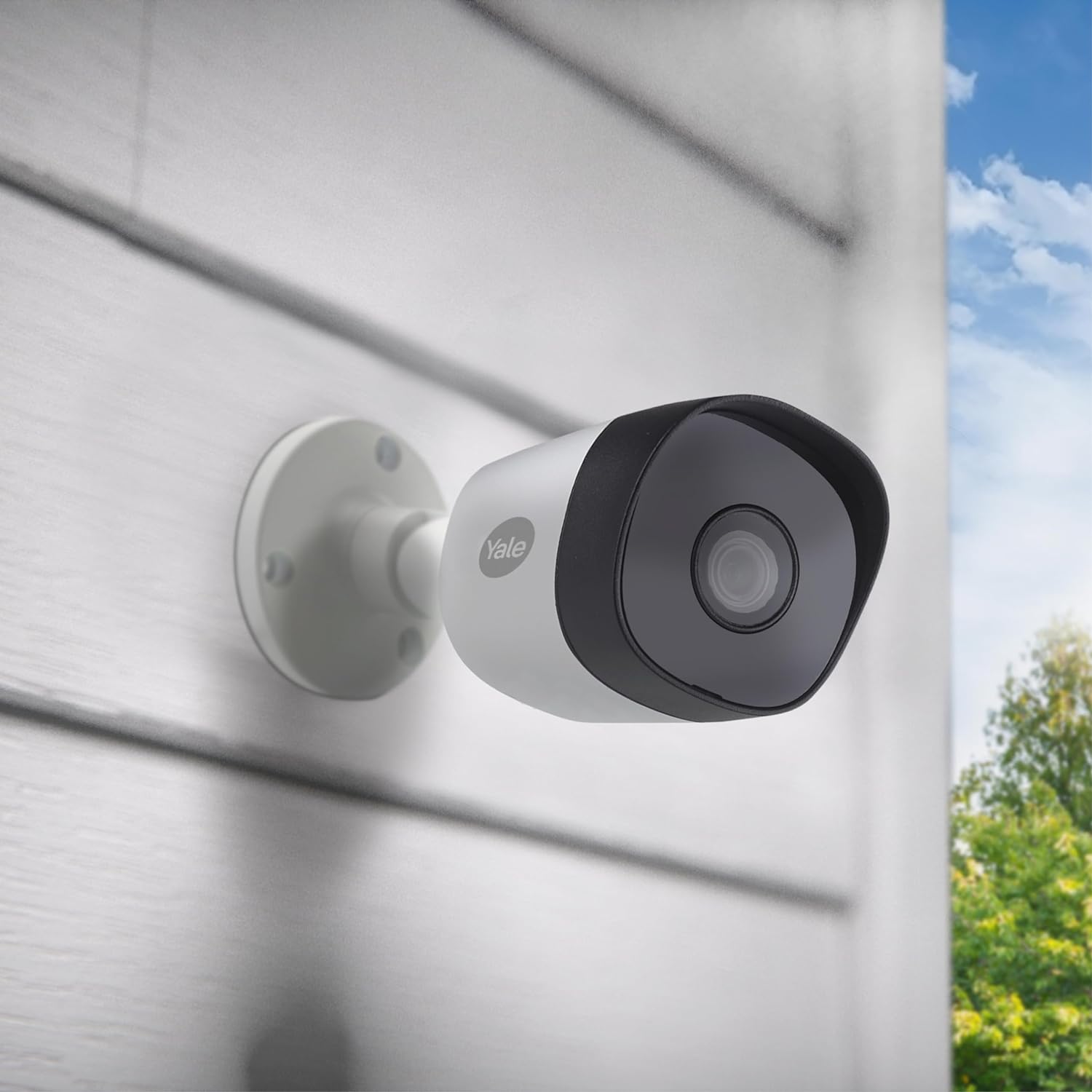

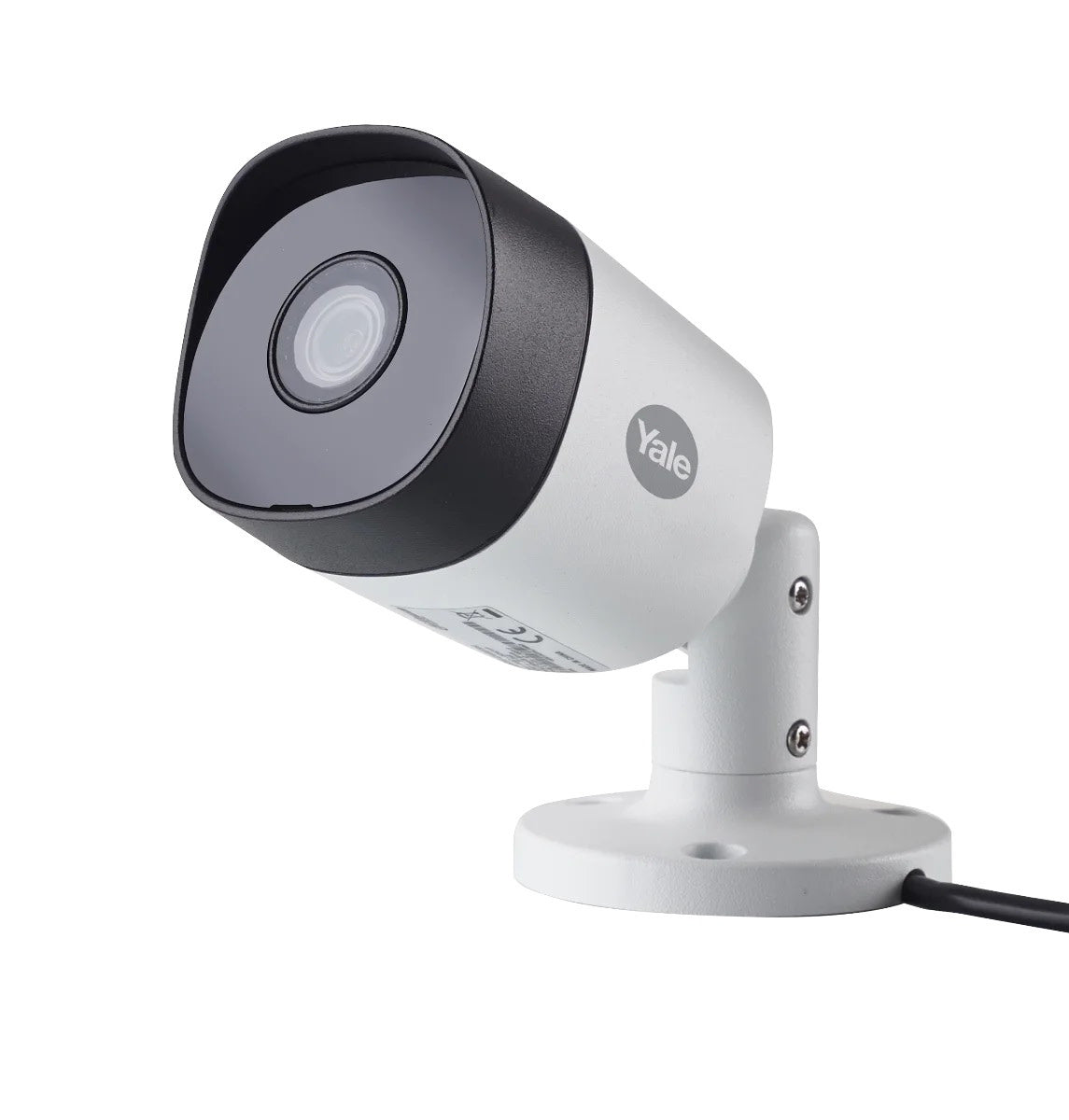

The Yale HD1080 Camera is an accessory for the Yale Smart Home CCTV range, allowing you to view and record live footage from your property. The camera can record around the clock with 20m enhanced night vison and is suitable for outdoor use.

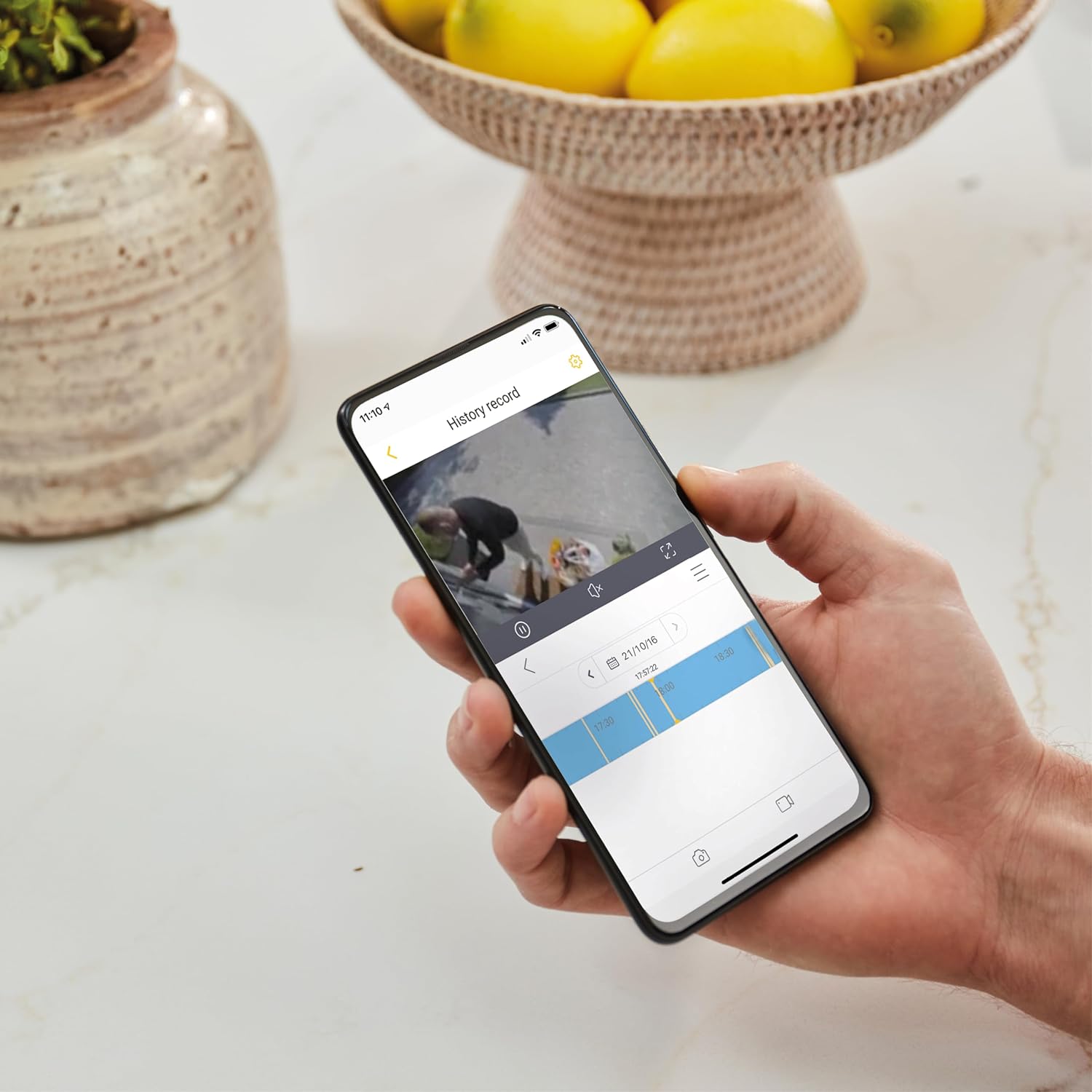

At Yale, all of our outdoor security cameras, including the Smart CCTV kits and All In One Cameras, come, as standard, with an ‘Image Masking’ feature, which is controlled via the handy Yale View App.
When setting up your Cameras, the image masking functionality allows users to simply select the areas that need to be covered by the motion detection feature, whilst ignoring any others that do not require camera coverage.
Not only does this provide complete control for users, but homeowners can also ensure they are complying with privacy laws and not collecting footage from neighbouring homes.
Yale also provides window stickers in all its CCTV or security camera kits to allow homeowners to clearly display that their home is being monitored, ensuring that they are taking responsibility for not encroaching on a neighbour’s privacy.
We would always advise anyone using outdoor Cameras to make sure the position of your cameras comply with your legal obligations under the data protection laws. More information on this can be found on the ICO (Information Commissioner's Office) website.
| Feature | Details |
|---|---|
| Brand | Yale |
| SKU | 10346653 |
| Manu Part # | SV-ABFX-W-2 |
| EAN | 5011802338197 |
| FEATURES | |
| Live Viewing | View live feed from your cameras when connected to DVR |

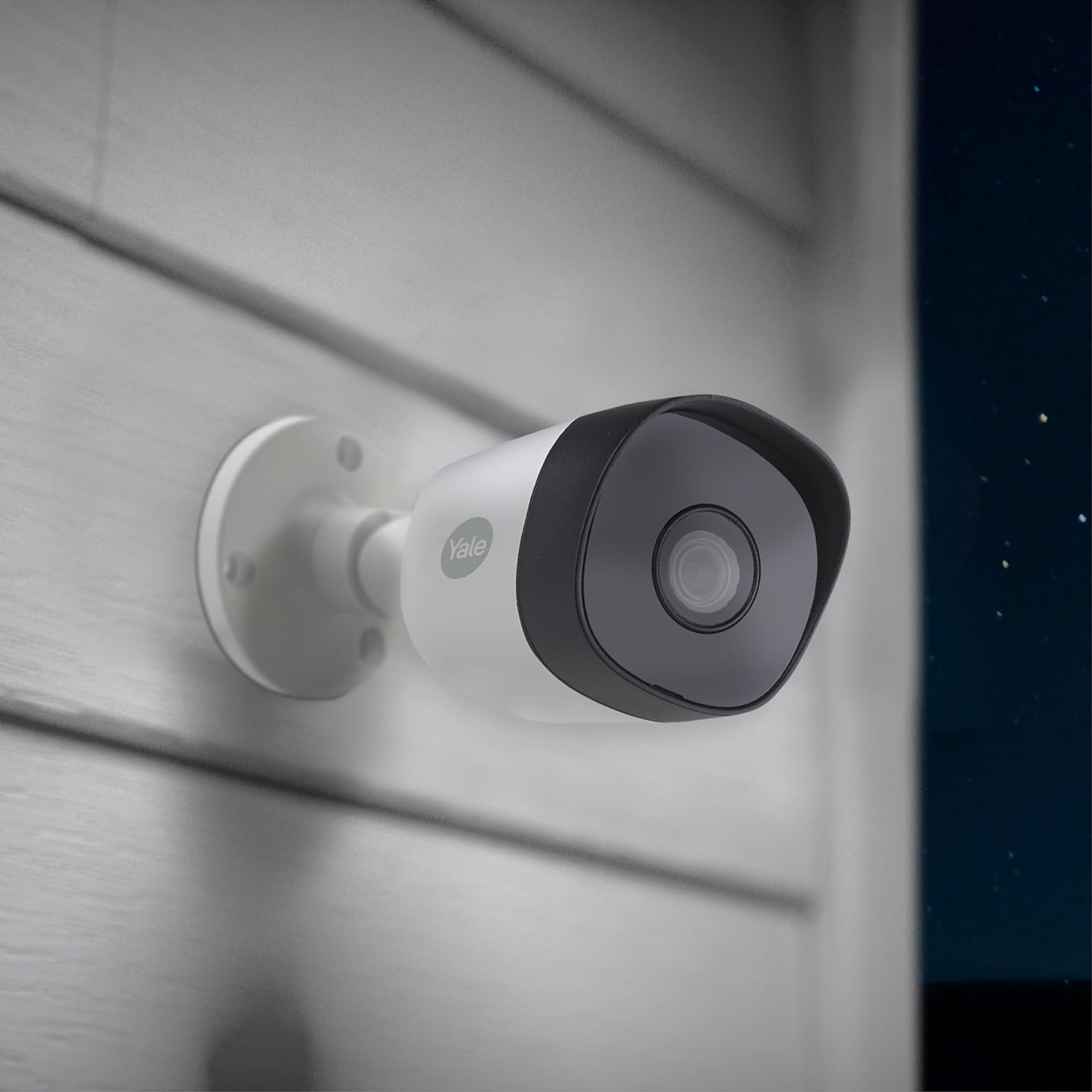

| Night Vision | 20m Night vision – Clear footage around the clock |
| HD Quality | Full HD1080 High Definition Quality – Crisp detailed footage |
| Expandable | Accessory for Yale Smart Home CCTV Kit |

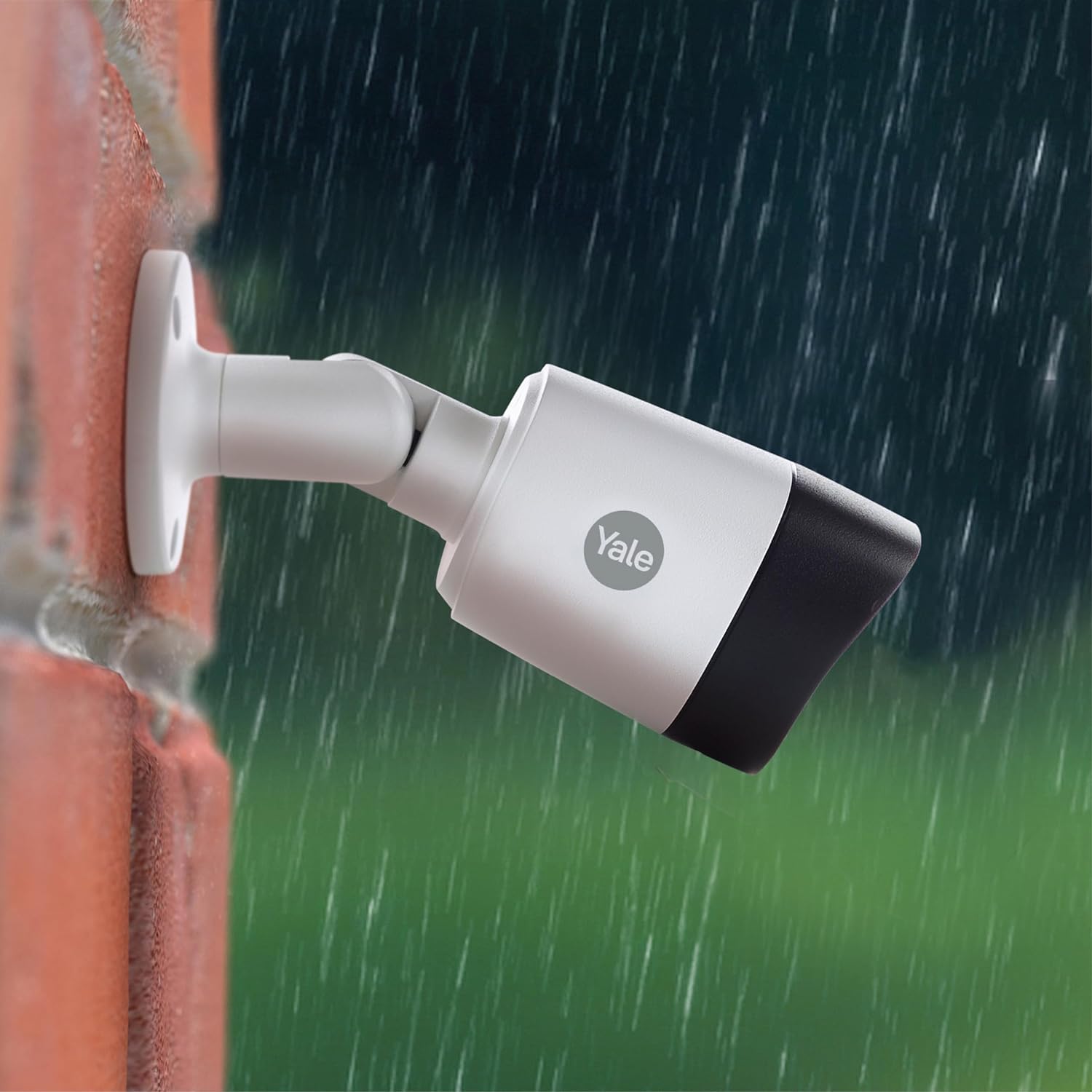

| Weatherproof | Ready for the elements come rain or shine |
| End-to-end encryption | Video and audio streams can be secured when 'customised encryption' is selected in the Yale View App |
| DESIGN | |
| Mounting type | Desk/Wall |
| Product colour | Grey, White |
| Form factor | Box |
| Weatherproof | Yes |
| PANORAMIC CAMERA | |
| Supported video modes (panoramic camera) | 1080p |
| PERFORMANCE | |
| Type | CCTV security camera |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| PACKAGING CONTENT | |
| Packaging content | 1 x HD1080 BNC Bullet Camera, 1 x 18m BNC Cables, 1 x Power Adaptors, Fixing Pack |
| Bundled software | Yale View App |
| Cables included | BNC |
| Number of cameras | 1 |
| NETWORK | |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Live view | Yes |
| CAMERA | |
| Field of view (FOV) angle | 90° |
| SYSTEM REQUIREMENTS | |
| App required for full functionality | Yes |
| Mobile operating systems supported | Android, iOS |
| PORTS & INTERFACES | |
| BNC output ports | 1 |
| WEIGHT & DIMENSIONS | |
| Cable length | 18 m |
| POWER | |
| Power source type | AC, DC |
| DC output voltage | 12 |
| AC input voltage | 110 - 240 V |
| NIGHT VISION | |
| Night vision distance | 20 m |
| Night vision | Yes |
| Description | Downloads |
|---|---|
| Yale Smart Home HD1080 Surveillance Camera - SV-ABFX-W-2 User Manual | Downloads |
