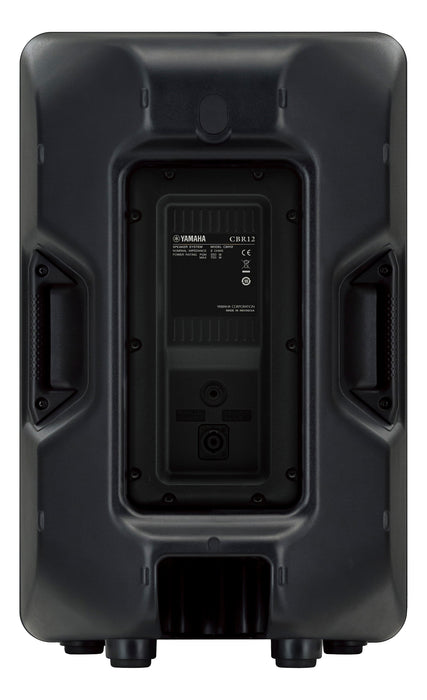

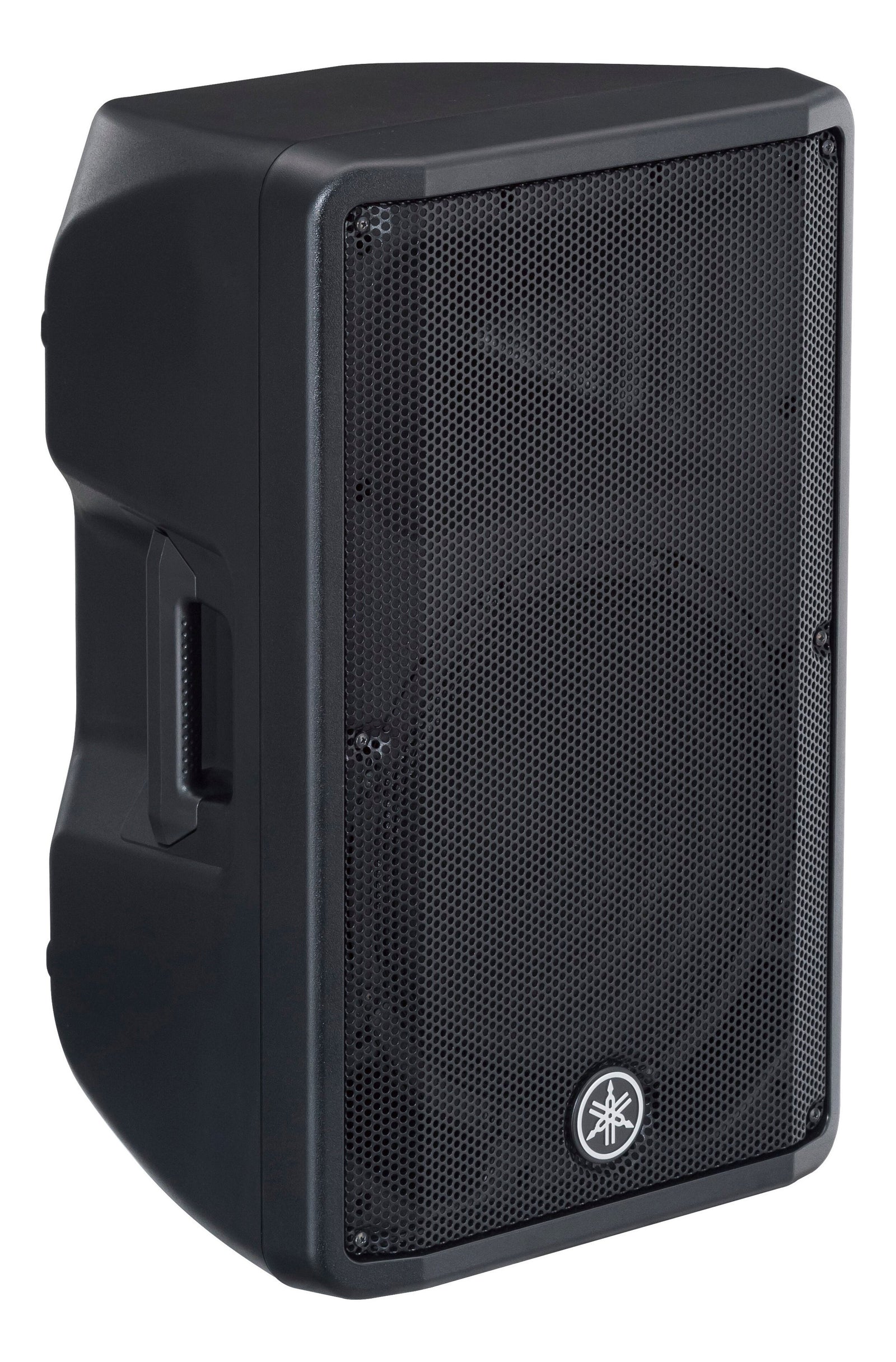

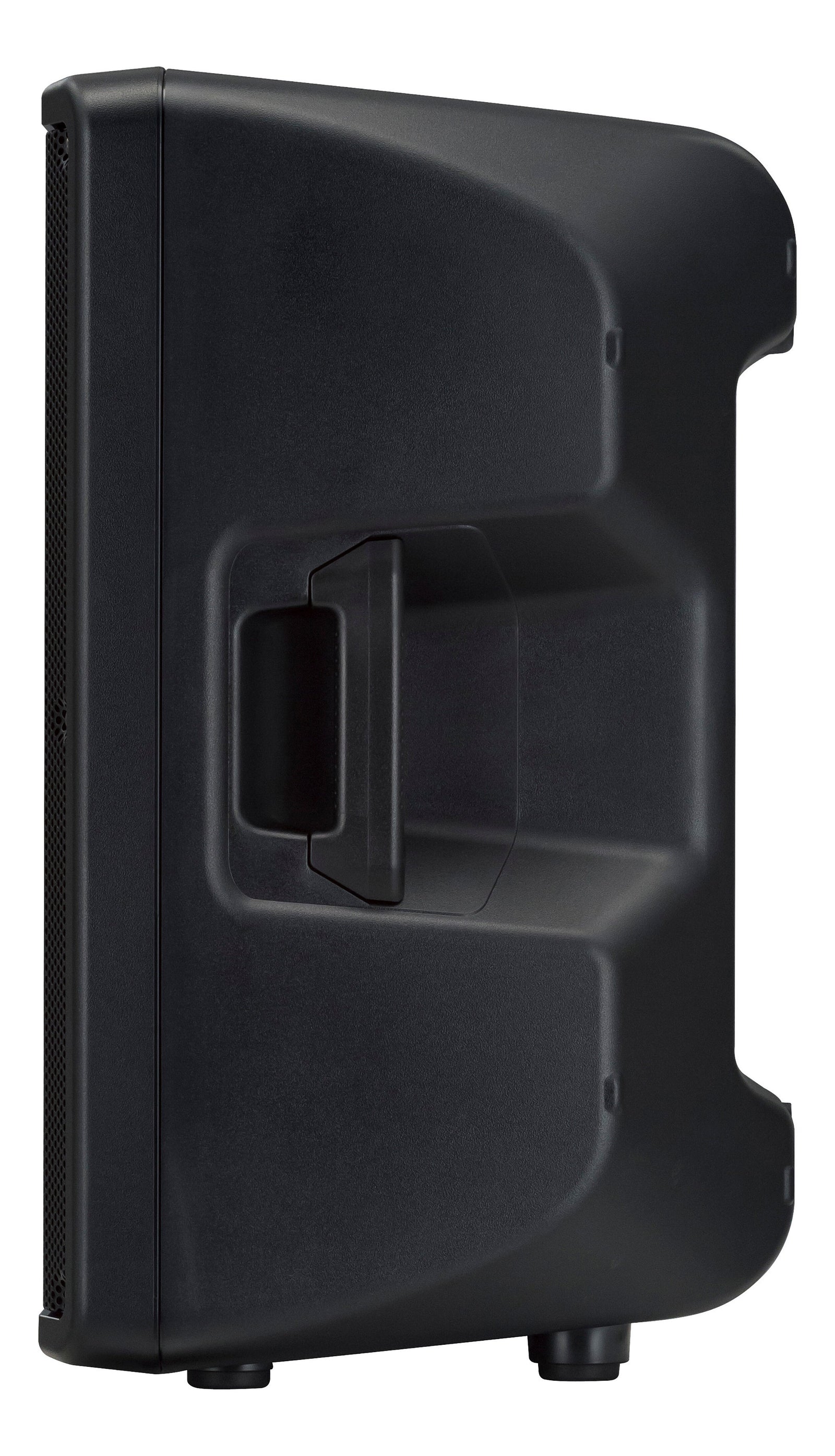

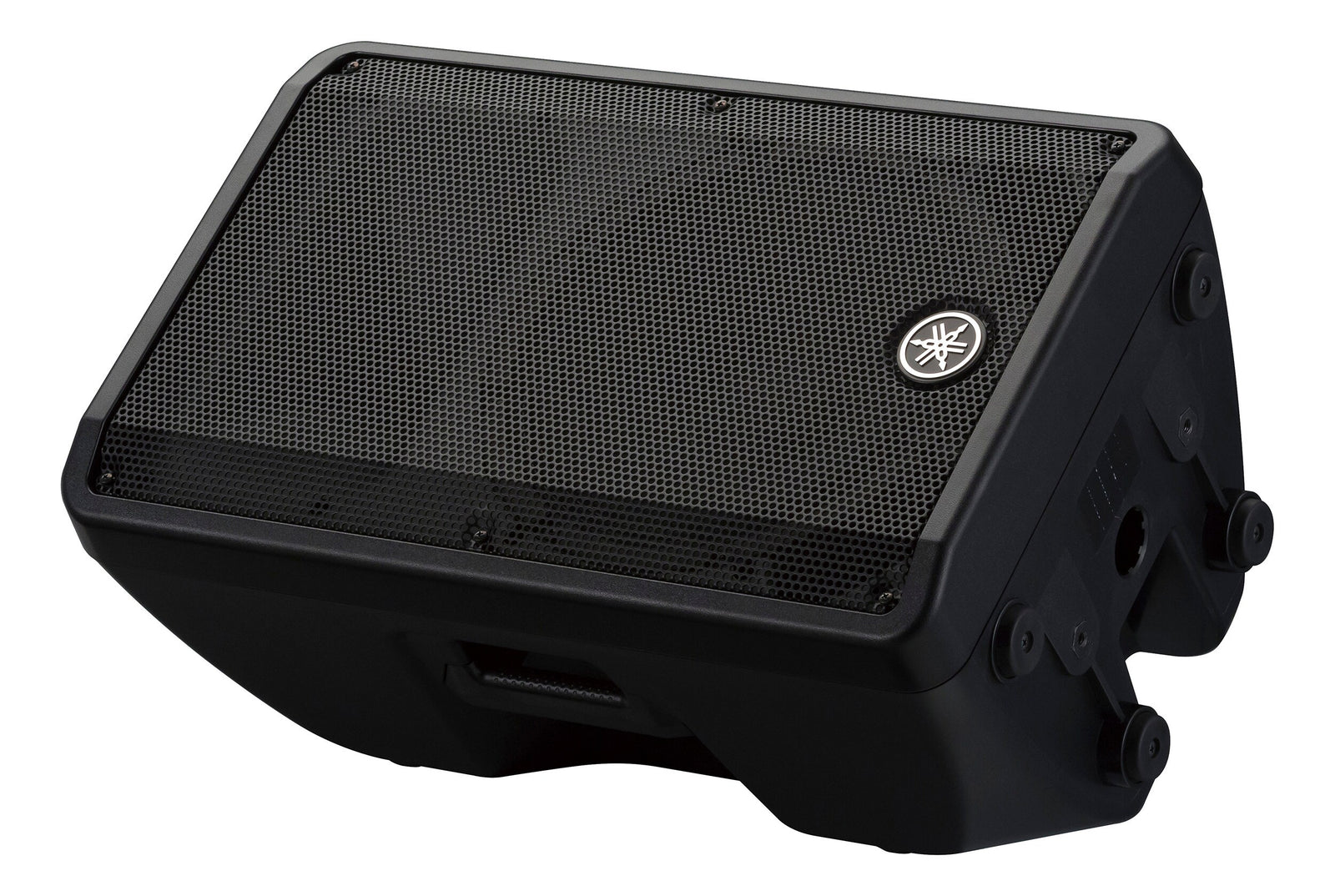

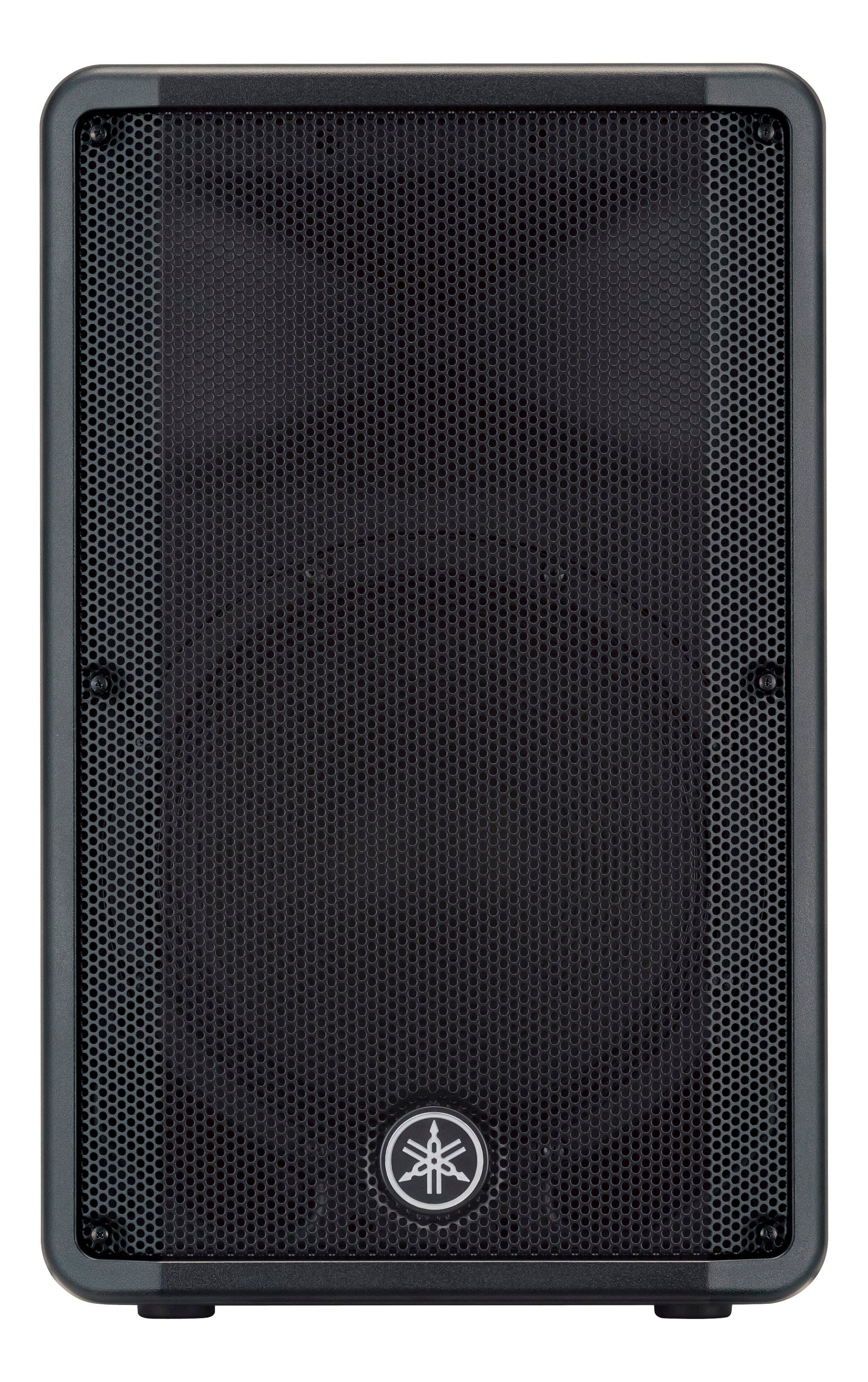

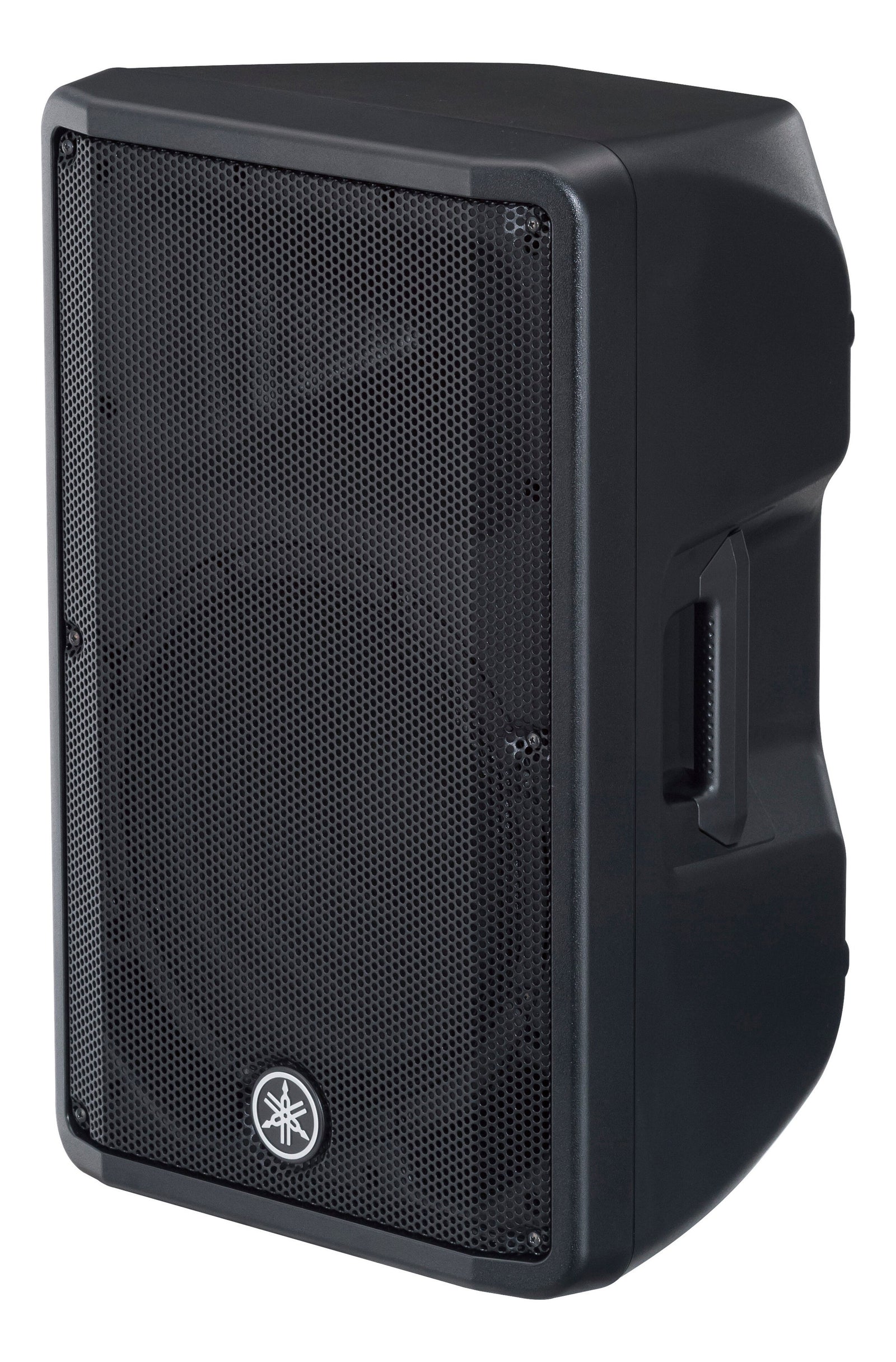

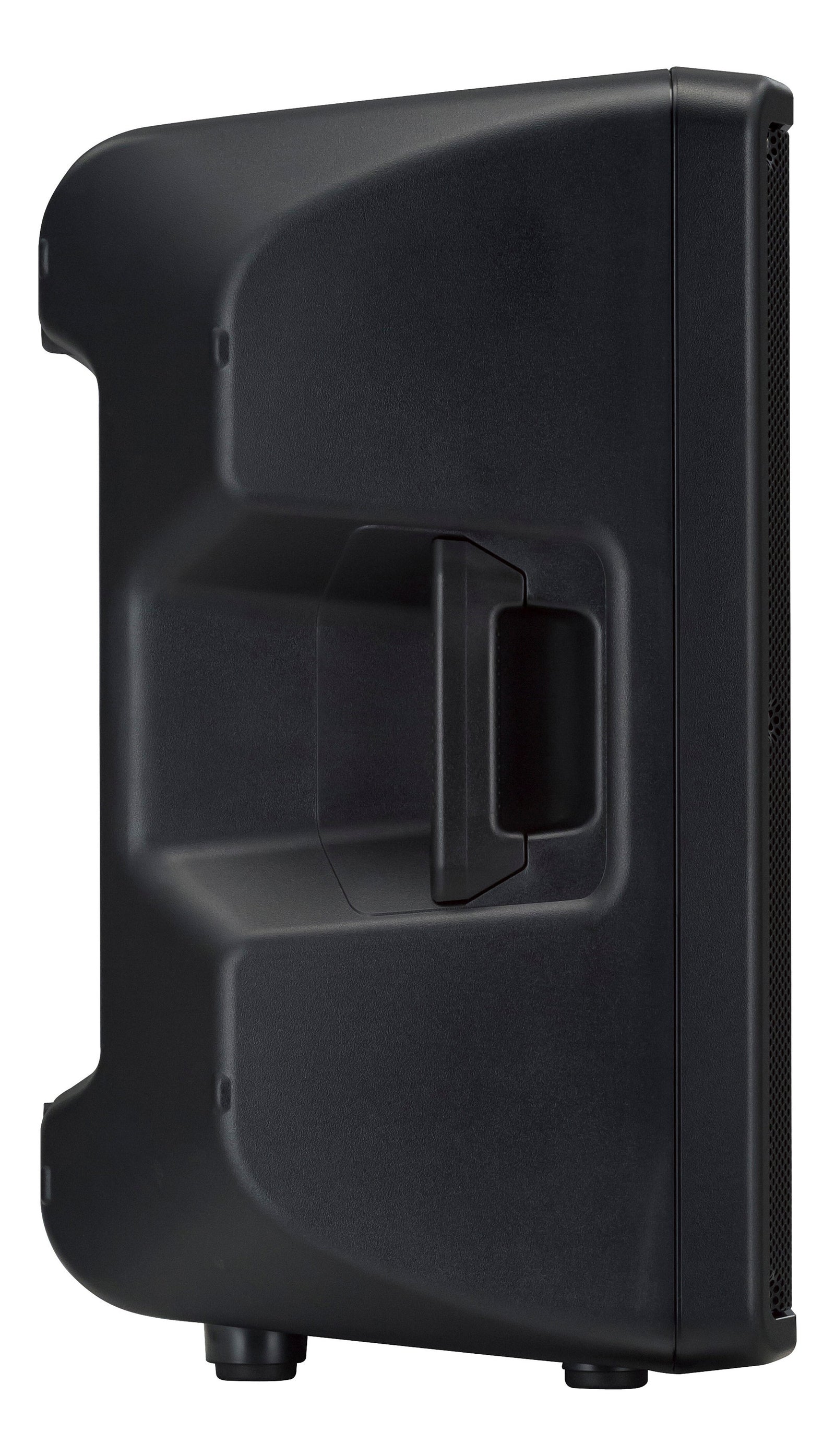

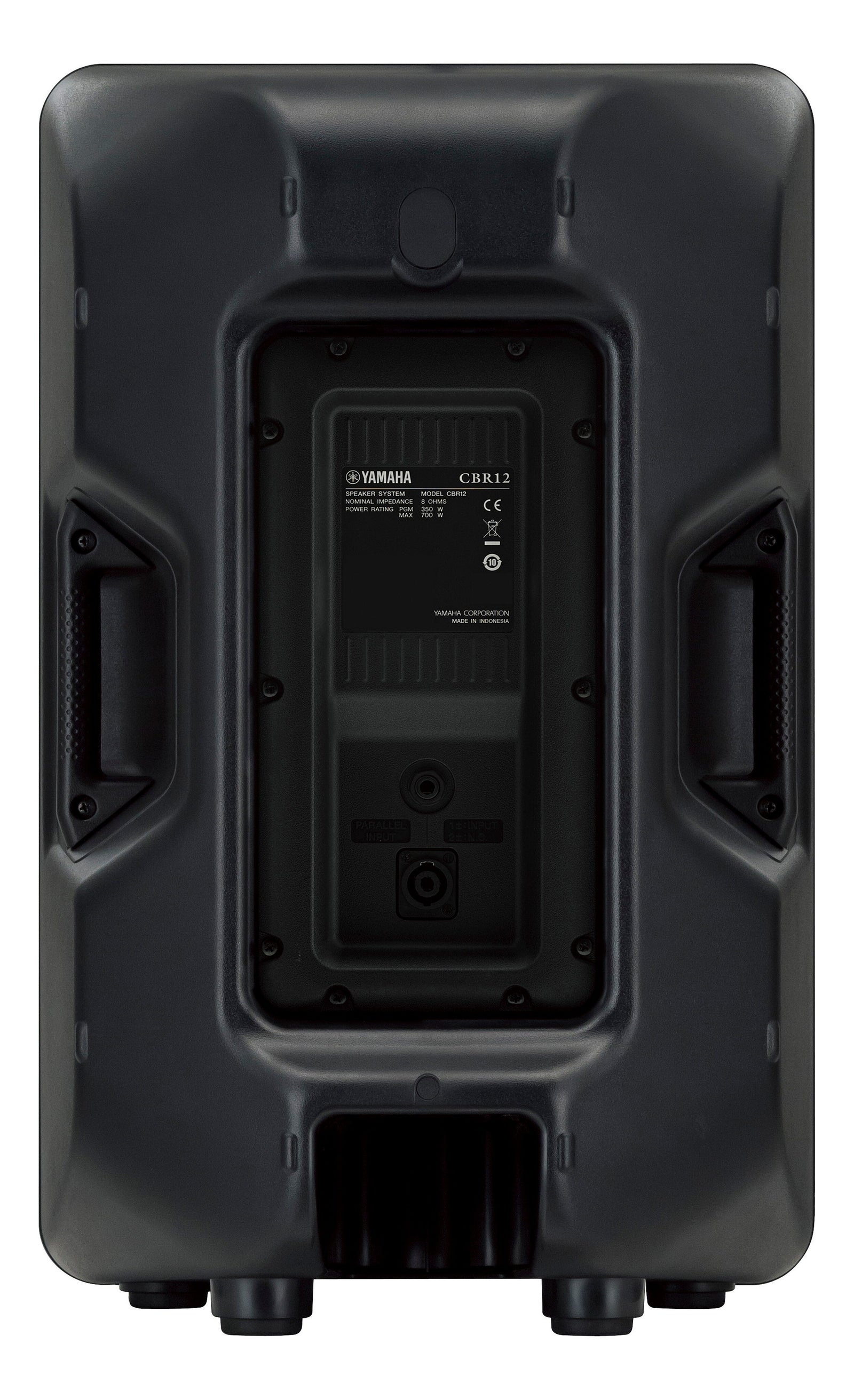

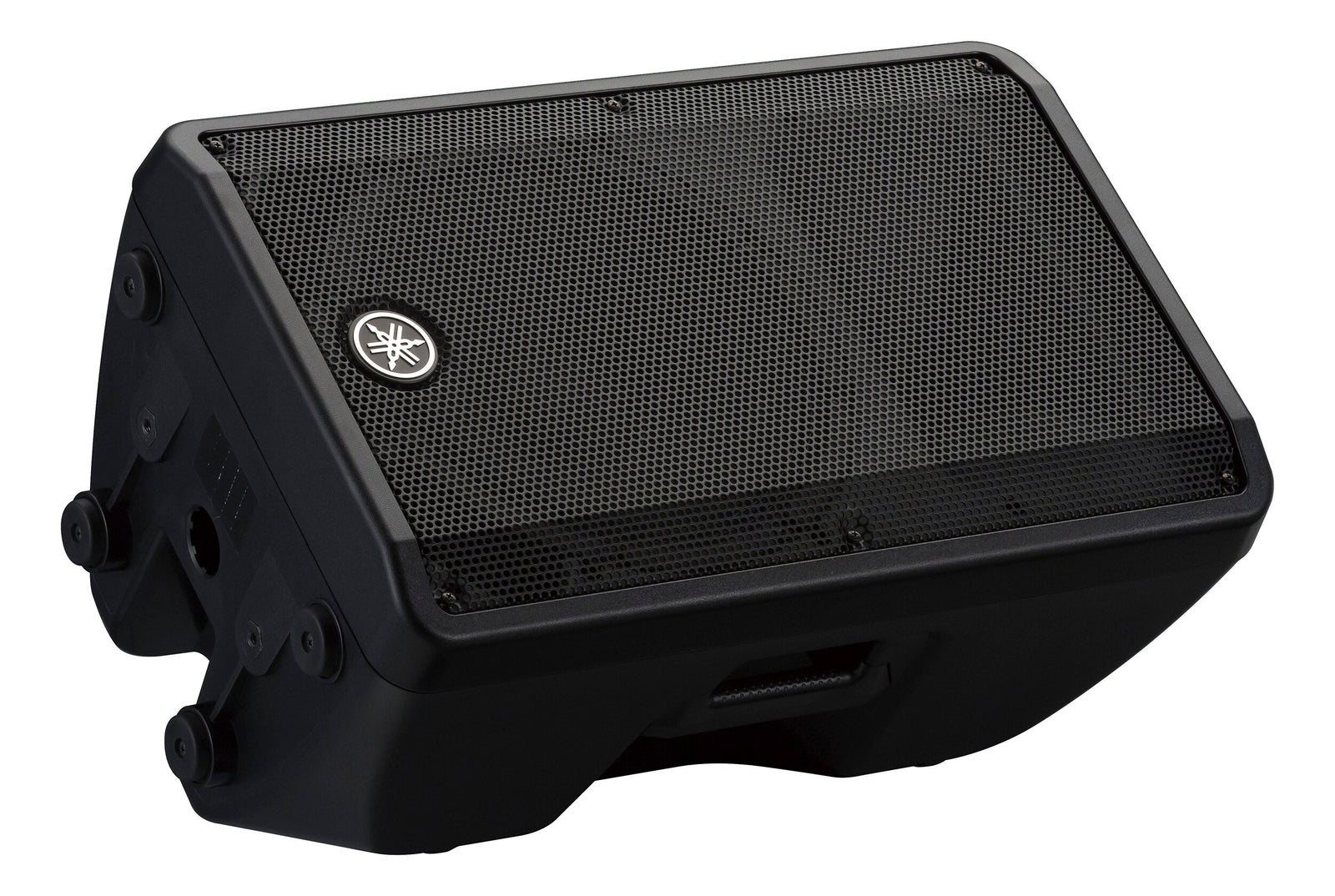

Passive Full Range Speaker
Equipped with: 12" + 1.4"
Frequency range: 48 - 20,000 Hz
Rated power: 700 W peak/ 350 W program
Impedance: 8 Ohm
Sensitivity: 125 dB
Speaker twist inputs
Dimensions (W x H x D): 378 x 601 x 348 mm
Weight: 13.9 kg
| Sales Unit | 1 piece(s) | Power Handling | 700 W |
| Number of Woofers | 1 | Woofers (Inch) | 12" |
| Colour | Black | Width | 376 mm |
| Depth | 348 mm | Height | 601 mm |
| Weight | 13.9 kg | Monitor Angle | Yes |
| IP Class | No | RMS Power | 175 W |
| Impedance | 8 Ohms | Flyable | M8 |
| SPL | 125 dB | Number of Midrange Speakers | 0 |
| Number of Mid-Tone Speakers | 0 | Mid-Tone Speakers (Inch) | none |
| Number of HT-Speakers | 1 | HT-Speakers (Inch) | 1.4" |
| Ways | 2-Way | Housing Material | Plastic |
| Construction | Standard Cabinet | Stand Flange | 36 mm |
| Input | Speaker Twist; Jack | Output | Speaker Twist; Jack |
| Frequency Range (-10dB) from | 48 Hz | Frequency Range (-10dB) to | 20000 Hz |
| Horizontal Beam Angle | 90° | Vertical Beam Angle | 60° |
| Description | Downloads |
|---|---|
| Yamaha CBR12 Full Range Passive PA Speaker DataSheet | Download |
