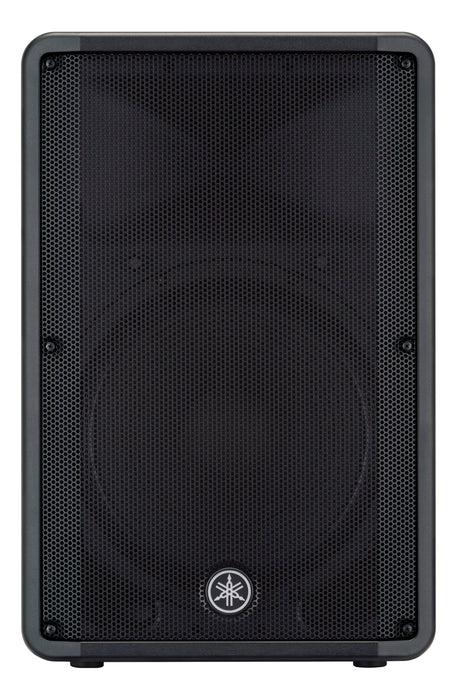

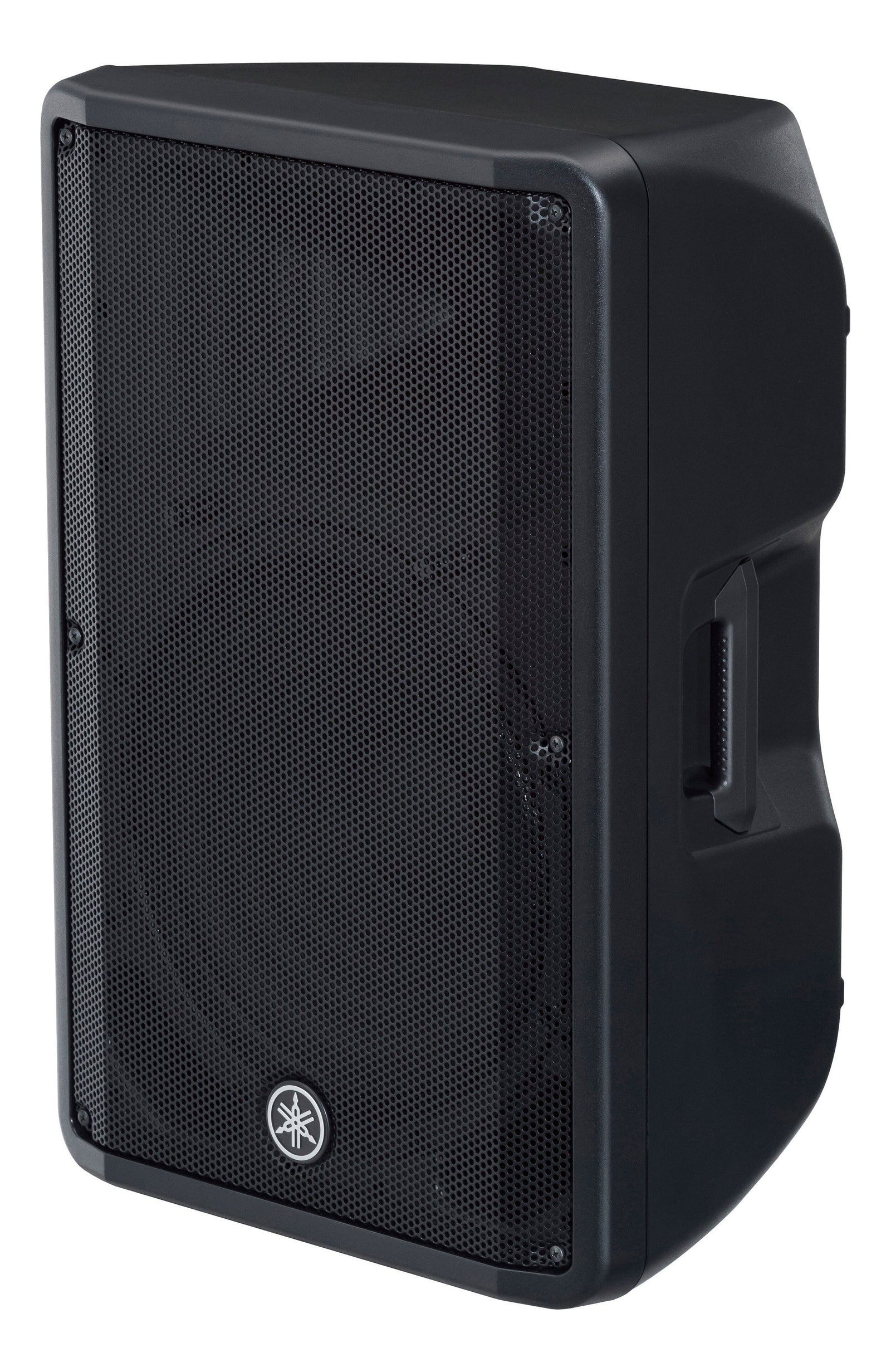

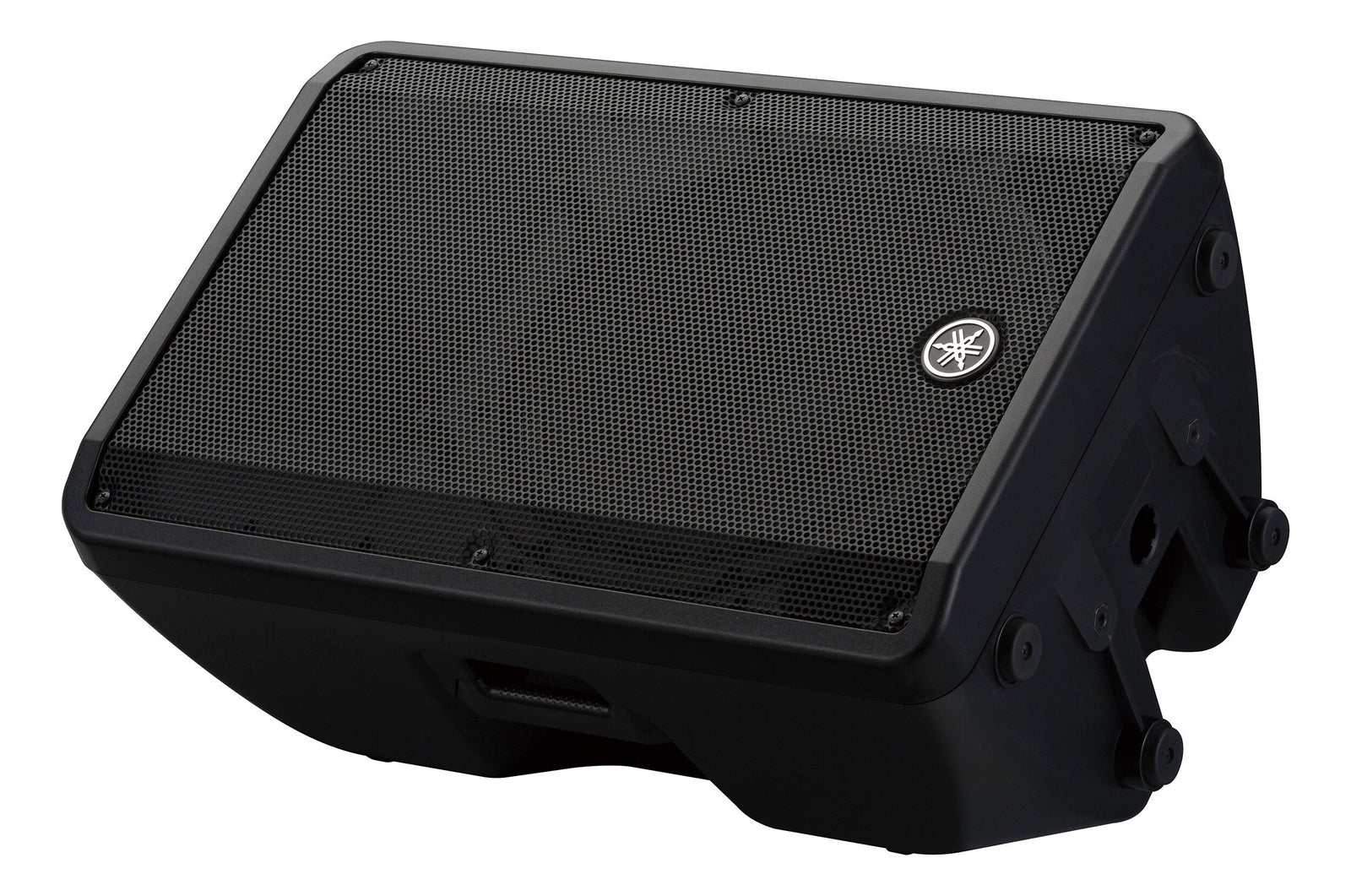

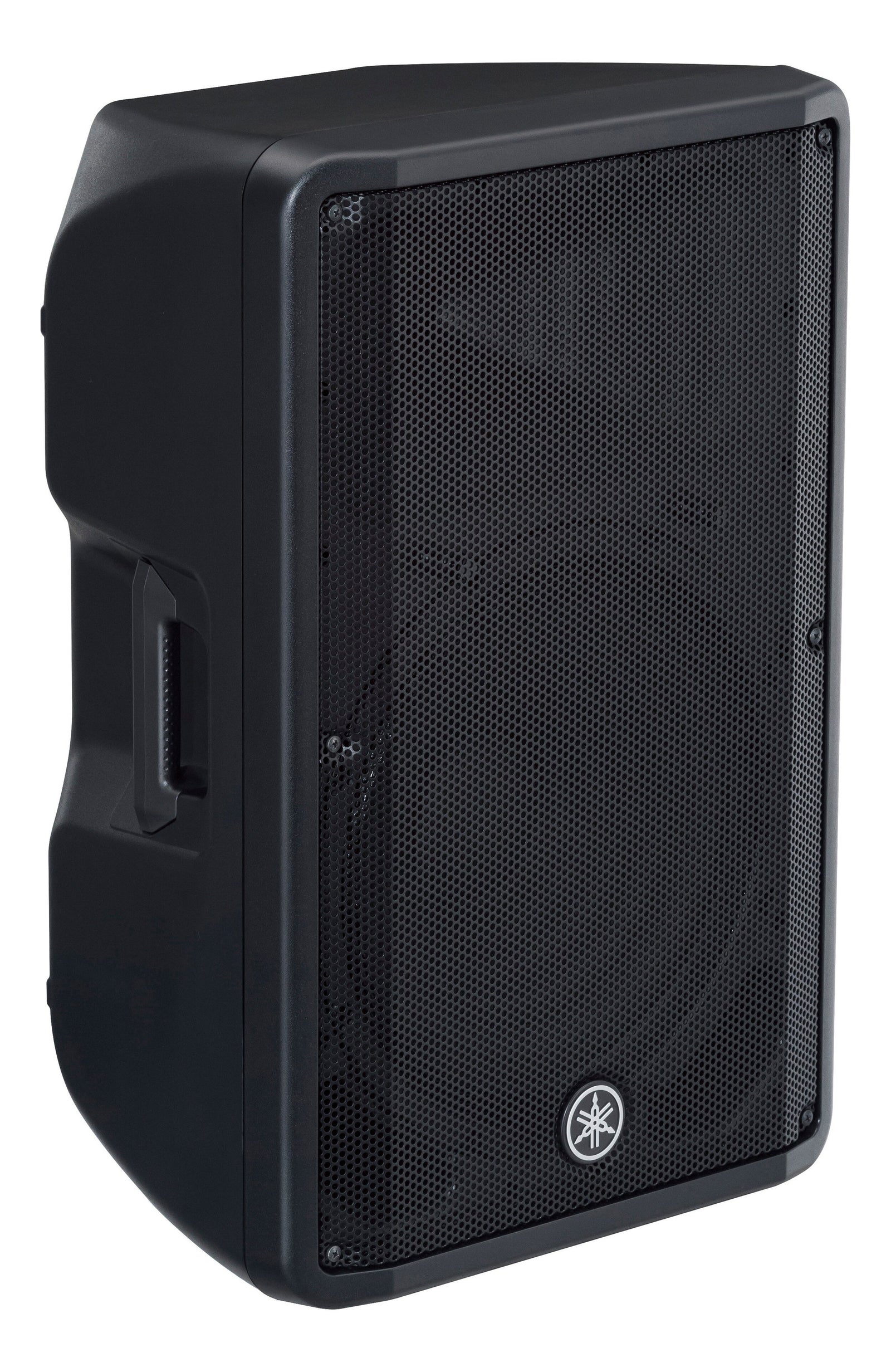

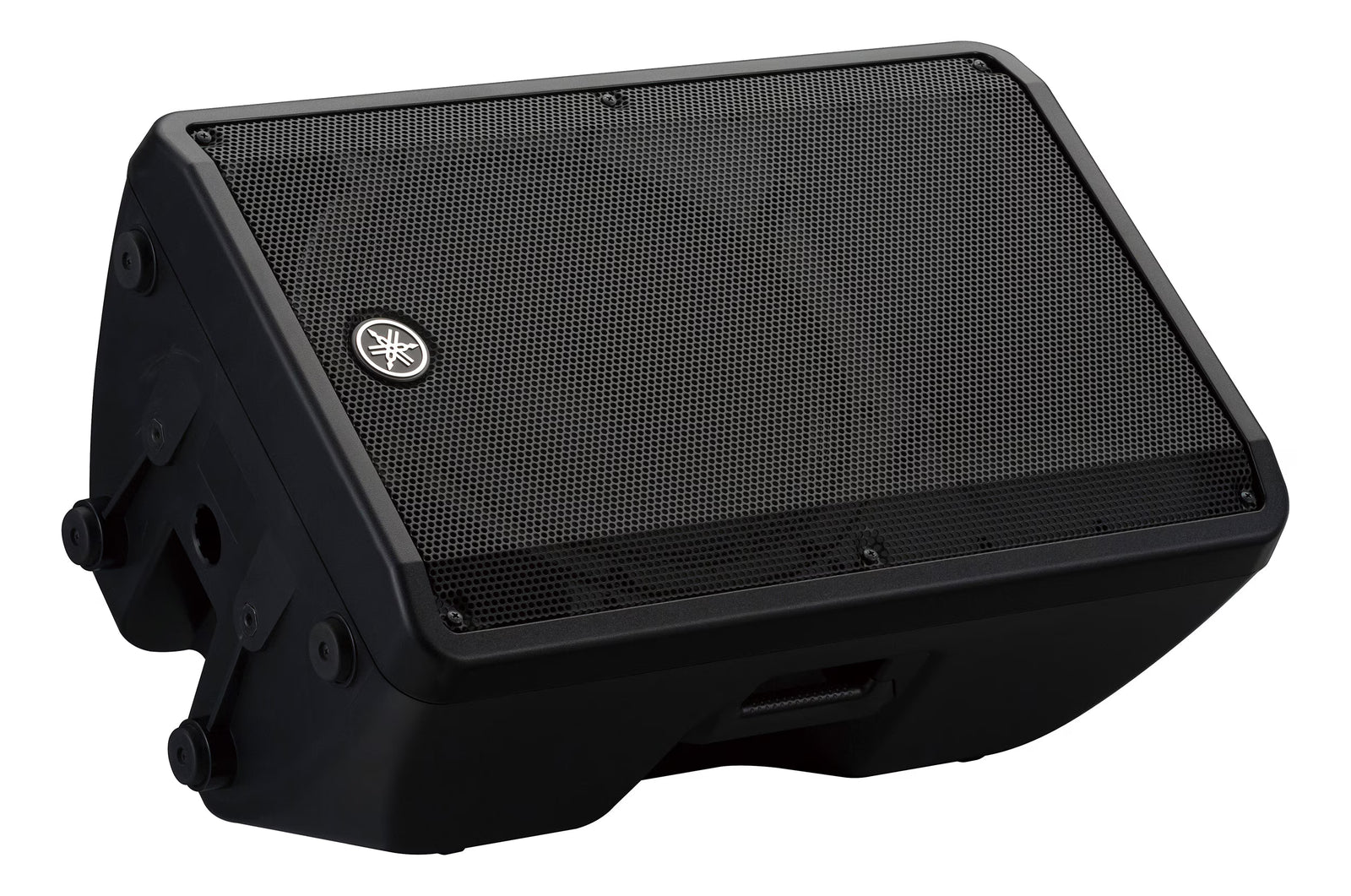

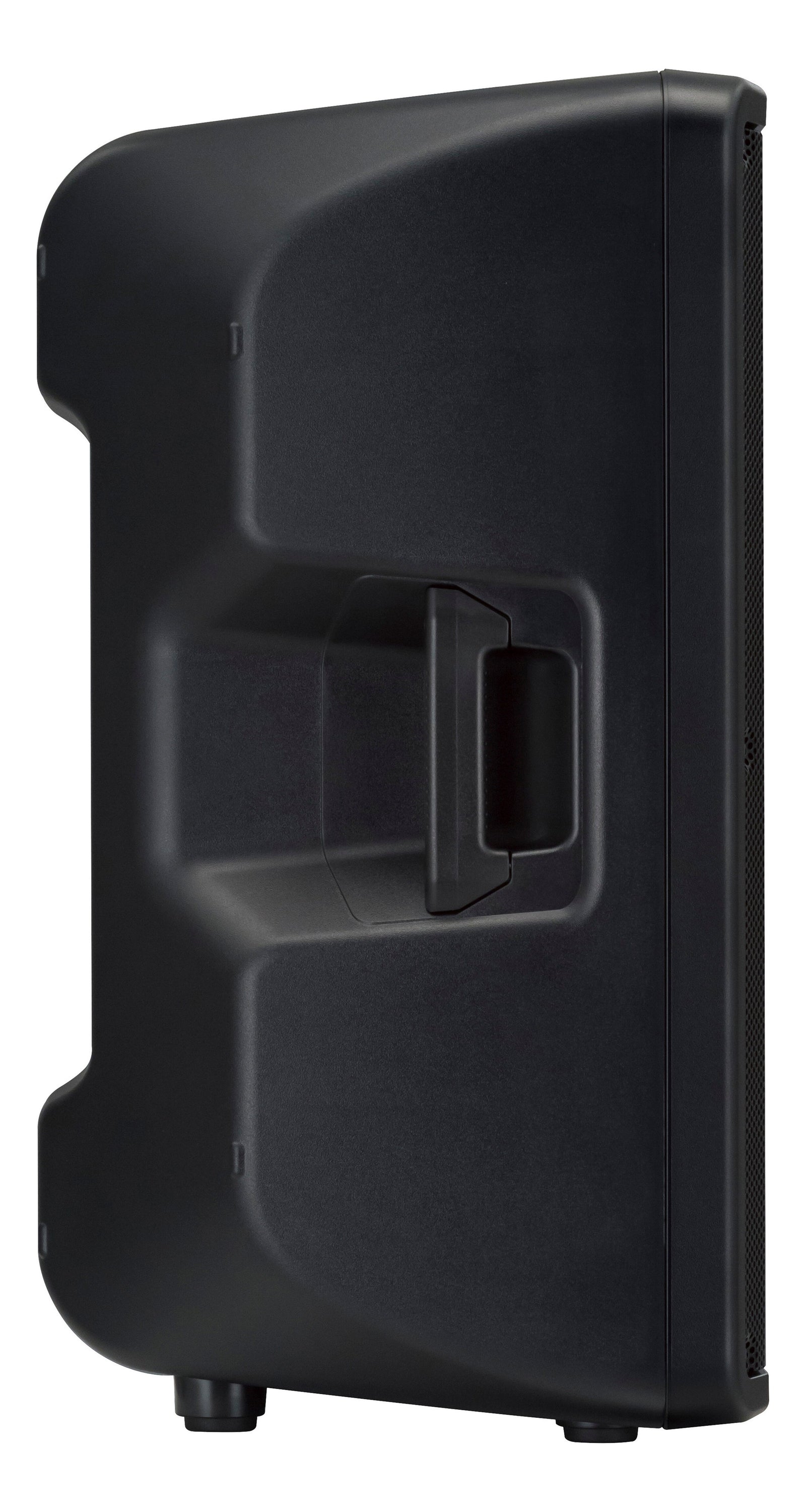

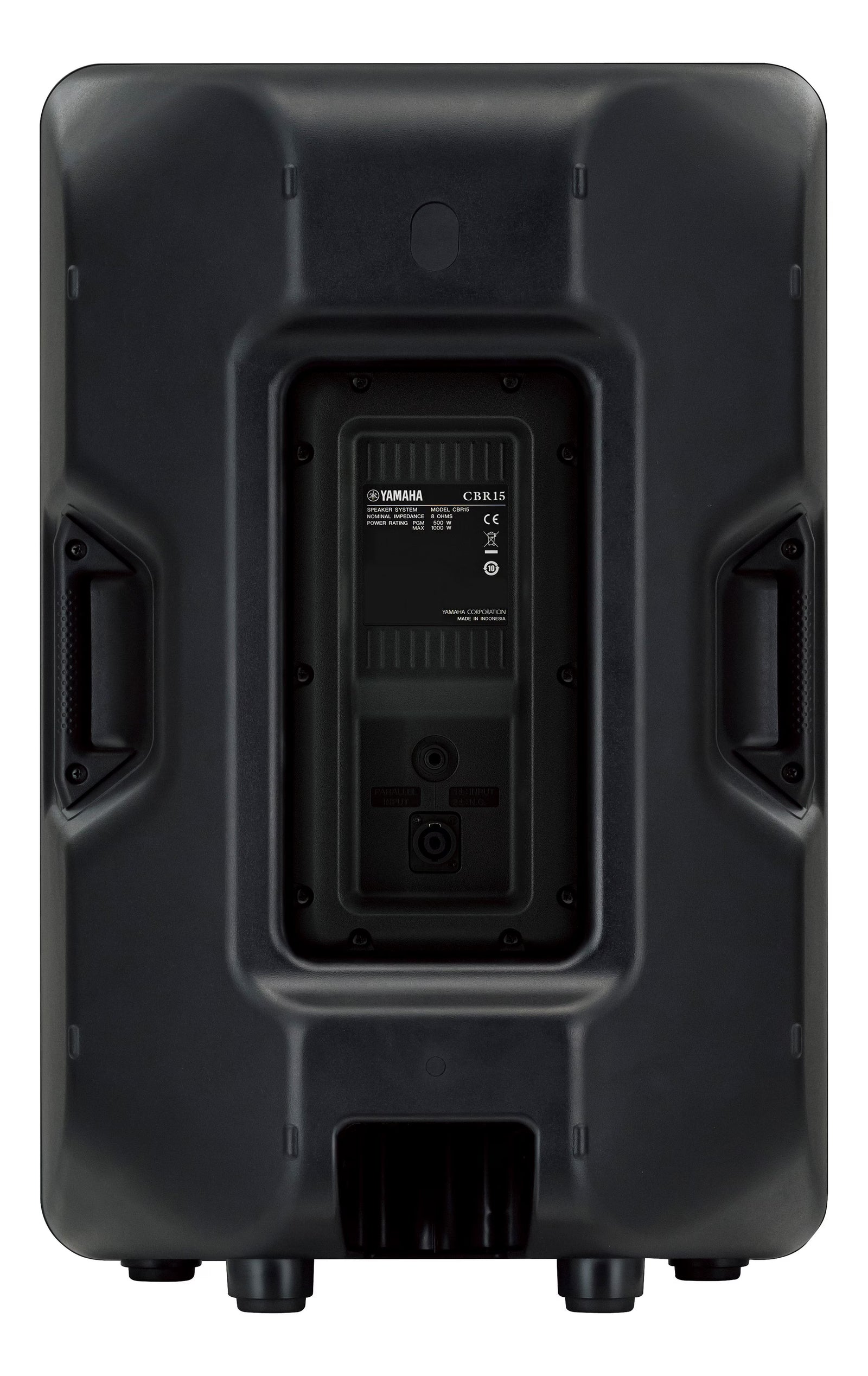

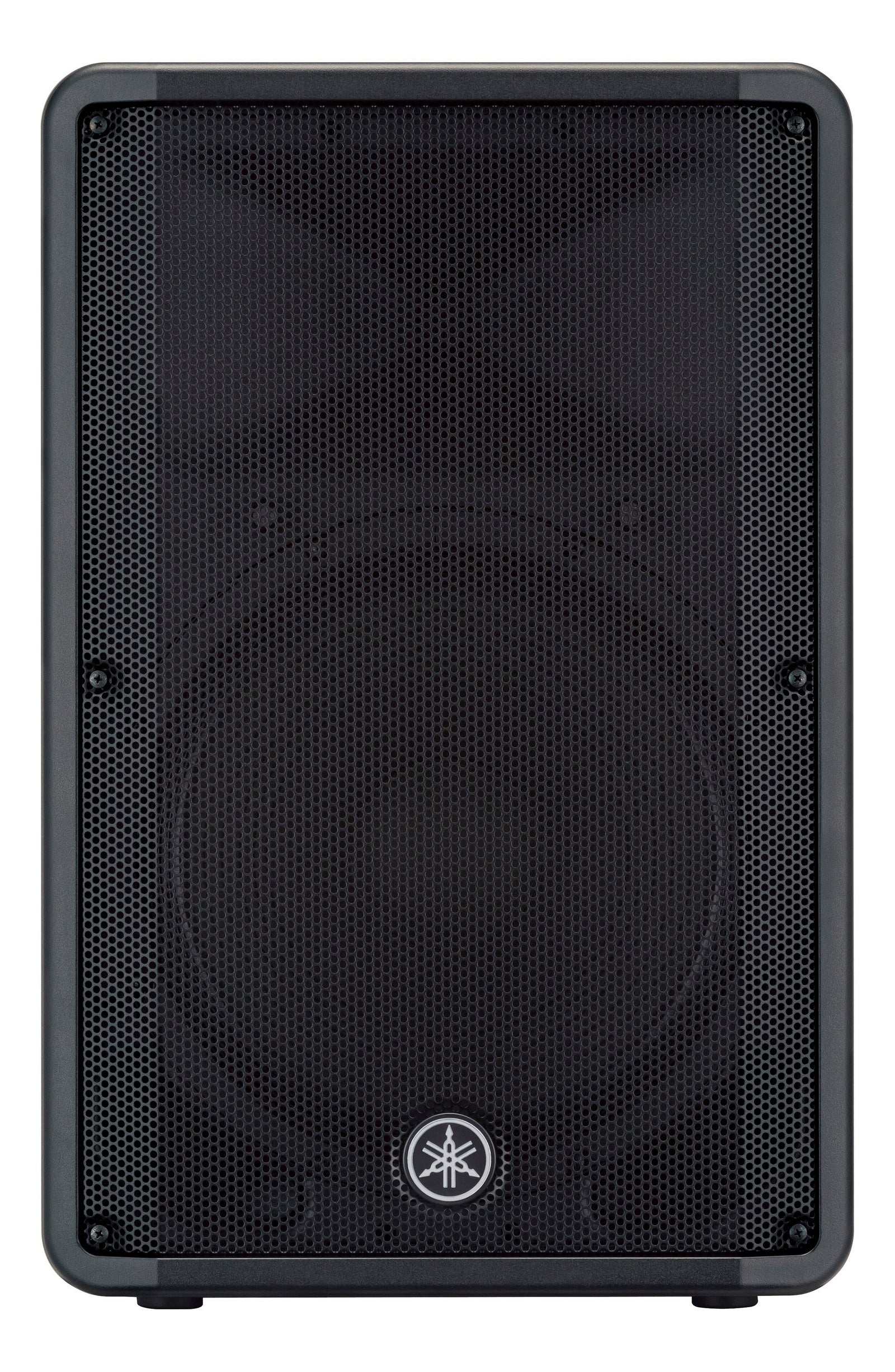

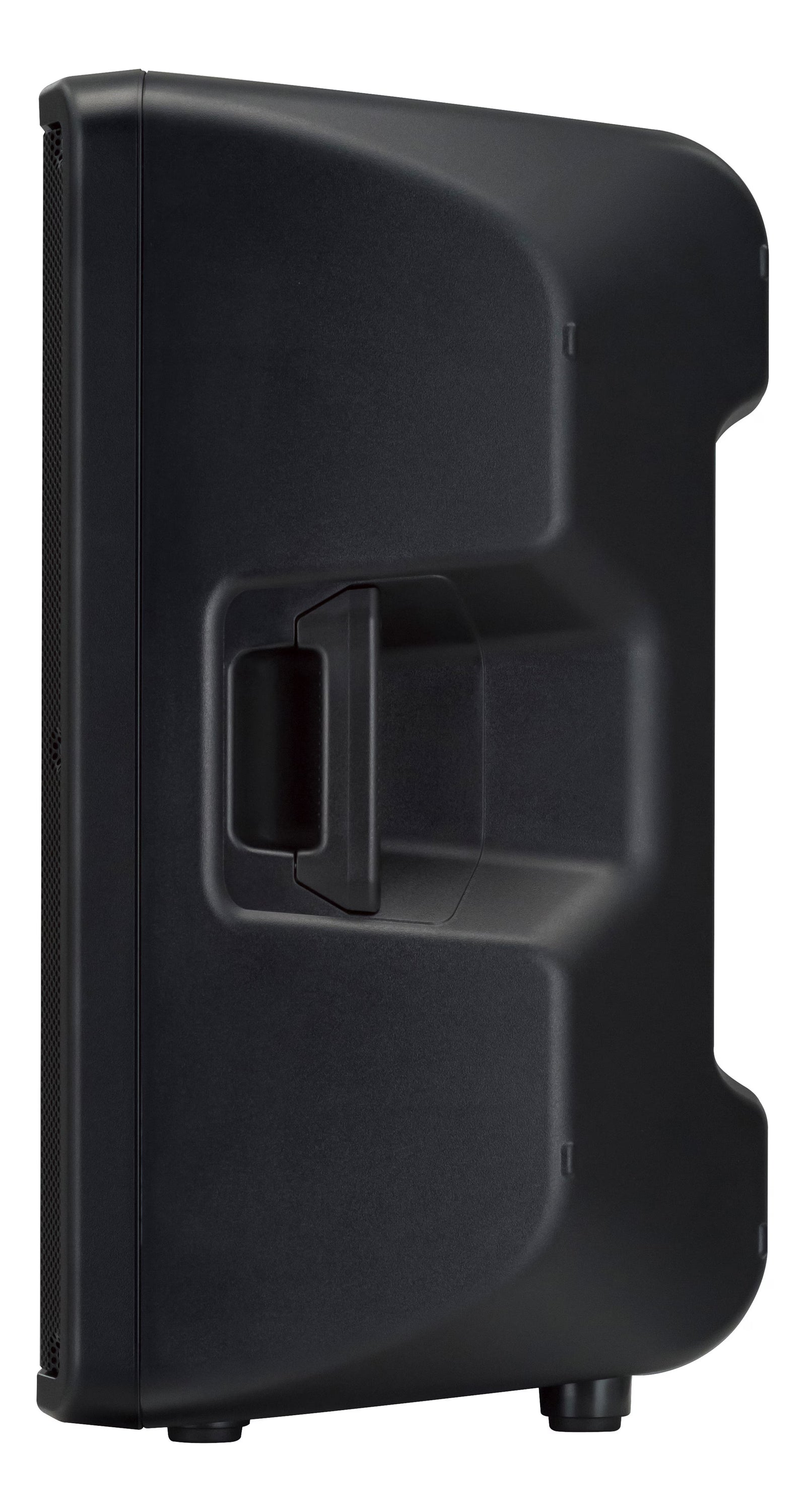

The CBR15 provides the lowest frequency in its lineup, delivering outstanding performance for the front-of-house sound for live performance, DJ events or for installation situations that require highly prominent low and high SPL.
| Sales Unit | 1 piece(s) | Power Handling | 1000 W |
| Number of Woofers | 1 | Woofer Size | 15" |
| Colour | Black | Width | 455 mm |
| Depth | 378 mm | Height | 700 mm |
| Weight | 17.7 kg | Monitor Angle | Yes |
| IP Class | No | RMS Power | 250 W |
| Impedance | 8 Ohms | Flyable | M8 |
| SPL | 126 dB | Number of Midrange Speakers | 0 |
| Number of Mid-Tone Speakers | 0 | Mid-Tone Size | None |
| Number of HT Speakers | 1 | HT Speaker Size | 1.4" |
| Ways | 2-Way | Housing Material | Plastic |
| Construction | Standard Cabinet | Stand Flange | 36 mm |
| Input | Speaker Twist; Jack | Output | Speaker Twist; Jack |
| Frequency Range (-10dB) | 46 Hz – 20,000 Hz | Horizontal Beam Angle | 90° |
| Vertical Beam Angle | 60° |
| Description | Downloads |
|---|---|
| Yamaha Commercial CBR15 Passive Loudspeaker DataSheet | Download |
