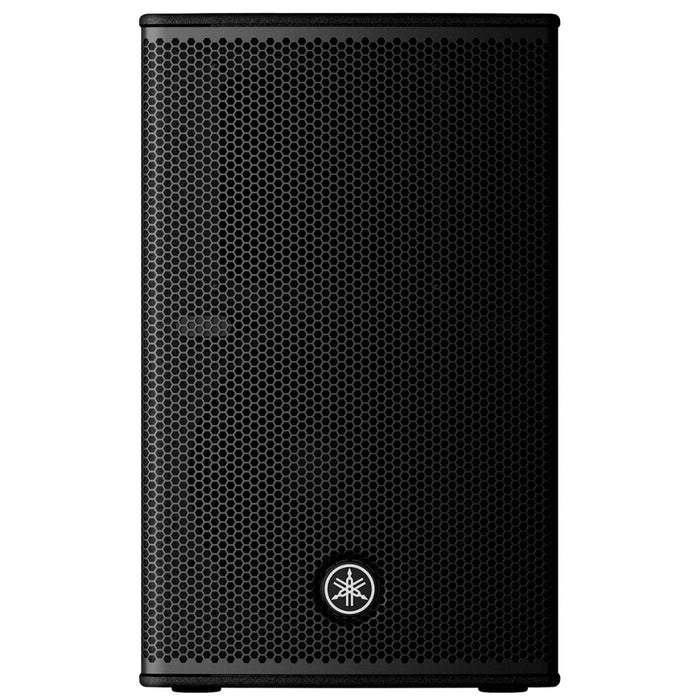

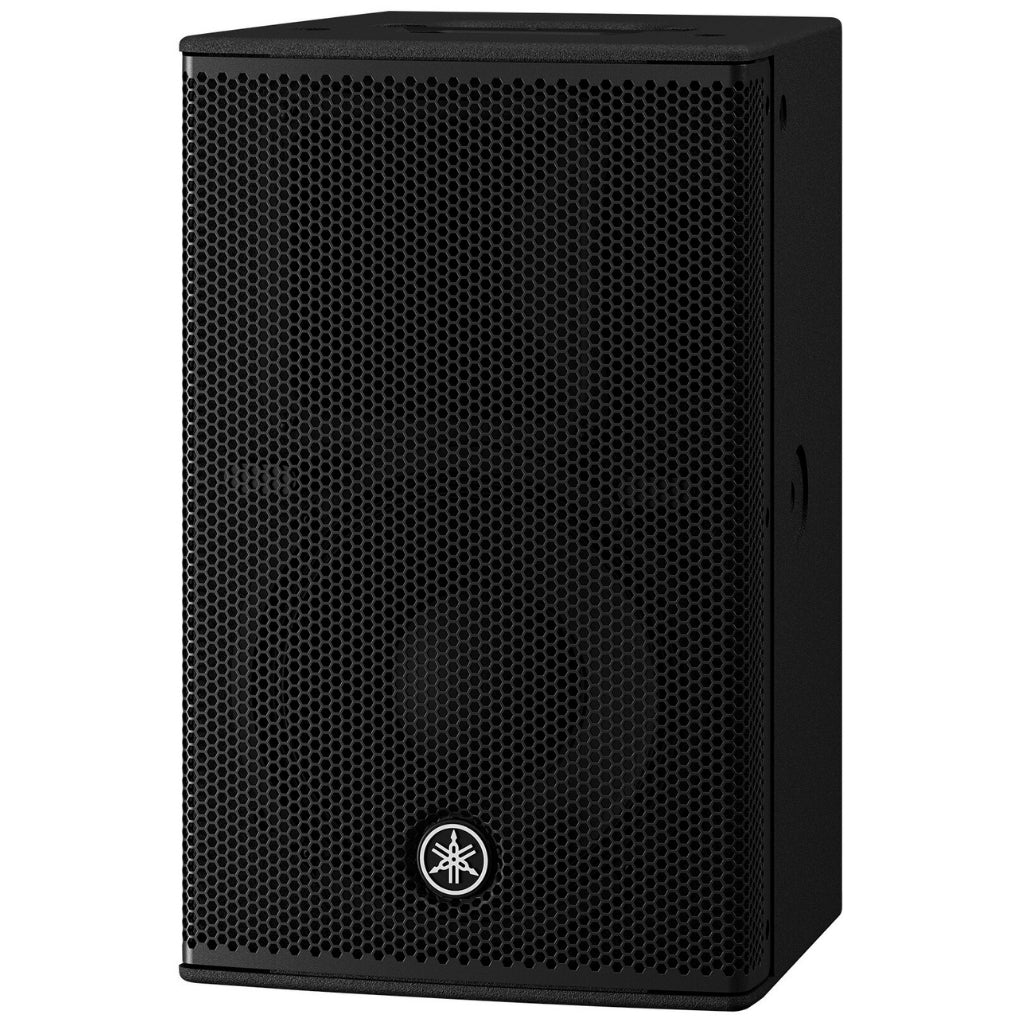

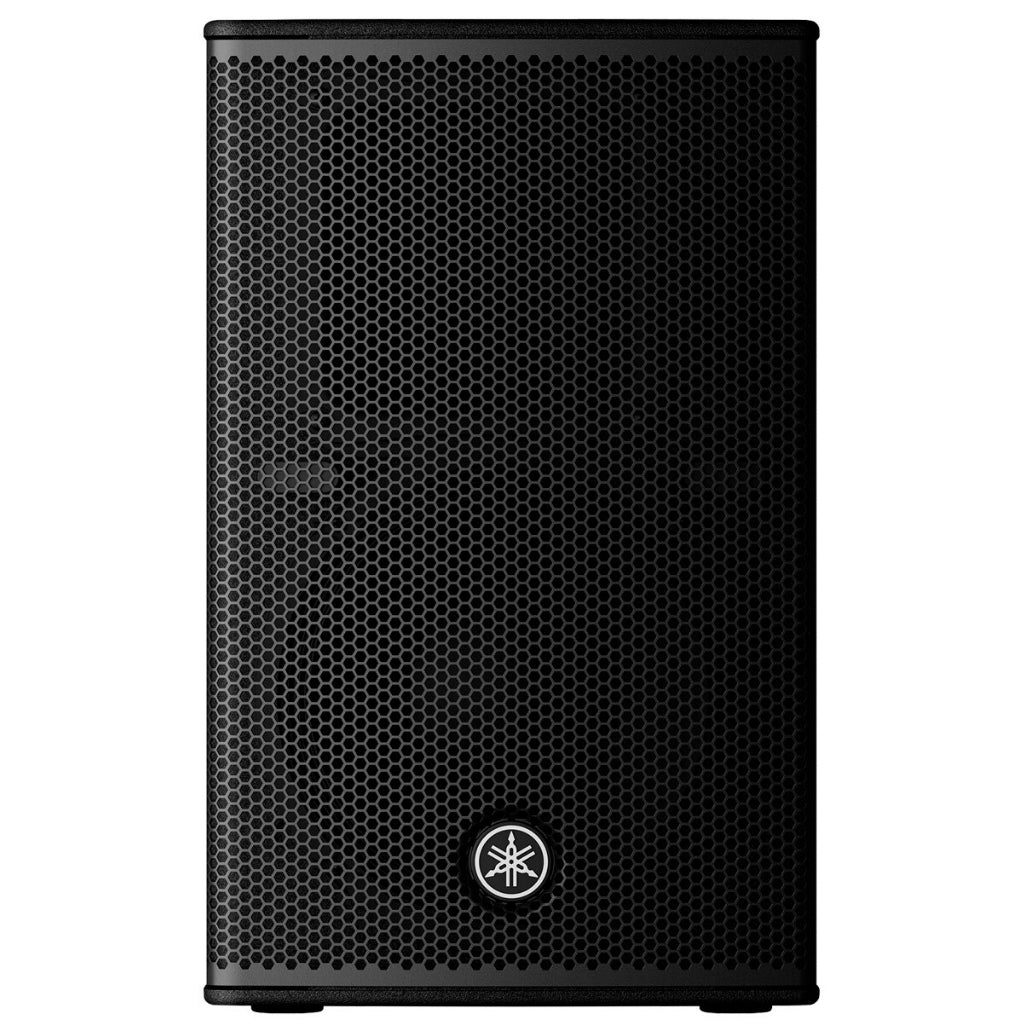

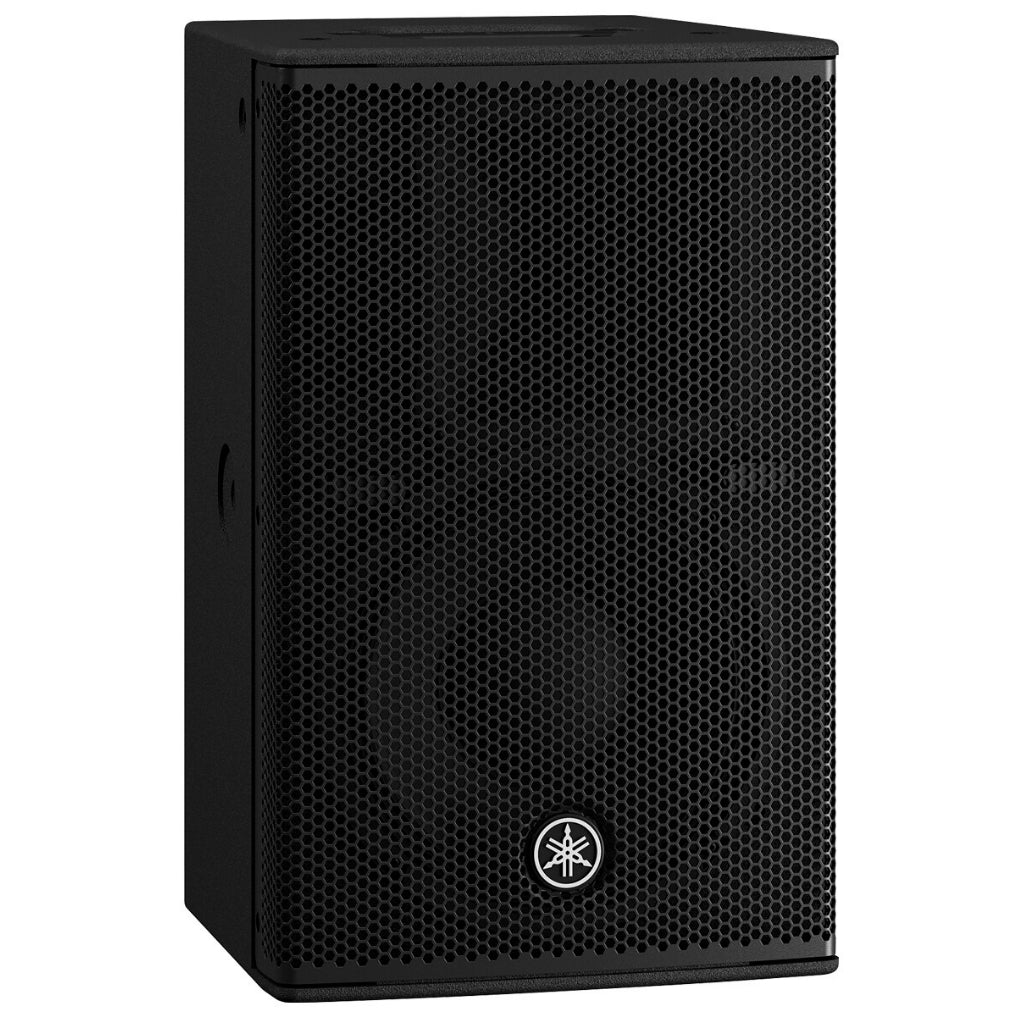

The CHR10 is a 2-way loudspeaker, equipped with a 10-inch woofer and a 1.4-inch HF driver, and perfect for use in fixed installations. Combining carefully selected and customized transducers with the same high-grade plywood construction found on Yamaha’s high-end CZR Series, the CHR10 offers best-in-class sound quality and durability.
Featuring a plywood cabinet that delivers a clear sound with minimal vibration
Plywood enclosure with a polyurea coating for a robust, scratch resistant surface

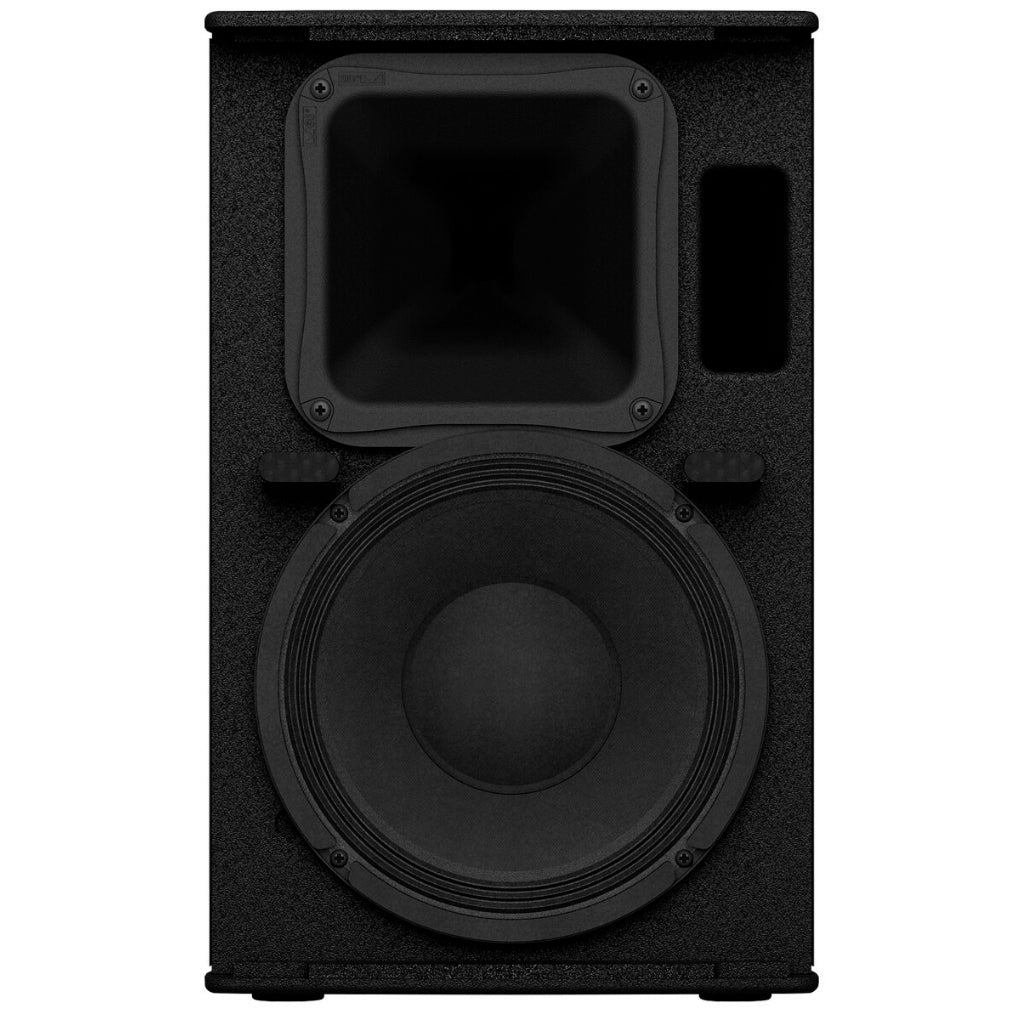

Compact appearance thanks to the 10-inch LF driver that provides excellent low frequency response
Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use
A pole socket for use on a stand
Rigging points for use with eye bolts
Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance
| Speaker Type | 2-way Speaker, Bass-reflex | Frequency Range (-10dB) | 55 Hz - 20 kHz |
| Coverage | H90° x V60° (Rotatable) | Crossover | 2.5 kHz |
| Nominal Impedance | 8 Ω | Sensitivity (1W, 1m) | 93 dB SPL |
| Peak SPL (Calculated) | 122 dB SPL | LF Driver | 10" cone, 2" voice coil, Ferrite magnet |
| HF Driver | 1.4" diaphragm, 1" throat compression driver, Ferrite magnet | Power Rating (NOISE / PGM / PEAK) | 175W / 350W / 700W |

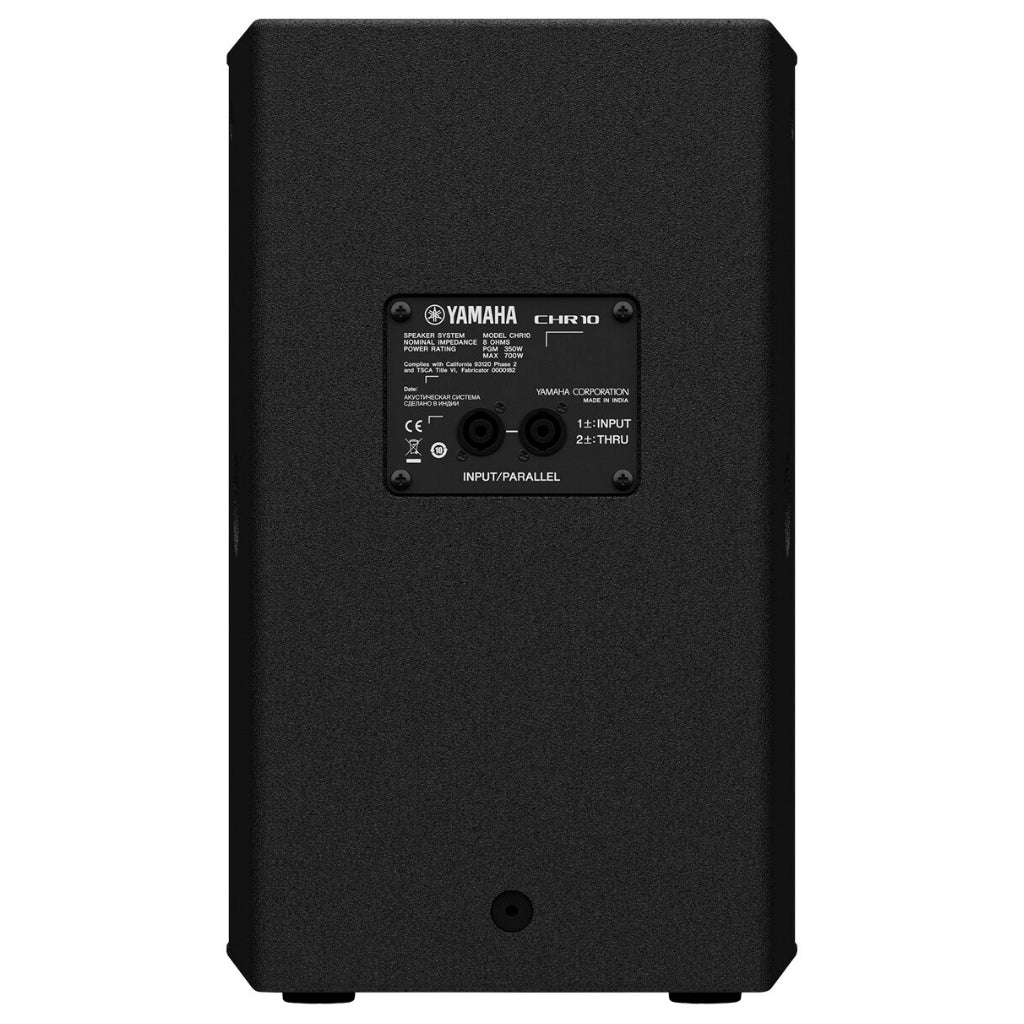

| I/O Connectors | 2 x SpeakON NL4MP (Parallel) | Cabinet Material | Plywood |
| Finish | Durable Polyurea Painting, Black | Handle | Top x1 |
| Pole Socket | Φ35 mm x1 (Bottom) | Rigging Points | Top x2, Rear x1 (Fit for M10 x 30–50 mm Eyebolts) |
| Dimensions (W x H x D) | 305 x 494 x 300 mm (12.0 x 19.5 x 11.8 in) | Net Weight | 13.7 kg (30.2 lbs) |
| Description | Downloads |
|---|---|
| Yamaha Commercial CHR10 Two-Way 10" Passive Loudspeaker DataSheet | Download |
