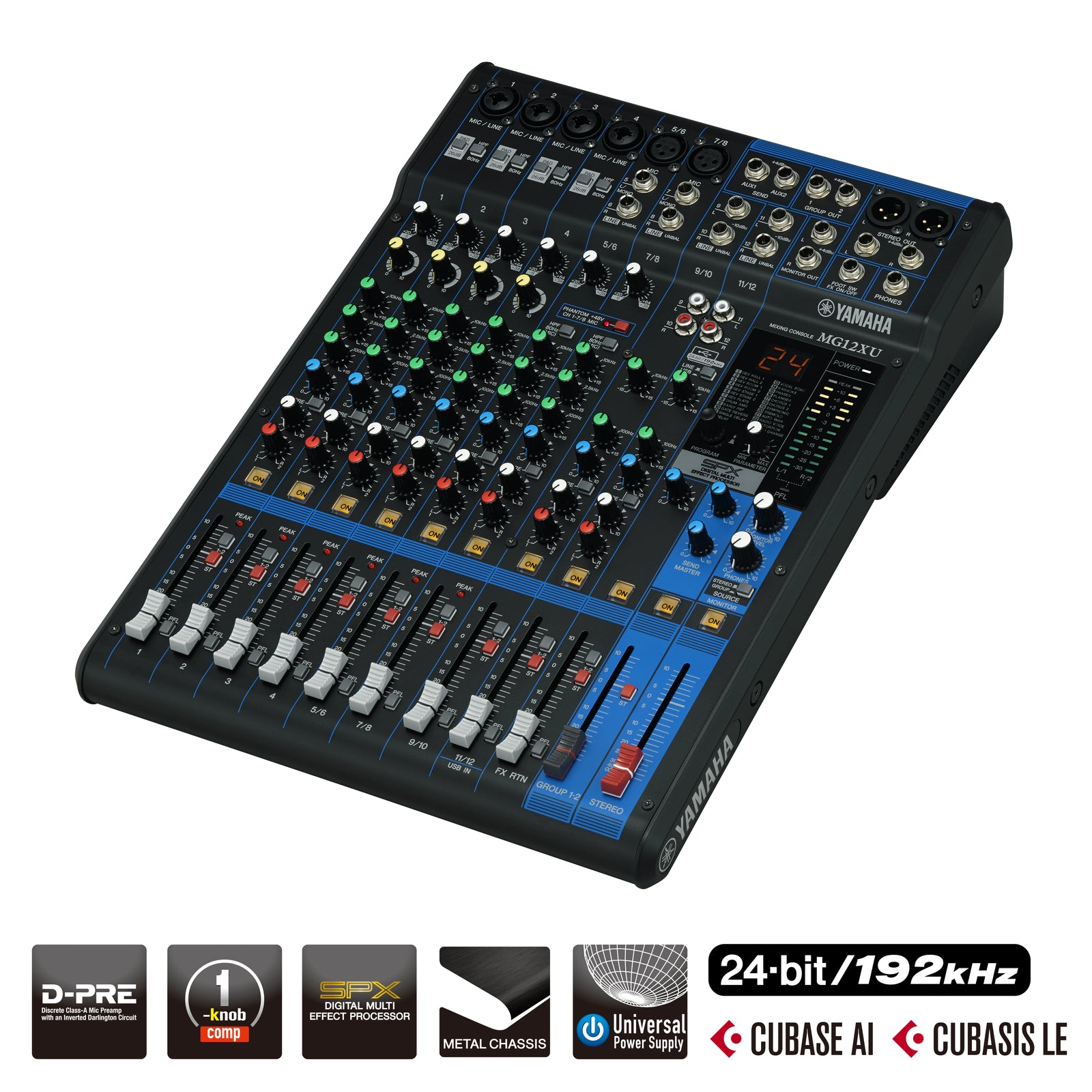

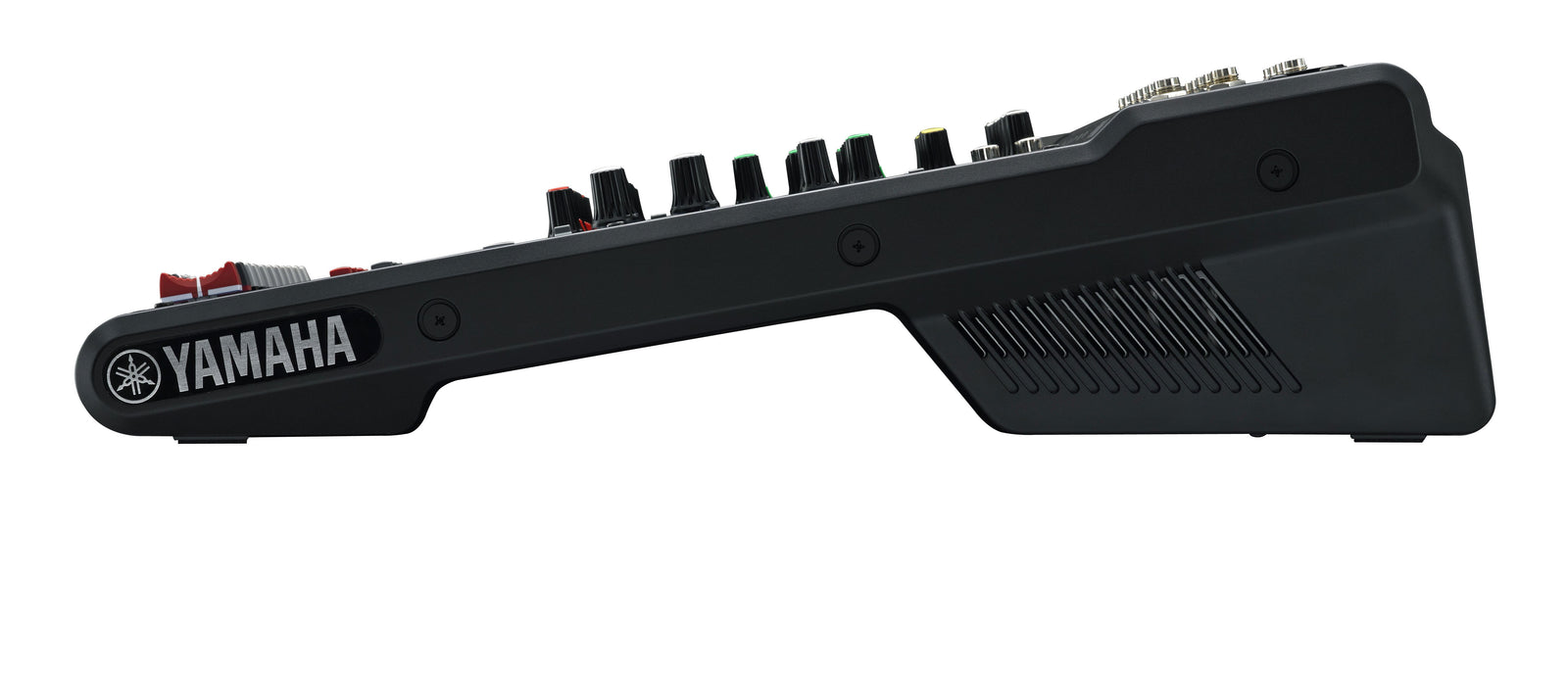

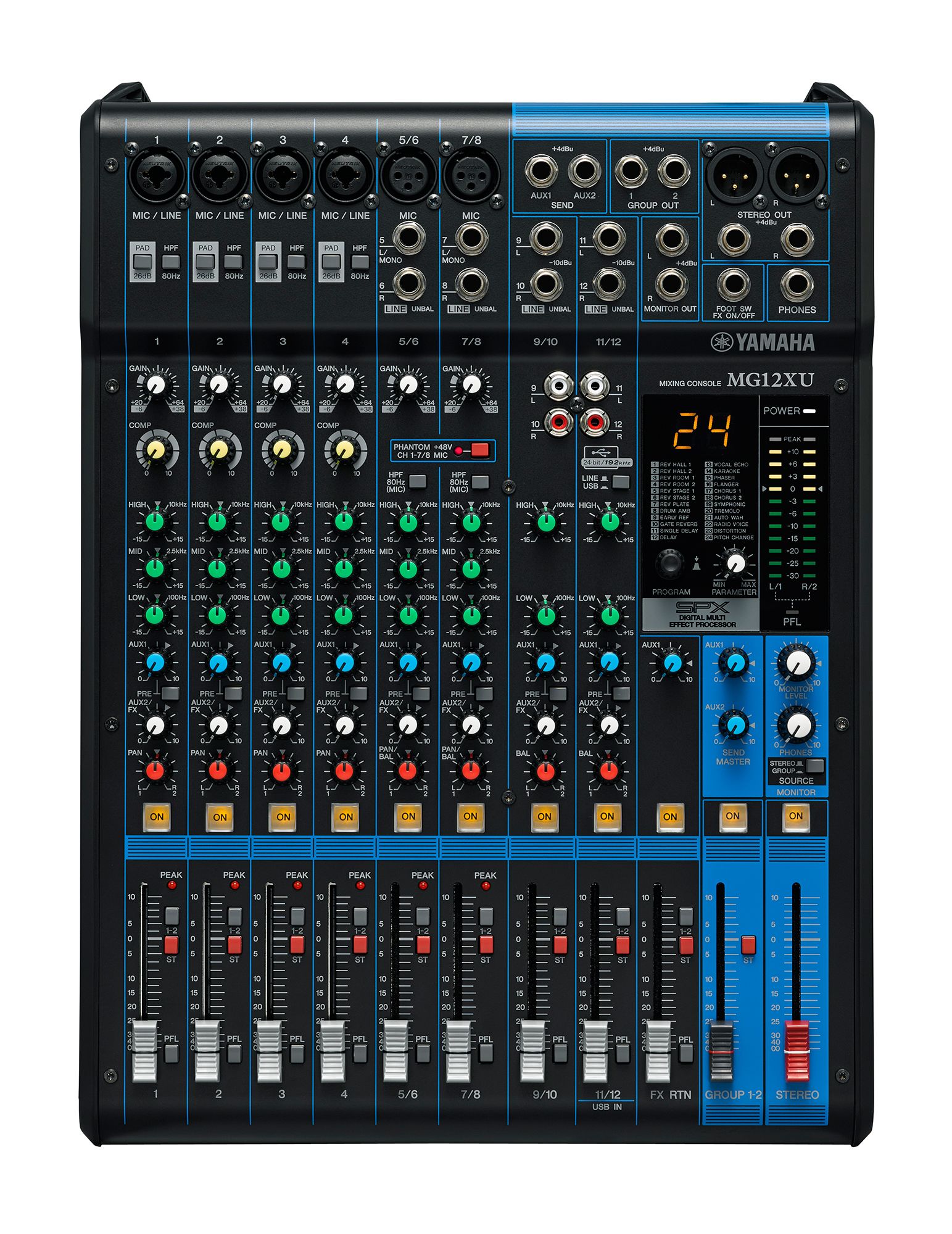

12-Channel Mixing Console
Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
2 GROUP Buses + 1 Stereo Bus
2 AUX (incl. FX)
“D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors
High-grade effects: SPX with 24 programs
24-bit / 192kHz 2in / 2out USB Audio functions
Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
Includes Cubase Al DAW software download version
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Internal universal power supply for world-wide use
Optional Rack Mount Kit RK-MG12 Available
Metal chassis
Dimensions(W×H×D): 308 mm x 118 mm x 422 mm (12.1" x 4.6" x 16.6")
Net Weight: 4.2 kg (9.3 lbs.)
| Feature | Description |
|---|---|
| Type | Analog mixer with SPX |
| Bus Type | USB |
| Max Sample Rate | 192 kHz |
| Max Bit Depth | 24-bit |
| Rack Mount | Rack-mountable |
| Channels Qty (total) | 12-channel |
| Frequency Response | 20 Hz - 48 kHz |
| Mic Phantom Power | 48 V |
| Control Types | Knobs, faders |
| Headphones Output | Yes |
| Meter Indicator | 2 x LED level meters (12 segments) |
| Features | Headphone output volume control, monitors volume control, built-in channel compressors |
| Mic Channels | 6 mono |
| Mic Channels Connector | XLR, XLR / phone 6.3 mm |
| Line Channels | 4 mono / 4 stereo |
| Line Channels Connector | RCA x 2, phone stereo 6.3 mm |
| EQ Band Qty | 3 |
| Input Level Switch | Mic/line |
| AUX Channels | 2x AUX Send, Monitor Out, 2x Group outputs |
| Effects Qty | 24 |

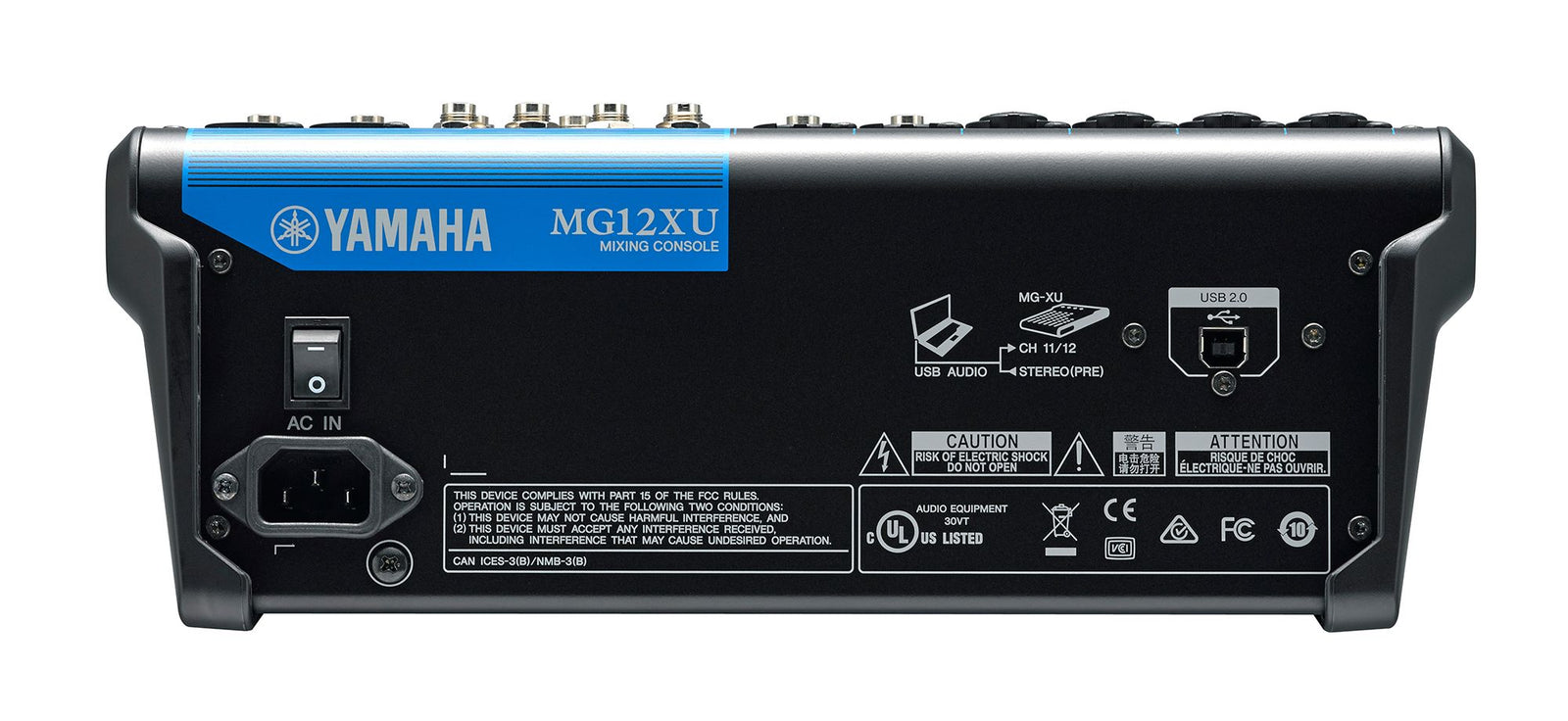

| Connections | 4 x audio line-in / microphone (XLR / phone stereo 6.3 mm) - top 2 x microphone (XLR) - top 8 x audio line-in (phone 6.3 mm) - top 2 x audio line-in (RCA x 2) - top 2 x AUX send (phone 6.3 mm) - top 1 x monitor output (phone stereo 6.3 mm x 2) - top 1 x headphones (phone stereo 6.3 mm) - top 1 x balanced audio output (XLR x 2) - top 1 x balanced audio output (phone stereo 6.3 mm x 2) - top 1 x USB 2.0 (4 pin USB Type B) - rear |
| Voltage Required | AC 120/230 V |
| Frequency | 50/60 Hz |
| Power Consumption | 22 Watt |
| Width | 30.8 cm |
| Depth | 42.2 cm |
| Height | 11.8 cm |
| Weight | 4.2 kg |
