Yamaha YVC1000UK Unified Communications Microphone & Speaker System
YVC-1000 brings remote communications to life for meetings with 6 to 40 people
Scalable and flexible solution engineered to support the audio requirements of large meeting rooms and rooms with special table configurations. Daisy-chain up to five distinct microphones. Equipped with external speakers and external microphone, YVC-1000 is ideal for applications such as remote education classes or seminars where a handheld microphone may be preferable within any UC applications.
Excellent scalabilityConnect additional speakers and microphones for larger meetings
In its standard configuration*1 the YVC-1000 is ideal for small and medium-size meetings. For conferencing on a larger scale, external speakers*2 and up to four additional microphones can be added to cover a wider area and accommodate more conference participants.
*1 The standard YVC-1000 configuration consists of one control unit and one microphone.
*2 You can connect up to two commercially available powered speakers.

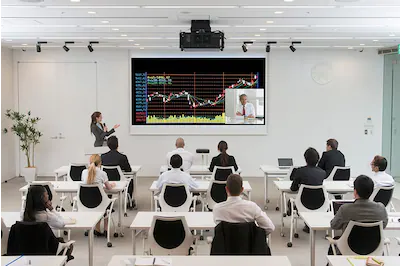

Connect to an external microphone for more flexibility during remote class sessions or seminars
Equipped with an external microphone input, the YVC-1000 is ideal for applications such as remote classes or seminars where a handheld microphone may be preferable. Simply connect an external microphone to output your voice through both the base unit speaker and speakers at remote destinations.
Connectable External Microphones
* YVC-1000 doesn’t have phantom power supply function.
* Boundary microphones cannot be used since it generates howling.
[Wired microphones]
- Wired microphones can be connected to YVC-1000 directly.
- Please use microphones which satisfy microphone sensitivity specification "-54.0 ± 6.0 dBV / Pa".
[Wireless microphone systems]
- Both of Mic level/Line level Wireless microphone systems can be connected to YVC-1000.
A high quality conferencing experienceInnovative sound processing technologies combine to create a productive communications environment
The YVC-1000 incorporates many high-quality sound technologies that Yamaha has developed over the years, including a unique Human Voice Activity Detection (HVAD) capability used to detect human voices. “HVAD” is an important element of several different sound processing features that require fast and efficient sorting of noise and human voices in order to make speaking and listening a more relaxing, stress-free experience during remote conferencing.
"Adaptive echo canceller" – Delivering the clarity essential to efficient business communication
Intelligently eliminates the echoes generated when microphones pick up sounds from speakers in environments with varying reflective properties. Adaptive echo canceller processes sounds of up to 20 kHz to facilitate clear, effective conversation.
"Automatic tracking" – Focusing on what’s important
The YVC-1000 utilizes a Automatic tracking function that allows it to detect and track the location of a person’s voice in order to provide the clearest sound pickup possible. The ability to distinguish human voices from random background noise is particularly useful in conferences held in noisy environments with a large number of participants.
"Automatic gain control" – Ensuring that everyone can hear and be heard
This function automatically boosts or attenuates the gain for individual voices depending on their level and distance from the microphone. Automatic gain control utilizes HVAD technology to ensure that only human voices are amplified, providing clear and concise communications even in noisy environments.
"Noise reduction" – Reducing noise for clearer communication
The noise reduction function suppresses or eliminates unwanted sounds emitted from sources such as projectors and air conditioners. Continuous noise is removed from ambient sound picked up by the microphones in order to ensure that listeners hear only clear, intelligible voices.
"Dereverberation" – Clear, reverb-free sound
Naturally occurring reverberation can often wreak havoc on sound quality in remote conferencing situations. Offering excellent vocal clarity even in spaces subject to excessive natural reverb, the YVC-1000 suppresses the reverberation caused by the varying sonic characteristics of different environments.
"Automatic room EQ" – The right sound for your room
Automatic room EQ optimizes speaker output in real time to match the dimensions and acoustic properties of any room. Audio quality is adjusted automatically based on the audio signal of the current call to provide a more listenable tone and even reduce unwanted echoing.
With only connecting USB cable to PC, you’re ready to go
Start your remote meeting by connecting your YVC-1000 with a single USB connection. Don't have your laptop with you? The user-friendly design provides fast, intuitive connection to a smartphone by Bluetooth. No matter how you connect, the specially engineered auto-tuning function developed by Yamaha detects and monitors the acoustics of the environment to optimize sound processing for the best audio experience on your remote communications.
Smooth Bluetooth connection using Near Field Communications (NFC)*3 technologyConnect simply and easily by placing an NFC-compatible smartphone or tablet over the NFC logo on the top of the control unit while the Bluetooth button is blinking*4.
*1 Supports the mSBC codec for transmission of broadband data.
*2 RCA pin plugs.
*3 NFC may not function correctly with some NFC-compatible devices.
*4 If you press the Bluetooth button once, it flashes in blue.
Flexible connectivityFast, easy connection to PCs, smartphones, tablets, and dedicated conferencing systems
Connect to the YVC-1000 via USB, Bluetooth*1, or the audio terminals*2 of a conferencing system for high quality audio in your conferences and meetings. This range of connection options allows you to quickly adapt to a variety of communications environments, as well as situations where conferencing might otherwise be difficult due to the lack of a landline, or internet connectivity issues.
Communicate with various sources simultaneously
The audio mixing function mixes multiple voice input sources connected to each interface (USB, Bluetooth, and audio input/output) allowing simultaneous communication over different lines. For example, while connected to a web conference via USB, you can also include more participants via smartphone using a Bluetooth connection by using the audio mixing function to combine the audio sources.
User-friendly designOptimize acoustic settings with a single touch
The YVC-1000 automatically optimizes its acoustic settings by learning about the acoustic environment of a room as it operates. When time requirements mean that speed is an issue, simply pressing the tuning fork button activates the automatic audio tuning function, immediately optimizing the acoustic settings for your current environment*1. If any acoustic problems are detected, the tuning fork button lights up orange to warn the user. Details on acoustic problems can be accessed through the audio guidance function*2, which also provides announcements for other operations, such as when Bluetooth connections have been established.
*1 Automatically measures acoustic characteristics of the operation space and the placement of microphones and speakers, while adjusting the filter settings of the adaptive echo canceller to optimize internal parameters. (This function optimizes settings for the adaptive echo canceller and auto room EQ to correct the difference in delay between the internal and external speakers and correct for the frequency characteristics of the external speaker.)
*2 Supports English, Japanese, Chinese, Korean, French, Spanish, and German. The default setting is English.
Certified model for Zoom Rooms!
“With Yamaha’s audio technology and expertise, the YVC-1000 will help us in bringing more powerful and scalable collaborations to our customers’ Zoom Rooms experience,” Eric Yu, hardware partnership manager, Zoom.
