Practical and Aesthetic Integration

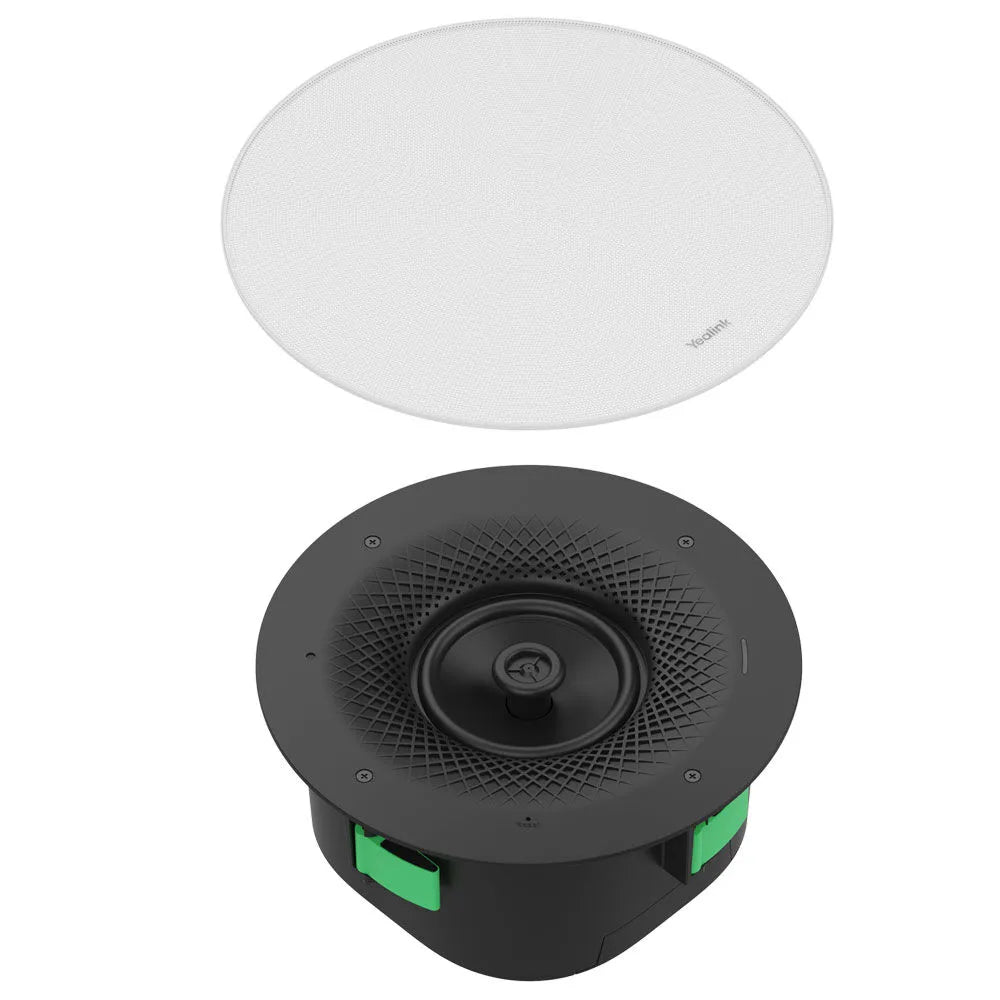

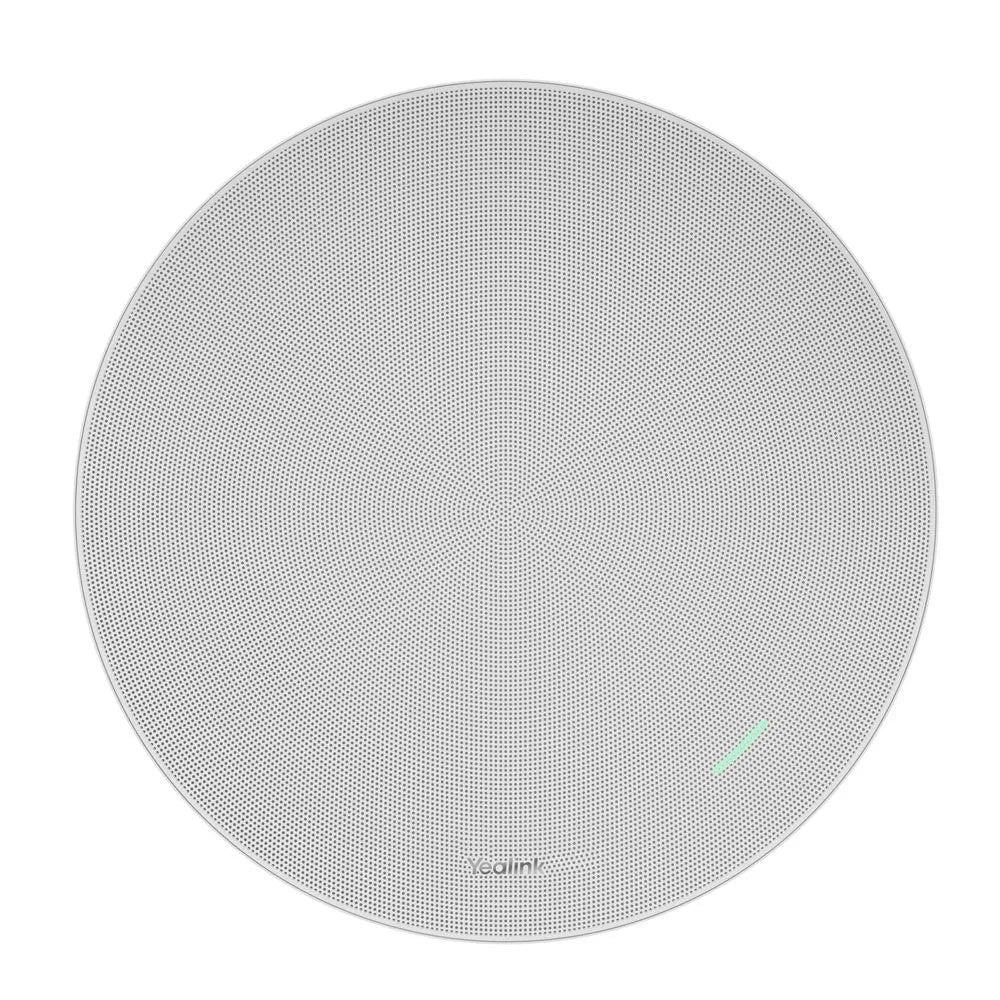

The Yealink CS10, available in black and white, features a low-profile (120mm depth) 2-way coaxial design and a removable magnetic suction mesh cover. The CS10 blends high-quality audio with an elegant, minimalist design, making it a perfect match for contemporary conference rooms.
Specially Designed for Conference Space
The CS10 boasts impressive acoustic parameters, which ensures an unparalleled level of sonic excellence, while its EQ calibration is specifically tailored to accentuate the utmost quality of human vocals. It seamlessly combines active speaker functionality with an integrated DAC and PoE technology, allowing for swift digital signal processing from the network for a hassle-free setup and minimal latency.
Video Conferencing Perfected
CS10 was tuned the sound profile for video conference first. It emphasized the mid-range of frequency response that improves sound performance in human voice.
Versatile Adaptability

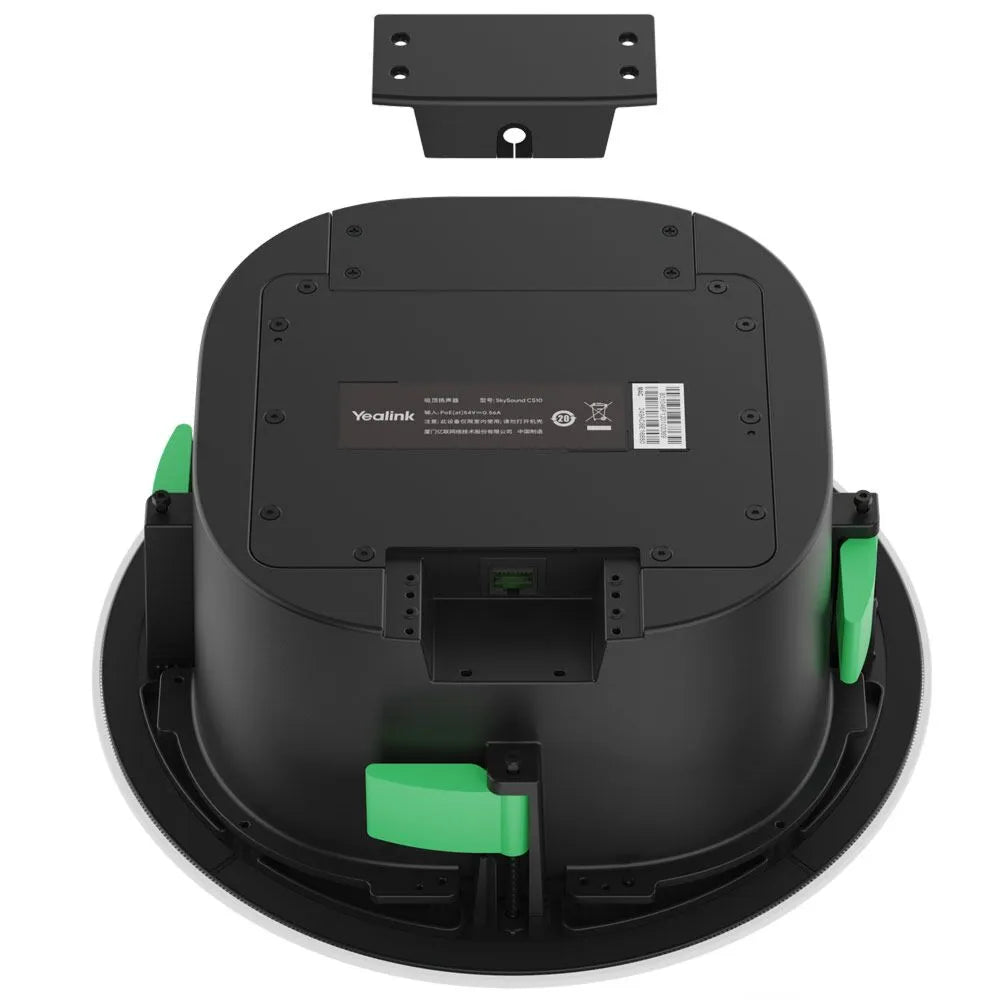

Yealink CS10 provides flexible indoor installation solutions, ensuring compatibility with various ceiling types.
Deploy for Multiple Spaces
LARGE ROOM
DIVISIBLE ROOM
MEDIUM ROOM
| Package Content | CS10-D Dante Speaker | Package Content | White Mesh Cover (Black Optional) |
| Package Content | Quick Start Guide | Package Content | Assembly Fixing Bracket |
| Package Content | Dust Cover | Package Content | Deployment Instruction Template |
| Package Content | Bracing Bridge | Package Content | Dust Cover Screw × 6 (M3 × 4CMHOZN3) |
| Frequency Response | 100 Hz - 20 kHz (-6dB) | Maximum SPL | Continuous: 99dB @20W 1m |
| Sensitivity | 88dB@1m 1W | LF | 5.7 inch (145 mm) woofer |
| HF | 1.1 inch (28 mm) tweeter | Nominal Impedance | 8 Ω |
| Coverage Angle | 120° | Size With Cover Mesh | ф294 × H125.8 mm |
| Size Without Cover Mesh | ф287.2 × H125 mm | Weight Without Cover Mesh | 2808 g |
| Cover Mesh Weight | 207 g | Product Color | White/black |
| Cover Mesh Color | White/black | Cover Mesh Material | PC/ABS Welded SPCC |
| Main Body Shell | PA (Polyamide) with 15% GF | Bottom Shell | Aluminum alloy |
| Cover Plate | PC/ABS and SGCC | Plenum Rated | UL 2043 suitable for air handling spaces |
| Operating Temperature | 0 - 50 °C | Storage Temperature | 0 - 50 °C |
| Operating Humidity | 5% - 90% | Rated Power | 24 W (Typical power 20 W) |
| Power Supply | PoE+ (IEEE 802.3at Class 4) | Interface | 1 RJ-45 |
| Carton Size | 398 × 355 × 185 mm | N.W/CTN | 5.0 kg |
| G.W/CTN | 5.75 kg |
