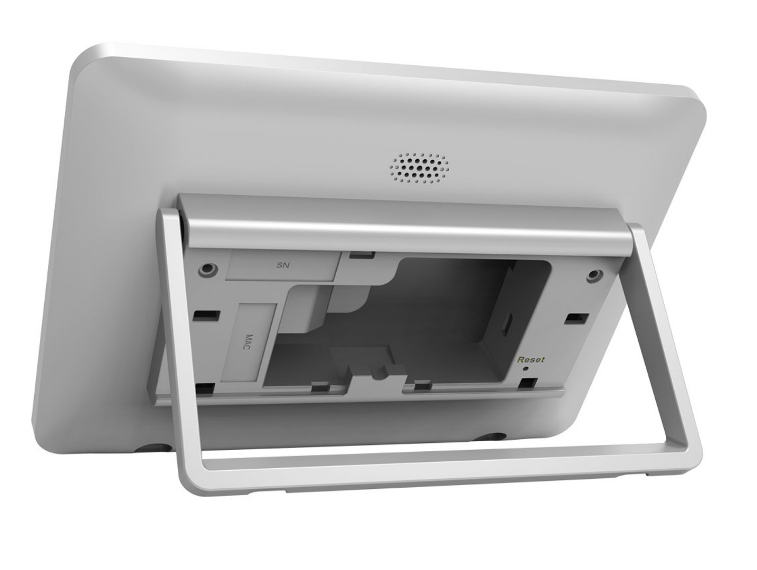

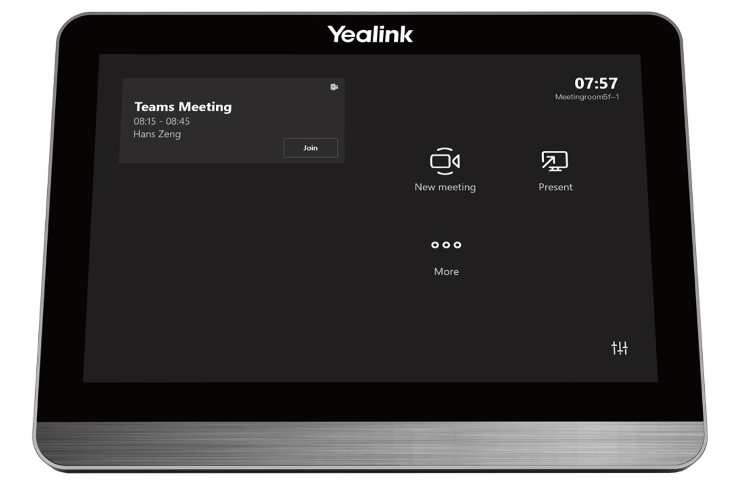

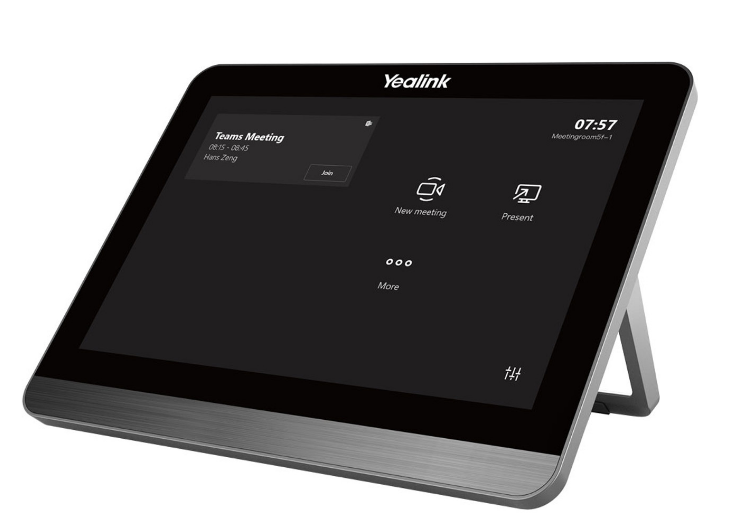

Yealink Collaboration Touch Panel CTP18
A collaborative meeting experience at your fingertips
Annotation on Shared Content | Conference Control | Flexible Deployment
Efficient Collaboration at Your Fingertips
CTP18 can be used to obtain the projection screen and annotate it. With Yealink Wireless Presentation Pod WPP20, you can gain reverse control from CTP18 over computer, getting a multi-screen interaction to achieve more. A single video conferencing device can be connected to up to 4 CTP18, which can be used for simultaneous annotation to improve efficiency.
Richer and Easier Meeting Control Features
Just by one-touch, you can start or join a meeting, and all meeting controls can be navigated on CTP18 with just a touch or a swipe of your finger, including previewing and adjusting the camera, changing the participant layouts, recording, etc.
Clutter-Free Meeting Space Deployment
CTP18 supports PoE where one cable carries both data and power for the device. Data transmission between CTP18 and the video conferencing device is realized either by cable or by Wi-Fi, which eliminates the tricky wiring connections between the TV area and the conference table, saving you from remodeling the conference room set up.
| Connection | System Compatibility | Wireless Network |
|---|---|---|
| - Cable to VCS endpoint | - MeetingEye 400/MeetingEye 600 | - Wi-Fi |
| - LAN Pairing (later versions) | - VC880/VC800/VC500 | - 2.4G/5G Wi-Fi |
| - Wi-Fi | - VC200/VC210 | - IEEE 802.11n/ac |
| - Up to 4 CTP18 units in one system (MeetingEye) | - Support connecting to Yealink VCS Wi-Fi only | |
| - Supported by later versions (VC series) | ||
| - Up to 1 CTP18 unit in one system (VC200/VC210) | ||
| Display | Interface | Accessories |
| - 8-inch IPS FHD touch screen | - 1 x USB-C for device debugging | - 1 x Wall Mount Bracket |
| - Resolution: 1280*800 (16:10) | - 1 x RJ45 Ethernet for power and data connection | - 1 x Security lock slot for anti-theft |
| - 10 points multi-touch | - 1 x Reset slot | |
| Other Physical Features | ||
| - Power over Ethernet (IEEE 802.3af) | Power Input | Stand |
| - PoE 48V 0.27A | - 7W at most | - Adjustable angle (28°~50°) |
| - Dimensions: 202mm x 151mm x 100mm |
| Description | Downloads |
|---|---|
| Datasheet | Download |
