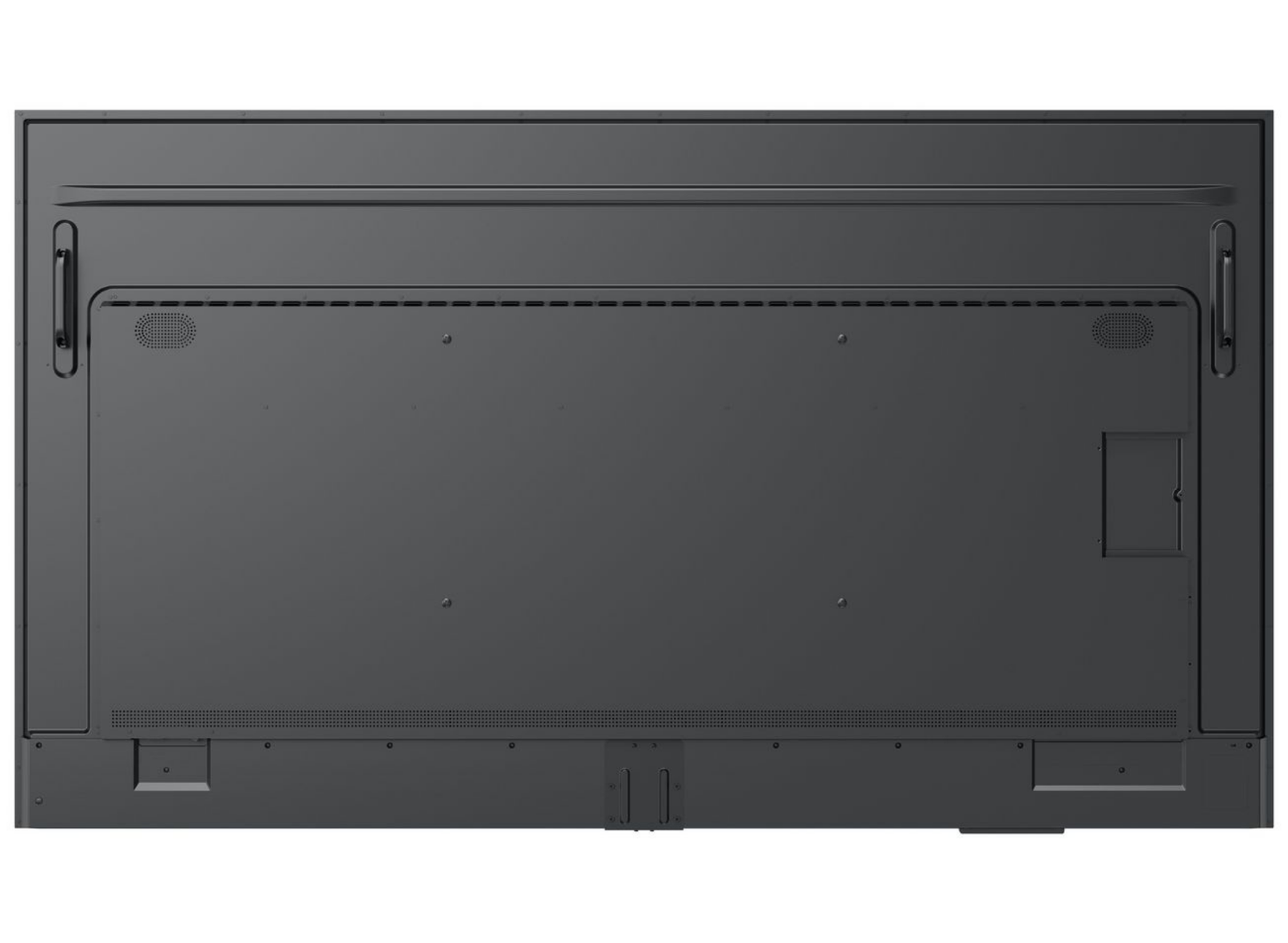

INSTALL LIKE A BREEZE
The customized installation structure* makes installation easy, without the trou-
ble of wall drilling. Just screw and hang, the meetingbar and display are ready!
ONE WAY AS ALL COORDINATION
Integrated with Yealink MeetingDisplay, Yealink unified solution supports automatic switching to current input source
(regardless of which source you are on, when a Teams call comes in, it will automatically switch to Teams),
as well as sleep and wake-up functionality.
Enjoy smooth and seamless meeting device coordination.

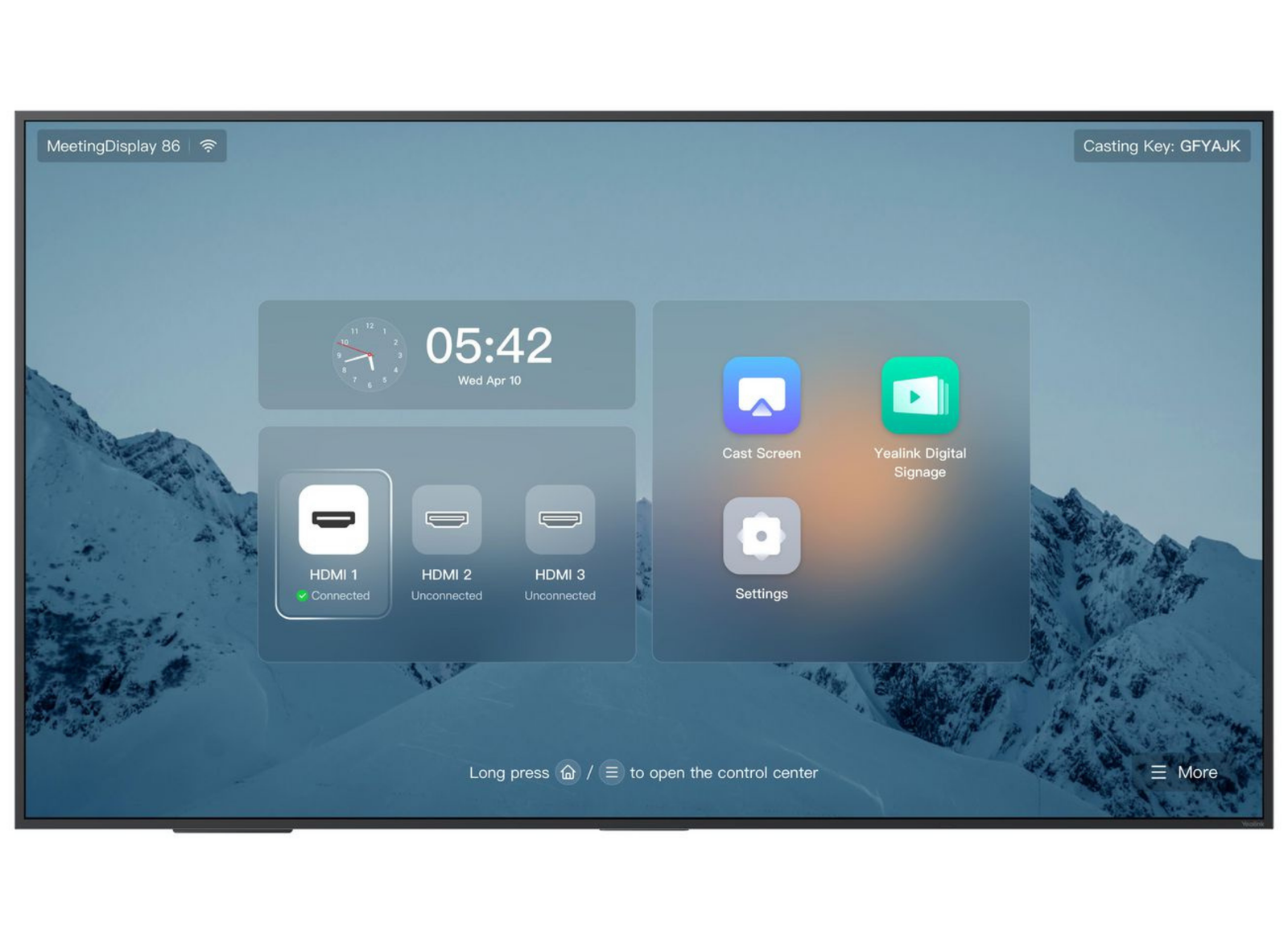

ONE TOUCH CONSOLE,
GET TO THE HEART OF CONFIGURATION FAST.
One touch console is enough. Configure MTR devices and MeetingDisplay easily,
without TV remote control. Effortlessly switch signal inputs and adjust Meeting-
Display’s brightness, contrast, volume, etc.
MANAGEMENT OVER THE AIR
With Yealink Management Cloud Service (YMCS), you can manage both MeetingDisplay
and MTR devices from a single platform — no need to switch between systems.
CONNECT. SHARE. ENGAGE.
The MeetingDisplay features a Dual-Ethernet design, with one port capable of providing network connectivity for MTR devices—solving the issue of limited Ethernet availability. It also supports seamless wireless content sharing via presentation pod, enabling effortless local collaboration. Additionally, near-zero latency HDMI-in ensures smooth, lag-free communication.
| Screen Size | 86" | Display Type | IPS |
| Surface Treatment | Anti-glare Coating | Refresh Rate | 60Hz |
| Response Time | 8ms (Grayscale) | Color Gamut | 72% NTSC |
| Colour Depth | 1.07B (10bit) | Viewing Angle | 178°(H)/178°(V) |
| Contrast Ratio | 1200:1 | Resolution | 3840 x 2160 (4K UHD) |
| Brightness | 500 cd/m² | Haze | 25% |
| Operation Time | 7*18h | Speaker | 12W x 2 |
| Wired Sharing | HDMI In | Wireless Sharing | AirPlay, Miracast, Wireless Pod* |
| Video Inputs | HDMI In 2.0 x 3 | Audio Out | 3.5mm Stereo Mini Jack |
| USB Ports | USB-A 2.0 x 2, USB-B 2.0 x 1 | LAN | 2x RJ45 (10/100/1000M) |
| Control | RS232, IP Control | Reset | Yes |
| Wi-Fi | Wi-Fi 6, Dual-band | Bluetooth | 5.1 |
| IR | Supported | Installation | Wall / Floor Stand |
| Operating System | Android 13 | Memory / Storage | 4GB / 32GB |
| Power Supply | 100-240V~ 50/60Hz | Power (86") | Max: 323W, Typ: 268W |
| Operating Temp. | 0~40°C | Storage Temp. | -20~60°C |
| Humidity | 10~95% | Warranty | 3 Years |
| Description | Downloads |
|---|---|
| Datasheet | Download |
