Microsoft Teams Rooms System for Medium-Sized Meeting Spaces: Yealink MVC640

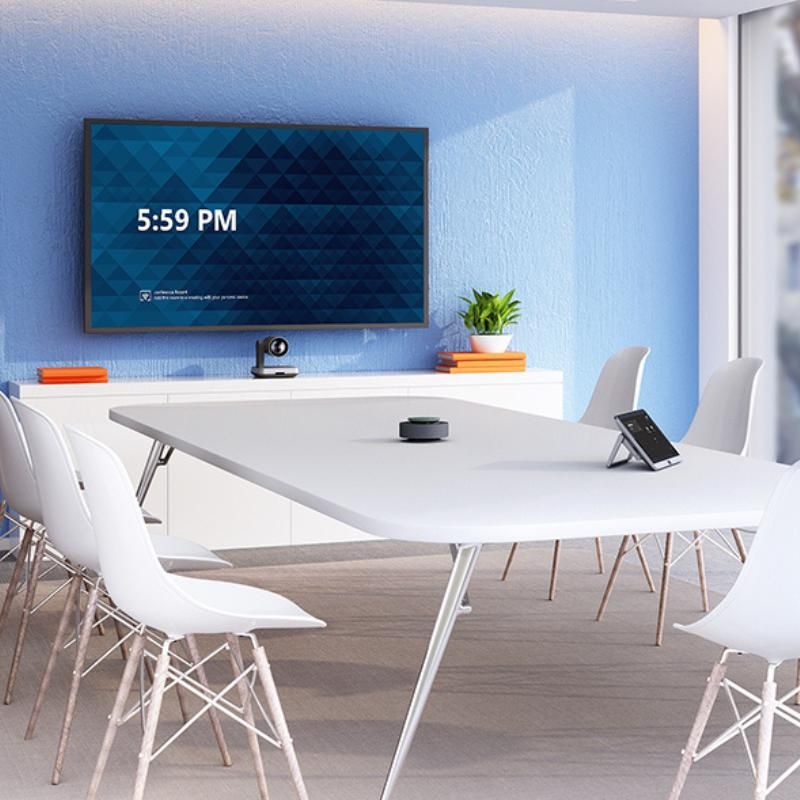

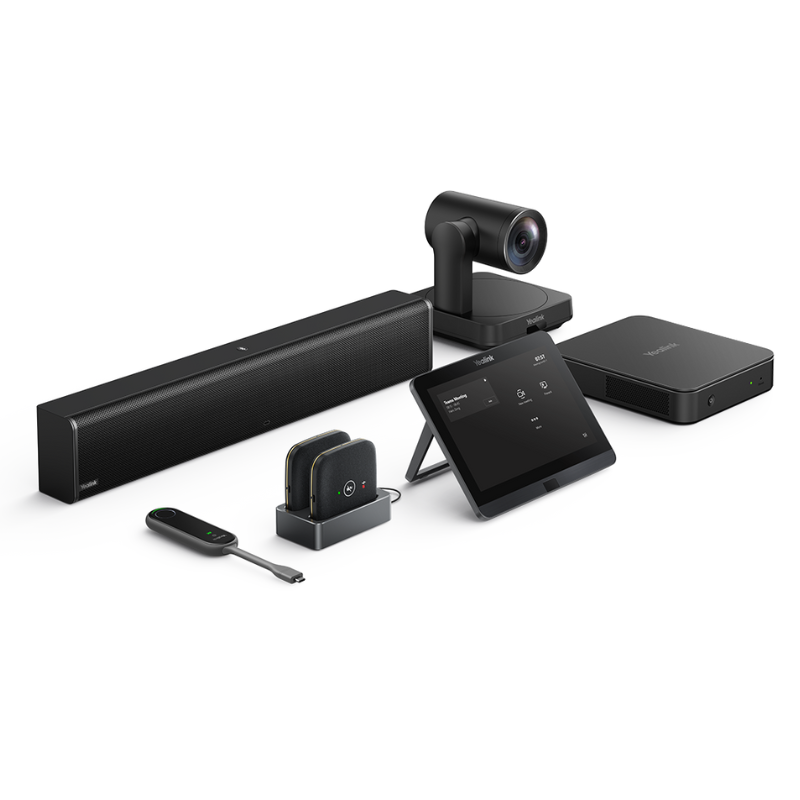

The Yealink MVC640 is thoughtfully tailored for medium-sized conference rooms. It comprises the cutting-edge MINI-PC MCore Pro, the user-friendly MTouch E2 touch panel, and the high-performance 4K PTZ camera known as UVC84. Within this product lineup, you have the flexibility to select different microphone options to cater to the specific requirements of various meeting spaces. These options include the DECT wireless microphone CPW65 and the Wi-Fi wireless microphone VCM36-W.
What sets the UVC84 apart in this lineup is its exceptional performance. It boasts a 4K lens with support for 12x optical zoom and 3x digital zoom, an 80° wide-angle view, and a pan-tilt mechanism that allows it to cover every nook and cranny of the conference room. The UVC84's Auto-framing feature takes the guesswork out of camera positioning, liberating your attention to focus on the meeting content. Furthermore, with Yealink's camera plug-in controller, you can easily set presets, make one-step adjustments, and position the camera precisely with minimal effort.

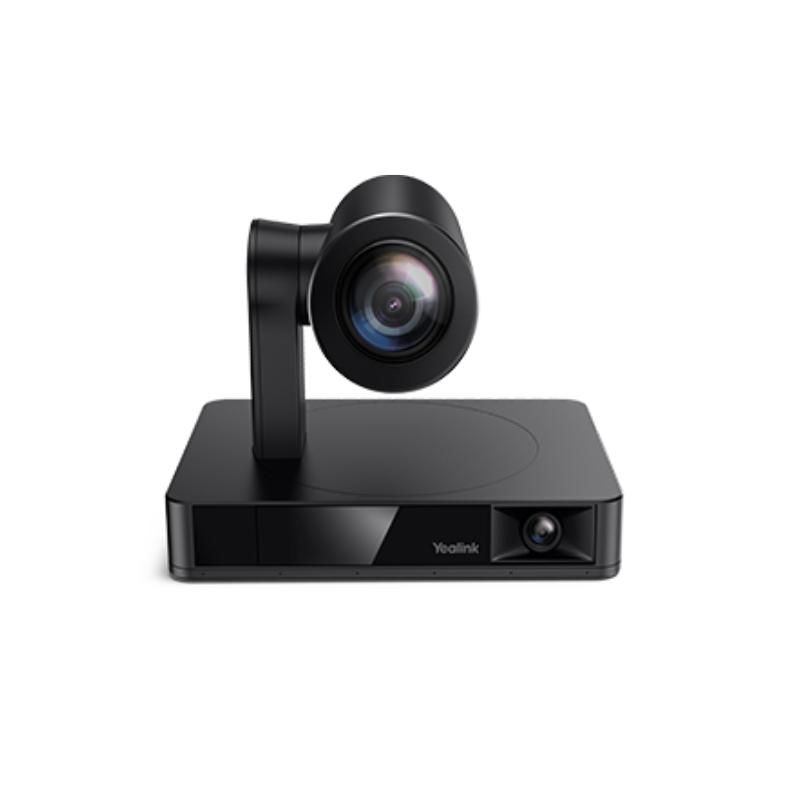

Auto-Framing with UVC84
The Yealink UVC84 camera automatically frames all meeting participants, allowing you to focus on the discussion. It also supports camera presets for effortless pan, tilt, and zoom adjustments, delivering clear 4K video calls with 12x optical zoom

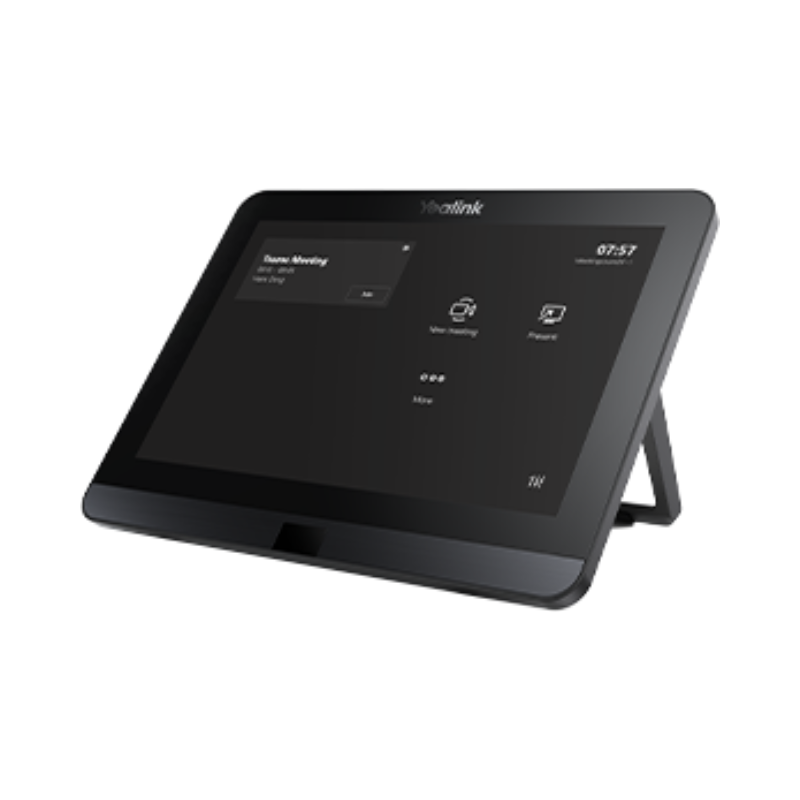

MTouch E2 Convenience
MTouch E2 includes a built-in motion sensor for automatic system activation. It offers an intuitive user interface for one-click meeting initiation, call control, camera management, and content sharing.
Real-Time Content Sharing:
Easily share content with wireless flexibility using the WPP30, supporting 1080P/30 frames resolution. Wired content sharing via USB-C or HDMI is also an option.
Compatible accessories:
WPP30 - Support pairing up to 8,connecting 4 but only using 1 at a time
VCM34 - Support pairing/using up to 6 at a time
VCM35 - Support pairing/using up to 8 at a time
VCM36W - Support pairing/using up to 4 at a time
VCM38- Support pairing/using up to 8 at a time
MSpeaker II - Support pairing/using up to 4 at a time
| Features | Specifications |
|---|---|
| System Overview | |
| Ideal For | Medium-Sized Meeting Spaces |
| Components | MCore Pro Mini-PC, MTouch E2 Touch Panel, UVC84 4K PTZ Camera, Optional Microphones (CPW65, VCM36-W, etc.) |
| UVC84 USB PTZ Camera | |
| Sensor Resolution | 4K |
| Optical Zoom | 12x |
| Field of View (Diagonal) | 80° |
| Auto Framing | Yes |
| Camera Presets | Yes |
| Pan Range | 200° |
| Tilt Range | 130° |
| Ports and Interfaces | 1 x Line-out (3.5mm), 1 x Yealink Microphone port (RJ-45), 1 x USB 2.0 Type-B, 1 x Power port, 1 x Security lock slot, 1 x Reset slot |

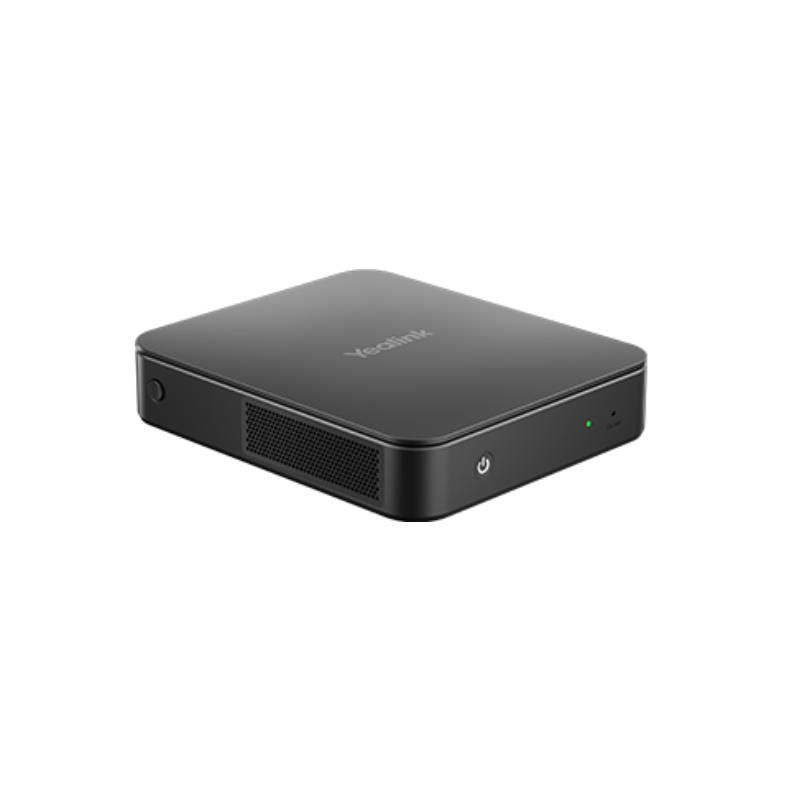

| MCore Pro Mini-PC | |
| Processor | 11th Gen Intel® Core i5 |
| Memory | 8 GB (2 x 4GB) |
| Storage | 128 GB SSD |
| Video Outputs | 3x HDMI with CEC support |
| Network | 1 x 10/100/1000M Ethernet port |
| Wireless Connectivity | Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax, Bluetooth: BT 5.2 |
| Ports and Interfaces | 1 x Yealink MTouch port (RJ45), 4 x USB 3.0 Type-A, 1 x Power port, 1 x Security lock slot, Integrated cable management |
| OS Support | Windows 10 IoT Enterprise X64 / Windows 11 IoT Enterprise X64 |
| MTouch E2 Touch Panel | |
| Display | 8-inch IPS screen |
| Resolution | 1280 x 800 |
| Touch Screen | 10-point capacitive |
| Content Sharing | Wired and Wireless |
| Adjustable Stand Angle | 28° - 50° |
| Ports and Interfaces | 3.5 mm headset jack, HDMI/USB-C HD video input |

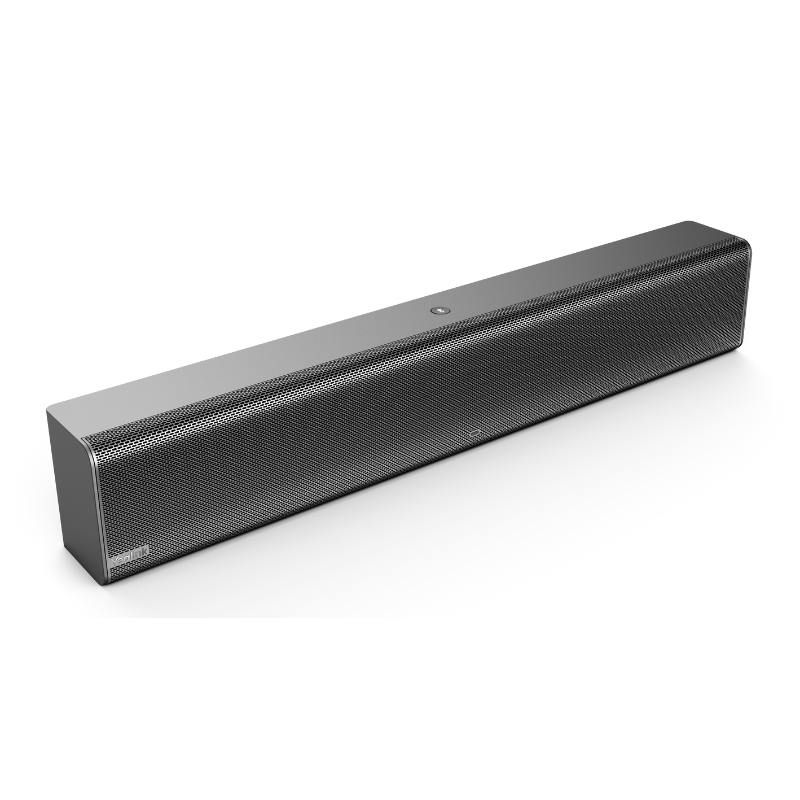

| MSpeaker II Soundbar | |
| Frequency Response | 106Hz-20 KHZ |
| Maximum Loud Pressure Level | 88±3dB@8W / 1M |
| Sensitivity | 79±3dB@1W/1M |
| Signal-to-Noise Ratio | ≥70dB |
| Audio Input | 3.5mm linear input interface |
| CPW65 Wireless Microphone | |
| Pickup Range | 360° omnidirectional |
| Signal-to-Noise Ratio | 65dB SPL@1KHz, A-weighted |
| Loudest Pressure Level | 110dB@1KHz, THD< 3% |
| Frequency Response | 100Hz-8KHz |
| Wireless Range | 2-meter radius full duplex range |

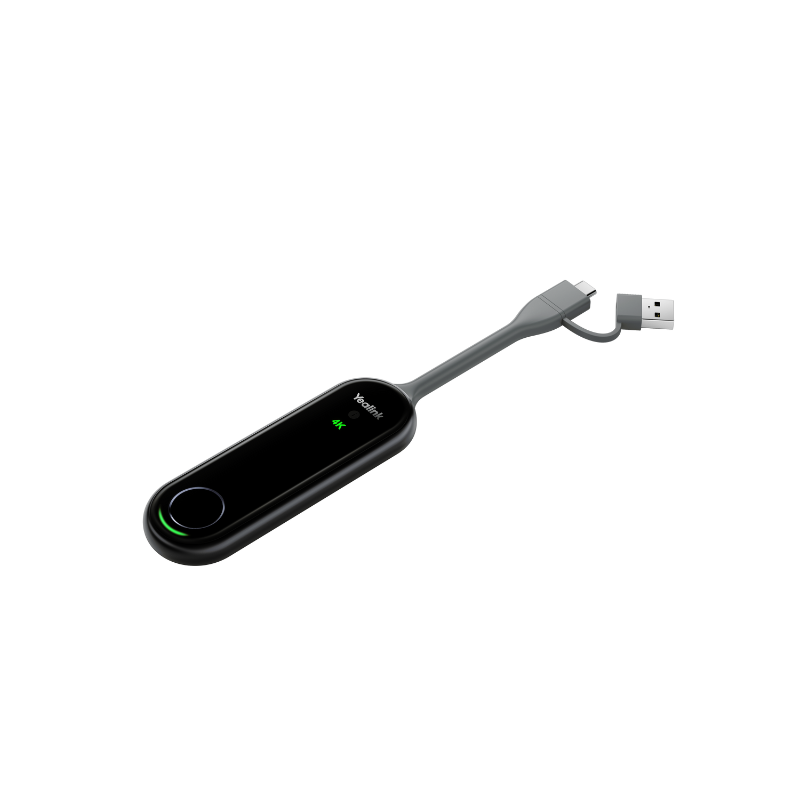

| WPP30 Content Sharing | |
| Wi-Fi Network | Self-built Wi-Fi Network |
| Content Sharing Resolution | 4K/30fps Full HD |
| Wireless Networks | Dual-band 2.4GHz/5GHz |
| Ports | Full-featured USB Type-C and USB Type-A Ports |
| Encryption | AES & WPA Data Encryption |
| Simultaneous Streams | Up to four content streams can be presented simultaneously |
| Additional Features | Annotations, whiteboards, reverse control, BYOD support |
| Product Specs | |
| Manufacturer Part # | MVC640-C4-F13 |
| EAN (Barcode) | 6938818316515 |
| Warranty | 2 years |
| Room Size | Medium Meeting Room (6-12) |
| Connects to | With PC/Laptop |
| Compatible With | Teams |
| Camera Resolution | 4K |
| Camera Field of View | 80° |
| Camera Features | Auto Framing |
| Other Features | PC/Mac Compatible |
| Description | Downloads |
|---|---|
| Yealink MVC640 Gen 3 - Datasheet | Download |
