RoomSensor
Sense the Environment, Build Smart Workspace
Yealink RoomSensor
Enterprise Multifunctional Wireless Occupancy Sensor
Yealink RoomSensor, the enterprise-level wireless Passive Infrared sensor (PIR sensor), is enabled for multiple sensing features of space occupancy, light condition, temperature and humidity, etc. With the built-in Bluetooth 5.0 and lithium battery, it's compact and cable-free to deploy. Moreover, the RoomSensor can be associated with various IoT devices and Yealink Workspace Management Platform, to build an intelligent and energy-efficient workspace.
Remarkable Sensitivity,
Reliable Transmission
Featuring passive infrared (PIR) technology, Yealink RoomSensor performs excellent occupancy detection with remarkable accuracy. The built-in Bluetooth 5.0 keeps the signal transmission stable and reliable.
Ideal and Scalable Solution for Multi-size Space
As a compact all-in-one sensing appliance, a single RoomSensor is ideal for usage in huddle to medium meeting rooms. And for large-sized ones, a multi-sensor network via Bluetooth mesh can be adopted to implement broader coverage.
Cable- and Trouble-free Installation

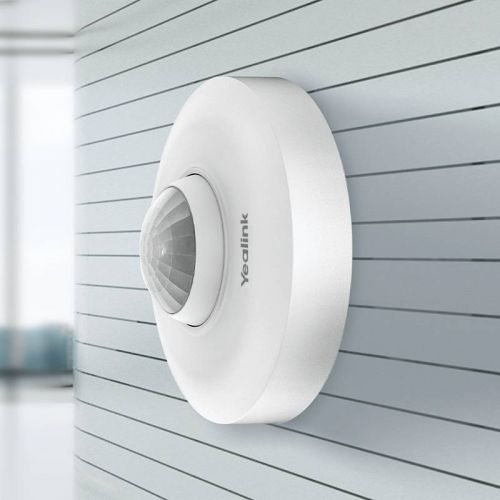

Powered by the replaceable lithium battery and wireless connectivity, the RoomSensor can be deployed without any cable. The magnetic design also makes the installation/maintenance easy and convenient. Moreover, the adjustable "lens" allows for different sensing area configurations and adds more adaptability to the deployment.
Integrate with IoT Terminals
Bring About Smart Workspace

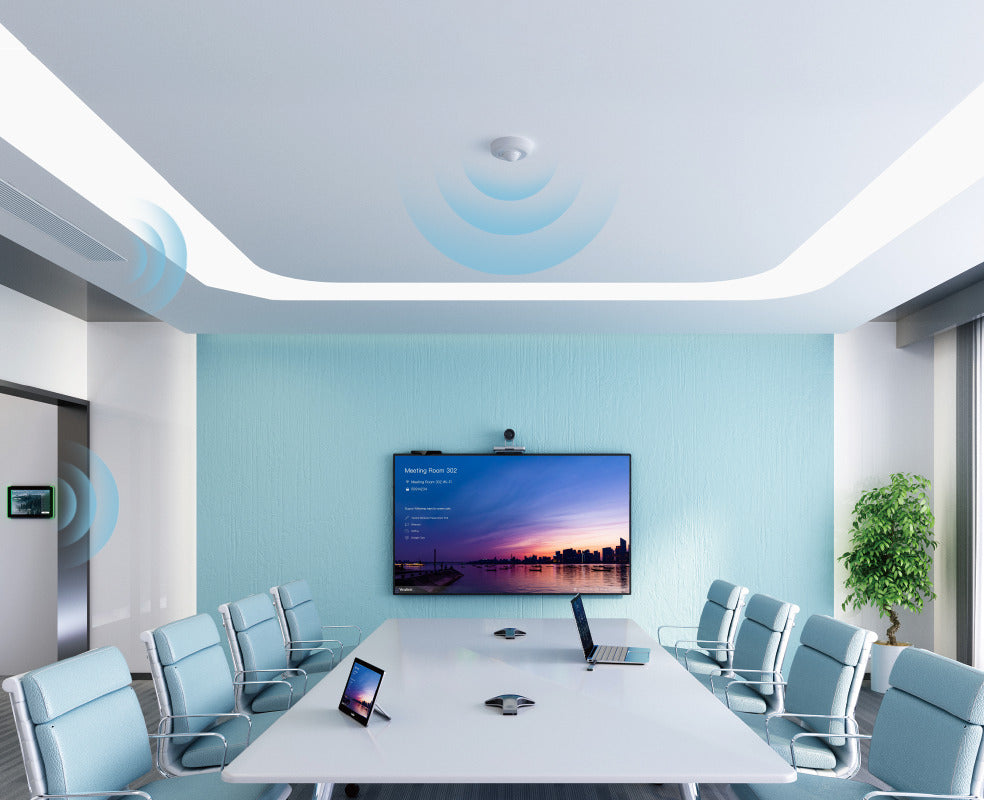

The RoomSensor is eligible for coordinating and linking with other intelligent IoT terminals, bringing features such as automatic check-in, lighting control, meeting room release and so on, to transform the traditional meeting rooms into smart workspace.
| Specifications | |
|---|---|
| Basic | |
| Detection | - Occupancy |
| - Temperature | |
| - Humidity | |
| - Light | |
| Housing | PC, White |
| Sensor | |
| Occupancy Type | Passive Infrared Tech |
| PIR Detection angle | 120° |
| Sensor Adjustable angle | ± 20° |
| PIR Coverage (Standard 3m/9.8 ft | 6m/19.7 ft radius (major |
| mouting height) | motion); |
| 3m/9.8 ft radius (minor | |
| motion) | |
| Temp measuring range | -10~70°C |
| Humidity measuring range | 0~80% RH |
| Communication | |
| Protocol | Bluetooth BLE 5.2 |
| Frequency band | 2.4GHz |
| Reach | Max. 30m (100 ft) |
| Multi-connectivity | Maximum 4 simultaneously, |
| BLE mesh | |
| Power Supply | |
| Power supply | 3 V (1*CR123A lithium |
| battery) | |
| Battery life | 5 Year |
| Indicator | |
| Button | 1 x config button |
| Led | 1 x LED |
| Operating Environment | |
| Temperature range | 0~40°C |
| Humidity | 10~95%, non-condensing |
| IP Rating | |
| IP Rating | IP20 |
| Dimension & Weight | |
| Dimensions | Φ95.3mm*36mm |
| Weight | 0.092KG (0.203lb) |
| Mount | |
| Bracket | Circular mounting bracket, |
| Magnetic | |
| Design | |
| Mounting | Ceiling/Wall Mounted |
| Management | |
| Yealink Management Cloud Service | |
| Yealink Device Management Platform |
| Description | Downloads |
|---|---|
| Yealink-RoomSensor Datasheet | Download |
| Yealink-RoomSensor-Quick-Start-Guide | Download |
