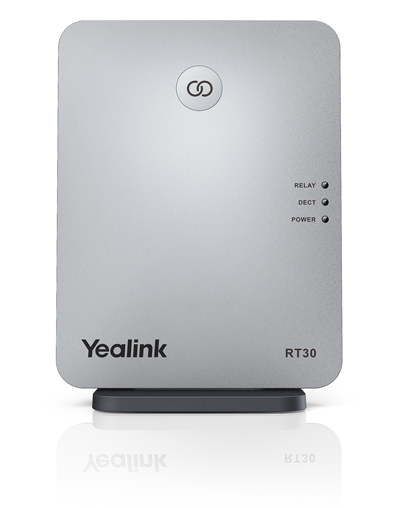

RT30 - DECT Repeater
Yealink DECT repeater RT30, designed in accordance with Digital Enhanced Cordless Telecommunication (DECT) standard, is characterized by easy installation and a user friendly display concept. The repeater can be deployed to extend the DECT radio coverage of Yealink W52P / W56P / W73P / W76P / W77P / W78P / W79P / W60P base station significantly in all directions, and it supports two RT30 cascaded. Signals with clear status LED display are exchanged without acoustical and visual differences. What's more, its elegant design and easy installationare typically suitable to be used in the ambiance of modern business environments.
Main Features
● Compatible with DECT
● Compatible with Yealink W70B and W60B DECT IP Base Station
● Up to 6 repeaters per base station
● Star connection
● Up to 2 repeaters can be arranged in cascade
● Auto association
● Support HD voice calls
● Plug & play setup
● Clear status LED display
● Elegant Design
● Wall Mountable
| General Features | |
|---|---|
| Extending the DECT coverage | |
| Supports automatic handover of calls between RT30 | |
| Up to 4 simultaneous calls per repeater | |
| Up to 6 repeaters per base station | |
| Up to 2 repeaters can be arranged in cascade | |
| Auto association | |
| Base Link Reset | |
| LED Display | |
| - LED 1 Power On | |
| - LED 2 DECT Link | |
| - LED 3 Active Relay | |
| Compatible with Yealink W60B (version 77.81.0.35 or later) | |
| Compatible with Yealink W52 Base Station (version 25.81.0.10 or later) | |
| Compatible with Yealink W70B (version 146.85.0.15 or later) | |
| Compatible with 4 simultaneous calls (W70B version 146.85.0.35 or later/ RT30 version 83.0.0.22 or later) | |
| Frequency/Coverage | |
| Indoor range up to 50 m (In ideal conditions) | |
| Outdoor range up to 300 m (In clear view and ideal conditions) | |
| 2 internal QWL omnidirectional antennas | |
| Modulation: GFSK | |
| Radio frequency range: | |
| 1880 MHz to 1900 MHz (EU) | |
| 1920 MHz to 1930 MHz (US) | |
| 1902 MHz to 1906 MHz (TH) | |
| 1910 MHz to 1920 MHz (BR) | |
| Transmission power: Average 10mW | |
| RX sensitivity: typ. -91dBm | |
| Physical Features | |
| Desktop or wall mountable | |
| Power supply: AC 100-240V Input and DC 5V/600mA Output | |
| Dimension (WHT): 130 mm x 100 mm x 25.1 mm | |
| Package Features | |
| Package content: | |
| - RT30 | |
| - USB Cable | |
| - Power Adapter | |
| - User Guide | |
| Qty/CNT: 10 PCS | |
| Giftbox size: 174 mm180 mm63 mm | |
| Carton meas: 375 mm336 mm187 mm | |
| N.W: 3.2 kg | |
| G.W: 3.7 kg |
| Description | Downloads |
|---|---|
| Yealink-DECT-Repeater-RT30-Datasheet | Download |
| Yealink-DECT-Repeater-RT30-User-Guide_V1.3 | Download |
