NEW CLASS. NEXT GENERATION

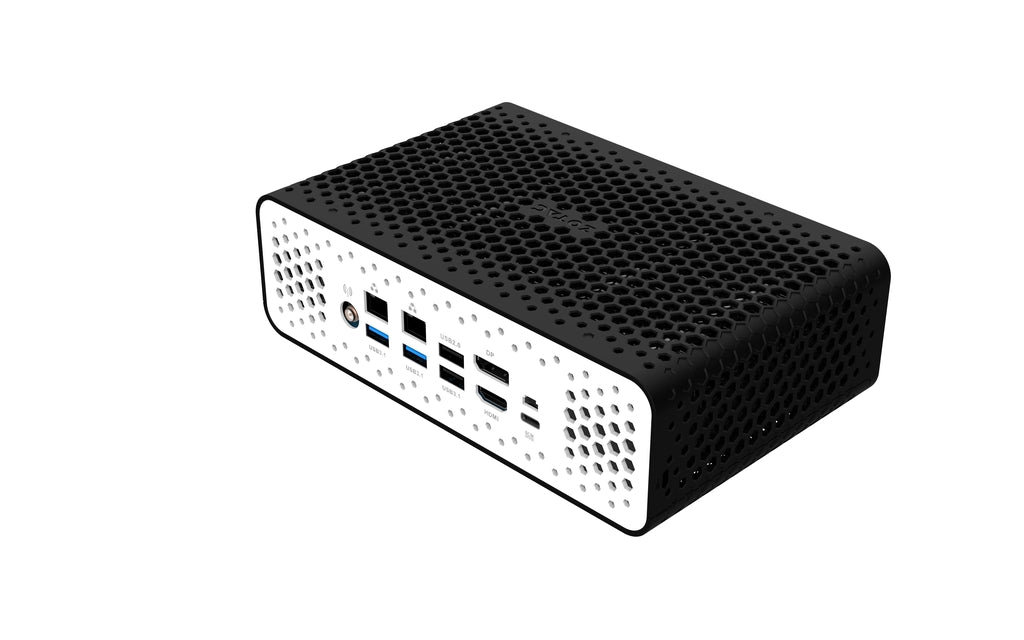

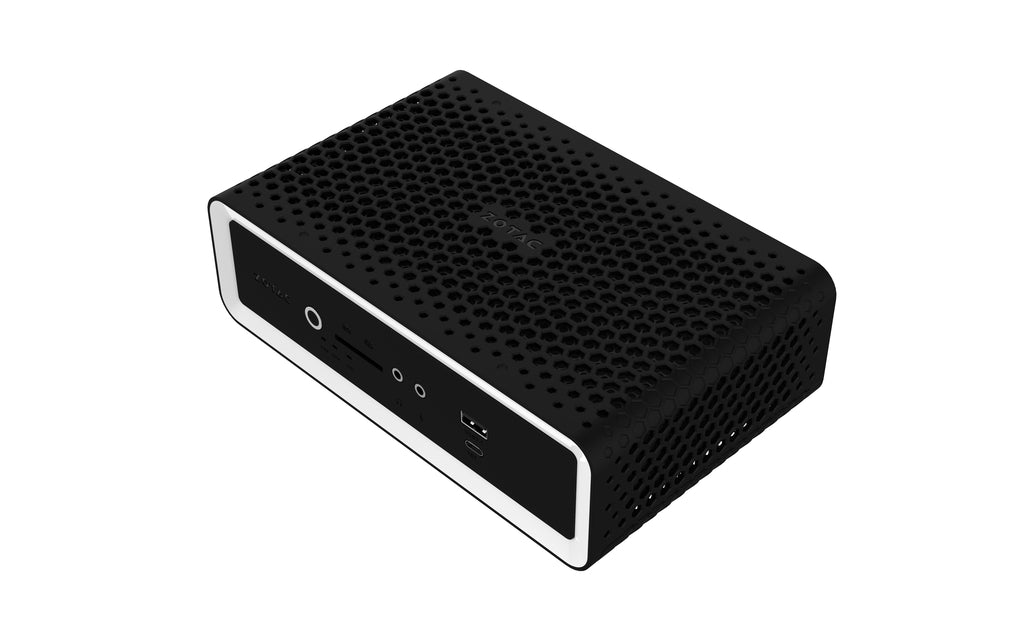

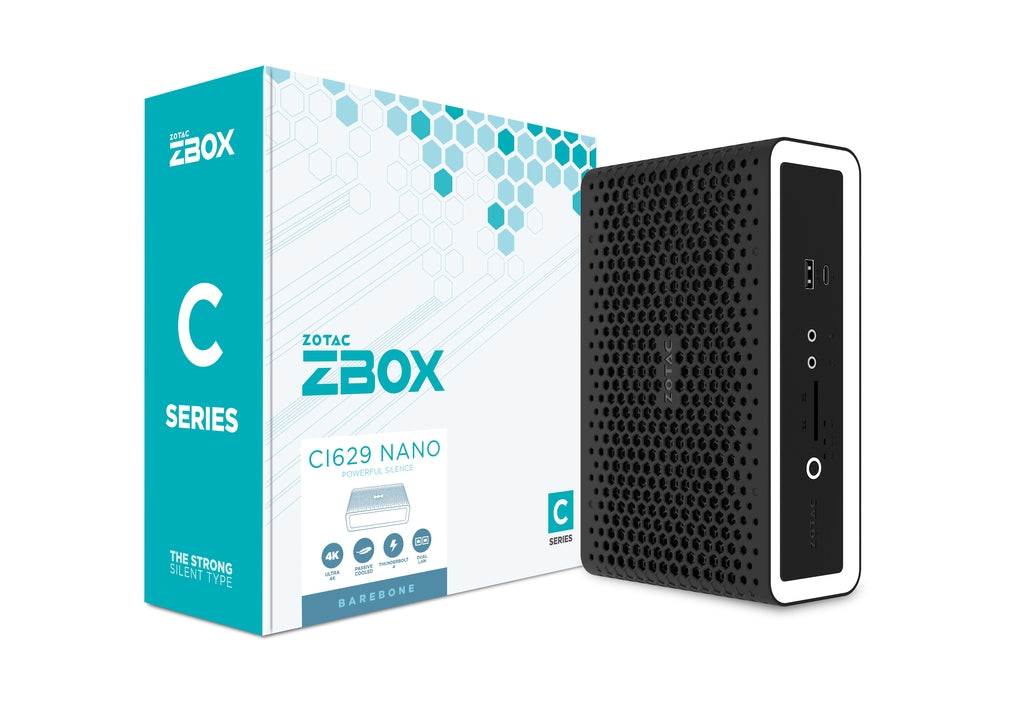

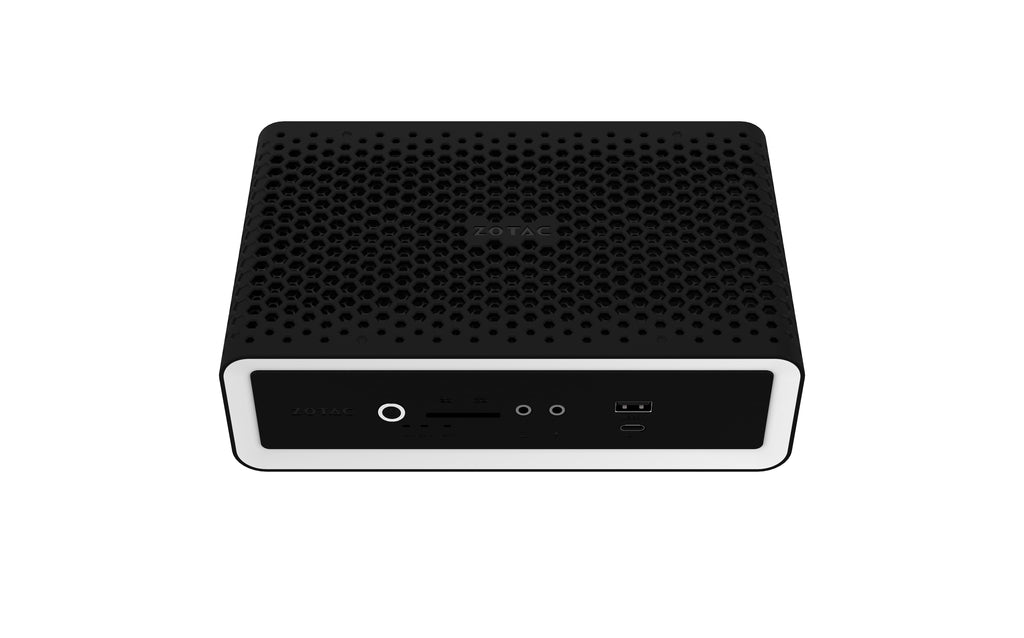

The all-new ZOTAC ZBOX C Series CI629 nano instils silence in ever more powerful computing hardware with a 13th Gen Intel Core i3-1315U 6-core 8-multi-threaded processor, Intel UHD Graphics, and Thunderbolt 4. A compact 1.79 litre footprint and modern design with a two-tone color scheme provide a timeless feel to captivate Offices and Workspaces with a silent and capable computer experience. With a bundled VESA mount plate, easily mount the system behind a compatible display or on the wall for more versatile placement.
THE MINI POWERHOUSE
The all-new compact ZBOX C Series nano is a leader in silent computing performance. Its rigid enclosure is patterned with nature’s strongest natural structure, further enhanced by 270 degrees of open ventilation for maximum breathability and operability.
POWER THROUGH YOUR TASKS
The all-new ZBOX C Series nano Mini PC is an efficiently fast multi-core, multi-threaded multitasker that’s dedicated to help get work done.
2 Performance Cores.
4 Efficient Cores.
8 Threads
UP TO 30W
A system that takes up very little space and it's designed with no moving parts (when used with an SSD), to remote wear and tear inefficiencies to increase overall system reliability, longevity, and return on investment. At 1.8 litres small, its energy consumption is just as small and efficient, sipping up to 30W under load for additional long term cost saving.
FLEXIBLE

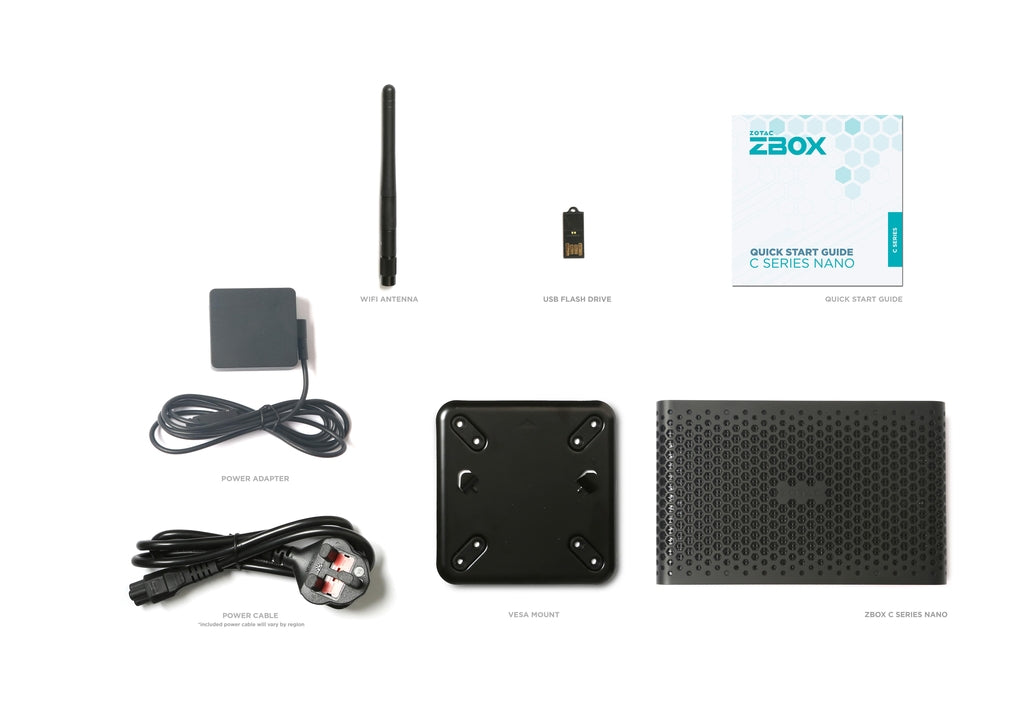

The ZBOX C Series nano features a built-in VESA mount design to allow for more flexible system placement. The overall small system takes very little desk space, but it also has the potential to take up zero if mounted onto a wall, under the desk, or even behind the display.
HAS GREAT COMMUNICATION
The ZBOX C Series nano’s compact footprint packs in a plethora of built-in fast connectivity which include: WiFi 6, Bluetooth 5.2, Gigabit LAN, and 2.5Gbps LAN. It can also provide great visibility with the ability to support up to 3 displays with HDMI 2.0b, DisplayPort 1.4, and DP via Thunderbolt. The available Thunderbolt 4, USB 3.1, and SDXC Card Reader allows for easy file transfers between devices.

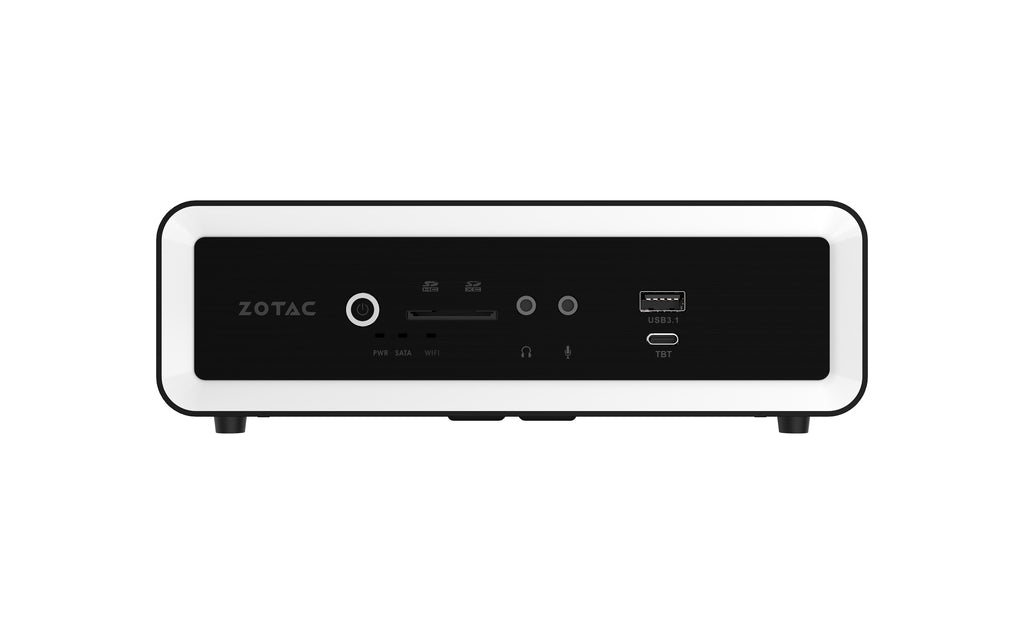

01 | POWER
02 |AUDIO
03 | MIC
04 | USB 3.1
05 | SDXC CARD READER
06 | THUNDERBOLT 4
07 | ANTENNA CONNECTION
08 | 2.5GBPS ETHERNET
09 | GIGABYTE ETHERNET
10 | USB 2.0
11 | DISPLAYPORT 1.4
12 | HDMI 2.0B
| Specification | Details |
|---|---|
| Edition | ZBOX C1629 Nano |
| Form Factor | |
| CPU Included | Yes |
| CPU Type | Intel Core i3 |
| CPU Model | i3-1315U |
| Architecture | Raptor Lake 13th Gen |
| Core | 6 Core |
| No. of Threads | 8 |
| Clock Speed | 1.2 GHz |
| Burst Frequency | 4.5 GHz |
| Max. Memory Capacity | 64GB (2x32GB) |
| Memory Channels | Dual (2) |
| Memory Speed (Mhz) | DDR5 - 4800, DDR5 - 5200 |
| On-board/Integrated Graphics | Yes |
| Processor/Motherboard Graphics | Intel UHD Graphics |
| Expansion Slots | 1 x M.2 PCIe, 1 x SATA 6GB/s |
| SATA | SATA3 / M.2 |
| Network Interface Type | 802.11ax Wi-Fi LAN, Wired 2.5 Gigabit LAN |
| Front Panel | 1 x 3-in-1 SD/SDHC/SDXC Card Reader |
| Back Panel | 2 x 10/100/1000/2500 (LAN), 1 x DisplayPort 1.4, 1 x HDMI 2.0b, 1 x USB 2.0, 3 x USB 3.1 Gen1 Type-A |
| VESA Mountable | Yes |
| PSU Wattage | 65 W |
| Colour | Black |
| Dimensions | 204 x 68 x 129 (mm WxHxD) |
| Scan Code | LN141169 |
| Model Number | ZBOX-CI629NANO-BE |
| GTIN | 4895173627644 |
