55" 4K UHD
3840 x 2160 resolution for detailed digital signage, video, menus, advertising and corporate content.
Official Partner

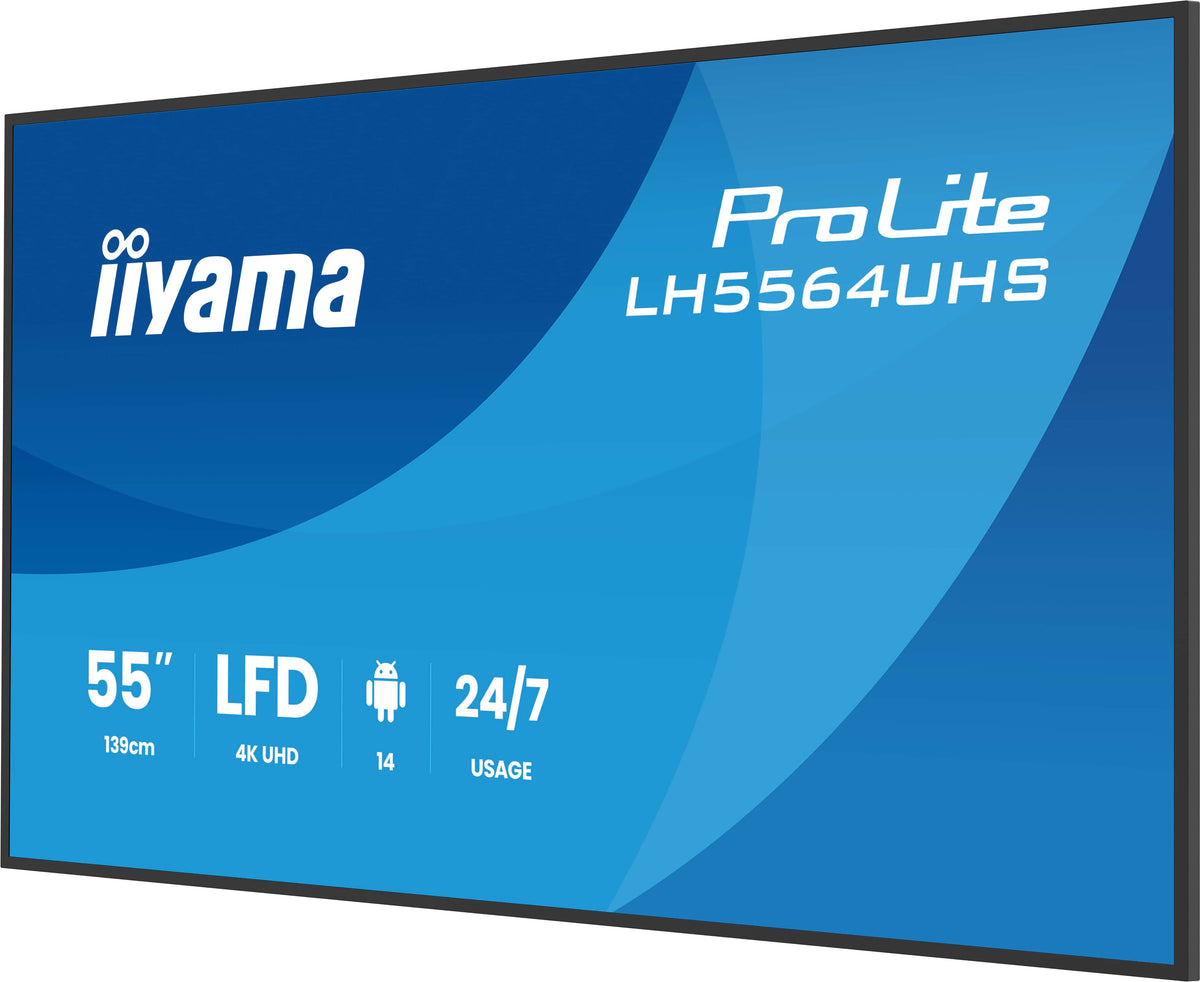

iiyama ProLite LH5564UHS-B1AG 55" 4K UHD Android 14 Professional Signage Display
In Stock49 available
Express DeliveryFast UK delivery where eligible
3 Year WarrantyManufacturer-backed cover
UK Expert SupportPre-sales and technical advice
Product description
iiyama ProLite LH5564UHS-B1AG
iiyama ProLite LH5564UHS-B1AG 55" 4K Android 14 Digital Signage Display
The iiyama ProLite LH5564UHS-B1AG is a 55" professional 4K UHD digital signage display with 500 cd/m² brightness, Android 14, iiSignage² CMS, iiControl device management, iiShare, EShare, Signal FailOver and reliable 24/7 commercial operation.
Its 55" VA panel delivers 3840 x 2160 resolution, wide 178° viewing angles and a strong 5,000:1 static contrast ratio. Integrated 4GB RAM, 32GB storage, dual-band Wi-Fi, USB-C and professional AV control make the LH5564UHS-B1AG suitable for retail, hospitality, offices, education, restaurants and public-information environments.
55" 4K UHD
3840 x 2160 @ 60Hz
Android 14
4GB RAM + 32GB storage
500 cd/m²
Professional indoor signage
24/7 Operation
Continuous commercial use
Description
LH5564UHS-B1AG Professional Signage
A powerful 55" iiyama commercial display with Android 14.
The iiyama LH5564UHS-B1AG is designed for organisations that need professional digital signage with modern Android hardware, integrated content management and continuous-use reliability.
Its 55" VA panel provides 3840 x 2160 4K UHD resolution, 500 cd/m² brightness, 5,000:1 static contrast and wide 178° viewing angles.
Android 14, iiSignage², iiControl, iiShare, EShare, Signal FailOver, TeamViewer, iiBrowser and integrated media playback create a flexible all-in-one signage platform.
Compare this model with other 55" commercial displays available from ScreenMoove.
- iiyama ProLite LH5564UHS-B1AG
- 55" / 138.7cm professional display
- 3840 x 2160 4K UHD resolution
- 500 cd/m² brightness
- VA panel
- 5,000:1 static contrast
- Android 14 operating system
- 4GB RAM and 32GB storage
- iiSignage² content management
- iiControl device management
- iiShare and EShare
- Signal FailOver
- 24/7 commercial operation
LH5564UHS-B1AG Key Features
iiyama ProLite LH5564UHS-B1AG specifications at a glance.
Android 14
Modern integrated Android hardware with 4GB RAM and 32GB internal storage.
500 cd/m²
Professional indoor brightness for commercial signage applications.
24/7 Operation
Designed for continuous professional use where content needs to remain available day and night.
iiSignage² + iiControl
Integrated tools for managing compatible signage content and professional displays remotely.
USB-C
USB-C with DisplayPort Alt Mode and up to 15W power delivery.

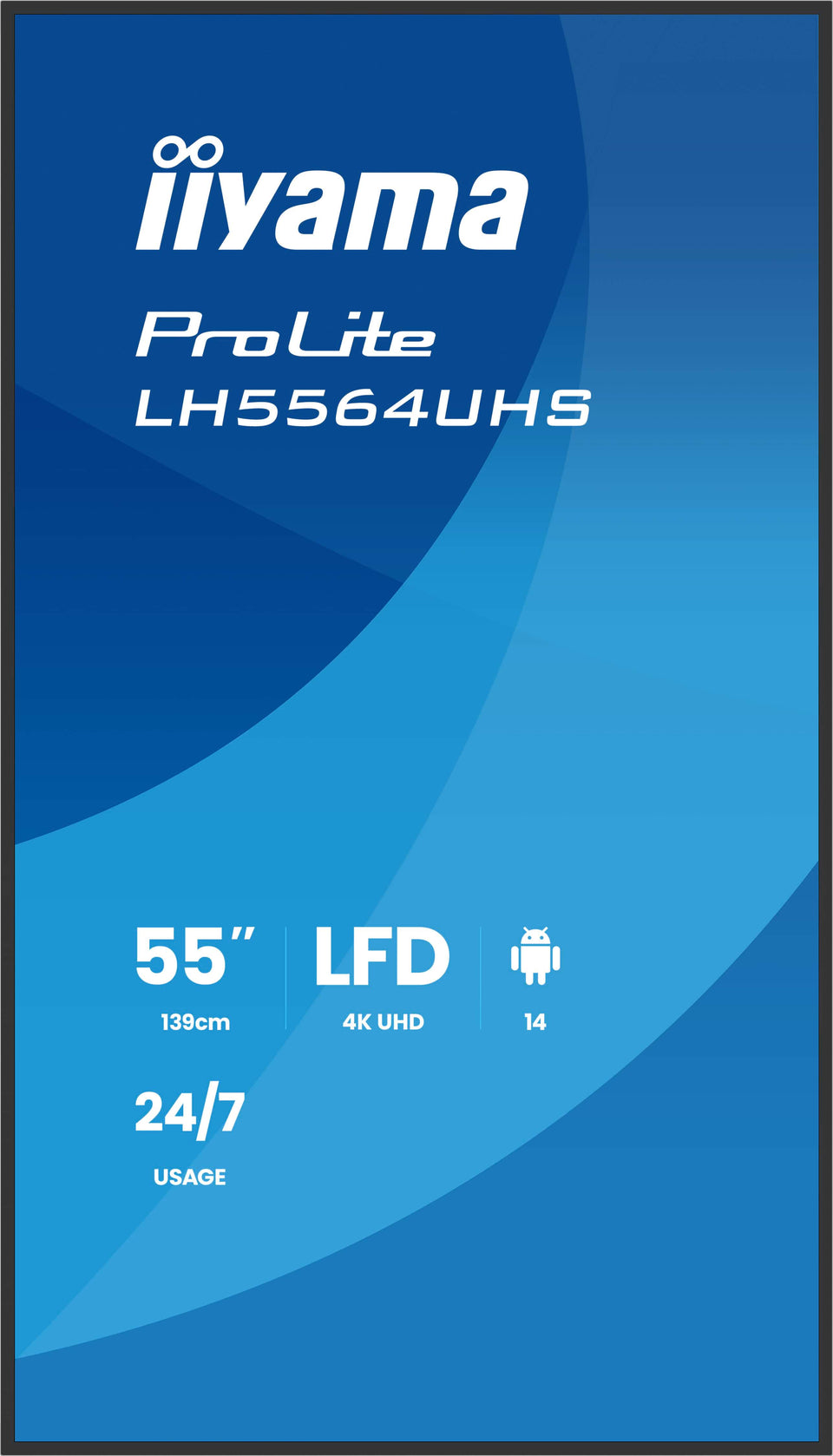

4K UHD Resolution
Detailed 4K content on a high-impact 55" commercial display.
The LH5564UHS-B1AG provides 3840 x 2160 resolution at 60Hz, giving businesses 8.3 million pixels for professional signage content.
High-resolution product imagery, menus, pricing, dashboards, presentations and promotional video can all be displayed with excellent detail.
- 3840 x 2160 native resolution
- 4K UHD at 60Hz
- 8.3 megapixel panel
- 16:9 aspect ratio

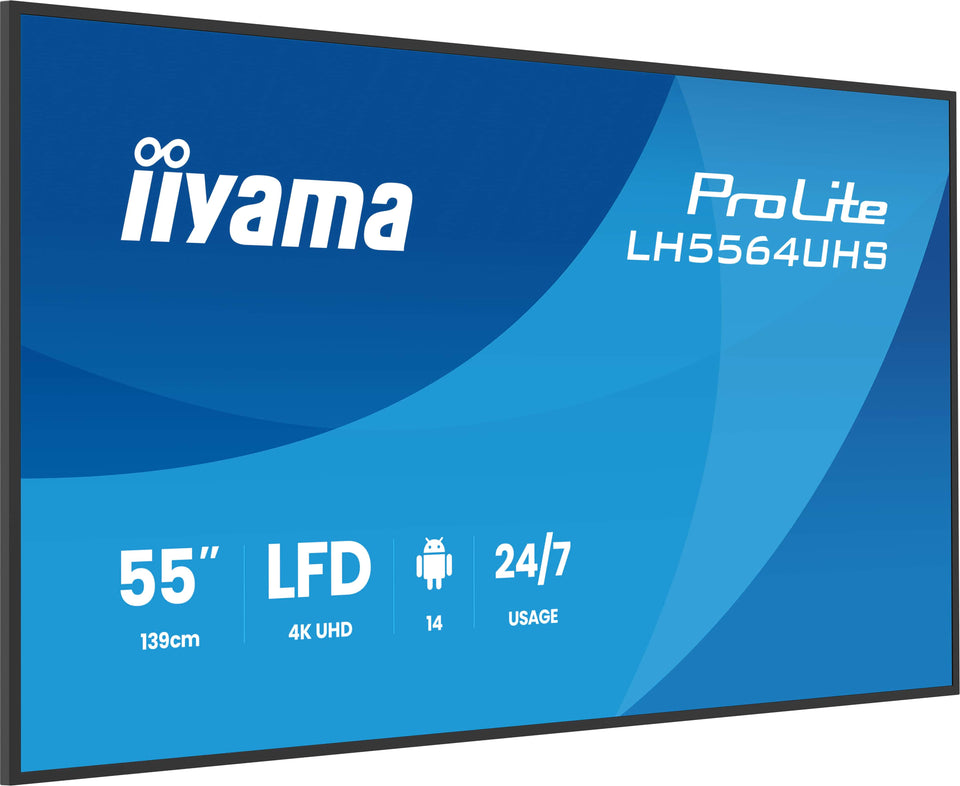

VA Panel
5,000:1 contrast for high-impact professional signage.
The iiyama ProLite LH5564UHS-B1AG uses a VA panel with a 5,000:1 static contrast ratio.
Strong contrast helps dark and bright areas remain clearly defined across advertising, branded graphics, video and information content.
- VA panel technology
- 5,000:1 static contrast
- 178° horizontal viewing angle
- 178° vertical viewing angle
- 1.07 billion colours
- 25% haze anti-glare surface
Android 14
A powerful integrated Android signage platform.
The LH5564UHS-B1AG uses Android 14 with an A73 quad-core processor, G52 MC1 graphics, 4GB RAM and 32GB internal storage.
Compatible signage applications can run directly on the display, reducing the need for a separate external media player in many professional installations.
- Android 14 OS
- A73 quad-core processor
- G52 MC1 graphics
- 4GB RAM
- 32GB internal storage
- Built-in dual-band Wi-Fi
iiSignage² CMS
Create, schedule and manage digital signage remotely.
iiSignage² is iiyama's integrated content-management platform for controlling compatible digital signage content.
Marketing and AV teams can remotely manage messaging, advertising, menus and company communications across individual displays or larger signage estates.
iiControl DMS
Centralised professional display management.
iiControl provides device-management functionality for compatible iiyama professional displays.
This can simplify administration for businesses and AV teams responsible for multiple commercial displays.
Signal FailOver
Help keep important business content continuously visible.
Signal FailOver automatically detects available input sources.
If the default input stops receiving a signal, the LH5564UHS-B1AG can move to another prioritised source, helping minimise blank screens in customer-facing environments.

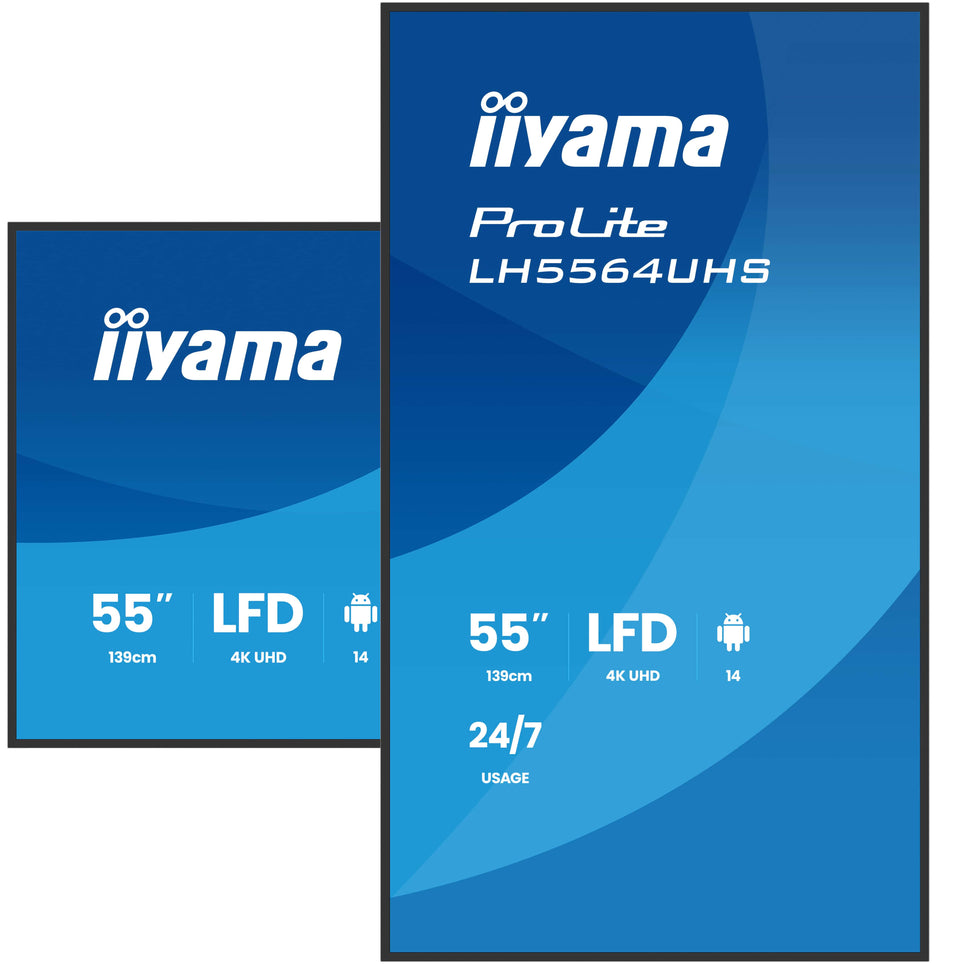

Flexible Orientation
Landscape and portrait digital signage installation.
The LH5564UHS-B1AG supports both landscape and portrait orientation.
Landscape works well for menu boards, video, dashboards and presentations, while portrait is ideal for digital posters, directories, promotional signage and wayfinding.
24/7 Professional Operation
Built for continuous commercial digital signage.
The iiyama LH5564UHS-B1AG is rated for 24/7 operation.
It also combines fanless operation with anti-image-retention functionality and an official 50,000-hour MTBF excluding backlight.
- 24/7 maximum non-stop operation
- Fanless design
- Anti-image-retention support
- 50,000-hour MTBF excluding backlight

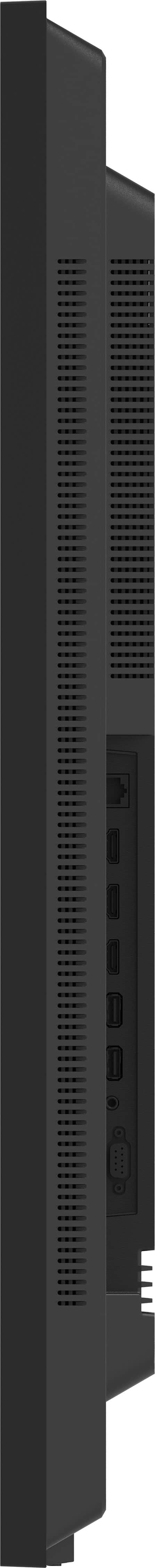

Professional Connectivity
HDMI, USB-C, USB, LAN, RS-232C and IR control.
The LH5564UHS-B1AG provides professional connectivity for digital signage, AV systems and remote display control.
USB-C supports DisplayPort Alt Mode and up to 15W power delivery, while its two HDMI 2.0 inputs support 4K UHD signals at up to 60Hz.
- 2 x HDMI 2.0
- USB-C with DisplayPort Alt Mode
- USB-C 15W Power Delivery
- 2 x USB 2.0
- RJ45 LAN
- RS-232C input and output
- IR input and loop-through
- 3.5mm audio output

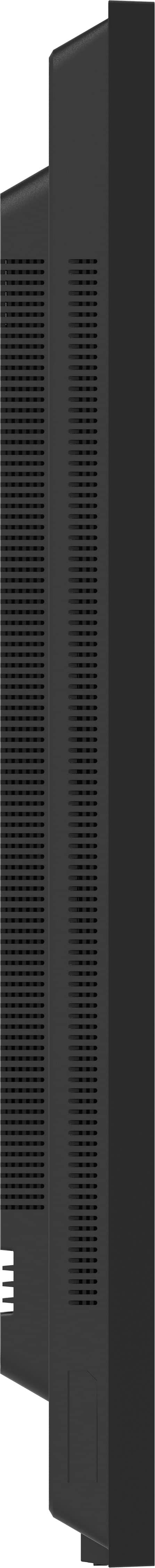

Integrated Audio
Built-in 2 x 10W speakers for multimedia signage.
The iiyama ProLite LH5564UHS-B1AG includes two integrated 10W speakers.
This makes it possible to add sound to compatible presentations, advertising and informational content without separate speakers in many installations.
- 2 x 10W integrated speakers
- Stereo commercial audio
- 3.5mm audio output
- Suitable for multimedia signage

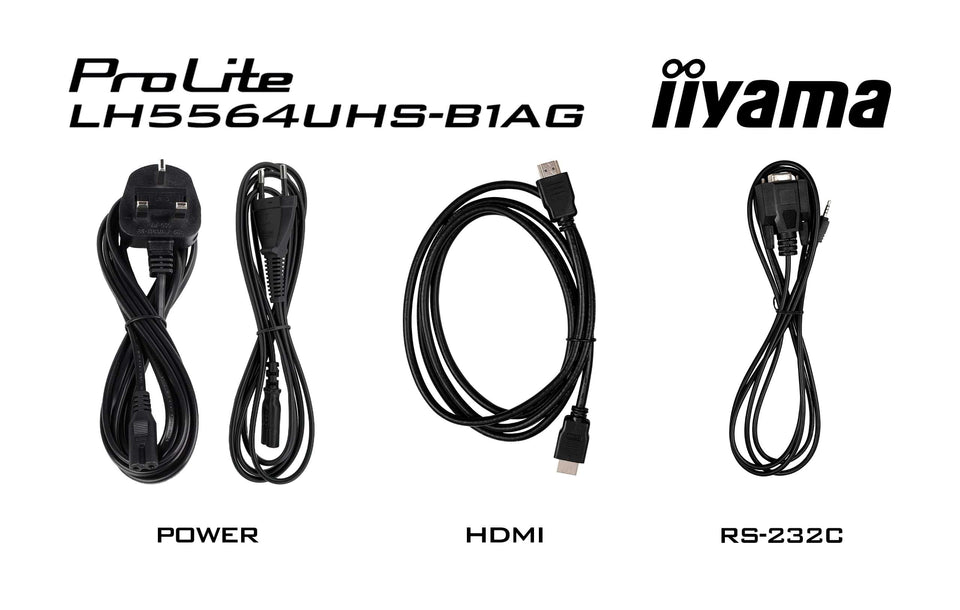

Professional Installation
Everything required for a clean commercial installation.
Power, HDMI and RS-232C cables are supplied with the LH5564UHS-B1AG alongside mounting accessories, remote control and installation guides.
- 1.8m power cable supplied
- 1.8m HDMI cable supplied
- 1.8m RS-232C cable supplied
- Remote control with batteries
- Wall mounting accessories supplied

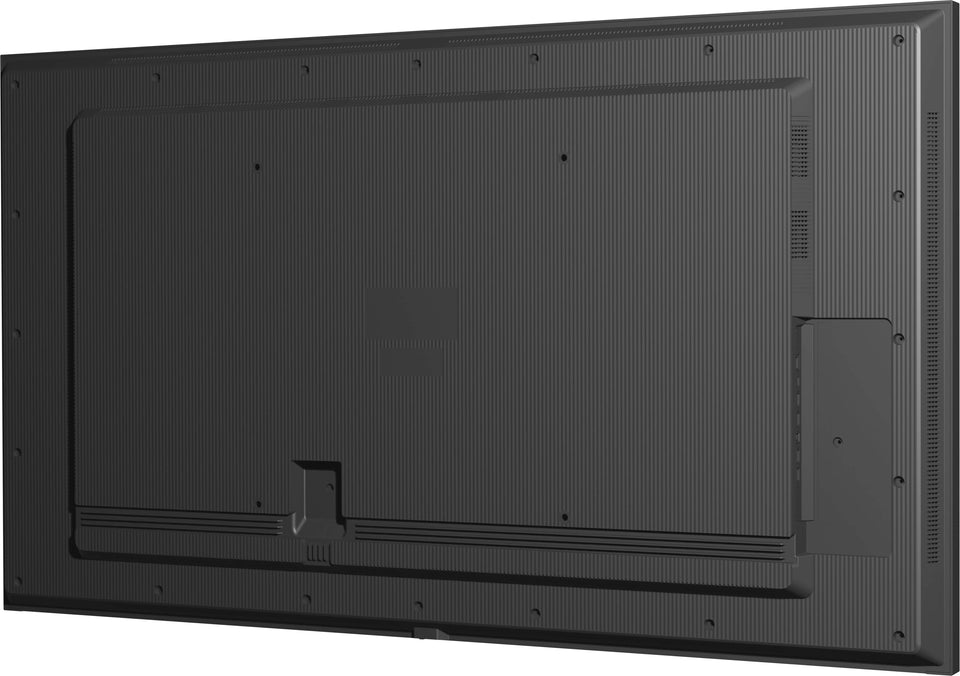

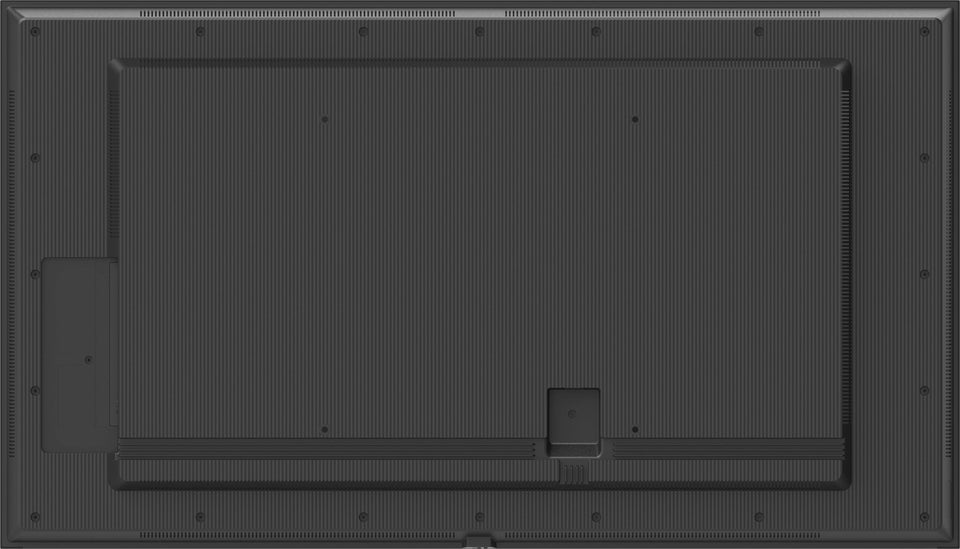

Wall Mount Included
400 x 400mm VESA mounting for professional installations.
The iiyama ProLite LH5564UHS-B1AG uses a 400 x 400mm VESA mounting pattern.
A wall-mount bracket, wall-mount guide, screws, screw anchors and screw-hole stickers are supplied.
- 400 x 400mm VESA
- Wall mount bracket included
- Wall mount guide included
- Screws and anchors supplied
Compare 55" Displays
Is the iiyama LH5564UHS-B1AG the right 55" commercial display?
The LH5564UHS-B1AG is particularly strong if you need 55" 4K UHD resolution, 500 cd/m² brightness, 5,000:1 contrast, Android 14, 4GB RAM, 32GB storage, iiSignage², iiControl and 24/7 operation.
Compare it against other professional models in ScreenMoove's 55" commercial displays collection .
LH5564UHS-B1AG Product Gallery
A closer look at the iiyama ProLite LH5564UHS-B1AG.
Specifications
LH5564UHS-B1AG Technical Specification
iiyama ProLite LH5564UHS-B1AG specifications.
Detailed technical specifications for the LH5564UHS-B1AG including its 55" VA panel, Android 14 platform, connectivity, mounting, dimensions, weight and power consumption.
| Specification | iiyama LH5564UHS-B1AG Details |
|---|---|
| Display Characteristics | |
| Product | iiyama ProLite LH5564UHS-B1AG |
| Design | Thin bezel |
| Diagonal | 55" / 138.7cm |
| Panel | VA, anti-glare coated glass, matte finish, haze 25% |
| Resolution | 3840 x 2160 @ 60Hz, 8.3 megapixel 4K UHD |
| Aspect Ratio | 16:9 |
| Brightness | 500 cd/m² |
| Static Contrast | 5,000:1 |
| Response Time | 6.5ms GTG |
| Viewing Angle | 178° horizontal / 178° vertical |
| Colour Support | 1.07G, 8-bit + FRC, NTSC 72% |
| Horizontal Sync | 57 - 62kHz |
| Viewable Area | 1209.6 x 680.4mm |
| Bezel Width | 12.8mm sides, top and bottom |
| Pixel Pitch | 0.315mm |
| Bezel Colour / Finish | Black, matte |
| Connectivity | |
| HDMI | 2 x HDMI 2.0, max 3840 x 2160 @ 60Hz |
| USB-C | DisplayPort Alt Mode, 15W Power Delivery |
| USB | 2 x USB 2.0 |
| LAN | RJ45 x1 |
| RS-232C | Input x1 / Output x1 |
| IR | Input x1 / Loop-through x1 |
| Audio Output | 3.5mm mini jack |
| Speakers | 2 x 10W |
| HDCP | 1.4 / 2.0 |
| Software & Hardware | |
| Operating System | Android 14 |
| Software | iiSignage², iiControl, iiShare, EShare, FailOver, TeamViewer, PDF & Media Player, iiBrowser, File Manager |
| Wi-Fi | Built-in dual-band 2.4GHz / 5GHz |
| CPU | A73 quad-core |
| GPU | G52 MC1 |
| RAM | 4GB |
| Storage | 32GB |
| Maximum Operation | 24/7 |
| Anti Image Retention | Yes |
| Media Playback | Yes |
| Housing / Bezel | Plastic |
| Mechanical | |
| Orientation | Landscape / Portrait |
| Fanless | Yes |
| VESA | 400 x 400mm |
| Wall Mount Kit | Included |
| Operating Temperature | 0°C - 40°C |
| Storage Temperature | -20°C - 60°C |
| MTBF | 50,000 hours excluding backlight |
| Power | |
| Power Supply | Internal, AC 100 - 240V, 50/60Hz |
| Typical Power | 135W |
| Energy Star 8.0 POn | 82.46W |
| Standby | 0.5W |
| Off Mode | 0.3W |
| Energy Efficiency Class | G |
| Dimensions & Packaging | |
| Product Dimensions | 1238.4 x 709.2 x 70mm |
| Box Dimensions | 1390 x 830 x 144mm |
| Product Weight | 13kg |
| Boxed Weight | 18.5kg |
| EAN | 4948570125319 |
| Included Accessories | |
| Cables | 1.8m power cable, 1.8m HDMI cable, 1.8m RS-232C cable |
| Guides | Quick start guide and safety guide |
| Remote Control | Included with batteries |
| Mounting Accessories | Wall mount bracket, wall mount guide, screws, screw anchors and screw-hole stickers |
Warranty
iiyama Large Format Display Warranty
iiyama ProLite LH5564UHS-B1AG warranty.
Manufacturer Warranty
Supplied with the applicable iiyama professional Large Format Display warranty.
Professional Support
Keep the LH5564UHS-B1AG model number, serial number and proof of purchase available when requesting support.
ScreenMoove Assistance
ScreenMoove can assist with product, installation and warranty enquiries.
Downloads
LH5564UHS-B1AG Manuals & Downloads
iiyama LH5564UHS-B1AG manuals and technical documents.
Commercial Applications
Where businesses use the iiyama LH5564UHS-B1AG.
The 55" format provides strong visual impact without requiring the installation space of a very large commercial display. Android 14, 500 cd/m² brightness and 24/7 operation make the LH5564UHS-B1AG suitable for a wide range of professional indoor signage environments.
Retail Digital Signage
Promote products, offers, new launches and branded campaigns throughout retail environments.
Explore Retail SignageHospitality & Menu Boards
Display menus, promotions, guest information and branded content in hospitality environments.
Explore HospitalityCorporate & Offices
Dashboards, reception content, internal communications and presentation content.
Explore Meeting Room AVEducation
Timetables, announcements, campus information, directories and wayfinding.
Explore Education SignageReception & Visitor Areas
Welcome messaging, company branding, visitor information and front-of-house communications.
Explore Business SignagePublic Information
Directories, schedules, wayfinding and professional public-information displays.
Compare 55" Displays
Alternative iiyama Screen Sizes
Compare the LH5564UHS-B1AG with other iiyama LH64 displays.
Choose the most appropriate iiyama LH64 screen according to viewing distance, available wall space, room size and the visual impact required from your digital signage.
Frequently Asked Questions
iiyama ProLite LH5564UHS-B1AG FAQs.
What is the iiyama ProLite LH5564UHS-B1AG?
The LH5564UHS-B1AG is a 55" professional 4K UHD digital signage display with Android 14, 500 cd/m² brightness, iiSignage², iiControl and 24/7 commercial operation.
Is LH5564UHS B1AG the same as LH5564UHS-B1AG?
Yes. Both versions refer to the same iiyama ProLite 55" professional digital signage display.
What resolution is the LH5564UHS-B1AG?
It has a native 3840 x 2160 4K UHD resolution at 60Hz.
Does the LH5564UHS-B1AG use Android 14?
Yes. It uses Android 14 with an A73 quad-core processor, 4GB RAM and 32GB internal storage.
How bright is the LH5564UHS-B1AG?
The display provides 500 cd/m² typical panel brightness.
What contrast ratio does the LH5564UHS-B1AG have?
Its VA panel provides a 5,000:1 static contrast ratio.
Can the LH5564UHS-B1AG run 24/7?
Yes. It is rated for 24/7 continuous professional operation.
What are the LH5564UHS-B1AG dimensions?
The display measures 1238.4 x 709.2 x 70mm.
How much does the LH5564UHS-B1AG weigh?
The display weighs 13kg unboxed and 18.5kg boxed.
What VESA mount does the LH5564UHS-B1AG use?
It uses a 400 x 400mm VESA mounting pattern, with a wall mounting kit supplied.
Does the LH5564UHS-B1AG have USB-C?
Yes. USB-C supports DisplayPort Alt Mode and up to 15W Power Delivery.
Does the LH5564UHS-B1AG have built-in speakers?
Yes. It includes two integrated 10W speakers.
What is iiSignage²?
iiSignage² is iiyama's digital signage content-management platform for remotely creating, scheduling and managing compatible signage content.
What is Signal FailOver?
Signal FailOver detects available inputs and can switch away from the default source if its signal becomes unavailable.
Does the LH5564UHS-B1AG support portrait mode?
Yes. It supports both landscape and portrait installation.
Where can I compare other 55 inch commercial displays?
Browse ScreenMoove's 55" commercial displays collection to compare alternative professional models.
iiyama Professional Signage
Is the iiyama ProLite LH5564UHS-B1AG right for your project?
The LH5564UHS-B1AG combines a 55" 4K UHD VA panel, 500 cd/m² brightness, 5,000:1 contrast, Android 14, 4GB RAM, 32GB storage, iiSignage², iiControl and 24/7 commercial operation. Compare it with other 55" commercial displays or choose another iiyama LH64 Series screen size above.
Technical Highlights
- Display size / Screen sizes
- 55"
- Resolution
- Ultra HD (4K)
- Panel type
- VA Panel
- Screen type
- Flat
- Brightness
- 500 cd/m2
- Screen ratio
- 16:9
- Refresh rate
- 60Hz
- Display orientation
- Landscape & Portrait
- Operating hours
- 24/7
- Operating system
- Android 14
- VESA patterns
- 400x400
- Warranty
- 3 Year Warranty
iiyama ProLite LH5564UHS-B1AG 55" 4K UHD Android 14 Professional ...SKU: LH5564UHS-B1AG
£598.50
See Before You Decide
Book a Free Product Demonstration
Compare picture quality, touchscreen performance, software and connectivity with guidance from a commercial display specialist.
Remote or on-site
No obligation
Expert-led session
For Integrators and Resellers
Open a Screen Moove Trade Account
Access project pricing, volume discounts, product sourcing support and faster commercial quotations for your client projects.
Trade pricing
Project support
Volume discounts
Education & Public Sector
A simpler procurement route for schools and public organisations
Access education pricing, purchase-order support, installation services and account management for schools, academies, colleges, universities, NHS organisations, councils and government bodies.
Purchasing for a school, academy, university or NHS organisation?
Register your organisation to request institutional pricing and
purchase-order support.
Register Your Organisation
Trusted Store Status
Top Quality Store
Rating status, Exceptional, based on Google’s shopping experience metrics.
Why it matters
Demonstrates consistently strong fulfilment, service, and post-sale experience across Google signals.
Google
Top Quality Store
Built for confidence, next-day delivery options, UK-based support, trade-ready operations.
Request a quote
JO
Josh
Jan 6, 2026
Great products and service! The guys always go above and beyond to make sure they supply you with the product that best fits your needs. I’ve been using Screen Moove for a number of years now and woul...
See moreSD
Sandy Dobson
Nov 28, 2025
Verified
Screen Moove went above and beyond for my requirements. Ordering system was super easy it just take 2 minutes to complete my order and I have received my tracking details right away after few minutes...
See moreS
St Peter's Church
Dec 17, 2025
Moe Khan, one of the team at Screen Move has been a fantastic help as we have navigated the process of choosing and buying screens and stands for our church. Helpful at every step of the way, patient...
See moreFS
Furniture Store
Nov 27, 2025
We originally planned to purchase a cheap TV for our showrooms. After speaking with screen moove, we ended up investing in floorstanding displays across multiple retail sites and showrooms. The bright...
See moreFT
Felix Thomas
Sep 4, 2025
Verified
I placed my order late at night but realized I had entered the wrong address. I immediately sent an email asking for it to be changed, not really expecting a reply until the next day. To my surprise,...
See moreAS
ava singh
Aug 27, 2025
Verified
I’ve been looking ultra high brightness display despite I checked everywhere I didn’t trust. They got my trust and I ordered. It arrived safely next day we have installed screen is awesome and high qu...
See moreGK
Glenn Khan
Nov 27, 2025
Verified
This is second time I used Screen Moove, I have bought double sided 55 inch display. The first order was a bit delayed I don't blame it might be happen, but customer service over the phone was excell...
See moreBY
Burcu Yesilova
Feb 12, 2025
Screenmoove, perfect customer satisfaction from start to finish! Their customer service is incredibly helpful and fast. It’s amazing to be able to reach out and get quick solutions for any issue. We a...
See moreTE
Tina e Edwards
Dec 17, 2025
We found that we needed a video call to work out the set up. The tech team at screenmoove were very very good. I would suggest that the instructions that come with the screen offer two key info. 1. Set...
See moreMA
Miss Akthar
Nov 21, 2025
Verified
Great experience with Jonathan Gray, previously I was looking for other companies and randomly ordering our needs from elsewhere. after I met with him, since 2024 we are keep purchasing from screen m...
See moreGet in touch
Speak directly with Screen Moove about your display, digital signage, meeting-room or AV project.
Need help choosing the right product?
Speak directly with a dedicated Screen Moove expert and get the right solution first time.
Call us: 020 8191 9223
Email: info@screenmoove.com
Contact us
Simply complete our contact form, and we will promptly respond to your inquiries.
If you have any questions or enquiry, please fill out the form below with all of your details and we'll get back to you shortly.
Ready to start your next AV project?
Contact our team of experts today!
