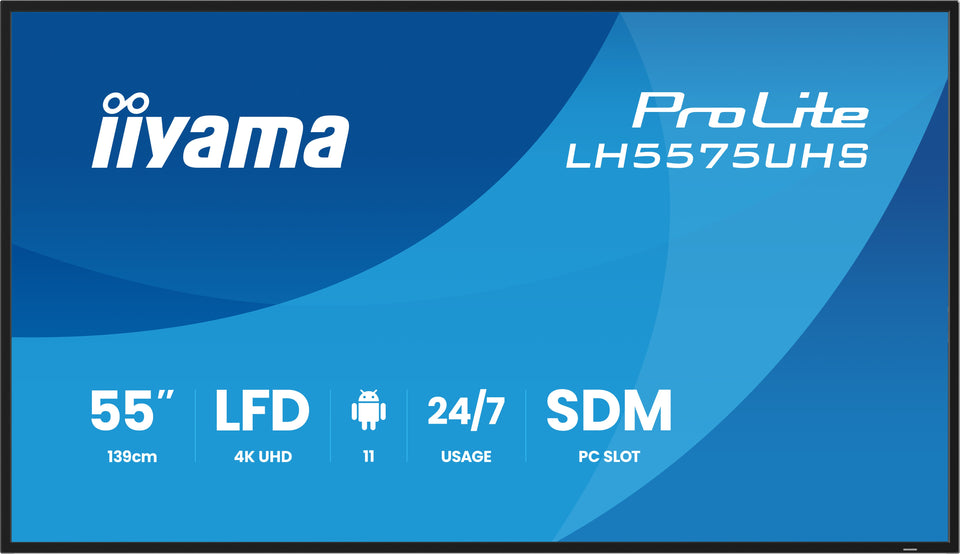

55" 4K UHD
3840 x 2160 resolution on a 54.6-inch professional IPS display.
Official Partner
iiyama ProLite LH5575UHS-B2AG 55" 4K Ultra HD Professional Digital Signage Display
In Stock110 available
Express DeliveryFast UK delivery where eligible
3 Year WarrantyManufacturer-backed cover
UK Expert SupportPre-sales and technical advice
Product description
iiyama ProLite LH5575UHS-B2AG

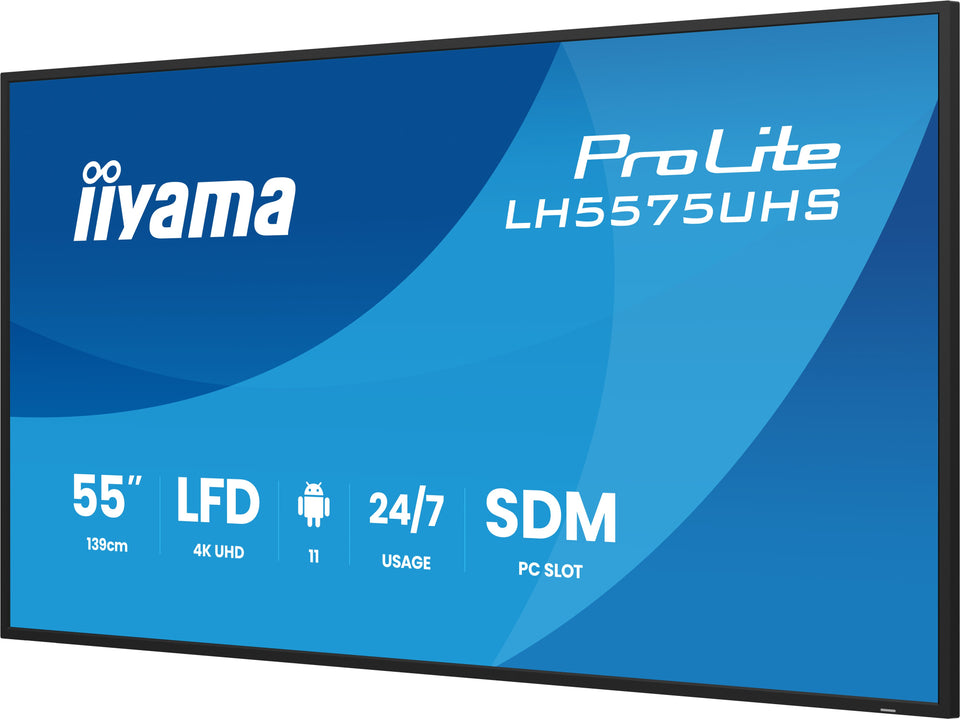

iiyama ProLite LH5575UHS-B2AG 55" 4K UHD Professional Digital Signage Display
The iiyama ProLite LH5575UHS-B2AG is a 55" professional 4K digital signage display designed for reliable 24/7 commercial operation. Its 54.6" IPS panel combines 3840 x 2160 resolution, 500 cd/m² brightness and wide 178° viewing angles.
Integrated Android 11, iiSignage², iiControl, iiShare, EShare and Signal FailOver create a powerful all-in-one signage platform, while Intel® SDM-L, DisplayPort MST, HDMI, LAN and RS-232C support professional AV integration.
55" 4K UHD
3840 x 2160 @ 60Hz
500 cd/m²
Professional signage brightness
Android 11
Integrated signage platform
24/7 Operation
Continuous commercial use
Description
LH5575UHS-B2AG Professional Signage
55-inch 4K digital signage engineered for commercial use.
The iiyama LH5575UHS-B2AG combines a 54.6" professional IPS panel with commercial-grade hardware, integrated signage software and continuous 24/7 operating capability.
Its native 3840 x 2160 4K UHD resolution delivers detailed advertising, menus, information, presentations and branded video content across a large 55-inch display.
The ProLite LH5575UHS-B2AG can be mounted in landscape or portrait orientation and includes professional networking, display control and source-redundancy functionality.
- iiyama ProLite LH5575UHS-B2AG
- 54.6" / 139cm professional display
- 3840 x 2160 4K UHD resolution
- IPS panel
- 500 cd/m² brightness
- 1200:1 static contrast
- Android 11
- iiSignage² CMS
- Intel® SDM-L slot
- 24/7 continuous operation
LH5575UHS-B2AG Key Features
iiyama ProLite LH5575UHS-B2AG specifications at a glance.
500 cd/m²
Professional brightness for indoor commercial signage.
IPS Panel
Wide viewing angles with 1.07 billion colour support.
Android 11
Integrated Android platform with 4GB RAM and 32GB storage.
Intel® SDM-L
Optional embedded computing for professional AV installations.

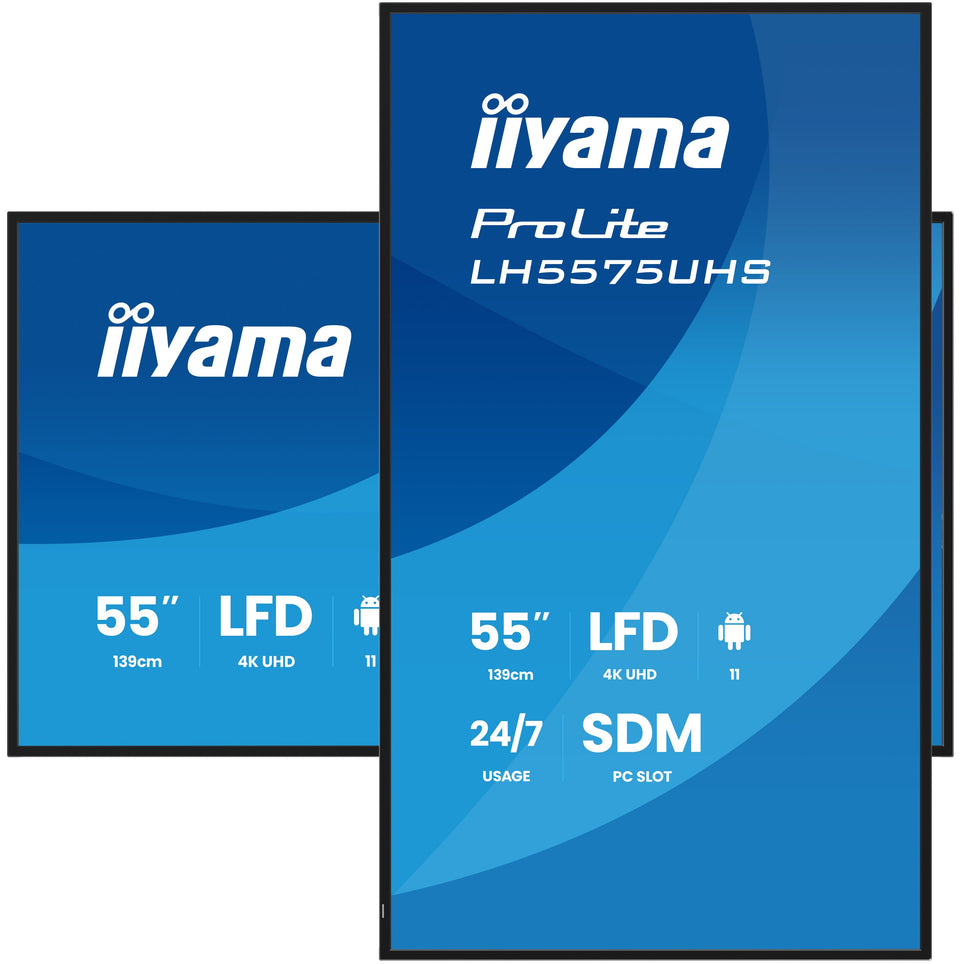

24/7 Operation
Designed for continuous commercial display applications.

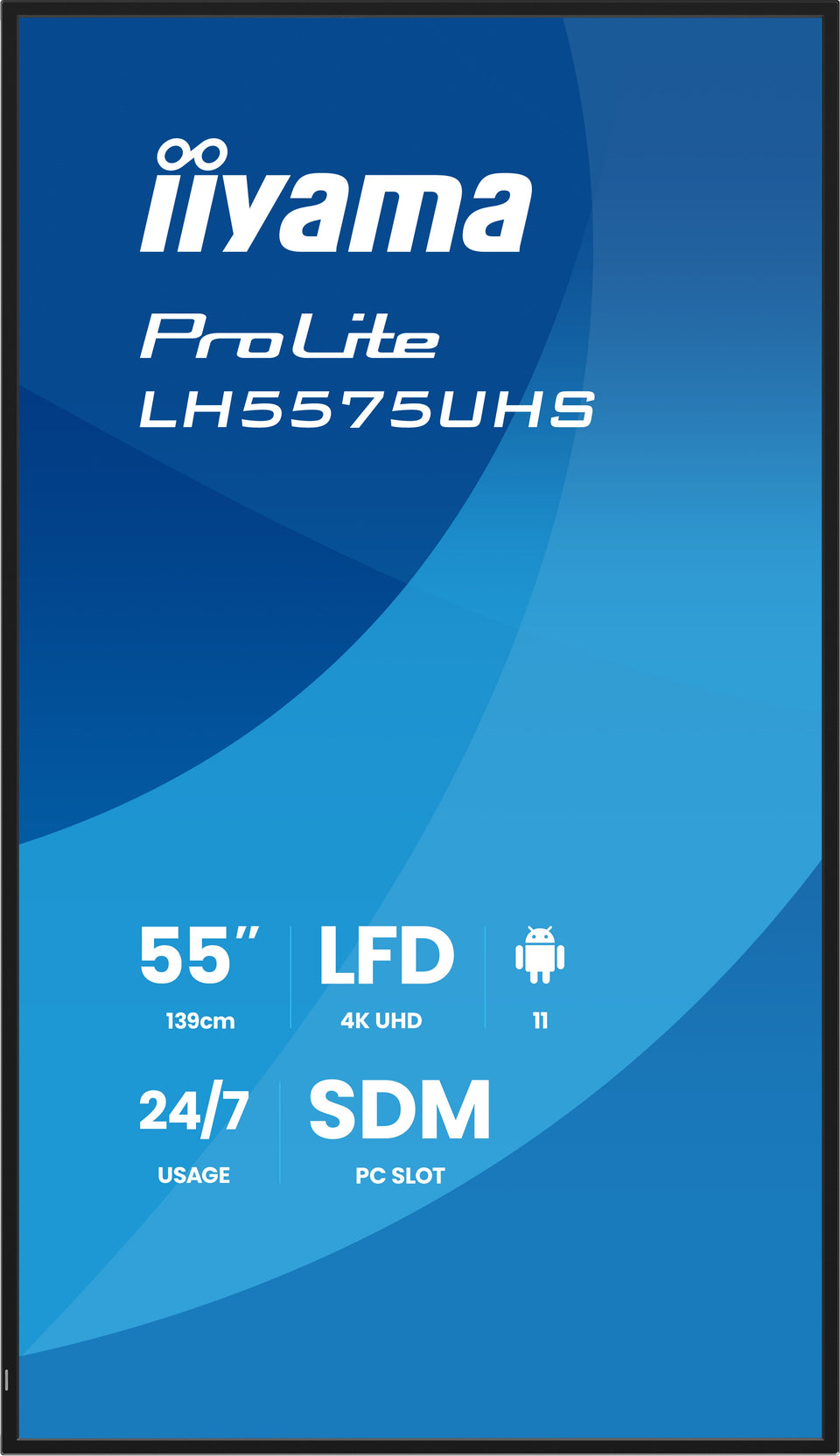

4K UHD Digital Signage
3840 x 2160 resolution for detailed professional content.
The LH5575UHS-B2AG provides native 3840 x 2160 4K UHD resolution at 60Hz.
The 8.3-megapixel canvas provides significantly more detail than Full HD, supporting high-resolution promotional graphics, video, menu content, dashboards and business communications.
- 3840 x 2160 resolution
- 4K UHD at 60Hz
- 8.3 megapixels
- 16:9 aspect ratio

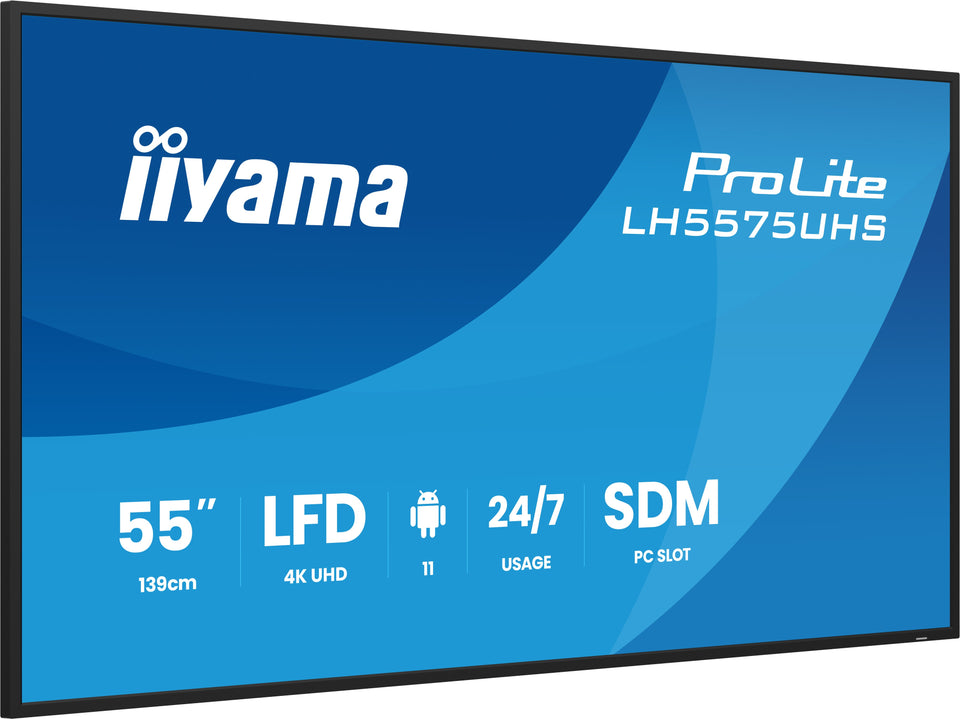

Professional IPS Panel
Wide 178° viewing angles with 500 cd/m² brightness.
The iiyama ProLite LH5575UHS-B2AG uses an IPS professional display panel with wide viewing angles and anti-glare coated glass.
Its 500 cd/m² brightness and 25% haze finish help maintain clear commercial content in indoor retail, corporate, education and hospitality environments.
- IPS panel technology
- 500 cd/m² brightness
- 1200:1 static contrast
- 178° horizontal viewing angle
- 178° vertical viewing angle
- 1.07 billion colours
Android 11
Integrated Android professional signage platform.
The iiyama LH5575UHS-B2AG includes Android 11, allowing compatible signage applications to operate directly from the professional display.
Its A311D2 octa-core platform combines four A73 cores, four A53 cores, G52 MP8 graphics, 4GB RAM and 32GB internal storage.
- Android 11 OS
- A311D2 octa-core platform
- A73 x4 + A53 x4 CPU
- G52 MP8 GPU
- 4GB RAM
- 32GB ROM
iiSignage² CMS
Manage professional digital signage content remotely.
Integrated iiSignage² provides a content management system for publishing, scheduling and managing digital signage content.
This allows businesses to update promotions, information, advertising and communications remotely across compatible professional displays.
- Integrated iiSignage² CMS
- Remote content publishing
- Content scheduling
- Suitable for managed signage estates
Signal FailOver
Help keep important content visible.
Signal FailOver monitors the selected input source and can automatically switch to another prioritised source when the primary signal becomes unavailable.
This can reduce the risk of blank screens in environments where advertising, information or operational content needs to remain continuously visible.
- Automatic input detection
- Prioritised source switching
- Designed to reduce blank-screen downtime
- Useful for mission-critical signage

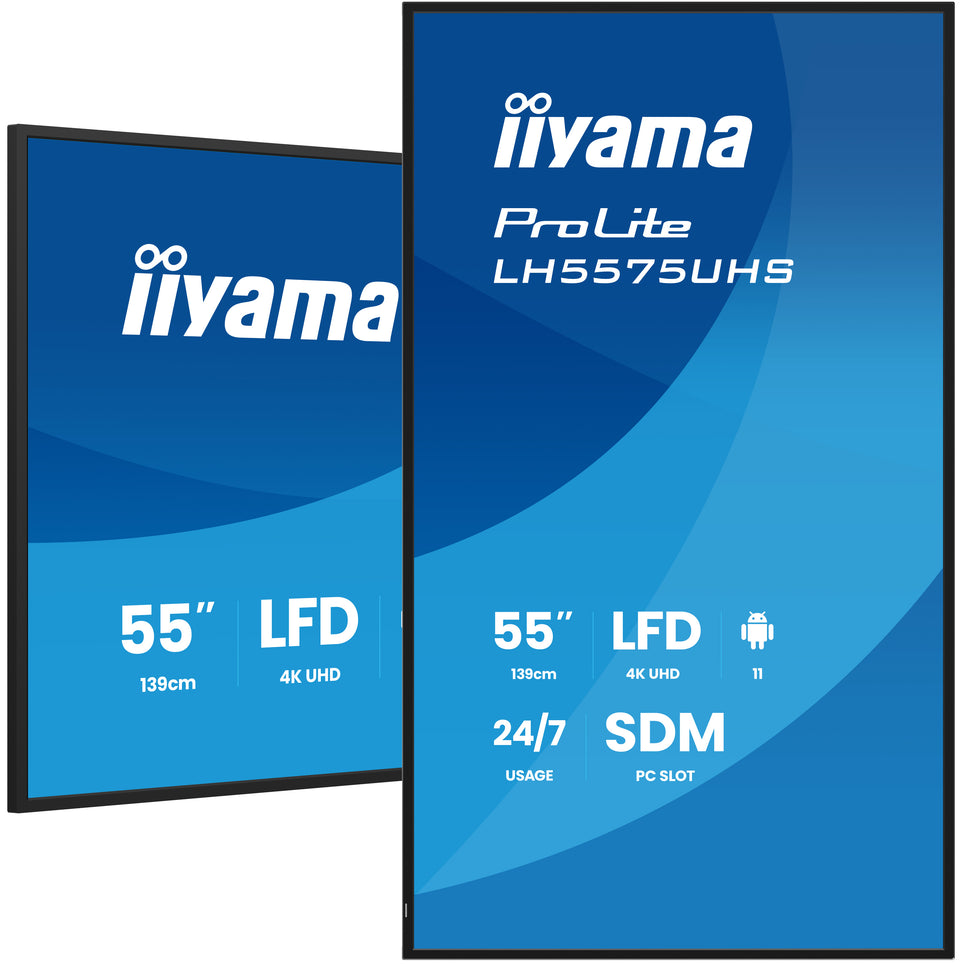

Flexible Orientation
Landscape or portrait professional signage.
The LH5575UHS-B2AG supports both landscape and portrait orientation, allowing the display to adapt to different commercial spaces and content formats.
Landscape is ideal for presentations, menus and widescreen advertising, while portrait mode suits digital posters, directories, wayfinding and vertical campaigns.
- Landscape orientation
- Portrait orientation
- 400 x 400mm VESA mounting
- Fanless professional design
Intel® SDM-L
Optional embedded computing without an external PC.
The integrated Intel® SDM-L slot allows a compatible Smart Display Module to be inserted directly into the LH5575UHS-B2AG.
This provides AV integrators with a cleaner embedded computing option for specialist signage, presentation and professional business applications.
- Intel® SDM-L slot
- Optional Smart Display Module
- Micro SD card slot
- Cleaner professional installation
Professional Connectivity
HDMI, DisplayPort, LAN, USB and RS-232C.
The LH5575UHS-B2AG provides comprehensive AV and control connectivity for professional commercial display installations.
- 3 x HDMI 2.0 inputs
- 1 x DisplayPort 1.2 input
- 1 x DisplayPort output
- 2 x USB 2.0
- RJ45 LAN
- RS-232C input and output
- IR input and loop-through
- 3.5mm audio output

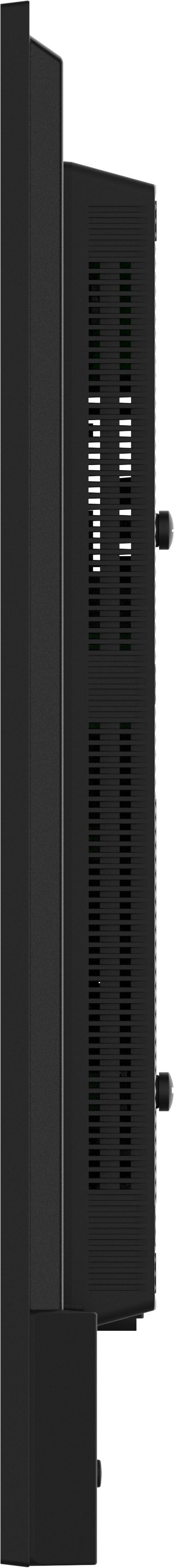

Commercial AV Integration
Built for managed professional display installations.
LAN, RS-232C and IR connectivity allow compatible AV systems to manage display power, input selection and wider display settings.
These features are particularly useful when multiple displays are deployed across retail, education, hospitality or corporate estates.
- RJ45 network connectivity
- RS-232C professional control
- IR loop-through
- HDCP 2.2

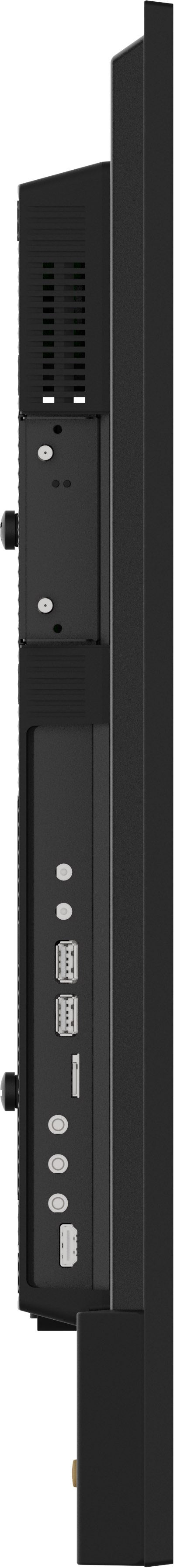

DisplayPort MST
Daisy-chain multiple professional displays.
The LH5575UHS-B2AG includes a DisplayPort output supporting MST daisy-chain functionality.
iiyama specifies that DP-Out can be used from any supported input signal, providing greater flexibility when building multi-screen professional installations.
- DisplayPort 1.2 input
- DisplayPort output
- MST daisy-chain support
- Up to 3840 x 2160 @ 60Hz
Professional Design
Slim 55mm depth for commercial installations.
The ProLite LH5575UHS-B2AG combines a 55-inch display area with a relatively slim 55mm chassis depth.
Its metal housing and fanless design help create a clean, durable professional installation.
- 1237.5mm overall width
- 710mm overall height
- 55mm depth
- 15.2kg product weight
- Metal housing

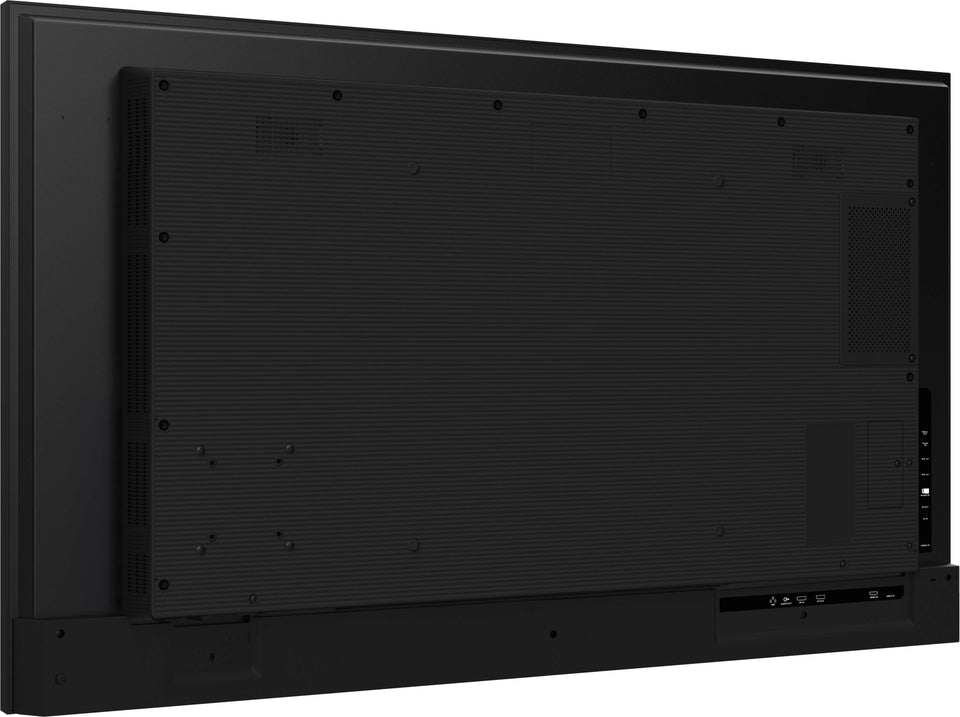

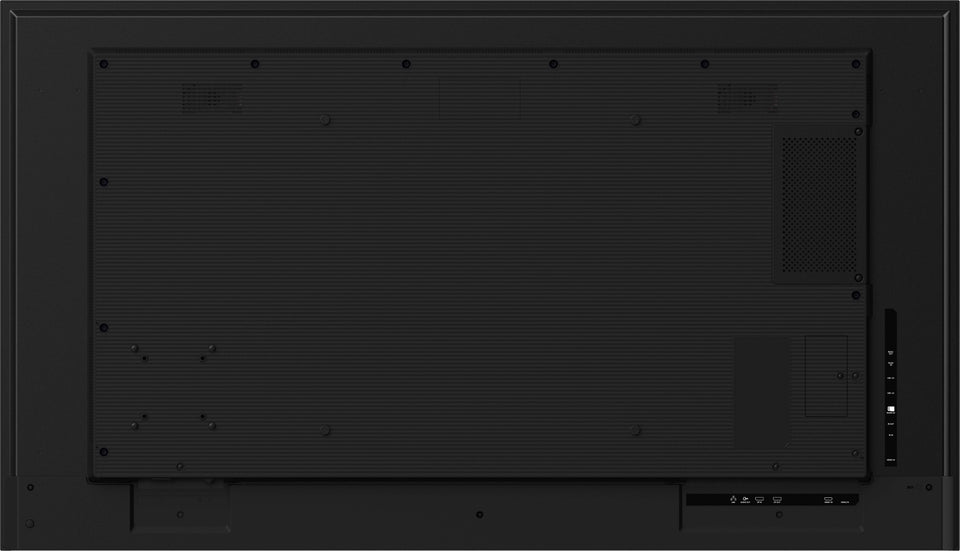

Professional Mounting
400 x 400mm VESA mounting.
The LH5575UHS-B2AG uses a 400 x 400mm VESA mounting pattern for compatible professional wall mounts and mounting systems.
It also provides 75 x 75mm and 100 x 100mm mini-PC mounting patterns for compatible external equipment.
- 400 x 400mm main VESA pattern
- 75 x 75mm mini-PC mount
- 100 x 100mm mini-PC mount
- Landscape or portrait installation
Included Accessories
Supplied with essential professional display accessories.
The iiyama LH5575UHS-B2AG includes the key cables, documentation and remote control required for initial setup.
- 1.8m power cable
- 1.8m HDMI cable
- 1.8m RS-232C cable
- Quick start guide
- Safety guide
- Remote control with batteries
- Wire buckles
- Screw-hole stickers
55" Commercial Displays
Comparing the LH5575UHS-B2AG with other 55-inch professional displays?
Browse the complete ScreenMoove 55-inch commercial display collection to compare the iiyama ProLite LH5575UHS-B2AG with other professional displays for digital signage and commercial AV.
Specifications
LH5575UHS-B2AG Technical Specification
iiyama ProLite LH5575UHS-B2AG specifications.
Technical specifications for the iiyama LH5575UHS-B2AG 55" 4K UHD professional digital signage display.
| Specification | iiyama LH5575UHS-B2AG Details |
|---|---|
| Display Characteristics | |
| Model | iiyama ProLite LH5575UHS-B2AG |
| Design | Thin bezel |
| Diagonal | 54.6" / 139cm |
| Panel | IPS, anti-glare coated glass, haze 25% |
| Native Resolution | 3840 x 2160 @ 60Hz - 8.3 megapixels 4K UHD |
| Aspect Ratio | 16:9 |
| Panel Brightness | 500 cd/m² |
| Static Contrast | 1200:1 |
| Response Time | 8ms GTG |
| Viewing Zone | 178° horizontal / 178° vertical; 89° right / left; 89° up / down |
| Colour Support | 1.07 billion colours, 8-bit + FRC, NTSC 72% |
| Horizontal Sync | 28 - 160kHz |
| Viewable Area | 1209.6 x 680.4mm / 47.6 x 26.8" |
| Bezel Width | 14mm sides, 14.75mm top, 14.75mm bottom |
| Pixel Pitch | 0.315mm |
| Bezel Colour / Finish | Black, matte |
| Interfaces / Connectors / Controls | |
| HDMI Inputs | 3 x HDMI 2.0, maximum 3840 x 2160 @ 60Hz, ARC on HDMI #3 |
| DisplayPort Input | 1 x DisplayPort 1.2, maximum 3840 x 2160 @ 60Hz |
| DisplayPort Output | 1 x DisplayPort, maximum 3840 x 2160 @ 60Hz, MST-out daisy chain v1.2 |
| RS-232C Input | 1 x 2.5mm sub-mini jack |
| RS-232C Output | 1 x 2.5mm sub-mini jack |
| RJ45 LAN | 1 |
| IR Input | 1 x 3.5mm stereo mini |
| IR Loop Through | 1 x 3.5mm stereo mini |
| Audio Output | 1 x 3.5mm mini jack |
| Speakers | 2 x 10W |
| HDCP | 2.2 |
| USB Ports | 2 x USB 2.0 |
| Software & Hardware | |
| Operating System | Android 11 |
| Integrated Software | iiSignage², iiControl, iiShare, EShare and FailOver |
| Wi-Fi | Built-in 802.11ac |
| CPU | A311D2 Octa-core - A73 x4 + A53 x4 |
| GPU | G52 MP8 |
| RAM | 4GB |
| Internal Storage | 32GB ROM |
| Expansion | Intel® SDM-L and micro SD card slot |
| Professional Features | |
| Maximum Non-Stop Operation | 24/7 |
| Anti Image Retention | Yes |
| Video Wall / Daisy Chain | Yes - MST output via DisplayPort from supported input signals |
| Media Playback | Yes |
| Housing | Metal |
| Mechanical | |
| Orientation | Landscape and portrait |
| Fanless Design | Yes |
| VESA Mounting | 400 x 400mm |
| Mini PC Mount | VESA 75 x 75mm and 100 x 100mm |
| Operating Temperature | 0°C - 40°C |
| Storage Temperature | -20°C - 60°C |
| MTBF | 50,000 hours excluding backlight |
| Included Accessories | |
| Cables | 1.8m power cable, 1.8m HDMI cable and 1.8m RS-232C cable |
| Guides | Quick start guide and safety guide |
| Other | Screw-hole stickers and wire buckles |
| Remote Control | Yes, batteries included |
| Power Management | |
| Power Supply Unit | Internal |
| Power Supply | AC 100 - 240V, 50/60Hz |
| Typical Power Usage | 127W |
| Standby | 0.5W |
| Off Mode | 0.3W |
| Sustainability | |
| Energy Efficiency Class | G |
| Regulations | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE and REACH |
| REACH SVHC | Above 0.1%: Lead, Lead monoxide |
| Dimensions & Weight | |
| LH5575UHS-B2AG Dimensions | 1237.5 x 710 x 55mm |
| Box Dimensions | 1386 x 845 x 130mm |
| LH5575UHS-B2AG Weight | 15.2kg without box |
| Boxed Weight | 20.6kg |
| EAN | 4948570125258 |
Warranty
iiyama Professional Display Warranty
iiyama ProLite LH5575UHS-B2AG warranty and support.
The LH5575UHS-B2AG is a professional iiyama Large Format Display designed for commercial installations.
Commercial Display Cover
The ScreenMoove product listing includes commercial warranty cover for this professional iiyama display.
Installation Support
ScreenMoove can also assist with professional mounting, cabling and commercial display installation.
ScreenMoove Support
Contact ScreenMoove for product, compatibility, installation and warranty enquiries.
Downloads
LH5575UHS-B2AG Downloads
iiyama LH5575UHS-B2AG manuals and technical documents.
LH5575UHS-B2AG User Manual
Download the iiyama professional display user manual.
Technical Specification
Download the LH5575UHS-B2AG technical specification.
Technical Drawing
Download dimensional and installation information.
View Specifications Online
See the complete LH5575UHS-B2AG specification table above.
Professional Applications
Where can the iiyama LH5575UHS-B2AG be used?
The combination of 55-inch screen size, 4K UHD resolution, 500 cd/m² brightness, Android signage functionality and 24/7 operation makes the LH5575UHS-B2AG suitable for a wide range of commercial display applications.
Retail Digital Signage
Show promotions, product information, advertising, branded content and customer messaging.
Explore Retail SignageHospitality
Use for menus, promotions, venue information, event schedules and guest communications.
Explore HospitalityEducation
Display timetables, announcements, campus information and student communications.
Explore Education SignageCorporate AV
Use for presentations, dashboards, internal communications and reception displays.
Explore Meeting Room AVReception Displays
Show welcome messages, visitor information, directories and company content.
Compare 55" DisplaysProfessional Installation
Add mounting, cabling and professional installation for your commercial display project.
View Installation Services
iiyama LH75 Series
Compare alternative iiyama professional digital signage sizes.
The LH75 professional signage range provides commercial display options from compact screens through to very large-format digital signage. Choose according to room size, viewing distance and required visual impact.
32"
LH3275HS-B1AG
View smaller display
43"
LH4375UHS-B2AG
View smaller display
50"
LH5075UHS-B2AG
View smaller display
55"
LH5575UHS-B2AG
You are viewing this
65"
LH6575UHS-B2AG
View larger display
75"
LH7575UHS-B2AG
View larger display
86"
LH8675UHS-B2AG
View larger display
98"
LH9875UHS-B2AG
View larger display
Shop 55" Displays
Want to compare other 55-inch commercial screens?
Browse all 55-inch commercial displays available from ScreenMoove.
Frequently Asked Questions
iiyama ProLite LH5575UHS-B2AG FAQs.
What is the iiyama ProLite LH5575UHS-B2AG?
The iiyama ProLite LH5575UHS-B2AG is a 54.6" professional 4K UHD digital signage display with an IPS panel, 500 cd/m² brightness, Android 11 and 24/7 commercial operating capability.
What resolution is the LH5575UHS-B2AG?
The display has a native 3840 x 2160 4K UHD resolution at 60Hz.
How bright is the iiyama LH5575UHS-B2AG?
The IPS panel is rated at 500 cd/m² brightness.
What panel does the LH5575UHS-B2AG use?
The LH5575UHS-B2AG uses an IPS panel with anti-glare coated glass, 25% haze and wide 178° viewing angles.
Can the LH5575UHS-B2AG run 24/7?
Yes. The display is rated for 24/7 continuous professional operation.
Does the LH5575UHS-B2AG use Android?
Yes. It uses Android 11 and includes iiSignage², iiControl, iiShare, EShare and Signal FailOver.
How much RAM and storage does the LH5575UHS-B2AG have?
The integrated Android platform provides 4GB RAM and 32GB internal storage.
Does the LH5575UHS-B2AG have Wi-Fi?
Yes. The display includes built-in 802.11ac Wi-Fi.
Can the LH5575UHS-B2AG be installed in portrait mode?
Yes. It supports both landscape and portrait orientation.
What VESA mount does the LH5575UHS-B2AG use?
The display uses a 400 x 400mm VESA mounting pattern.
Does the LH5575UHS-B2AG support DisplayPort daisy chaining?
Yes. Its DisplayPort output supports MST daisy chaining for compatible multi-display installations.
Does the LH5575UHS-B2AG have an Intel SDM slot?
Yes. The display includes an Intel® SDM-L slot for compatible optional embedded computing.
Does the LH5575UHS-B2AG have built-in speakers?
Yes. It includes 2 x 10W integrated speakers.
What are the dimensions of the LH5575UHS-B2AG?
The display measures 1237.5 x 710 x 55mm.
How much does the LH5575UHS-B2AG weigh?
The display weighs 15.2kg without packaging and 20.6kg boxed.
Where can I compare other 55-inch commercial displays?
Browse the ScreenMoove 55-inch commercial display collection to compare this model with other professional screens.
iiyama Professional Digital Signage
Is the iiyama ProLite LH5575UHS-B2AG right for your project?
The LH5575UHS-B2AG combines a 54.6" IPS panel, 3840 x 2160 4K UHD resolution, 500 cd/m² brightness, Android 11, iiSignage², Signal FailOver, Intel® SDM-L, DisplayPort MST and reliable 24/7 professional operation.
Technical Highlights
- Display size / Screen sizes
- 55"
- Resolution
- Ultra HD (4K)
- Panel type
- IPS Panel
- Screen type
- Flat
- Brightness
- 500 cd/m2
- Response time
- 8ms
- Screen ratio
- 16:9
- Refresh rate
- 60Hz
- Display orientation
- Landscape & Portrait
- Operating hours
- 24/7
- Operating system
- Android
- Player features
- USB Plug and Play
- VESA patterns
- 400x400
- Net weight
- 9 kg
- Warranty
- 3 Year Warranty
Hot Sale
Landspace & Portrait
500 cd/m² Brightness
24/7 Operation
Android OS
4K Ultra HD
iiyama ProLite LH5575UHS-B2AG 55" 4K Ultra HD Professional Digita...SKU: LH5575UHS-B2AG
£701.50
See Before You Decide
Book a Free Product Demonstration
Compare picture quality, touchscreen performance, software and connectivity with guidance from a commercial display specialist.
Remote or on-site
No obligation
Expert-led session
For Integrators and Resellers
Open a Screen Moove Trade Account
Access project pricing, volume discounts, product sourcing support and faster commercial quotations for your client projects.
Trade pricing
Project support
Volume discounts
Education & Public Sector
A simpler procurement route for schools and public organisations
Access education pricing, purchase-order support, installation services and account management for schools, academies, colleges, universities, NHS organisations, councils and government bodies.
Purchasing for a school, academy, university or NHS organisation?
Register your organisation to request institutional pricing and
purchase-order support.
Register Your Organisation
Trusted Store Status
Top Quality Store
Rating status, Exceptional, based on Google’s shopping experience metrics.
Why it matters
Demonstrates consistently strong fulfilment, service, and post-sale experience across Google signals.
Google
Top Quality Store
Built for confidence, next-day delivery options, UK-based support, trade-ready operations.
Request a quote
JO
Josh
Jan 6, 2026
Great products and service! The guys always go above and beyond to make sure they supply you with the product that best fits your needs. I’ve been using Screen Moove for a number of years now and woul...
See moreSD
Sandy Dobson
Nov 28, 2025
Verified
Screen Moove went above and beyond for my requirements. Ordering system was super easy it just take 2 minutes to complete my order and I have received my tracking details right away after few minutes...
See moreS
St Peter's Church
Dec 17, 2025
Moe Khan, one of the team at Screen Move has been a fantastic help as we have navigated the process of choosing and buying screens and stands for our church. Helpful at every step of the way, patient...
See moreFS
Furniture Store
Nov 27, 2025
We originally planned to purchase a cheap TV for our showrooms. After speaking with screen moove, we ended up investing in floorstanding displays across multiple retail sites and showrooms. The bright...
See moreFT
Felix Thomas
Sep 4, 2025
Verified
I placed my order late at night but realized I had entered the wrong address. I immediately sent an email asking for it to be changed, not really expecting a reply until the next day. To my surprise,...
See moreAS
ava singh
Aug 27, 2025
Verified
I’ve been looking ultra high brightness display despite I checked everywhere I didn’t trust. They got my trust and I ordered. It arrived safely next day we have installed screen is awesome and high qu...
See moreGK
Glenn Khan
Nov 27, 2025
Verified
This is second time I used Screen Moove, I have bought double sided 55 inch display. The first order was a bit delayed I don't blame it might be happen, but customer service over the phone was excell...
See moreBY
Burcu Yesilova
Feb 12, 2025
Screenmoove, perfect customer satisfaction from start to finish! Their customer service is incredibly helpful and fast. It’s amazing to be able to reach out and get quick solutions for any issue. We a...
See moreTE
Tina e Edwards
Dec 17, 2025
We found that we needed a video call to work out the set up. The tech team at screenmoove were very very good. I would suggest that the instructions that come with the screen offer two key info. 1. Set...
See moreMA
Miss Akthar
Nov 21, 2025
Verified
Great experience with Jonathan Gray, previously I was looking for other companies and randomly ordering our needs from elsewhere. after I met with him, since 2024 we are keep purchasing from screen m...
See moreGet in touch
Speak directly with Screen Moove about your display, digital signage, meeting-room or AV project.
Need help choosing the right product?
Speak directly with a dedicated Screen Moove expert and get the right solution first time.
Call us: 020 8191 9223
Email: info@screenmoove.com
Contact us
Simply complete our contact form, and we will promptly respond to your inquiries.
If you have any questions or enquiry, please fill out the form below with all of your details and we'll get back to you shortly.
Ready to start your next AV project?
Contact our team of experts today!
