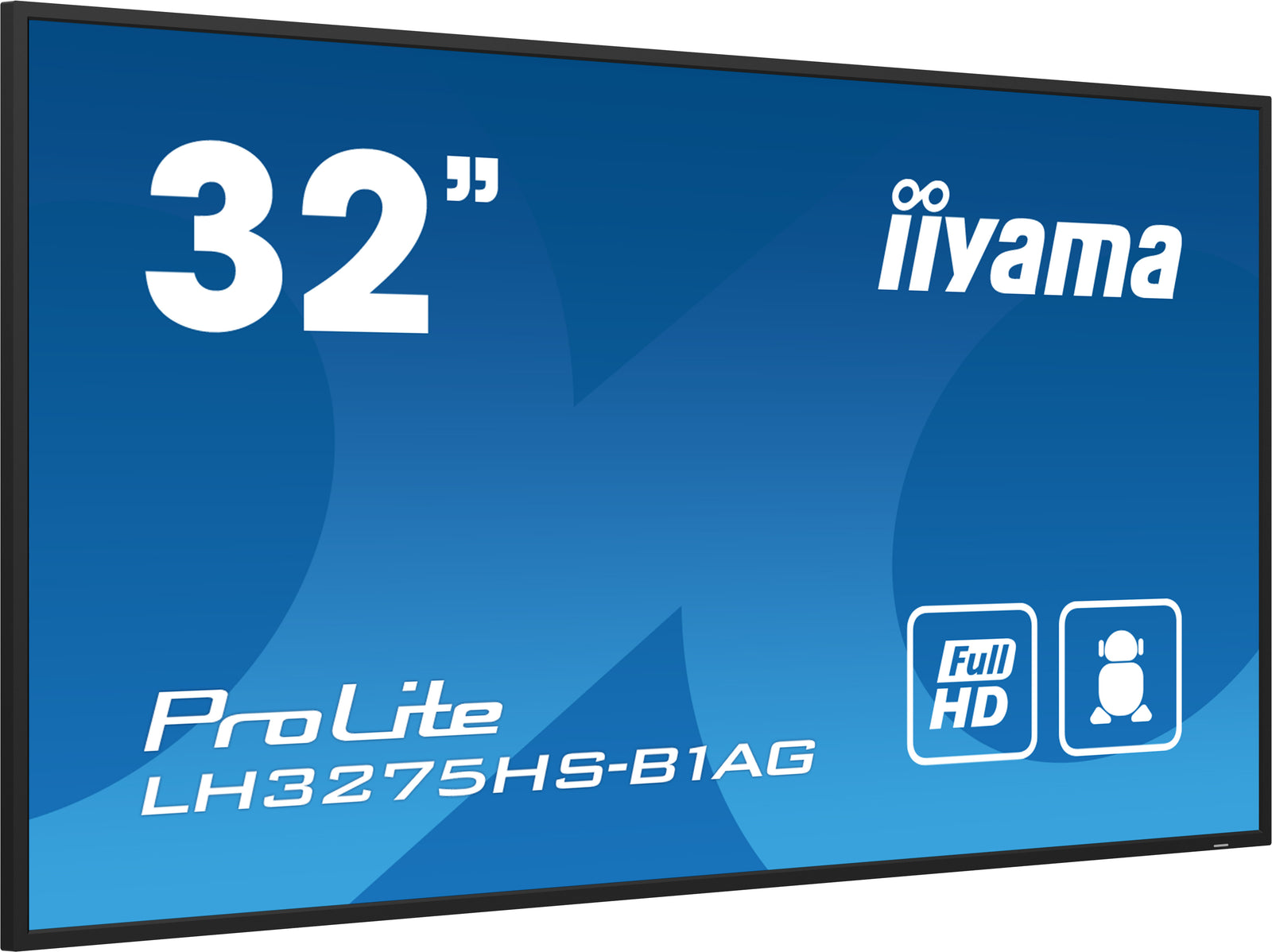

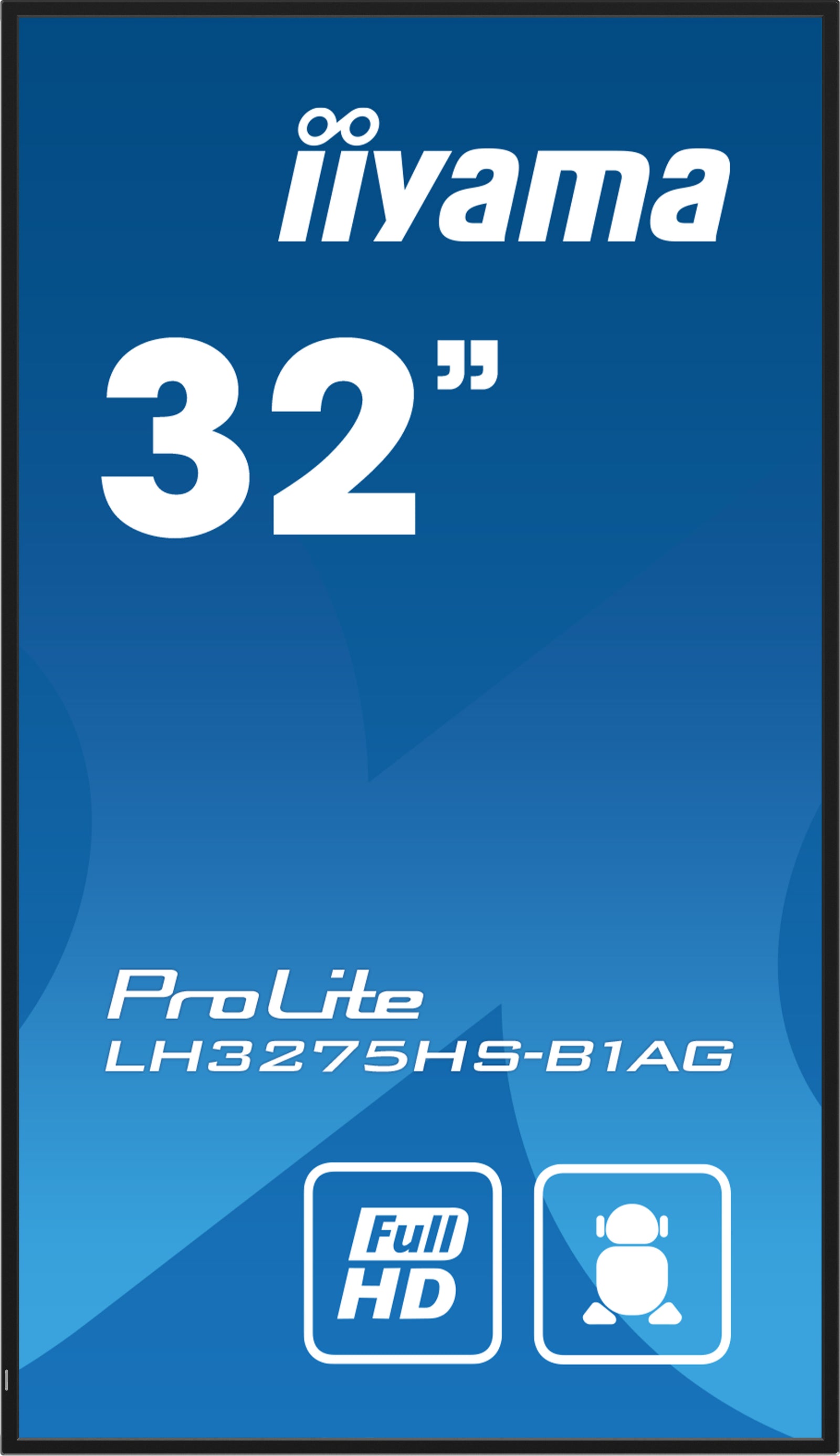

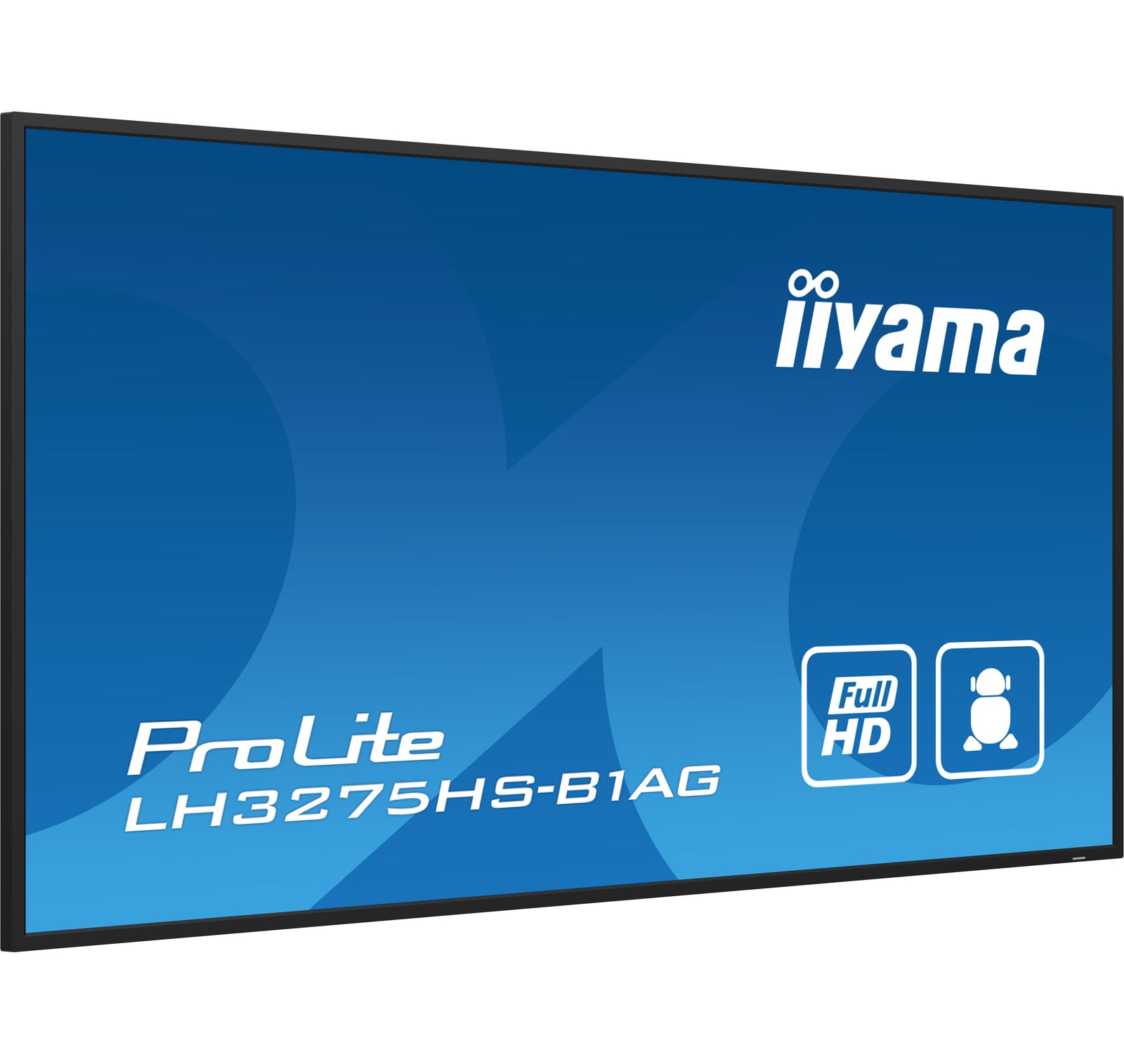

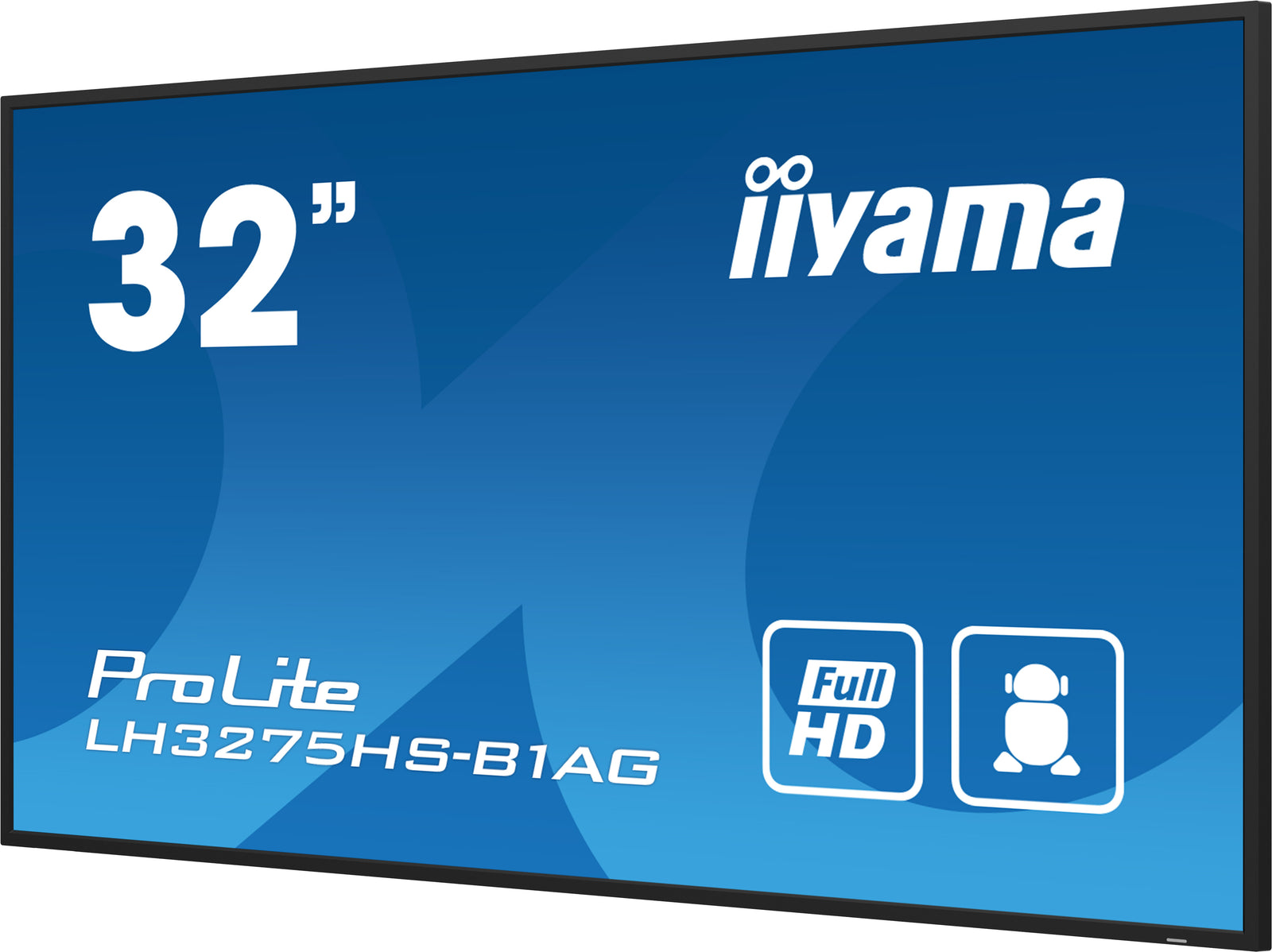

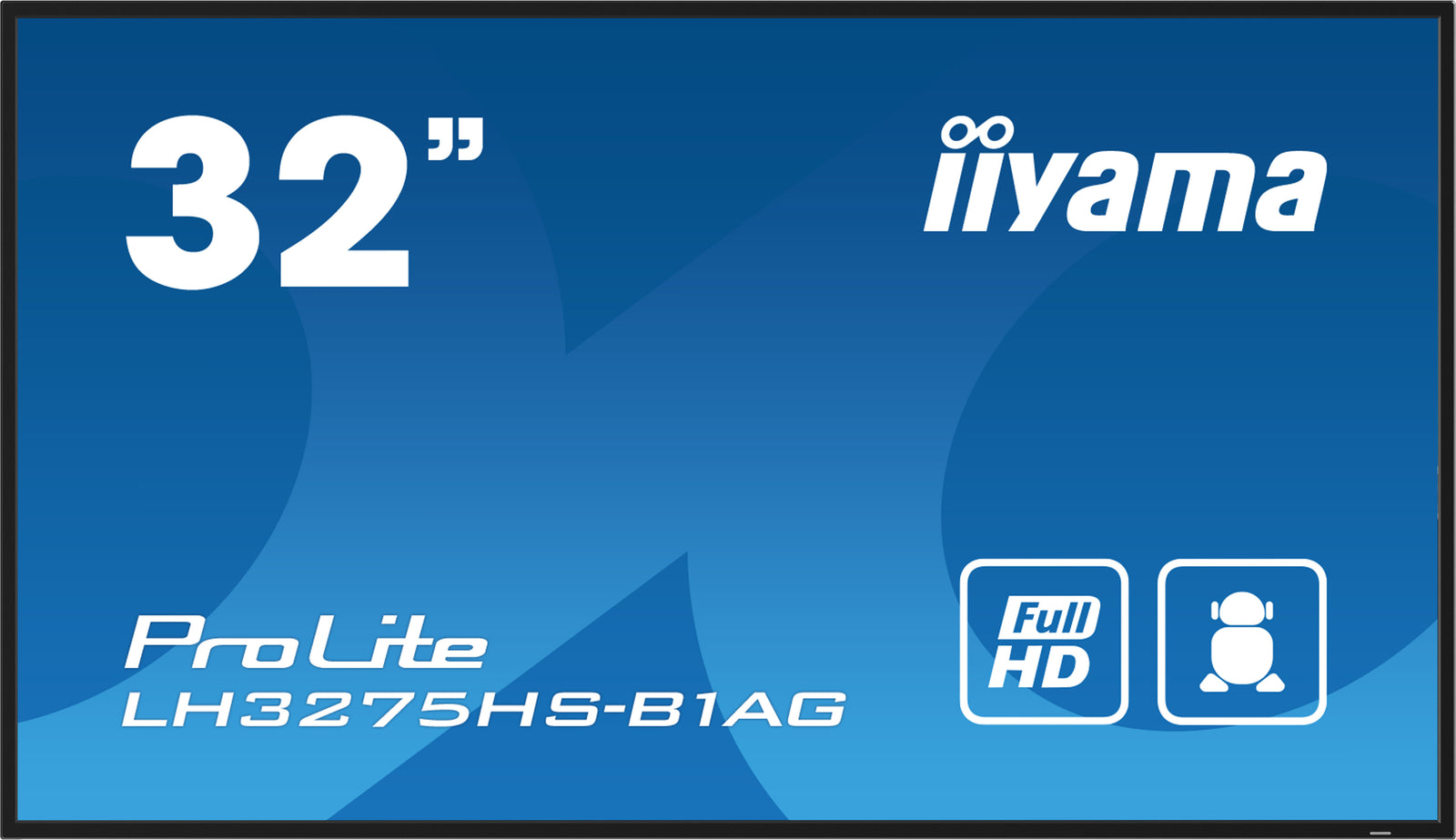

iiyama ProLite LH3275HS-B1AG 32" Full HD Professional Digital Signage Display

Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH3275HS from iiyama can be operated in landscape or portrait orientation in continual around the clock environments, 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and install applications directly to it.

The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The FailOver feature ensures your content is always actively displayed through your choice of inputs. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network.

With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

ANDROID OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

IISIGNAGE²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

SIGNAL FAILOVER
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

MEDIA PLAYER
Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or the internal memory with the built-in media player.

FULL HD
With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.

Category	Specifications
DISPLAY CHARACTERISTICS
Design	Thin bezel
Diagonal	31.5", 80cm
Panel	IPS, AG coated glass, matte finish, haze 25%
Native Resolution	1920 x 1080 @60Hz (2.1 Megapixels, Full HD)
Aspect Ratio	16:9
Panel Brightness	500 cd/m²
Static Contrast	1200:1
Response Time (GTG)	8ms
Viewing Zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour Support	16.7mln (NTSC 72%)
Horizontal Sync	28 - 160kHz
Viewable Area W x H	698.4 x 392.85mm, 27.5 x 15.5"
Bezel Width	11.9mm (sides, top, bottom)
Pixel Pitch	0.364mm
Bezel Colour and Finish	black, matte

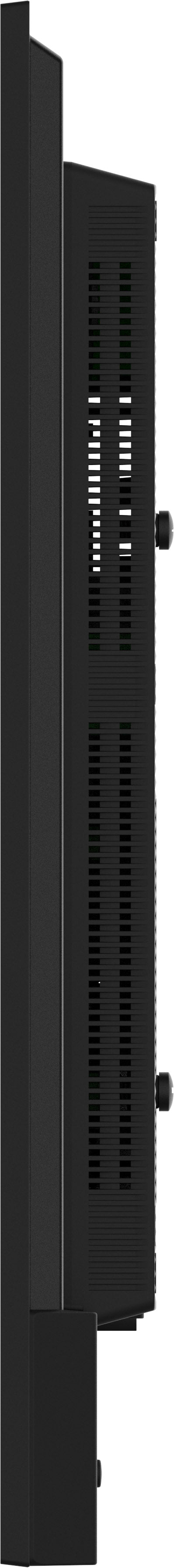

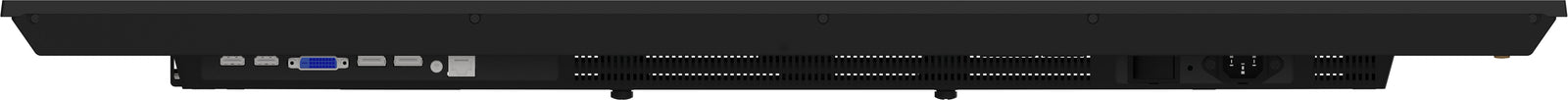

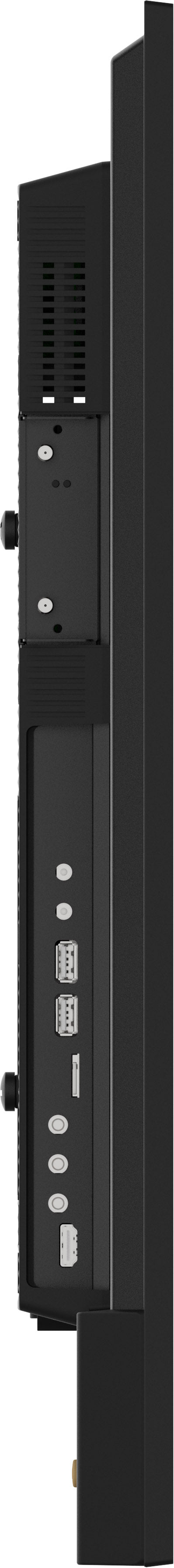

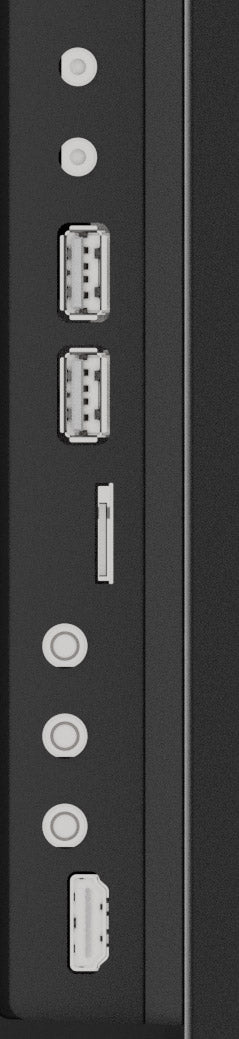

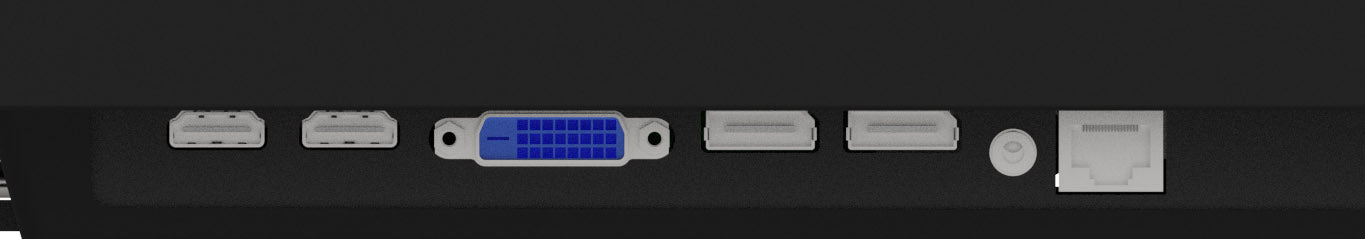

INTERFACES / CONNECTORS / CONTROLS
Digital Signal Input	HDMI x2 (v.2.0, ARC on HDMI #2), DisplayPort x1 (v1.2)
Monitor Control Input	RS-232c x1 (2.5mm sub-mini jack)
RJ45 (LAN)	x1
IR	x1 (3.5mm stereo mini)
Audio Output	Mini jack x1
Speakers	2 x 10W
HDCP	v.2.2
USB Ports	x2 (v.2.0)
FEATURES
Integrated Software	Android 11 OS, iiSignage2, FailOver, EShare
WiFi	yes (Built-in, 802.11ac)
Hardware	CPU: A734+A534, GPU: G52 MP8, RAM: 4GB, ROM: 32GB
Max. Non-stop Operating Time	24/7
Anti Image Retention	yes
Media Playback	yes
Housing (Bezel)	metal
GENERAL
OSD Languages	Multiple languages supported
Control Buttons	Power
User Controls	Extensive settings including picture, screen, audio, configuration, advanced options
Plug & Play	DDC2B
MECHANICAL

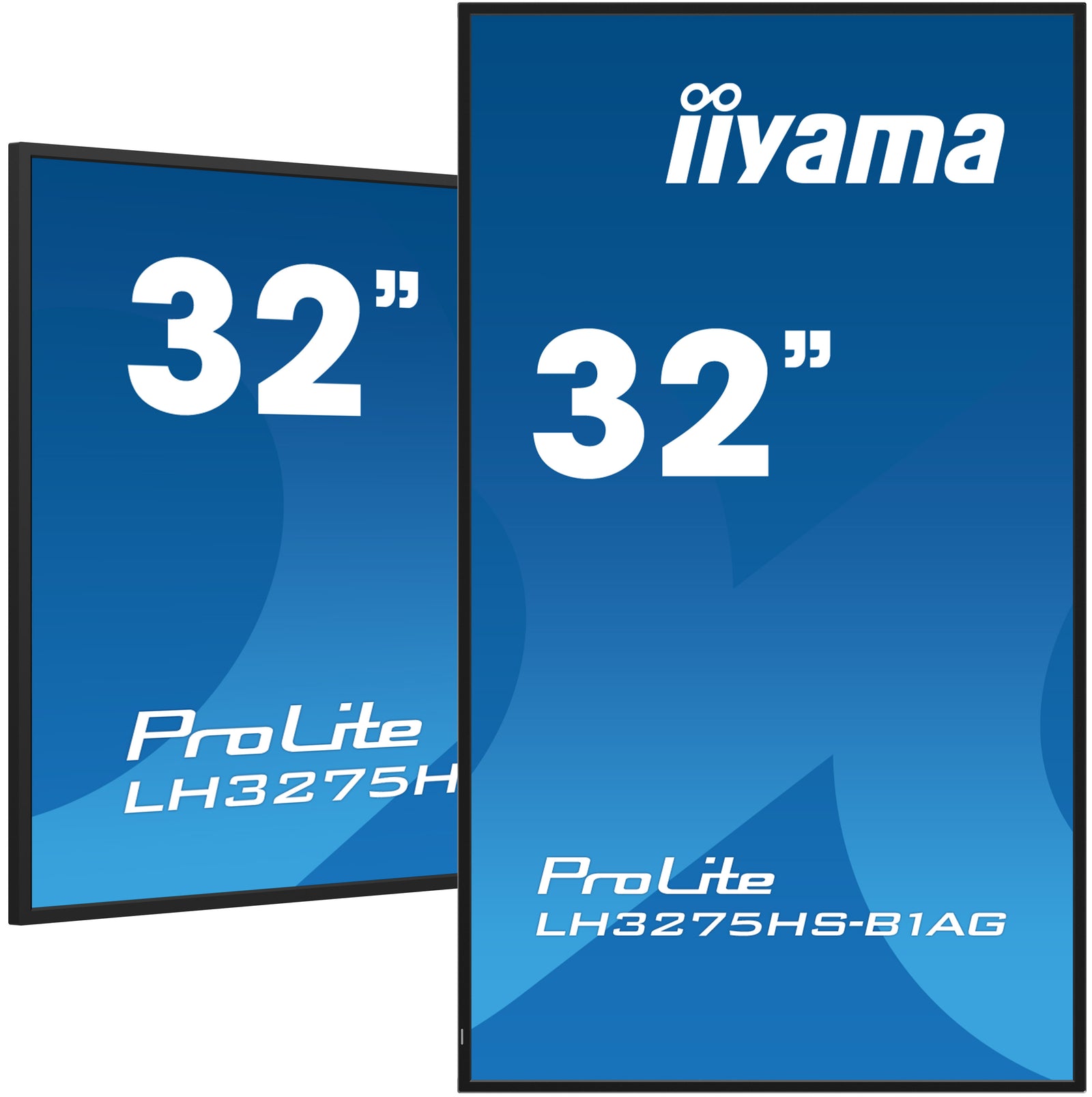

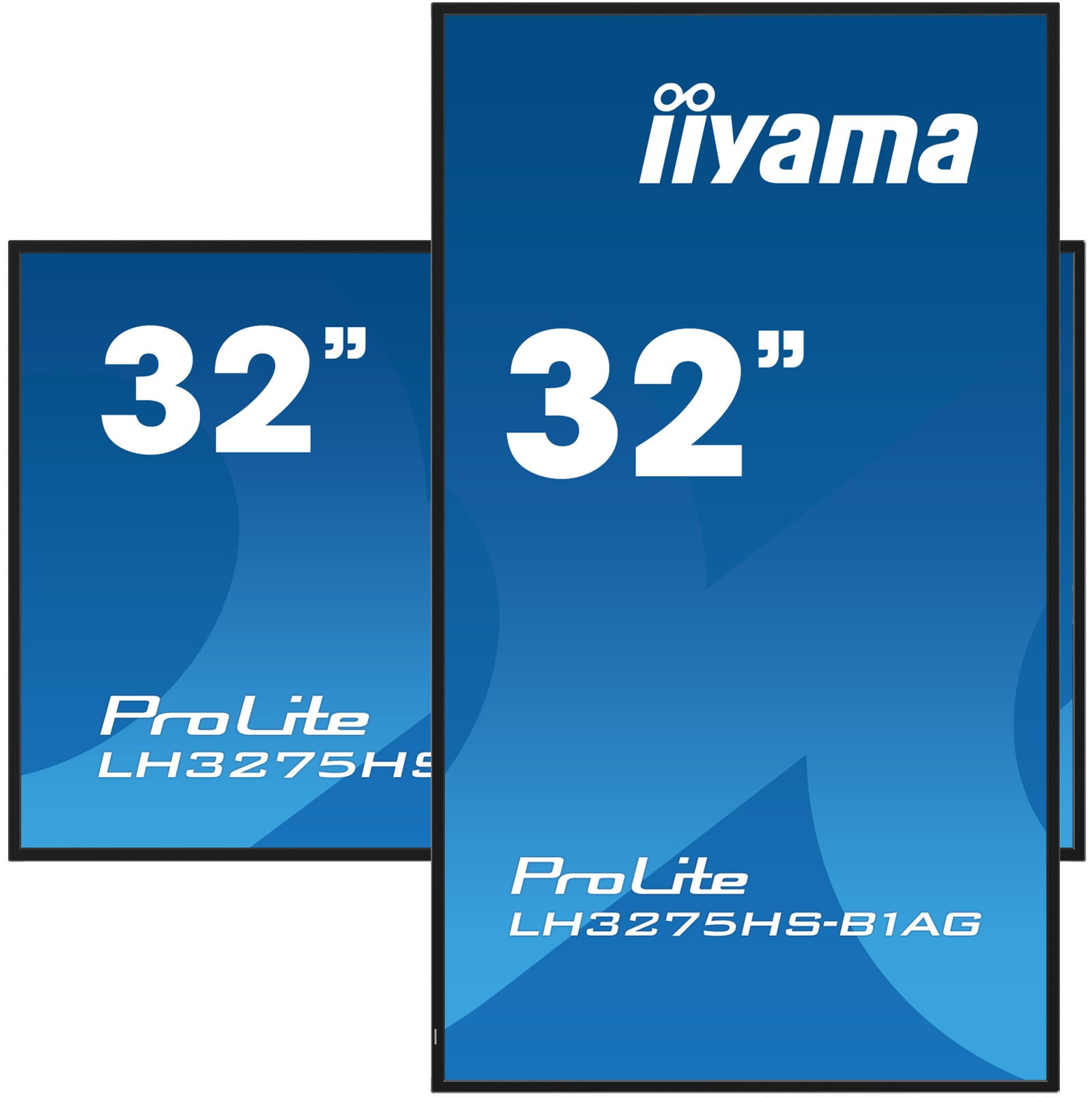

Orientation	landscape, portrait

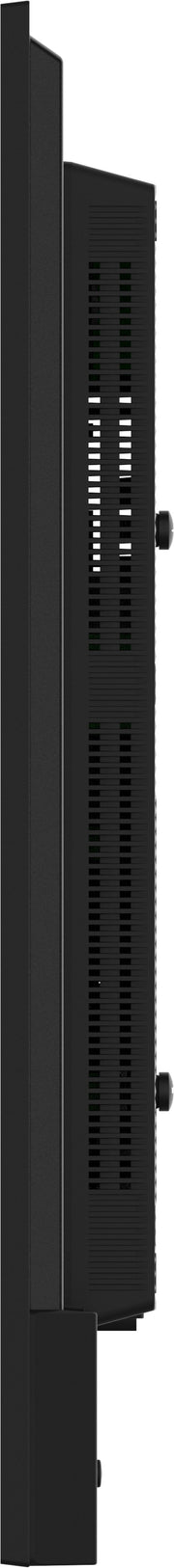

Fanless Design	yes

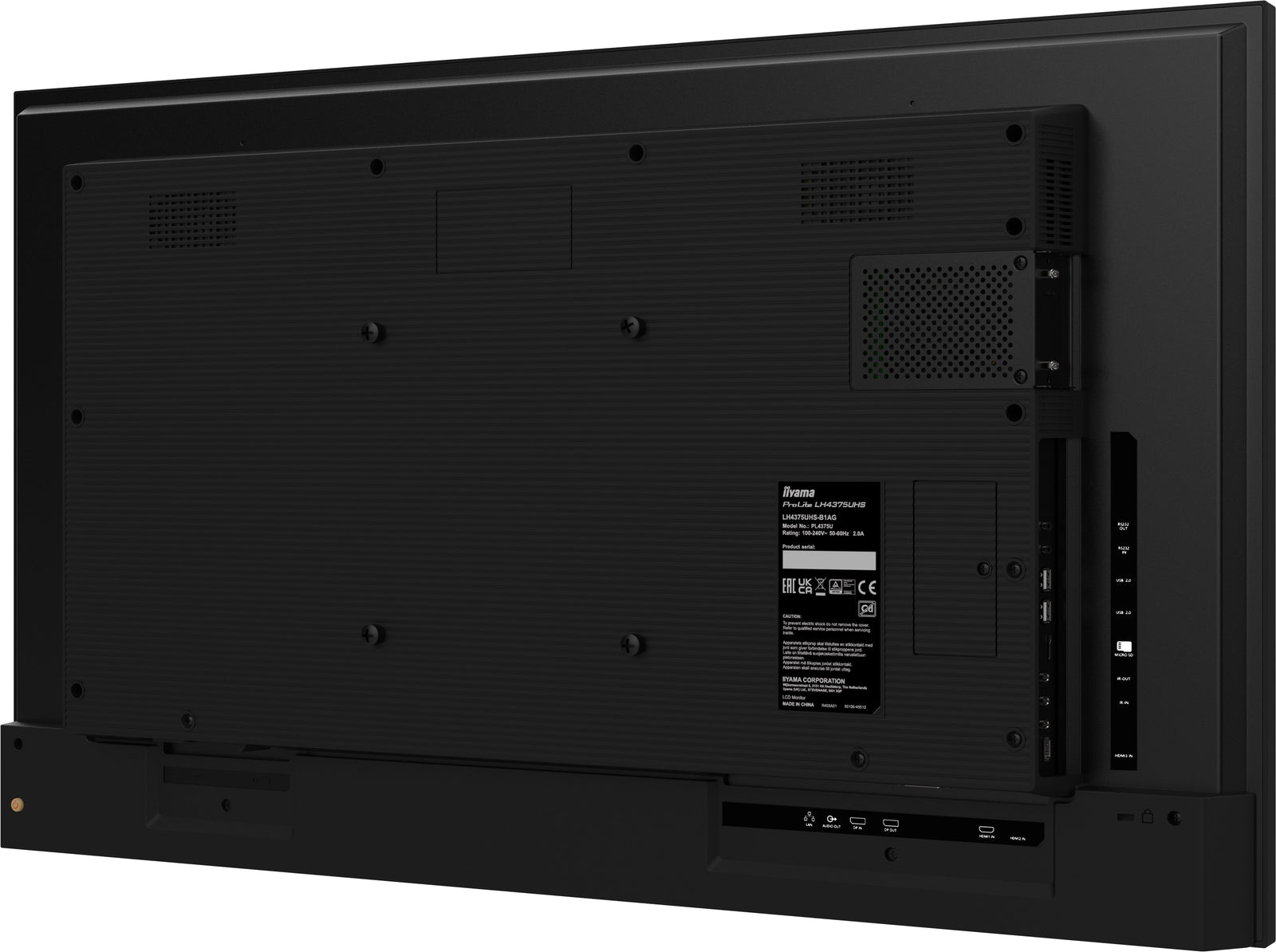

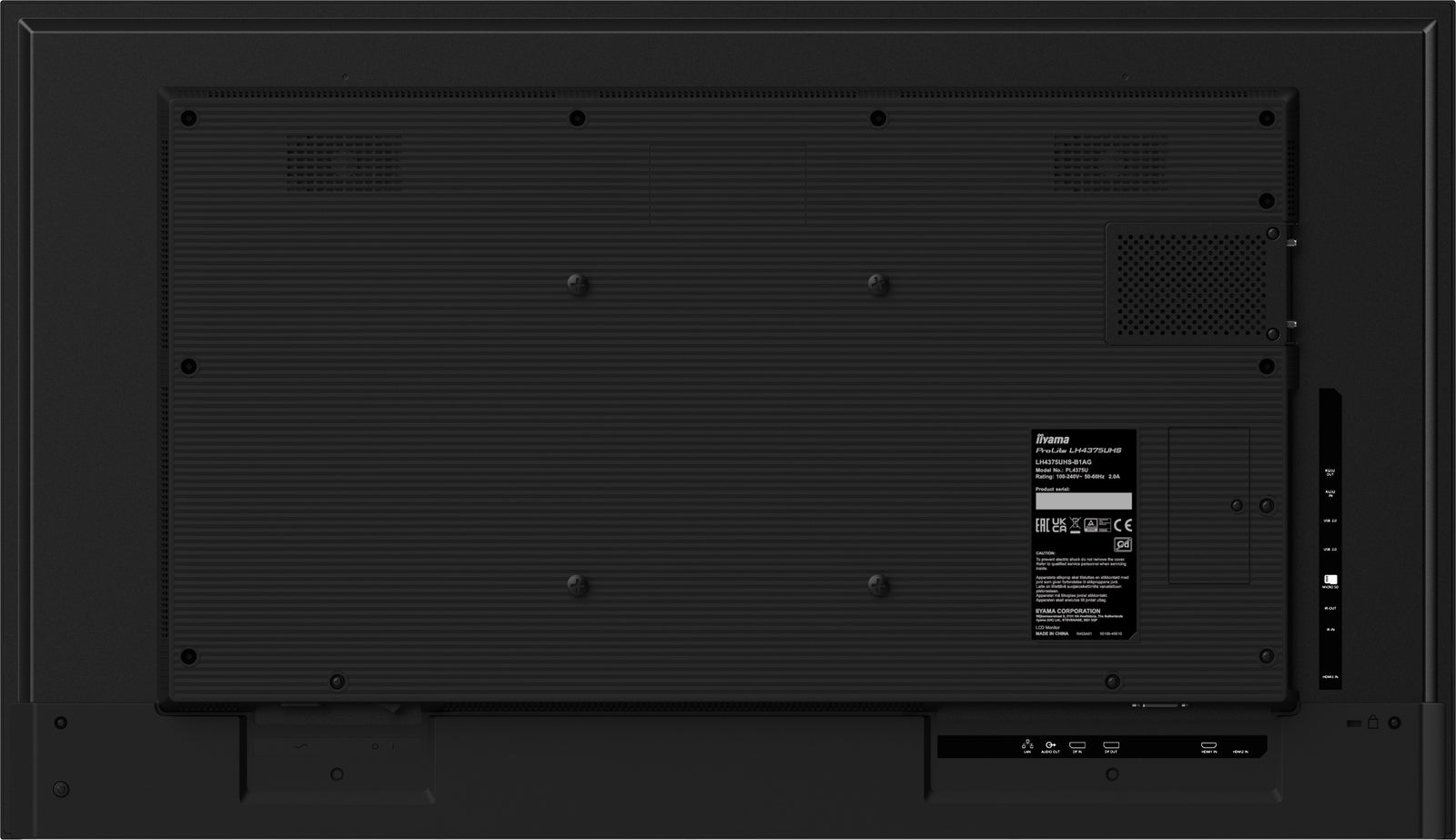

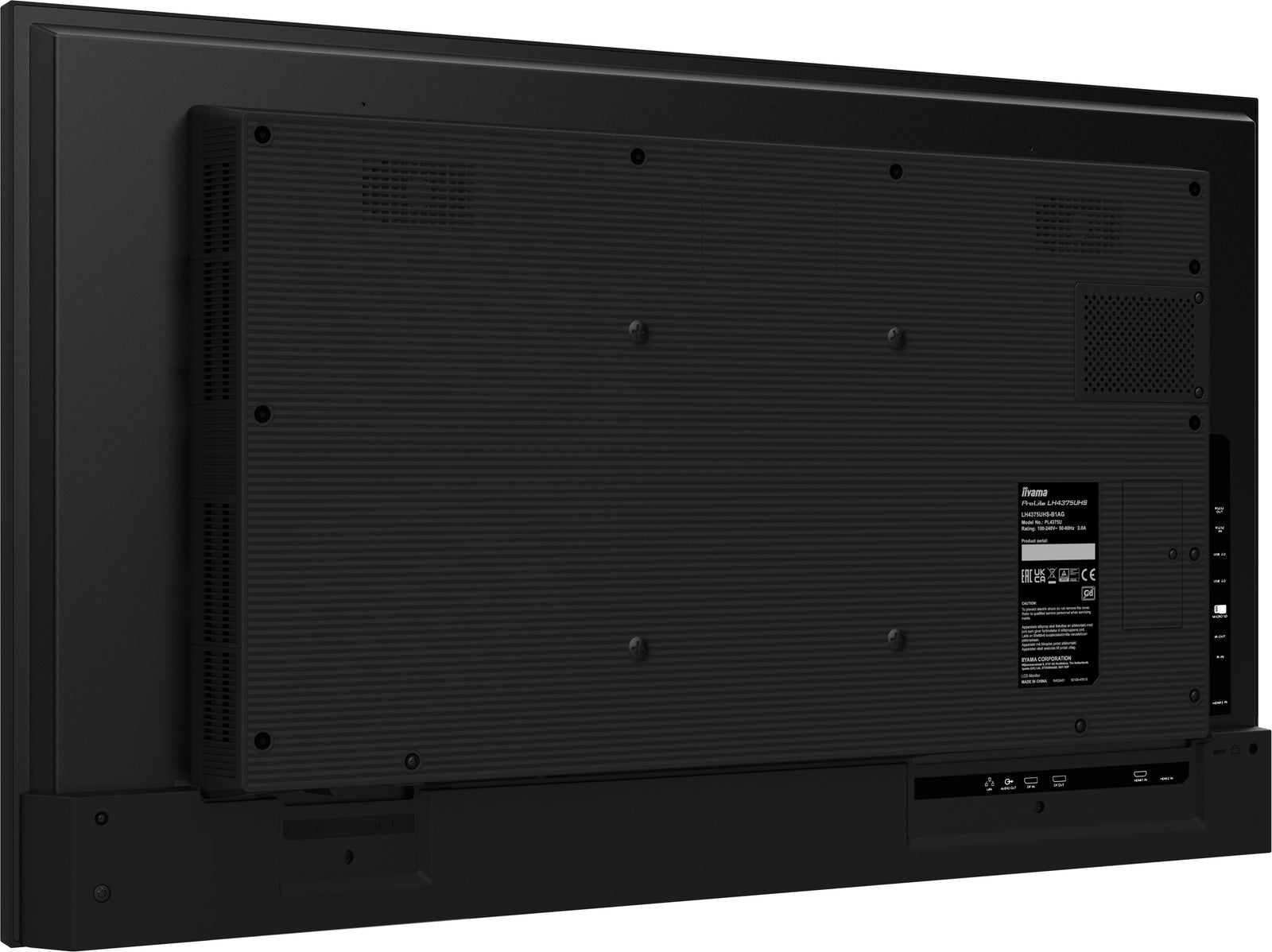

VESA Mounting	200 x 200mm
Operation Temperature Range	0°C - 40°C
Storage Temperature Range	-20°C - 60°C
MTBF	44,000 hours (excluding backlight)

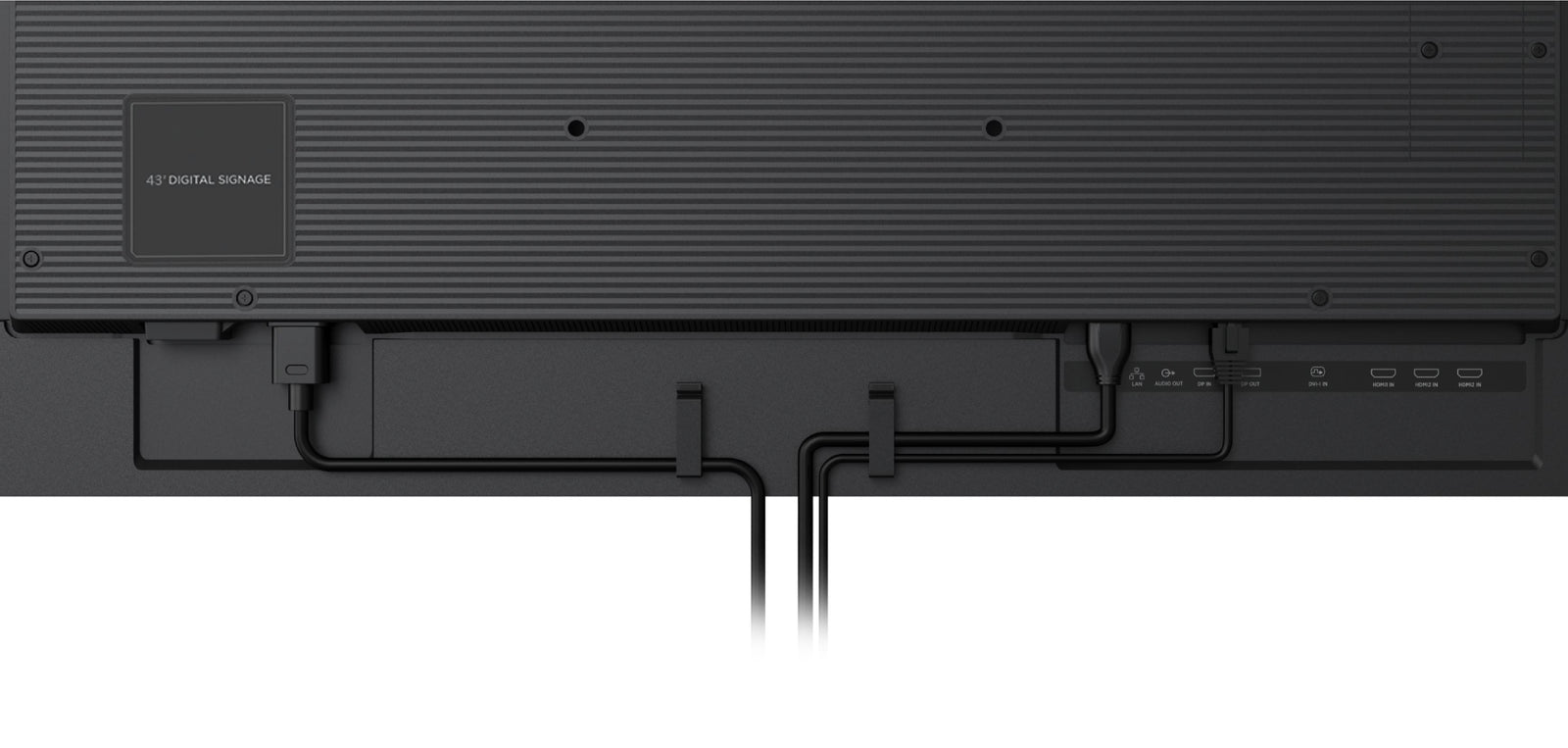

ACCESSORIES INCLUDED	Power cable, HDMI cable, RS-232c cable, quick start guide, safety guide, stickers for screw holes, AC switch cover, screw, cable clips, remote control (batteries included)
POWER MANAGEMENT	Internal power supply, AC 100 - 240V, 50/60Hz, 46W typical usage, 0.5W stand by, 0.3W off mode
SUSTAINABILITY	CE, TÜV-Bauart, RoHS support, ErP, WEEE, REACH, UKCA
DIMENSIONS / WEIGHT	Product: 725.5 x 421.8 x 54mm, Box: 824 x 554 x 119mm, Weight without box: 5.2kg, Weight with box: 7.3kg
EAN Code	4948570124220
