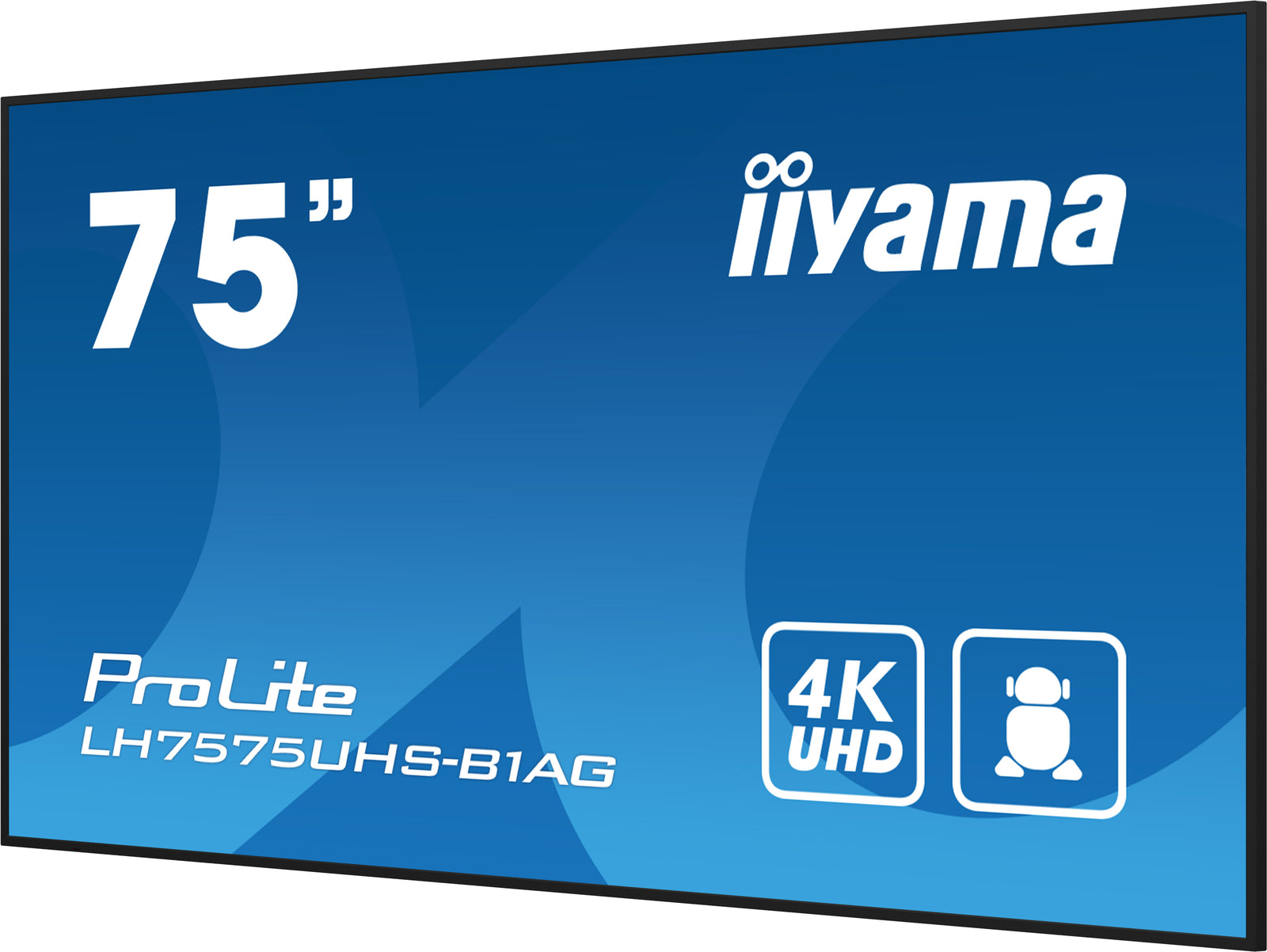

iiyama ProLite LH7575UHS-B1AG 75" 4K Ultra HD Professional Digital Signage Display
In Stock37 available
Express DeliveryFast UK delivery where eligible
3 Year WarrantyManufacturer-backed cover
UK Expert SupportPre-sales and technical advice
Product description

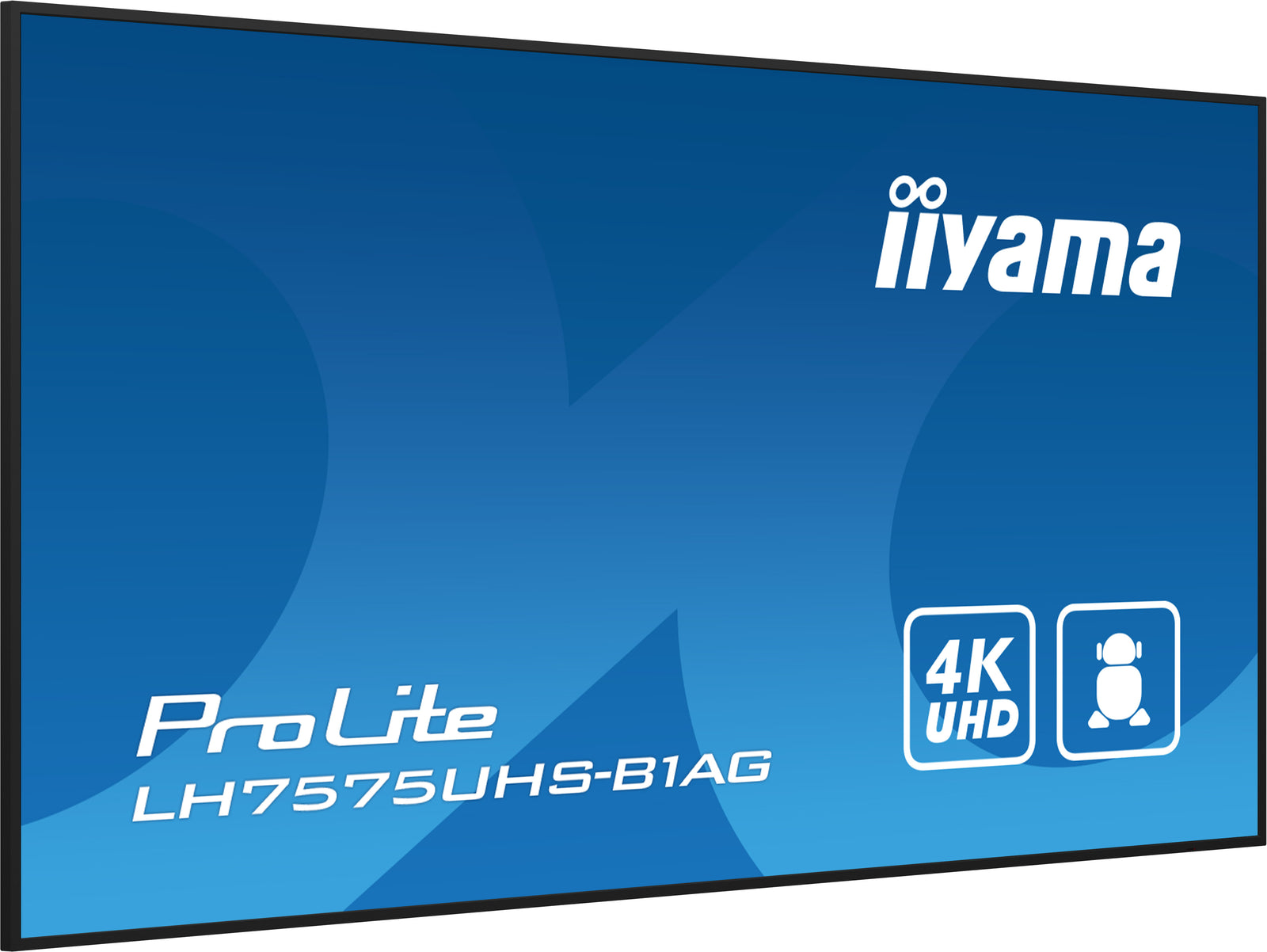

iiyama ProLite LH7575UHS-B1AG
iiyama ProLite LH7575UHS-B1AG 75" 4K UHD Professional Digital Signage Display
The iiyama ProLite LH7575UHS-B1AG is a 75-inch professional 4K UHD digital signage display designed for reliable 24/7 commercial operation. Its IPS panel combines 3840 x 2160 resolution, 500 cd/m² brightness and wide 178° viewing angles.
Integrated Android 11, iiSignage², EShare and Signal FailOver provide a powerful all-in-one signage platform, while Intel® SDM-L, DisplayPort MST, HDMI, LAN and RS-232C support professional AV integration.
75" 4K UHD
3840 x 2160 @ 60Hz
500 cd/m²
Professional signage brightness
Android 11
Integrated signage platform
24/7 Operation
Continuous commercial use
Description
LH7575UHS-B1AG Professional Signage
75-inch 4K digital signage engineered for continuous commercial use.
The iiyama LH7575UHS-B1AG combines a 75-inch professional IPS display with integrated signage software and reliable around-the-clock operating capability.
Its native 3840 x 2160 4K UHD resolution provides a detailed canvas for advertising, corporate communications, presentations, wayfinding, information displays and branded video.
Landscape and portrait installation, Intel® SDM-L expansion, DisplayPort daisy chaining and built-in Android functionality make the LH7575UHS-B1AG suitable for demanding professional digital signage and commercial AV projects.
- iiyama ProLite LH7575UHS-B1AG
- 75" / 189.3cm professional display
- 3840 x 2160 4K UHD resolution
- IPS professional display panel
- 500 cd/m² brightness
- 1200:1 static contrast
- Android 11
- iiSignage² CMS
- Intel® SDM-L expansion
- 24/7 continuous operation
LH7575UHS-B1AG Key Features
iiyama ProLite LH7575UHS-B1AG specifications at a glance.
500 cd/m²
Professional brightness for indoor commercial signage.
IPS Panel
178° viewing angles and 1.07 billion colour support.
Android 11
Integrated signage platform with 4GB memory and 32GB storage.
Intel® SDM-L
Optional embedded computing for professional AV applications.
24/7 Operation
Designed for continuous professional digital signage use.
4K UHD Digital Signage
3840 x 2160 detail across a large 75-inch display.
The LH7575UHS-B1AG provides native 3840 x 2160 4K UHD resolution at 60Hz.
Its 8.3-megapixel canvas provides excellent detail for promotional graphics, presentations, menus, dashboards, maps and professional video content.
- 3840 x 2160 native resolution
- 4K UHD at 60Hz
- 8.3 megapixels
- 16:9 aspect ratio
- 1650 x 928mm viewable area
Professional IPS Panel
500 cd/m² brightness with wide 178° viewing angles.
The iiyama ProLite LH7575UHS-B1AG uses an IPS professional display panel with anti-glare coated glass, matte finish and 25% haze.
Wide 178° viewing angles help maintain consistent signage visibility when audiences approach the display from different positions.
- IPS panel technology
- 500 cd/m² brightness
- 1200:1 static contrast
- 178° horizontal viewing angle
- 178° vertical viewing angle
- 1.07 billion colours
iiSignage² CMS
Manage professional digital signage content remotely.
Integrated iiSignage² provides a digital signage content management platform for publishing and managing commercial messaging remotely.
This gives organisations centralised control over advertising, announcements, promotions and information displayed across compatible professional screens.
- Integrated iiSignage² CMS
- Remote content management
- Secure signage management
- Suitable for managed display estates
Android 11
Integrated Android professional signage platform.
The LH7575UHS-B1AG includes Android 11, allowing compatible signage applications to operate directly on the display.
The integrated platform combines four A73 and four A53 CPU cores with 4GB memory and 32GB internal storage.
- Android 11 OS
- A73 x4 + A53 x4 CPU
- 4GB memory
- 32GB internal storage
- Built-in removable 802.11ac Wi-Fi module
Signal FailOver
Help keep commercial signage content continuously active.
Signal FailOver can automatically switch to another prioritised input source if the selected primary source becomes unavailable.
This helps minimise blank-screen time in environments where advertising, information or operational messaging needs to remain visible.
- Automatic source detection
- Prioritised input switching
- Designed to reduce blank screens
- Useful for mission-critical signage

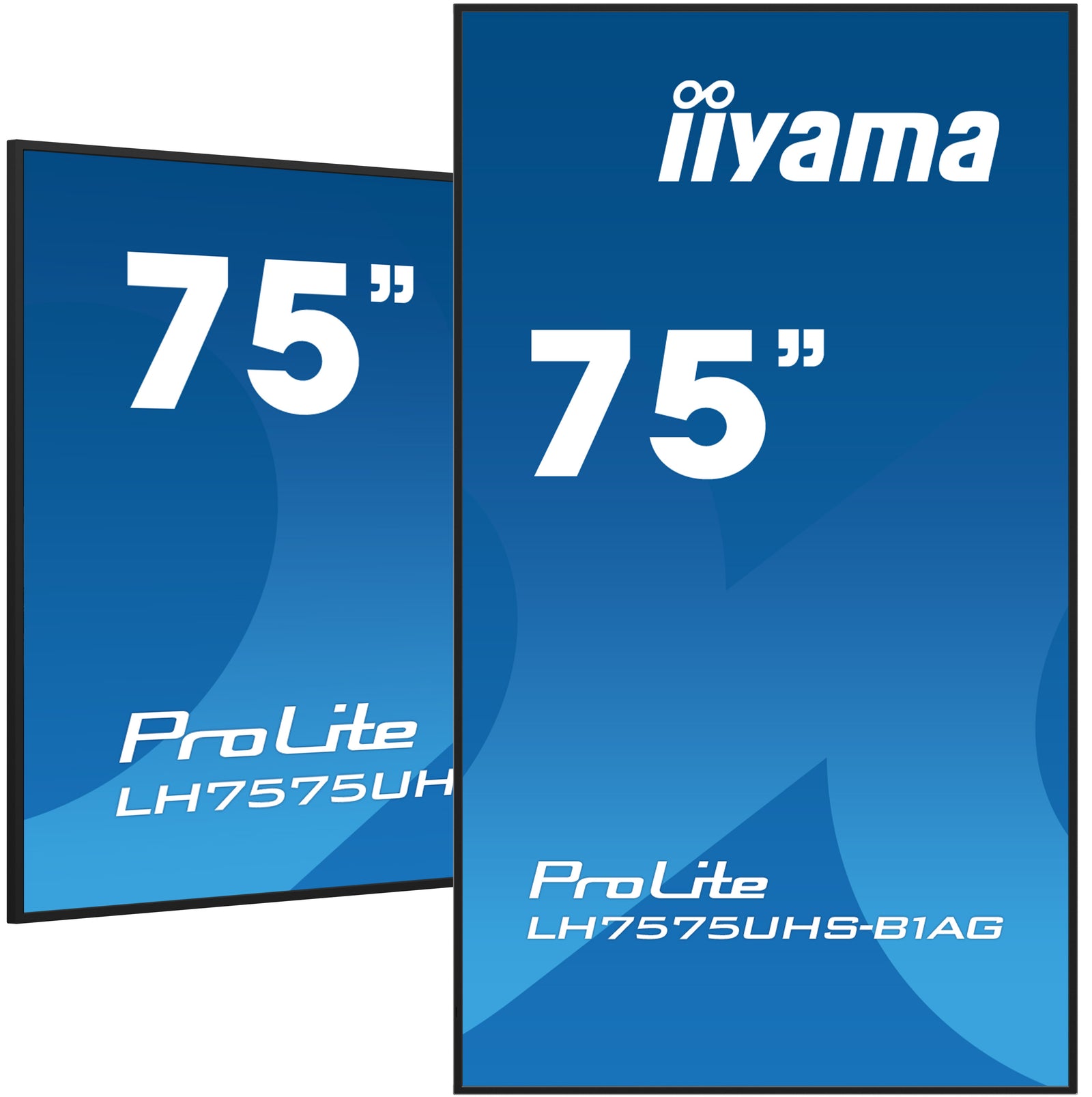

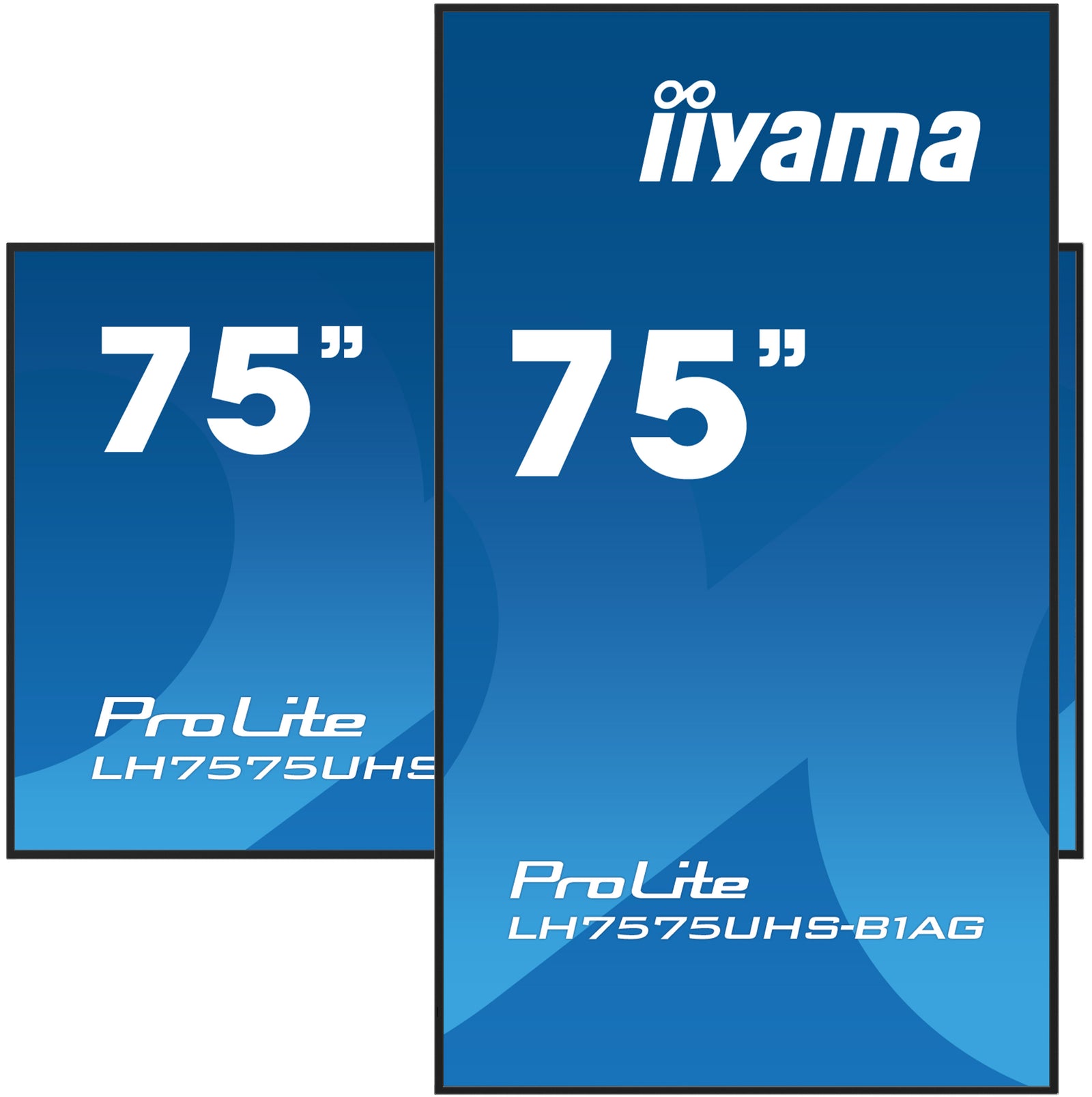

Flexible Orientation
Landscape or portrait 75-inch digital signage.

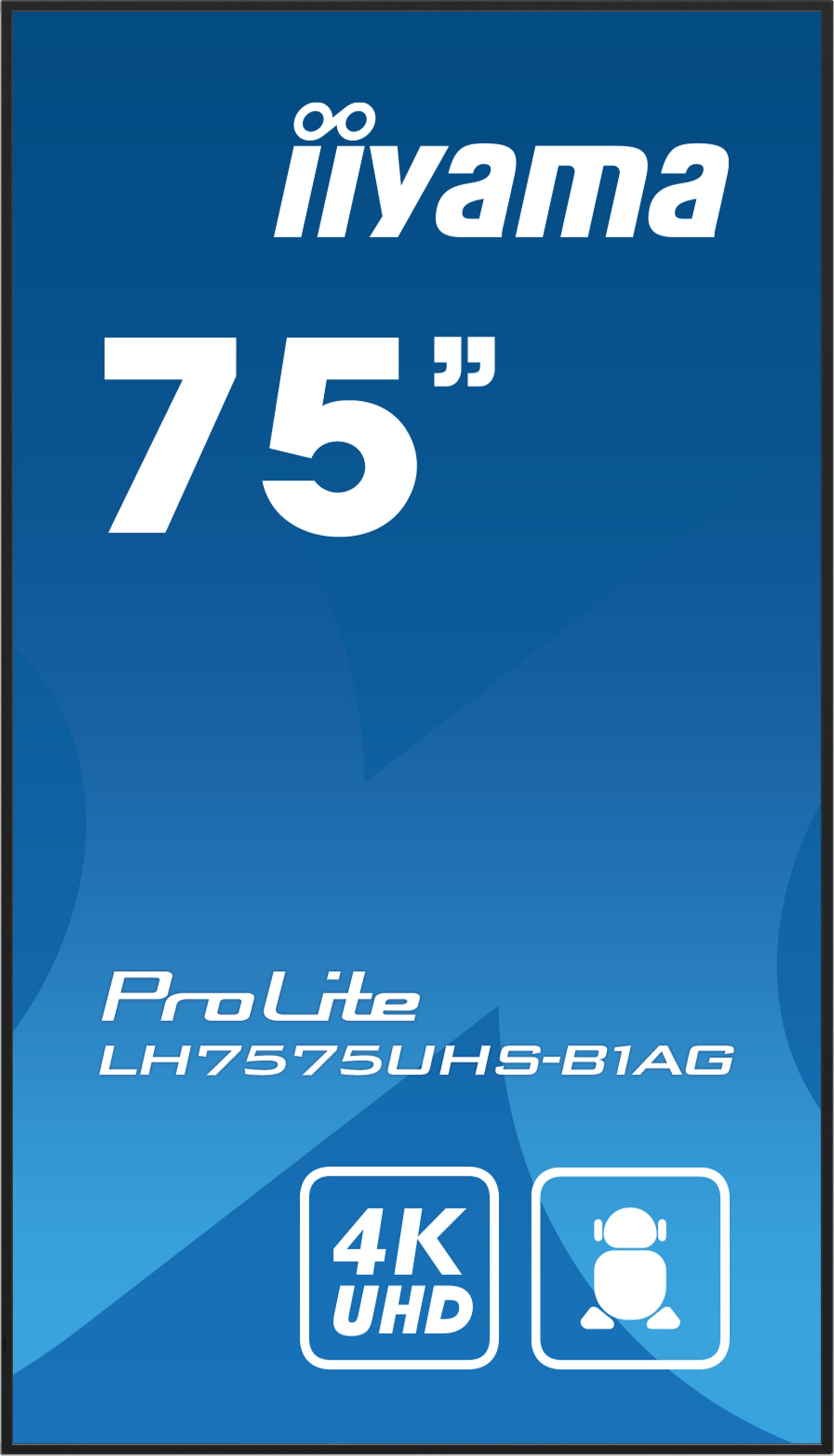

The LH7575UHS-B1AG supports both landscape and portrait orientation, allowing professional installers to adapt the screen to different spaces and content formats.
Landscape installation works particularly well for presentations, corporate communications and advertising, while portrait orientation creates a substantial digital poster for retail, hospitality and wayfinding applications.
- Landscape installation
- Portrait installation
- 600 x 400mm VESA mounting
- Fanless professional design
- Metal housing
EShare
Wireless collaboration for professional environments.
Integrated EShare enables compatible devices to share content wirelessly with the LH7575UHS-B1AG.
The built-in removable 802.11ac Wi-Fi module enables wireless connectivity while allowing greater flexibility for professional installation and servicing.
- Integrated EShare
- Wireless content sharing
- Built-in removable 802.11ac Wi-Fi module
- Useful for business and education
Intel® SDM-L
Optional embedded computing without a conventional external PC.
The LH7575UHS-B1AG includes an Intel® SDM-L slot for a compatible optional Smart Display Module.
This gives professional AV integrators greater flexibility while helping reduce externally mounted hardware and cabling.
- Intel® SDM-L expansion
- Optional embedded computing
- Micro SD card slot
- Cleaner professional installation

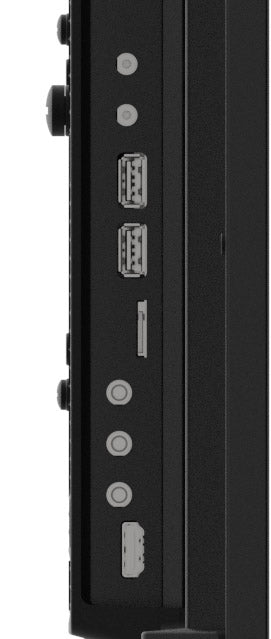

Professional Connectivity
HDMI, DisplayPort, LAN, USB and RS-232C.
The iiyama ProLite LH7575UHS-B1AG provides professional AV and control interfaces for commercial display installations.
- 3 x HDMI 2.0 inputs
- 1 x DisplayPort 1.2 input
- 1 x DisplayPort output
- 2 x USB 2.0 ports
- RJ45 LAN
- RS-232C input and output
- IR input and loop-through
- 3.5mm audio output
Professional Display Control
Integrate into managed commercial AV environments.
RJ45 LAN, RS-232C and IR interfaces allow compatible AV systems to communicate with and control the professional display.
This can be especially valuable where several displays require centralised source, power or configuration management.
- RJ45 LAN control
- RS-232C input and output
- IR control
- Professional AV integration
DisplayPort MST
Daisy-chain compatible professional displays.
The LH7575UHS-B1AG includes DisplayPort output with MST-out Daisy Chain v1.2.
This adds flexibility for compatible professional multi-display installations and signal-distribution layouts.
- DisplayPort 1.2 input
- DisplayPort output
- MST-out Daisy Chain v1.2
- Maximum 3840 x 2160 @ 60Hz
Professional Input Options
Multiple inputs for flexible signage deployments.
Three HDMI inputs, DisplayPort and integrated Android functionality allow professional installers to select the most appropriate content source for each project.

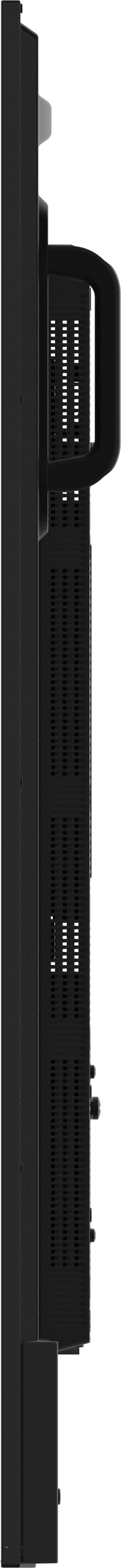

Control Connectivity
LAN, RS-232C and IR integration.
Professional control connectivity supports managed AV systems and commercial installations where reliable remote management is important.
Professional Hardware
Built for permanent commercial display installations.
The LH7575UHS-B1AG combines a metal housing, fanless construction and professional mounting provisions for reliable fixed installations.
Commercial Reliability
Designed for continuous 24/7 professional operation.
Unlike a conventional consumer television, the LH7575UHS-B1AG is rated for continuous 24/7 operation.
Anti-image-retention functionality, a fanless design and professional metal housing help support demanding commercial display environments.
- 24/7 continuous operation
- 44,000-hour MTBF excluding backlight
- Anti image retention
- Fanless design
- Metal housing

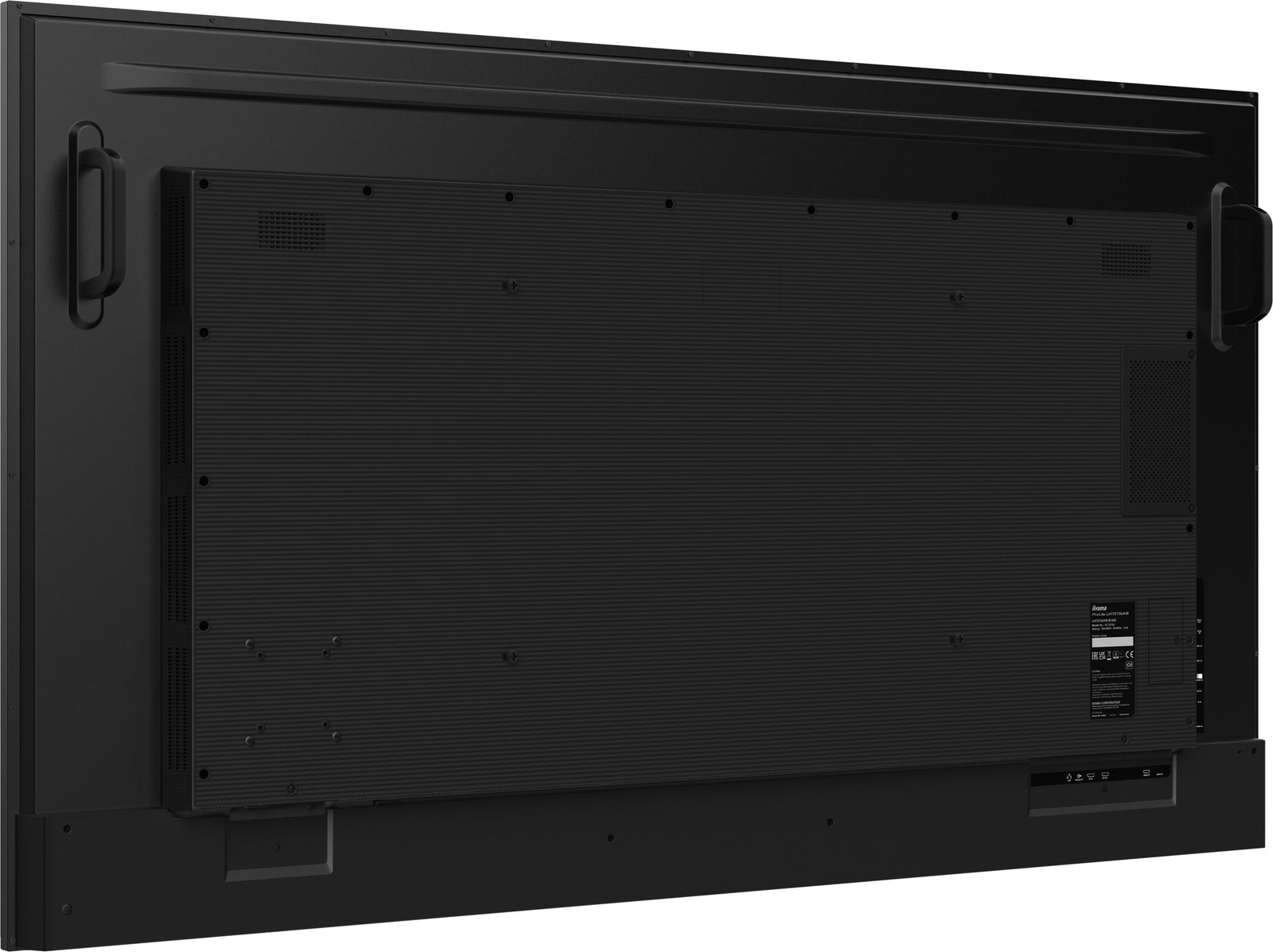

Professional Mounting
600 x 400mm VESA mounting.

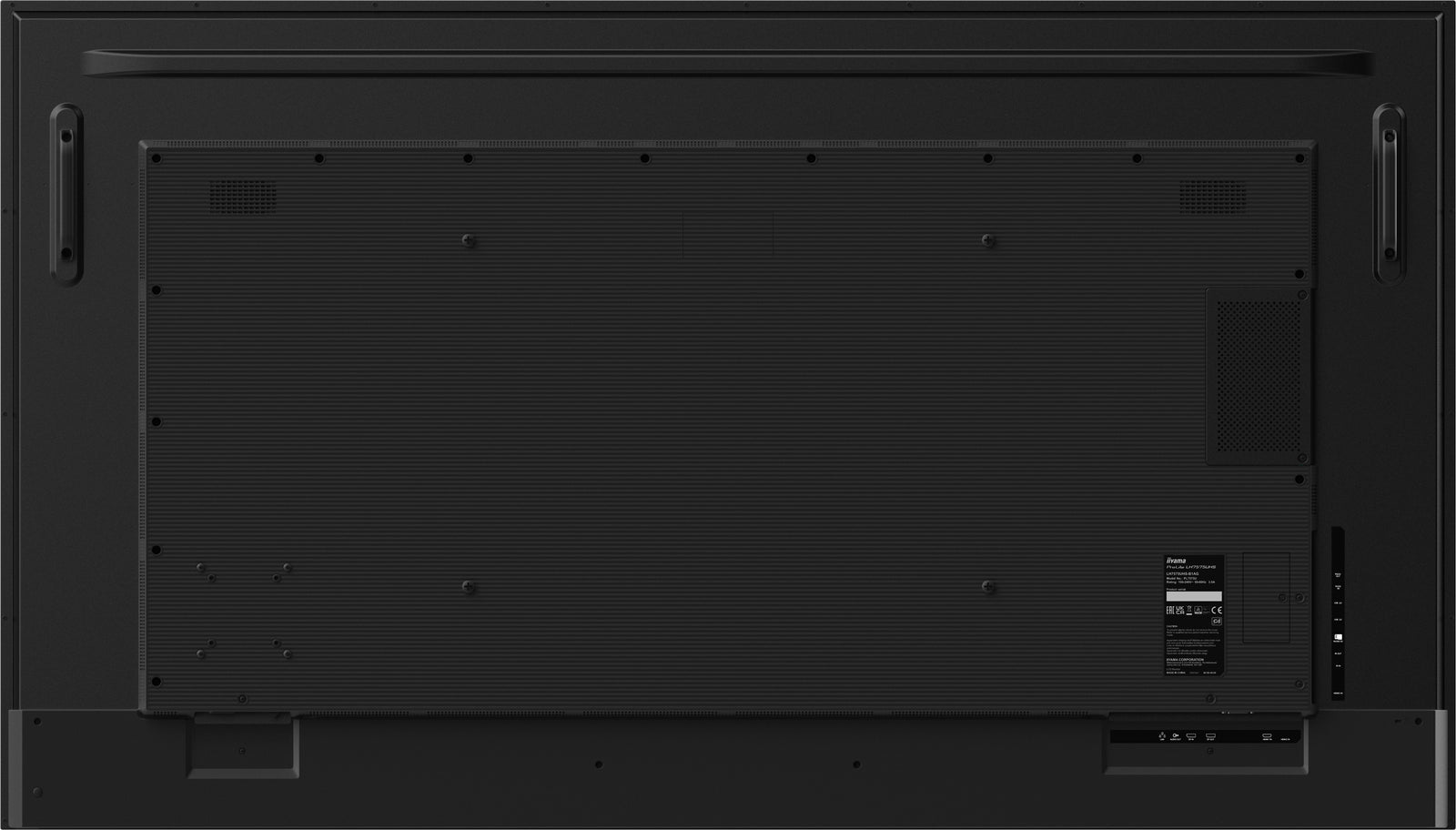

The LH7575UHS-B1AG uses a 600 x 400mm VESA mounting pattern for compatible professional wall mounts and mounting systems.
- 600 x 400mm VESA mounting
- 100 x 100mm Mini PC mounting
- Landscape installation
- Portrait installation

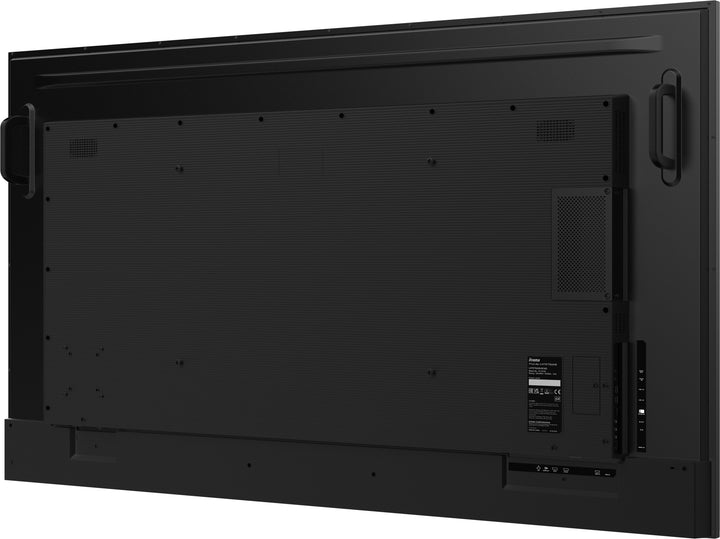

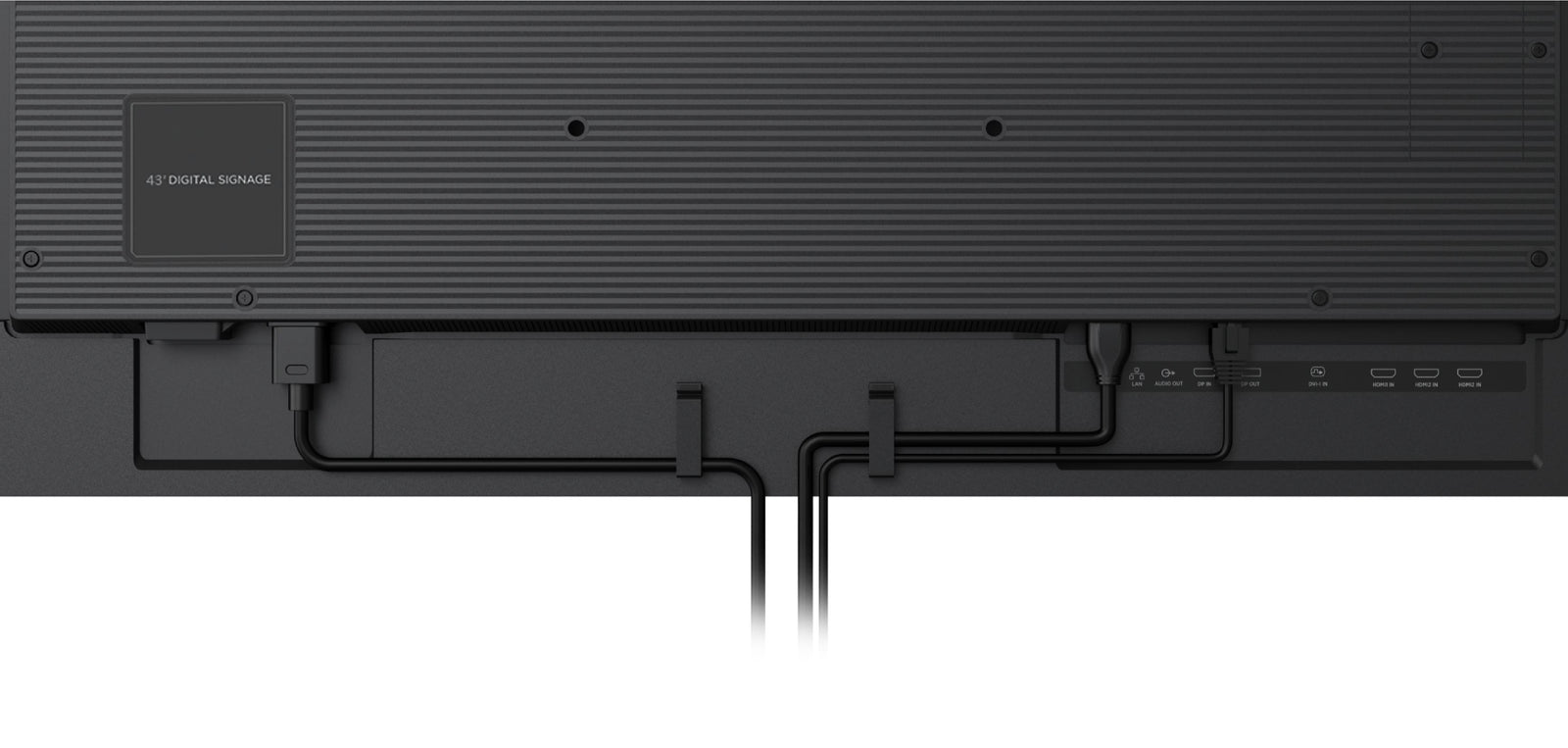

Commercial Installation
Designed for clean professional AV installations.

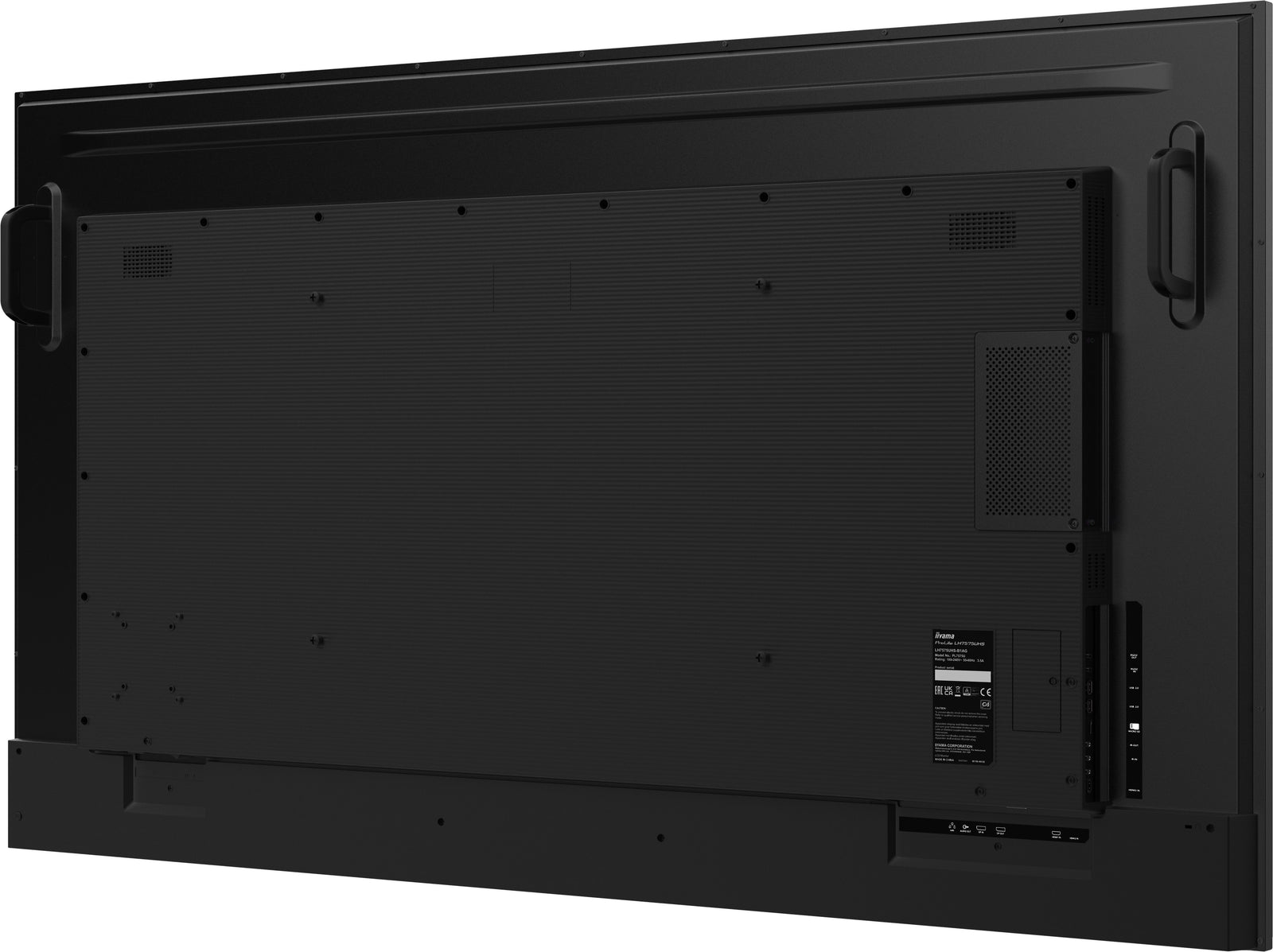

Rear access, commercial connectivity and professional mounting features help installers plan cabling, control and maintenance.
75-Inch Display Dimensions
Large-format screen with a slim 55mm chassis.
The LH7575UHS-B1AG measures 1679.5 x 958.5 x 55mm and weighs 29.5kg without packaging.
- 1679.5mm width
- 958.5mm height
- 55mm depth
- 29.5kg product weight
- 41kg boxed weight
- 14.9mm bezel on all sides
Professional Large Format Display
Built for high-impact business communications.
At 75 inches, the LH7575UHS-B1AG provides a substantial professional display for corporate, retail, hospitality, education and public-facing environments.

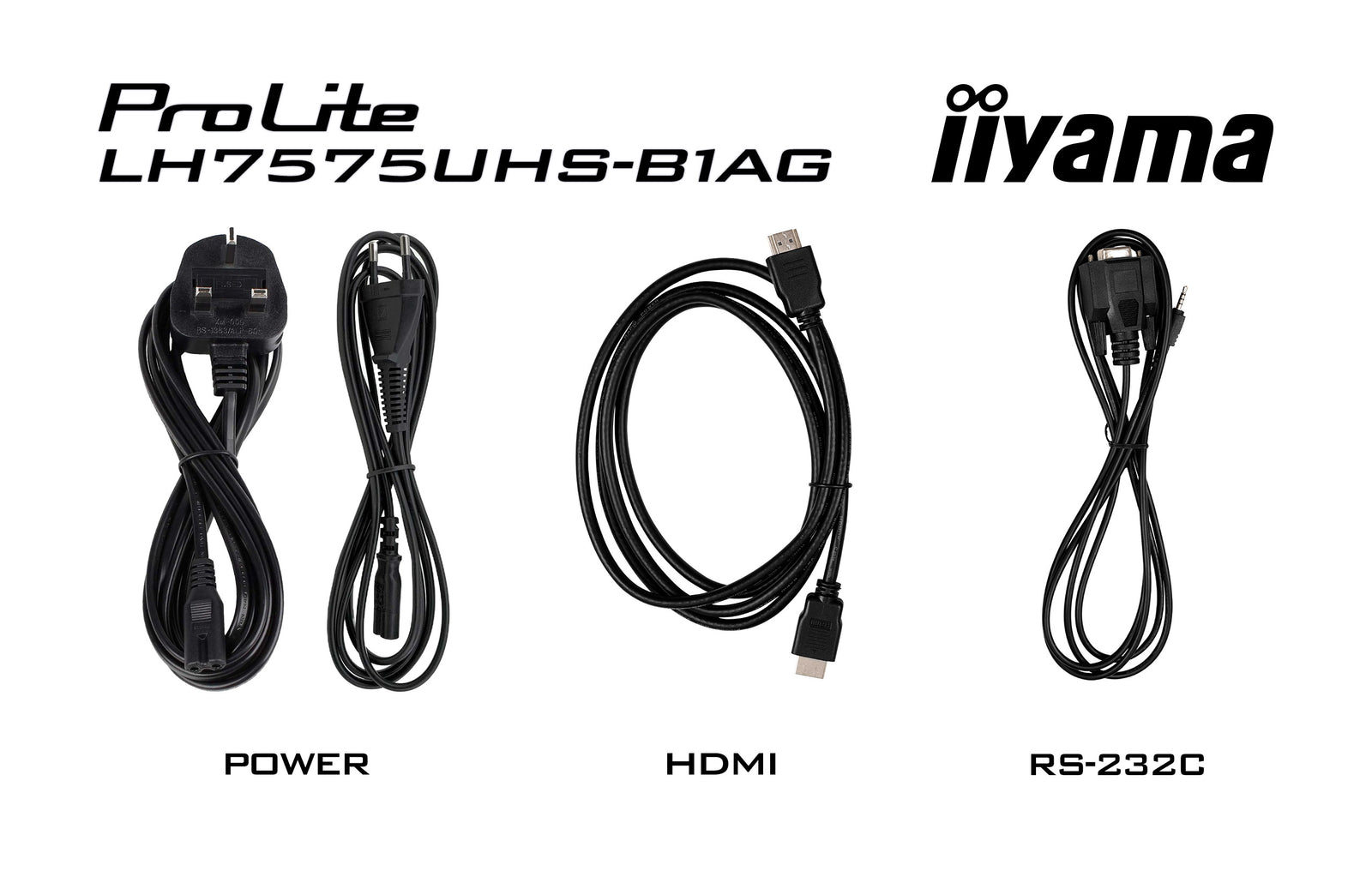

Included Accessories
Essential accessories supplied for setup.
The display is supplied with the essential cables, documentation and remote control required for initial installation and setup.
- Power cable
- HDMI cable
- RS-232C cable
- Quick start guide
- Safety guide
- Remote control with batteries
- Screw-hole stickers
- Wire buckles
75" Commercial Displays
Comparing the LH7575UHS-B1AG with other 75-inch professional screens?
Browse the ScreenMoove 75-inch commercial display collection to compare professional screens for digital signage and commercial AV.
Specifications
LH7575UHS-B1AG Technical Specification
iiyama ProLite LH7575UHS-B1AG specifications.
Technical specifications for the iiyama LH7575UHS-B1AG 75" 4K UHD professional digital signage display.
| Specification | iiyama LH7575UHS-B1AG Details |
|---|---|
| Display Characteristics | |
| Model | iiyama ProLite LH7575UHS-B1AG |
| Design | Thin bezel |
| Diagonal | 75" / 189.3cm |
| Panel | IPS, AG coated glass, matte finish, haze 25% |
| Native Resolution | 3840 x 2160 @ 60Hz - 8.3 megapixels 4K UHD |
| Aspect Ratio | 16:9 |
| Panel Brightness | 500 cd/m² |
| Static Contrast | 1200:1 |
| Response Time | 8ms GTG |
| Viewing Zone | 178° horizontal / 178° vertical, 89° right / left, 89° up / down |
| Colour Support | 1.07 billion colours, 8-bit + FRC, NTSC 72% |
| Horizontal Sync | 28 - 160kHz |
| Viewable Area | 1650 x 928mm / 65 x 36.5" |
| Bezel Width | 14.9mm sides, top and bottom |
| Pixel Pitch | 0.429mm |
| Bezel Colour / Finish | Black, matte |
| Interfaces / Connectors / Controls | |
| HDMI Inputs | 3 x HDMI 2.0, maximum 3840 x 2160 @ 60Hz, ARC on HDMI #3 |
| DisplayPort Input | 1 x DisplayPort 1.2, maximum 3840 x 2160 @ 60Hz |
| DisplayPort Output | 1 x DisplayPort, maximum 3840 x 2160 @ 60Hz, MST-out Daisy Chain v1.2 |
| RS-232C Input | 1 x 2.5mm sub-mini jack |
| RS-232C Output | 1 x 2.5mm sub-mini jack |
| RJ45 LAN | 1 |
| IR Input | 1 x 3.5mm stereo mini |
| IR Loop Through | 1 x 3.5mm stereo mini |
| Audio Output | 1 x mini jack |
| Speakers | 2 x 10W |
| HDCP | v2.2 |
| USB Ports | 2 x USB 2.0 |
| Software & Hardware | |
| Operating System | Android 11 |
| Integrated Software | iiSignage², FailOver and EShare |
| Wi-Fi | Built-in removable 802.11ac Wi-Fi module |
| CPU | A73 x4 + A53 x4 |
| Memory | 4GB |
| Internal Storage | 32GB |
| Expansion | Intel® SDM-L and micro SD card slot |
| Professional Features | |
| Maximum Non-Stop Operation | 24/7 |
| Anti Image Retention | Yes |
| Video Wall / Daisy Chain | Yes - MST output |
| Media Playback | Yes |
| Housing | Metal |
| General | |
| OSD Languages | EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, NB |
| Control Buttons | Power |
| Plug & Play | DDC2B |
| Mechanical | |
| Orientation | Landscape and portrait |
| Fanless Design | Yes |
| VESA Mounting | 600 x 400mm |
| Mini PC Mount | VESA 100 x 100mm |
| Operating Temperature | 0°C - 40°C |
| Storage Temperature | -20°C - 60°C |
| MTBF | 44,000 hours excluding backlight |
| Included Accessories | |
| Cables | Power, HDMI and RS-232C cables |
| Guides | Quick start guide and safety guide |
| Other | Stickers for screw holes and wire buckles |
| Remote Control | Yes, batteries included |
| Power Management | |
| Power Supply Unit | Internal |
| Power Supply | AC 100 - 240V, 50/60Hz |
| Typical Power Usage | 189W |
| Standby | 0.5W |
| Off Mode | 0.5W |
| Sustainability | |
| Energy Efficiency Class | G |
| Regulations | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE and REACH |
| REACH SVHC | Above 0.1%: Lead, Lead monoxide |
| Dimensions & Weight | |
| Product Dimensions | 1679.5 x 958.5 x 55mm |
| Box Dimensions | 1883 x 1140 x 186mm |
| Weight Without Box | 29.5kg |
| Weight With Box | 41kg |
| EAN | 4948570123483 |
Warranty
Professional Display Warranty
LH7575UHS-B1AG warranty and ScreenMoove support.
The iiyama ProLite LH7575UHS-B1AG is designed as a professional Large Format Display for continuous commercial digital signage use.
Professional Display Cover
Supplied with the applicable professional Large Format Display manufacturer warranty.
Installation Support
ScreenMoove can assist with mounting, cabling and professional large-format display installation.
ScreenMoove Support
Contact ScreenMoove for product, integration, installation and warranty enquiries.
Downloads
LH7575UHS-B1AG Downloads
LH7575UHS-B1AG manuals, drawings, energy labels and technical documents.
Download ScreenMoove-hosted technical documentation for the iiyama ProLite LH7575UHS-B1AG, including the product specification, user manual, technical drawing, energy labels, control commands and signage software documentation.
Technical Specification
Download the LH7575UHS-B1AG product specification PDF.
User Manual - English
Download the English user manual covering installation, configuration and operation.
Technical Drawing
Download the LH7575UHS dimensional drawing for professional installation and mounting planning.
UK Energy Label
Download the UK energy label for the LH7575UHS-B1AG.
EU Energy Label
Download the EU energy label for the LH7575UHS-B1AG professional display.
EShare Network Requirements
Download network requirements for EShare wireless collaboration.
RS-232 / LAN Commands
Download the professional RS-232 and LAN command reference.
iiSignage² Whitepaper
Download the iiSignage² digital signage content-management whitepaper.
View Specifications Online
View the complete LH7575UHS-B1AG specification table directly on this product page.
75" Commercial Displays
Compare the LH7575UHS-B1AG with other professional 75-inch commercial displays.
Installation Support
Speak to ScreenMoove about professional mounting, cabling and integration.
Product Details

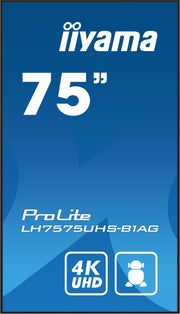

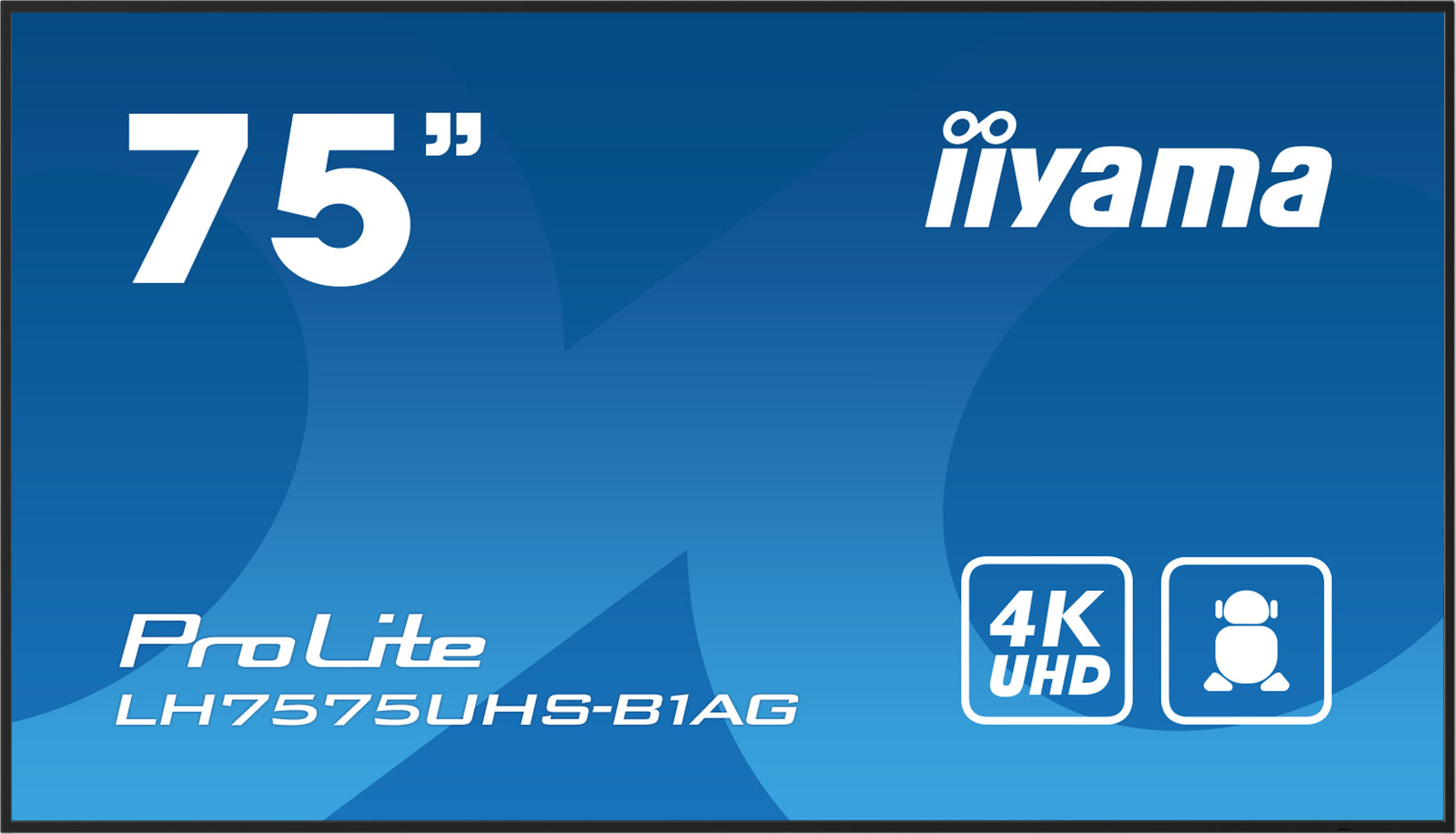

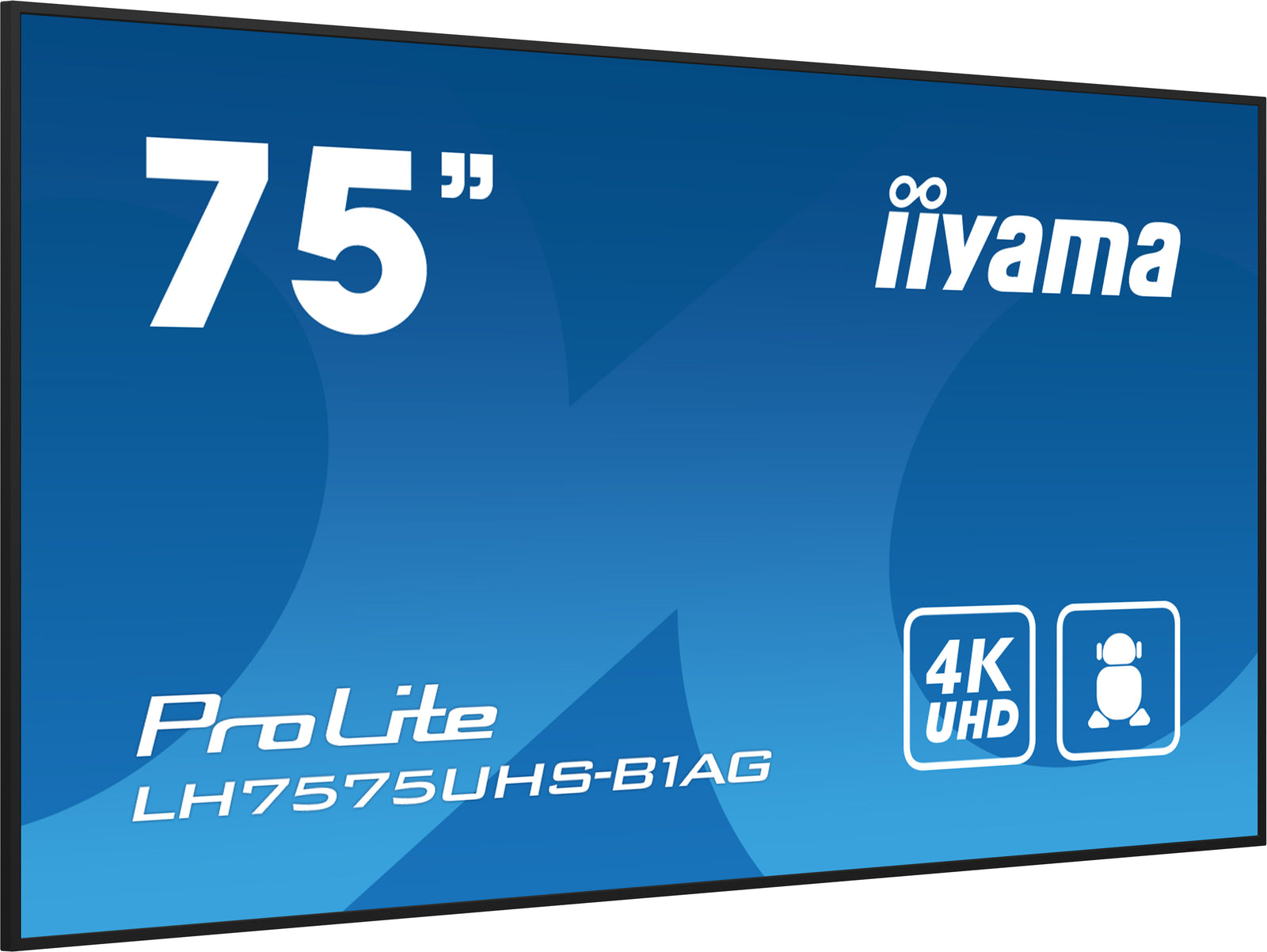

iiyama LH7575UHS-B1AG product gallery.

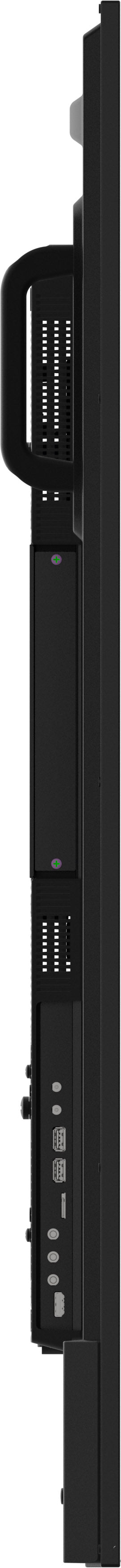

Explore detailed product views of the LH7575UHS-B1AG, including connectivity, mounting and installation details.
Professional Applications
Where can the iiyama LH7575UHS-B1AG be used?
Its combination of a 75-inch 4K IPS panel, 500 cd/m² brightness, integrated digital signage software and 24/7 operation makes the LH7575UHS-B1AG suitable for a wide range of commercial environments.
Retail Digital Signage
Large-format advertising, promotions, product messaging and branded content.
Explore Retail SignageHospitality
Venue information, promotions, events and customer communications.
Explore HospitalityEducation
Campus communications, announcements, presentations and information displays.
Explore Education SignageCorporate AV
Boardrooms, presentations, dashboards and company communications.
Explore Meeting Room AVReception & Public Spaces
Welcome content, directories, wayfinding and visitor information.
Compare 75" DisplaysProfessional Installation
Add professional mounting, cabling and integration to your display project.
View Installation Services
Alternative iiyama Displays
Compare other iiyama professional digital signage sizes.
Need a smaller professional display? Compare the LH7575UHS-B1AG with these alternative ScreenMoove iiyama digital signage models.
32"
LH3275HS-B1AG
View alternative
50"
LH5075UHS-B2AG
View alternative
55"
LH5575UHS-B2AG
View alternative
75"
LH7575UHS-B1AG
You are viewing this
Shop 75" Displays
Want to compare more professional 75-inch screens?
Browse all 75-inch commercial displays available from ScreenMoove.
Frequently Asked Questions
iiyama ProLite LH7575UHS-B1AG FAQs.
What is the iiyama ProLite LH7575UHS-B1AG?
The iiyama ProLite LH7575UHS-B1AG is a 75-inch professional 4K UHD digital signage display with an IPS panel, 500 cd/m² brightness, Android 11 and 24/7 operation.
What resolution is the LH7575UHS-B1AG?
The display has a native 3840 x 2160 4K UHD resolution at 60Hz.
How bright is the LH7575UHS-B1AG?
The professional IPS panel has a rated brightness of 500 cd/m².
What panel does the LH7575UHS-B1AG use?
The display uses a professional IPS panel with anti-glare coated glass, matte finish and wide 178° viewing angles.
Can the LH7575UHS-B1AG run 24/7?
Yes. It is designed for 24/7 continuous professional operation.
Does the LH7575UHS-B1AG use Android?
Yes. The display uses Android 11 and includes iiSignage², Signal FailOver and EShare.
How much memory and storage does the LH7575UHS-B1AG have?
The integrated platform provides 4GB memory and 32GB internal storage.
Does the LH7575UHS-B1AG have Wi-Fi?
Yes. It includes a built-in removable 802.11ac Wi-Fi module.
Can the LH7575UHS-B1AG be installed in portrait mode?
Yes. The display supports both landscape and portrait orientation.
What VESA mount does the LH7575UHS-B1AG use?
The display uses a 600 x 400mm VESA mounting pattern.
Does the LH7575UHS-B1AG have an Intel SDM slot?
Yes. It includes an Intel® SDM-L slot for compatible optional Smart Display Module computing.
Does the LH7575UHS-B1AG support DisplayPort daisy chaining?
Yes. Its DisplayPort output supports MST-out Daisy Chain v1.2.
Does the LH7575UHS-B1AG have built-in speakers?
Yes. The display incorporates 2 x 10W speakers.
What are the dimensions of the LH7575UHS-B1AG?
The display measures 1679.5 x 958.5 x 55mm.
How much does the LH7575UHS-B1AG weigh?
The display weighs 29.5kg without packaging and 41kg with packaging.
What is the energy efficiency class of the LH7575UHS-B1AG?
The LH7575UHS-B1AG has an energy efficiency class of G.
Where can I compare other 75-inch professional displays?
Browse the ScreenMoove 75-inch commercial display collection to compare the LH7575UHS-B1AG with other professional screens.
Where can I download the LH7575UHS-B1AG technical specification?
Download the LH7575UHS-B1AG technical specification PDF from the ScreenMoove-hosted product documents.
75" Professional Digital Signage
Is the iiyama ProLite LH7575UHS-B1AG right for your project?
The LH7575UHS-B1AG combines a 75-inch professional IPS panel, 3840 x 2160 4K UHD resolution, 500 cd/m² brightness, Android 11, iiSignage², Signal FailOver, Intel® SDM-L, DisplayPort MST and reliable 24/7 professional operation.
Technical Highlights
- Display size / Screen sizes
- 75"
- Resolution
- Ultra HD (4K)
- Panel type
- IPS Panel
- Screen type
- Flat
- Brightness
- 500 cd/m2
- Response time
- 8ms
- Screen ratio
- 16:9
- Display orientation
- Landscape & Portrait
- Operating hours
- 24/7
- Operating system
- Android 11
- Player features
- USB Plug and Play
- VESA patterns
- 600x400
- Warranty
- 3 Year Warranty
iiyama ProLite LH7575UHS-B1AG 75" 4K Ultra HD Professional Digita...SKU: LH7575UHS-B1AG
£1,101.90
See Before You Decide
Book a Free Product Demonstration
Compare picture quality, touchscreen performance, software and connectivity with guidance from a commercial display specialist.
Remote or on-site
No obligation
Expert-led session
For Integrators and Resellers
Open a Screen Moove Trade Account
Access project pricing, volume discounts, product sourcing support and faster commercial quotations for your client projects.
Trade pricing
Project support
Volume discounts
Education & Public Sector
A simpler procurement route for schools and public organisations
Access education pricing, purchase-order support, installation services and account management for schools, academies, colleges, universities, NHS organisations, councils and government bodies.
Purchasing for a school, academy, university or NHS organisation?
Register your organisation to request institutional pricing and
purchase-order support.
Register Your Organisation
Trusted Store Status
Top Quality Store
Rating status, Exceptional, based on Google’s shopping experience metrics.
Why it matters
Demonstrates consistently strong fulfilment, service, and post-sale experience across Google signals.
Google
Top Quality Store
Built for confidence, next-day delivery options, UK-based support, trade-ready operations.
Request a quote
JO
Josh
Jan 6, 2026
Great products and service! The guys always go above and beyond to make sure they supply you with the product that best fits your needs. I’ve been using Screen Moove for a number of years now and woul...
See moreSD
Sandy Dobson
Nov 28, 2025
Verified
Screen Moove went above and beyond for my requirements. Ordering system was super easy it just take 2 minutes to complete my order and I have received my tracking details right away after few minutes...
See moreS
St Peter's Church
Dec 17, 2025
Moe Khan, one of the team at Screen Move has been a fantastic help as we have navigated the process of choosing and buying screens and stands for our church. Helpful at every step of the way, patient...
See moreFS
Furniture Store
Nov 27, 2025
We originally planned to purchase a cheap TV for our showrooms. After speaking with screen moove, we ended up investing in floorstanding displays across multiple retail sites and showrooms. The bright...
See moreFT
Felix Thomas
Sep 4, 2025
Verified
I placed my order late at night but realized I had entered the wrong address. I immediately sent an email asking for it to be changed, not really expecting a reply until the next day. To my surprise,...
See moreAS
ava singh
Aug 27, 2025
Verified
I’ve been looking ultra high brightness display despite I checked everywhere I didn’t trust. They got my trust and I ordered. It arrived safely next day we have installed screen is awesome and high qu...
See moreGK
Glenn Khan
Nov 27, 2025
Verified
This is second time I used Screen Moove, I have bought double sided 55 inch display. The first order was a bit delayed I don't blame it might be happen, but customer service over the phone was excell...
See moreBY
Burcu Yesilova
Feb 12, 2025
Screenmoove, perfect customer satisfaction from start to finish! Their customer service is incredibly helpful and fast. It’s amazing to be able to reach out and get quick solutions for any issue. We a...
See moreTE
Tina e Edwards
Dec 17, 2025
We found that we needed a video call to work out the set up. The tech team at screenmoove were very very good. I would suggest that the instructions that come with the screen offer two key info. 1. Set...
See moreMA
Miss Akthar
Nov 21, 2025
Verified
Great experience with Jonathan Gray, previously I was looking for other companies and randomly ordering our needs from elsewhere. after I met with him, since 2024 we are keep purchasing from screen m...
See moreGet in touch
Speak directly with Screen Moove about your display, digital signage, meeting-room or AV project.
Need help choosing the right product?
Speak directly with a dedicated Screen Moove expert and get the right solution first time.
Call us: 020 8191 9223
Email: info@screenmoove.com
Contact us
Simply complete our contact form, and we will promptly respond to your inquiries.
If you have any questions or enquiry, please fill out the form below with all of your details and we'll get back to you shortly.
Ready to start your next AV project?
Contact our team of experts today!
