LG 86UL3Q-E 86" 4K Ultra HD Digital Signage Display
SKU: 86UL3Q-E
£1,657.00 (Excl. VAT)
£1,657.00 (Excl. VAT)
LG webOS UHD Signage

Superb Picture Quality with Ultra HD Resolution
With the resolution of LG UHD Signage, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle provides clear contents, making it an ideal choice for digital signage.

High-Performance with LG webOS 6.1
LG webOS 6.1 is available on the UL3Q series for smooth execution of multiple tasks. The LG webOS smart signage platform enhances user convenience with an intuitive GUI*, making it perfect for digital signage LG solutions.

Easy Installation with Uniform Bezel Design
The UL3Q series features perfectly balanced horizontal and vertical bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience. The sophisticated, symmetrical bezels enhance the aesthetic appeal of any space, transforming ordinary displays into elegant focal points, ideal for LG UHD signage.

Adaptive Viewing Experience
Experience enhanced flexibility with the UL3Q's innovative Face Up/Down tilt support. Whether mounted high or low, each display can adjusted to better meet viewers at eye level, promoting maximum engagement regardless of installation height. This versatility optimizes both spatial efficiency and visual comfort, delivering clear information from various viewing angles.

Remote Monitoring and Control
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone & PC under network-accessible environment while having access to both current and past data. It allows the user to monitor the unit, make adjustments and control the unit remotely in real time.

Built-In Brightness Sensor
The UL3Q's front-mounted sensor automatically adjusts brightness to match various lighting conditions, helping to optimize viewing quality and energy efficiency without manual intervention. This adaptive feature helps maintain consistent display performance while supporting power savings, delivering improved visual experience that responds to environmental changes.

Advanced Security Architecture
The UL3Q incorporates LG’s Enhanced Kernel Protection (EKP) technology, safeguarding critical data from unauthorized access and potential security threats. This commitment to information security is validated by the ISO/IEC 15408 Common Criteria EAL2 certification, providing businesses with the confidence that their sensitive content and operations remain protected in today’s challenging security landscape, ensuring the safety of LG UHD signage.

Award-Winning Sustainability
The UL3Q series embodies LG Display's ESG commitment: "Better Life for All." This company-wide dedication to environmental responsibility has earned the prestigious 2025 EcoVadis Platinum medal, placing us among the top 1% of global companies for sustainability excellence.

LG ConnectedCare
LG ConnectedCare for LG UHD Signage Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.
| Panel | |||
| Screen Size | 86" | Panel Technology | ADS |
| Back Light Type | Direct | Aspect Ratio | 16:9 |
| Native Resolution | 3,840 x 2,160 (4K UHD) | Refresh Rate | 60 Hz |
| Brightness (Typ.) | 350 nits | Contrast Ratio | 1,200:1 |
| Dynamic CR | 1,000,000 : 1 | Color gamut | DCI 80% |
| Viewing Angle (H x V) | 178 × 178 | Color Depth | 1.07 Billion Colors (Advanced 10 bit) |
| Response Time | 8m (G to G) | Surface Treatment (Haze) | 1% |
| Life Time (Min.) | 30,000 Hrs | Operation Hours (Hours / Days) | 16 / 7 |
| Portrait / Landscape | Yes / Yes | ||
| Mechanical Specification | |||
| Bezel Color | Black | Bezel Width | 12.9 mm (Even) |
| Weight (Head) | 31.8 kg | Packed Weight | 42.6 kg |
| Monitor Dimensions (W × H × D) | 1,926.6 × 1,098 × 60 mm (Without IR) | Carton Dimensions (W × H × D) | 2,080 × 220 × 1,255 mm |
| Handle | No | VESA™ Standard Mount Interface | 600 × 400 mm |
| Key Feature | |||
| Internal Memory | 8 GB | Built-in Wi-Fi | Yes |
| Sensor | Temperature Sensor, Auto Brightness Sensor, Acceleration (Gyro) Sensor | Local Key Operation | Power On/Off Only |
| webOS | 6.1 | Local Contents Scheduling | Yes |
| Group Manager | Yes | USB Plug & Play | Yes |
| Fail Over | Yes | Image | Booting Logo Image, No Signal Image |
| Sync | RS-232C Sync, Local Network Sync | Screen Share | Yes |
| Video Tag | 4, Max One HDMI Input | Play via URL | Yes |
| Rotation | Screen Rotation, External Input Rotation | Gapless Playback | Yes |
| Tile Mode Setting | Yes | Setting Data Cloning | Yes |
| SNMP | Yes | ISM Method | Yes |
| Auto Set ID | Yes | Status Mailing | Yes |
| Control Manager | Yes | 3rd Party Compatibility | Cisco Certi. (TBD), Crestron Connected® |
| Smart Energy Saving | Yes | PM Mode | Yes |
| Wake on LAN | Yes | Network Ready | Yes |
| Beacon | Yes | HDMI-CEC | Yes |
| SI Server Setting | Yes | webRTC | Yes |
| Pro:Idiom | Yes | ||
| Environment Conditions | |||
| Operation Temperature | 0 °C to 40 °C | Operation Humidity | 10 % to 80 % |
| Power | |||
| Power Supply | AC 100-240 V ~, 50/60 Hz | Power Type | Built-In Power |
| Power Consumption | |||
| Typ./Max. | 205 W / 287 W | Smart Energy Saving (70%) | 143.5 W |
| DPM | 0.5 W | Power off | 0.5 W |
| BTU (British Thermal Unit) | 699.489 BTU/Hr (Typ.), 979.284 BTU/Hr (Max.) | ||
| Standard (Certification) | |||
| Safety | CB | EMC | FCC Class "B" / CE |
| ErP / Energy Star | No (NewErP) / Yes | ||
| OPS Compatibility | |||
| OPS Type Compatible | No | OPS Power Built In | No |
| Software Compatibility | |||
| Compatible Software | SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS, LG ConnectedCare | ||
| Connectivity | |||

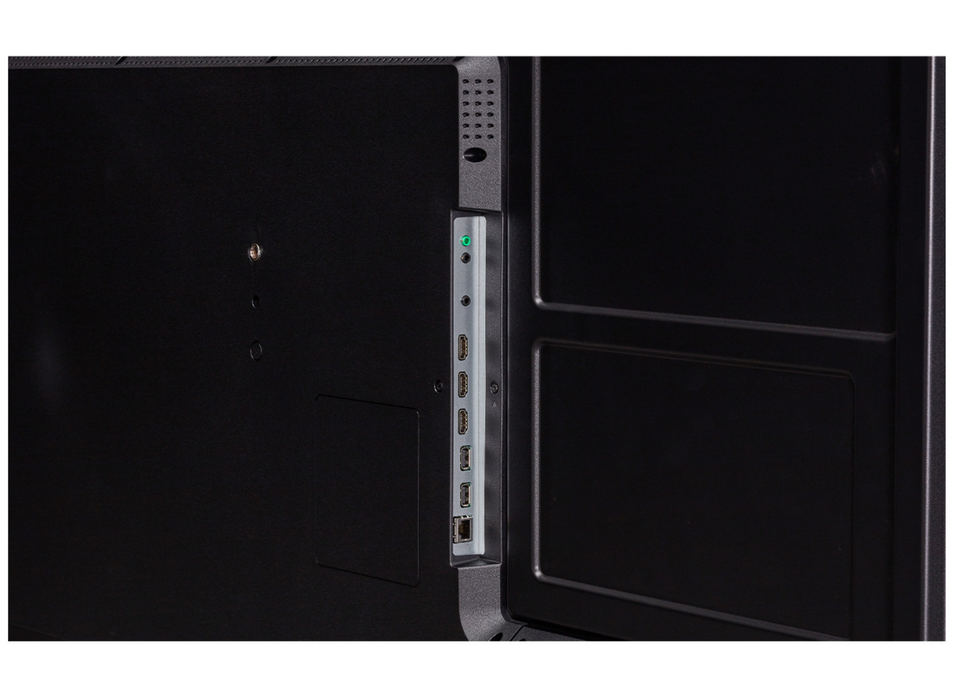

| Input | HDMI (3, HDCP 2.2/1.4), RS-232C (4 Pin Phone-Jack), RJ45 (LAN), USB 2.0 Type A (2) | Output | Audio, RS-232C |
| Sound | |||
| Speaker | 10 W × 2 | ||
| Language | |||
| Supported Languages | English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Türkiye, Arabic, Polski | ||
| Accessory | |||
| Basic | Remote Controller, Power Cord, Regulation Book, Easy Setup Guide, Warranty Card, Phone to D-Sub9 Gender | ||
| Special Feature | |||
| Conformal Coating (Power Board) | Yes | ||
| Description | Downloads |
|---|---|
| Datasheet | Download |
