86" 4K UHD
3840 × 2160 resolution for detailed large-format signage content.
Official Partner

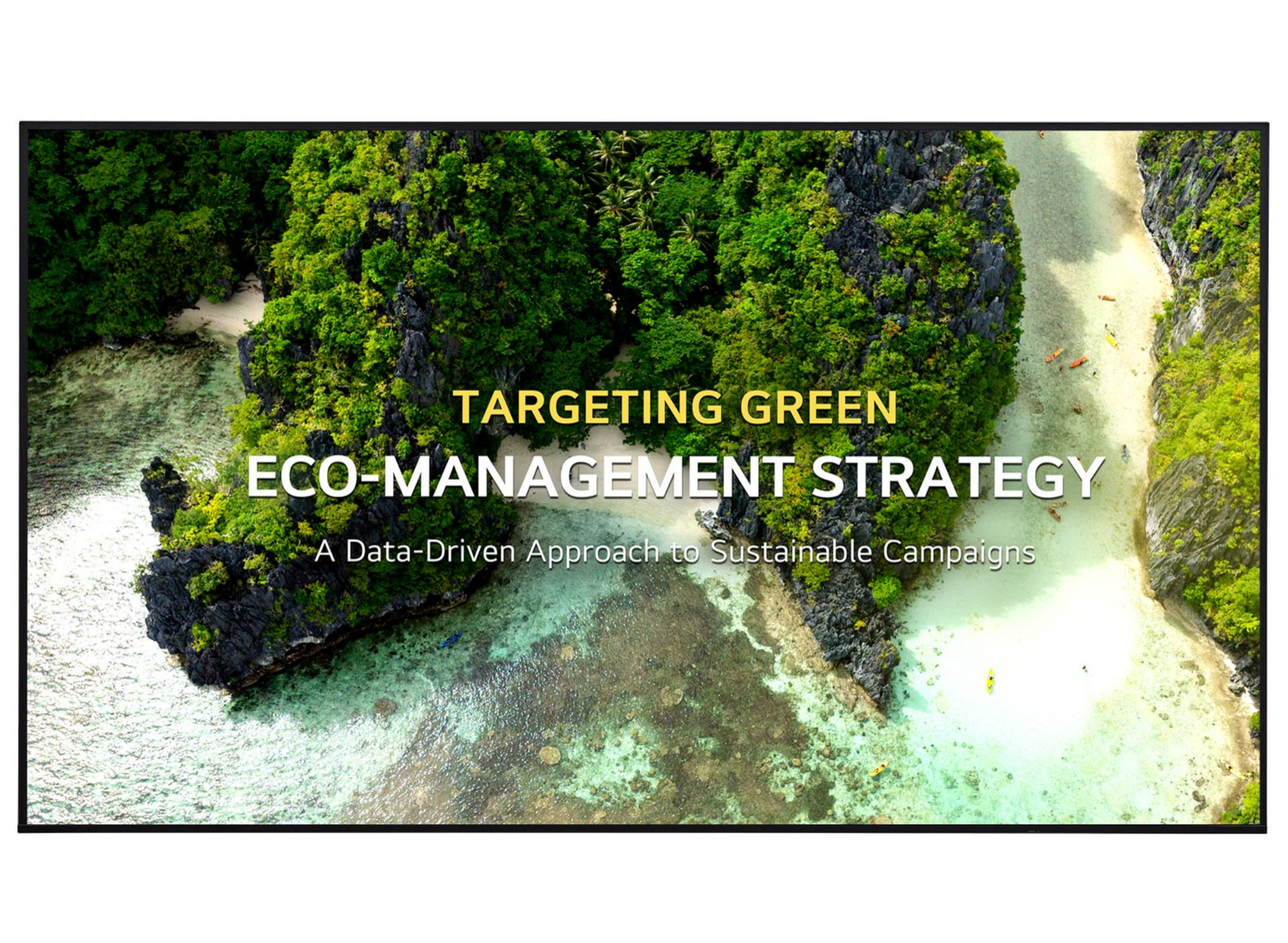

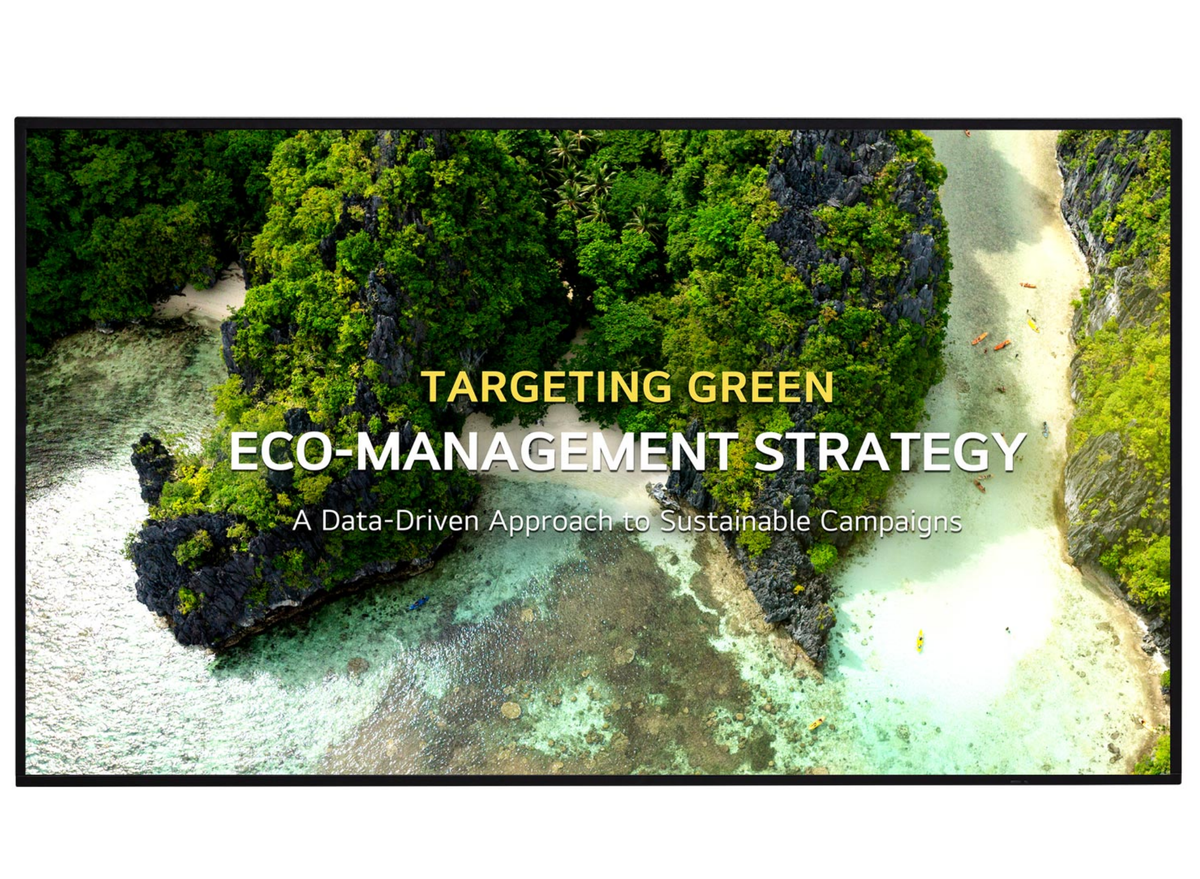

LG 86UL3Q-E 86" 4K Ultra HD Digital Signage Display
In Stock53 available
Express DeliveryFast UK delivery where eligible
3 Year WarrantyManufacturer-backed cover
UK Expert SupportPre-sales and technical advice
Product description
LG 86UL3Q-E · 86" UHD Signage
LG 86UL3Q-E 86" 4K UHD Digital Signage Display with webOS 6.1
The LG 86UL3Q-E is a professional 86-inch 4K UHD digital signage display combining 3840 × 2160 resolution, 350 nit brightness, LG webOS 6.1, built-in Wi-Fi and professional commercial signage functionality.
Designed for retail, corporate communications, hospitality, education, reception spaces, digital menu boards and large indoor signage installations, the LG 86UL3Q-E includes Screen Share, Fail Over, local content scheduling, Group Manager, automatic brightness sensing and network control.
Compare the LG 86UL3Q-E with other 86-inch commercial displays or browse the wider LG digital signage range from ScreenMoove.
86" 4K UHD
3840 × 2160 native resolution
350 nits
Professional indoor signage brightness
webOS 6.1
8GB integrated smart signage platform
16/7 Operation
30,000-hour minimum lifetime
Description
LG 86UL3Q-E Digital Signage
86-inch 4K commercial signage powered by LG webOS 6.1.
The LG 86UL3Q-E combines a 86-inch ADS commercial display panel with Direct LED backlighting and native 3840 × 2160 4K UHD resolution.
LG specifies 350 nit typical brightness, a 1,200:1 typical contrast ratio, 178° horizontal and vertical viewing angles, DCI 80% colour gamut and support for 1.07 billion colours.
Unlike a conventional consumer television, the 86UL3Q-E is engineered for commercial digital signage, with webOS, network management, scheduling, display sensors and signage-management functions built in.
- LG 86UL3Q-E
- 86-inch ADS professional signage panel
- 3840 × 2160 native 4K UHD resolution
- 350 nit typical brightness
- 60Hz refresh rate
- 1,200:1 typical contrast ratio
- 1,000,000:1 dynamic contrast ratio
- DCI 80% colour gamut
- 178° × 178° viewing angles
- 1.07 billion colours - 8 bit + FRC
- 1% haze
- webOS 6.1
- 8GB internal memory
- 30,000-hour minimum lifetime
- 16 hours/day, seven days/week operation
86UL3Q-E specifications at a glance.
350 nits
Commercial indoor brightness with automatic brightness sensing.
webOS 6.1
Integrated LG smart signage platform with 8GB internal memory.
Built-In Wi-Fi
Integrated networking and compatible wireless Screen Share.
16/7 Operation
Designed for up to 16 hours per day, seven days per week.
SuperSign Compatible
Compatible with LG SuperSign CMS, Control+, WB and Cloud.
4K Ultra HD Picture Quality
Detailed 3840 × 2160 signage on a large 86-inch display.
The LG 86UL3Q-E displays content at 3840 × 2160 4K UHD resolution, providing four times the pixel count of Full HD.
At 75 inches, the additional resolution is especially useful for detailed promotional graphics, digital menu boards, business presentations, customer information and branded content.
- 3840 × 2160 native resolution
- ADS panel
- Direct LED backlighting
- 350 nits typical brightness
- 60Hz refresh rate
- DCI 80% colour gamut
- 1.07 billion colours
Wide Viewing Angles
Clear commercial content from multiple positions.
The ADS panel provides 178° horizontal and vertical viewing angles, helping content remain visible when customers, visitors or employees are positioned away from the centre of the display.
This is especially useful with a large 86-inch screen installed in receptions, shops, hospitality venues, educational facilities and workplace environments.
LG webOS 6.1
Smart commercial signage functionality built into the display.
The LG 86UL3Q-E uses webOS 6.1, giving organisations an integrated professional signage platform for compatible content and applications.
With 8GB internal memory, many straightforward signage deployments can operate without needing an external media player.
- LG webOS 6.1
- 8GB internal memory
- Local content scheduling
- Group Manager
- USB Plug & Play
- Play via URL
- Screen Share
- Gapless Playback
- Setting Data Cloning

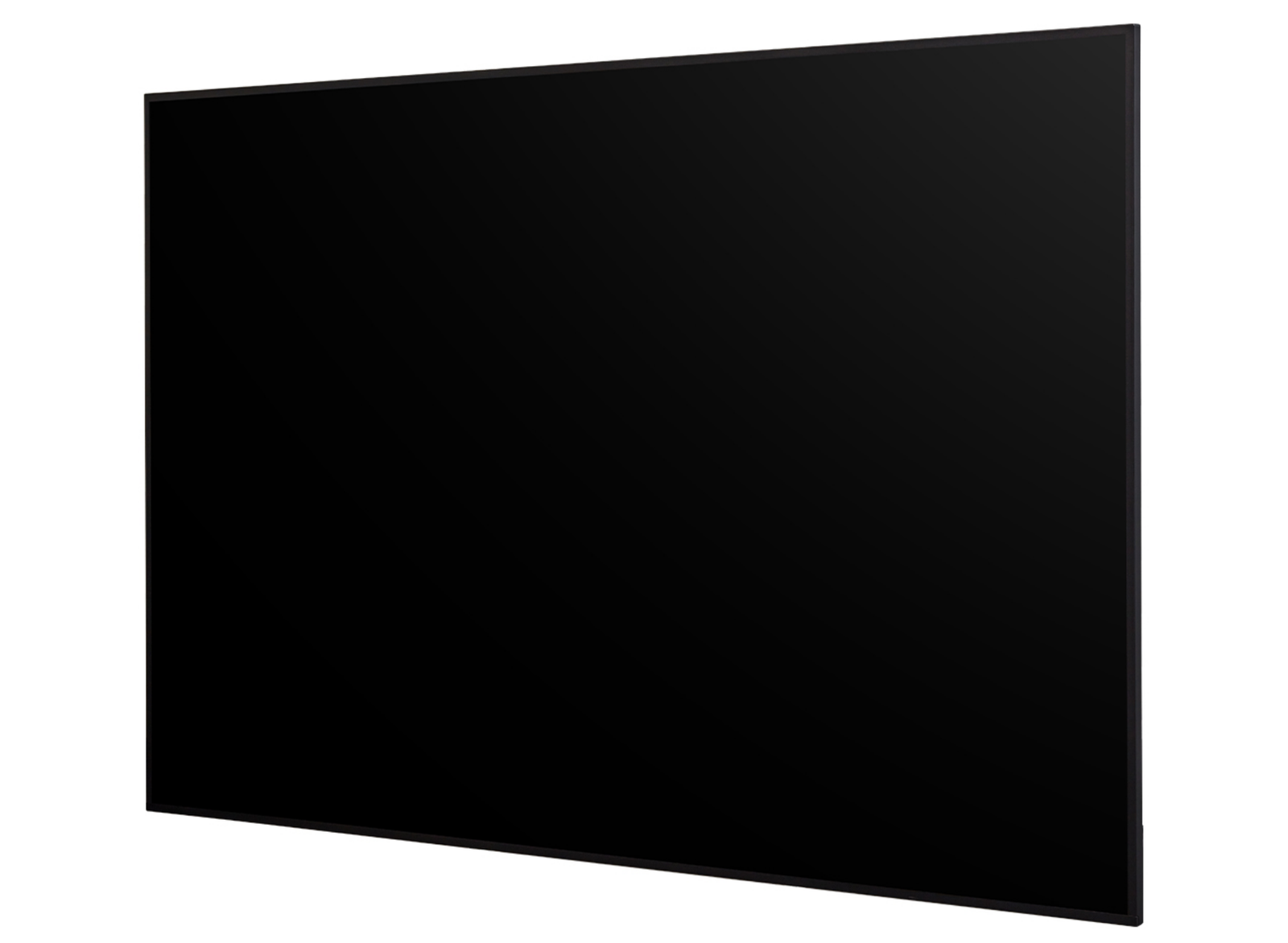

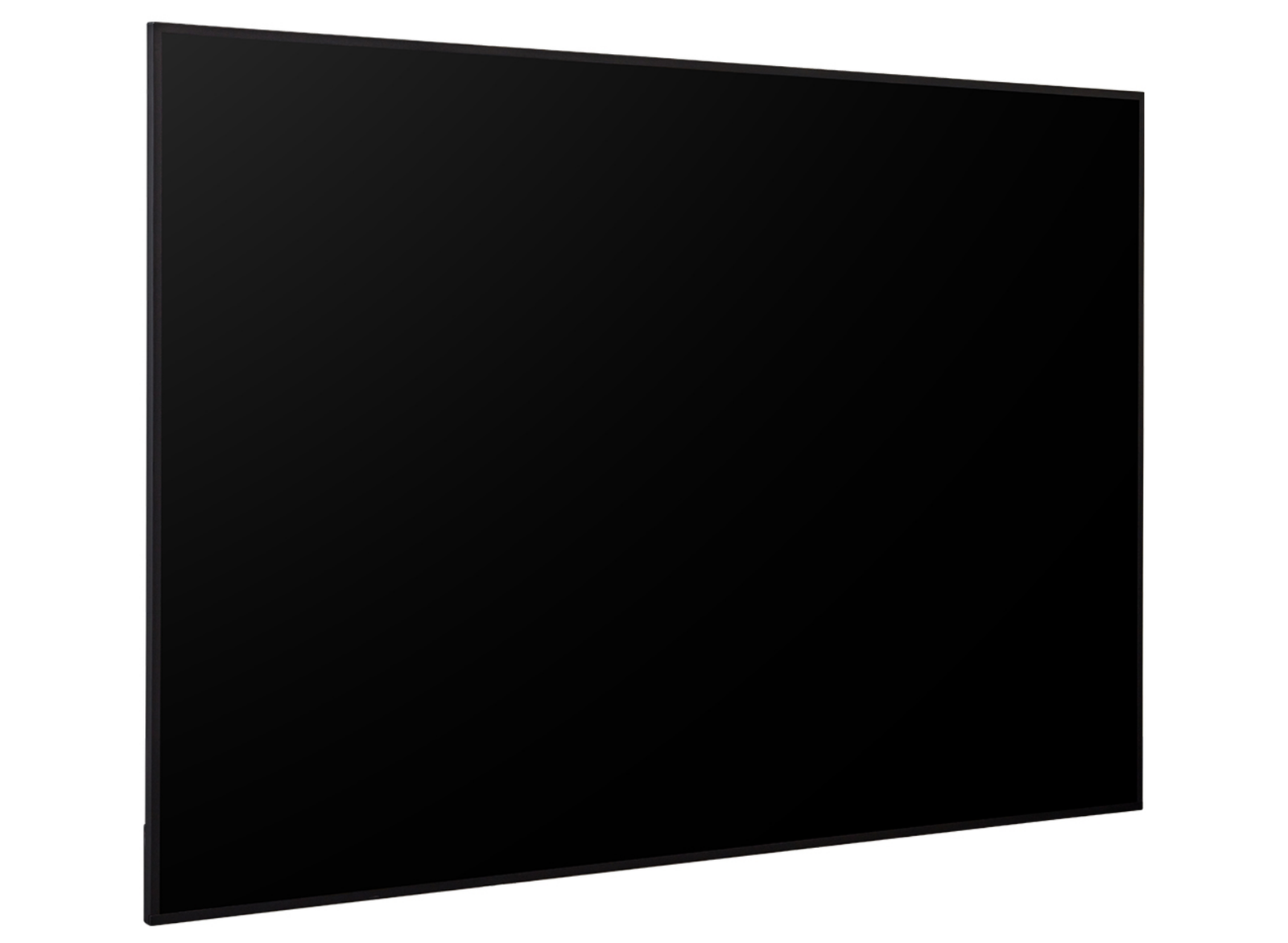

Uniform Bezel Design
Even 12.9mm bezels for a balanced professional appearance.
The UL3Q-E uses a uniform bezel design to provide a balanced appearance when wall-mounted or installed within professional AV environments.

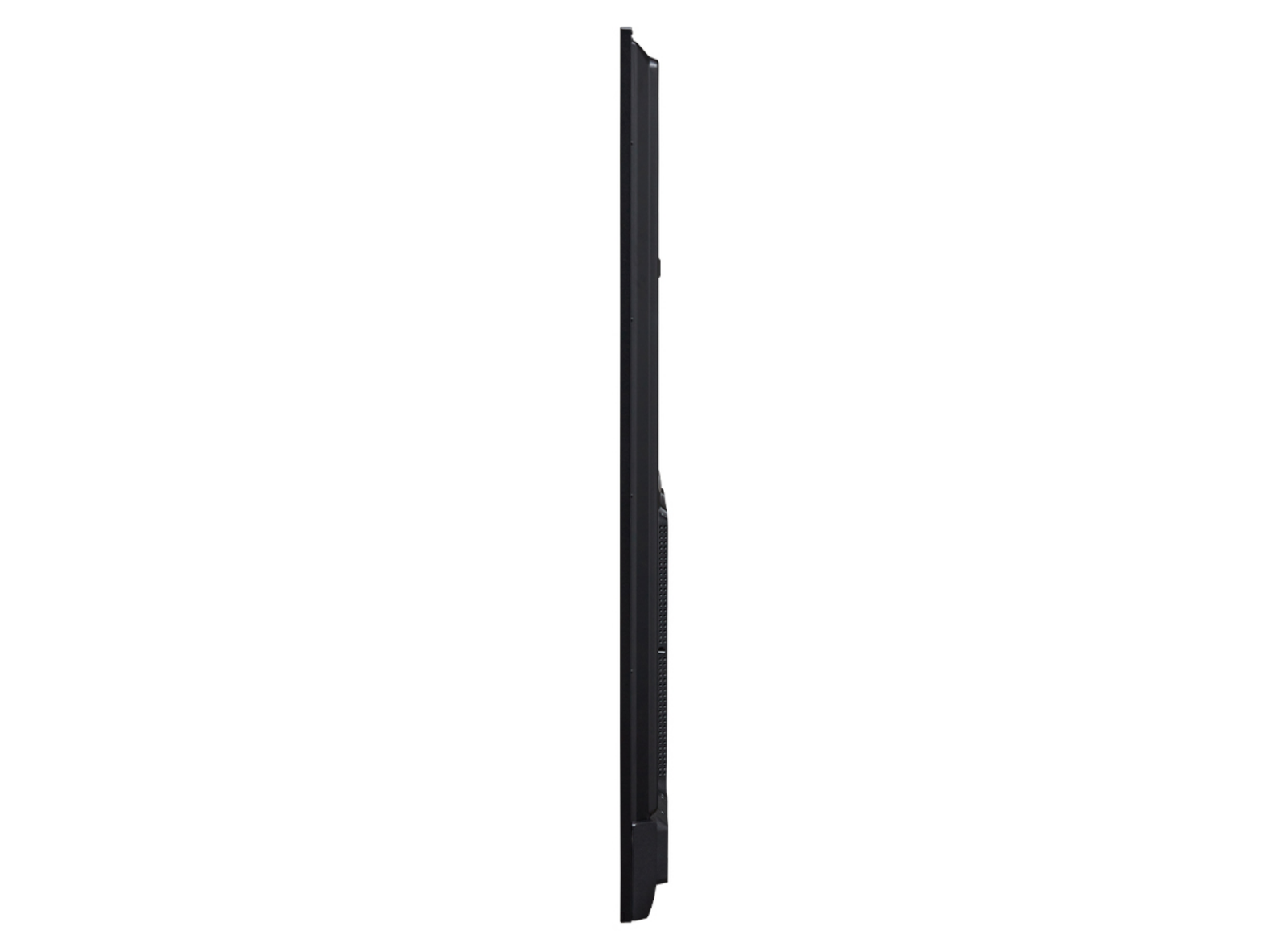

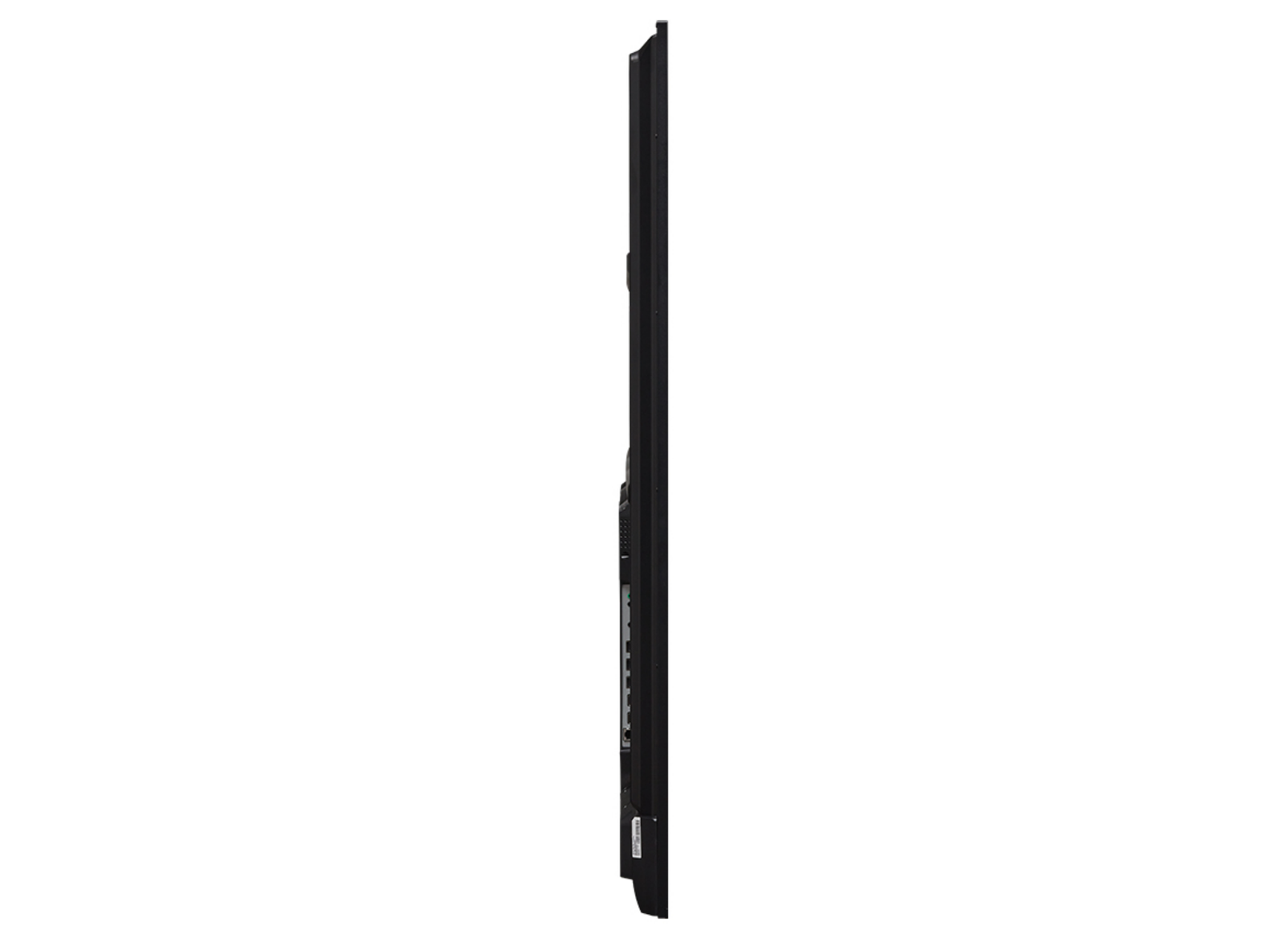

The LG 86UL3Q-E has an even 12.9mm bezel and a chassis depth of approximately 58.5mm.
- 12.9mm even bezel
- Black commercial finish
- 60mm depth
- 31.8kg display weight
- 600 × 400mm VESA
Adaptive Installation
Face-up and face-down tilt support.
The UL3Q series supports flexible face-up and face-down tilted installation, helping professional installers achieve more suitable viewing angles in unconventional spaces.
This can be particularly useful where the 86UL3Q-E is positioned above conventional eye level, such as digital menu boards, information displays and overhead signage.
Remote Monitoring & Control
Manage supported displays across your commercial network.
The LG 86UL3Q-E includes professional network-management functionality that can help administrators manage installed signage remotely.
Compatible management functions allow supported displays to be monitored and controlled through network-connected devices.
- Control Manager
- Status Mailing
- SNMP
- Wake on LAN
- Network Ready
- RJ45 LAN
- RS-232C control
Built-In Brightness Sensor
Automatically respond to ambient lighting conditions.
The UL3Q-E incorporates a front-mounted automatic brightness sensor which can respond to changes in surrounding light.
This helps maintain appropriate display visibility while supporting more efficient power consumption.
- Automatic brightness sensor
- Temperature sensor
- Acceleration / gyro sensor
- Smart Energy Saving
Advanced Security Architecture
Enhanced protection for network-connected digital signage.
The UL3Q series incorporates LG's Enhanced Kernel Protection technology, designed to help safeguard critical system information.
LG states that its security architecture has been validated through ISO/IEC 15408 Common Criteria EAL2 certification.
This is particularly valuable when commercial signage forms part of a managed corporate or retail network.
Commercial Energy Management
Smart Energy Saving for large-format signage.
LG specifies typical power consumption of 205W and maximum consumption of 287W for the 86UL3Q-E.
At LG's published 70% Smart Energy Saving setting, power consumption is listed at 143.5W.
- 205W typical power consumption
- 287W maximum consumption
- 143.5W Smart Energy Saving figure
- 0.5W DPM
- 0.5W power-off consumption
- Automatic brightness sensing
LG ConnectedCare
Optional cloud monitoring for commercial display estates.
The LG 86UL3Q-E is compatible with LG ConnectedCare, LG's optional cloud-based professional display service.
ConnectedCare can provide remote status monitoring, fault diagnosis and remote-control functionality for supported installations.
- LG ConnectedCare compatibility
- Remote status monitoring
- Fault diagnosis
- Remote control
- Suitable for multi-site display estates

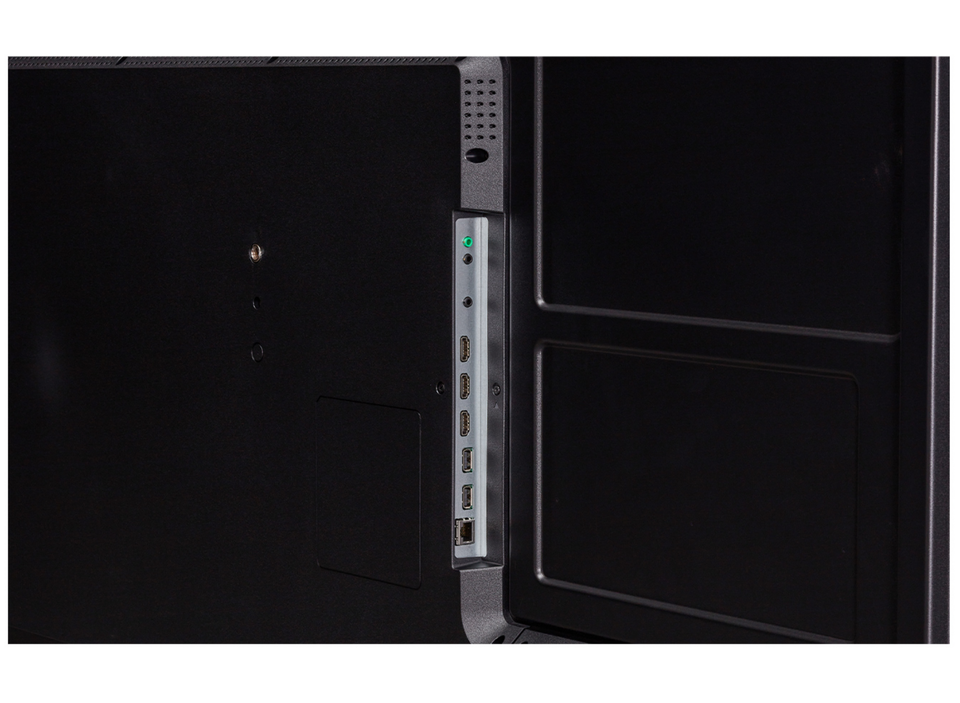

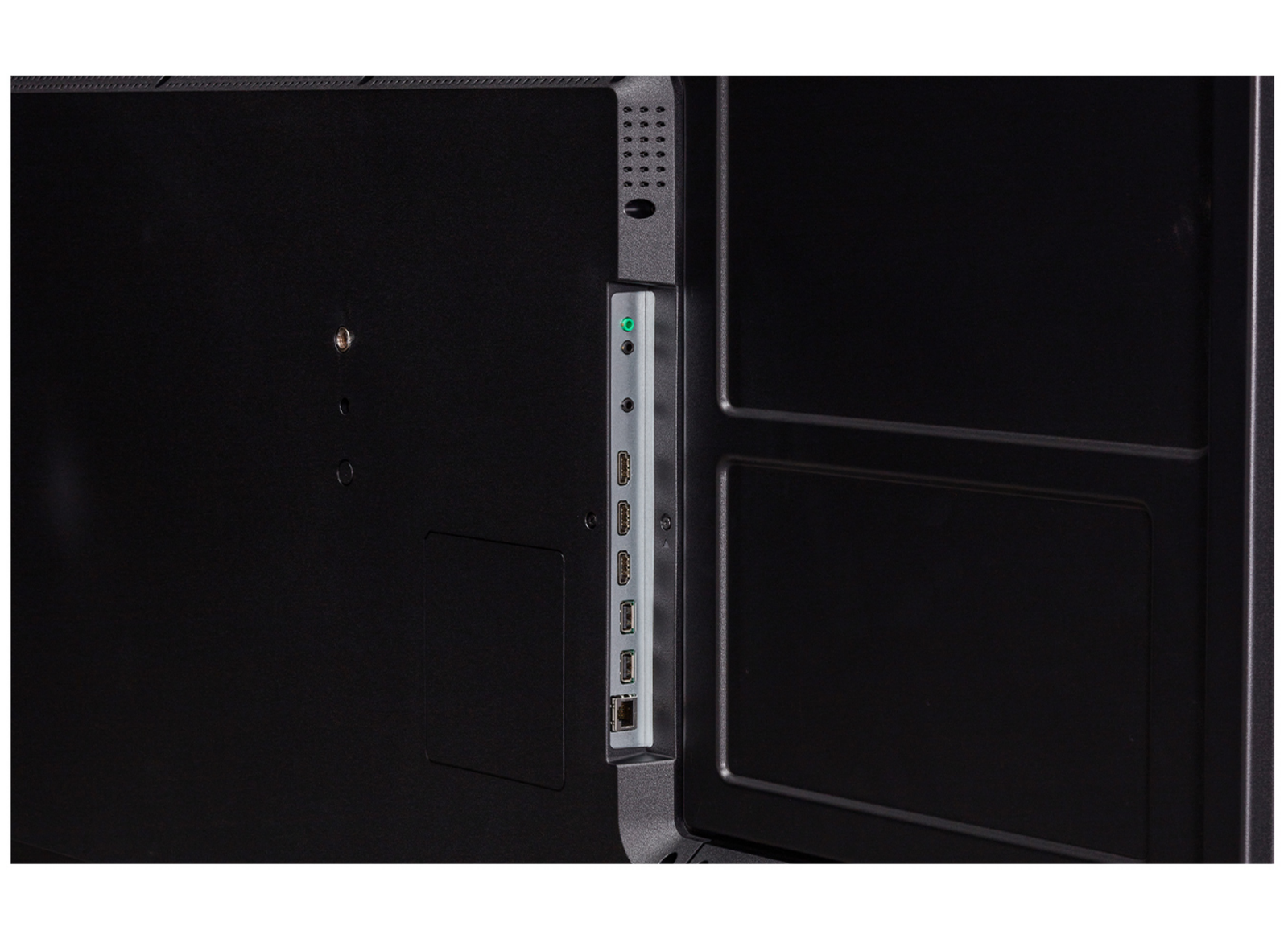

Professional Connectivity
Three HDMI inputs, USB, LAN, Wi-Fi and RS-232C.
The LG 86UL3Q-E provides connectivity for professional media players, computers, AV systems and network-management equipment.
- 3 × HDMI inputs
- HDCP 2.2 / 1.4
- 2 × USB 2.0 Type-A
- RJ45 LAN
- RS-232C input
- RS-232C output
- Audio output
- Built-in Wi-Fi
- 2 × 10W built-in speakers
- HDMI-CEC
The 86UL3Q-E does not include OPS compatibility or an integrated OPS power supply.
LG SuperSign Compatibility
Professional content management across compatible LG signage.
The LG 86UL3Q-E supports the wider LG professional signage-management ecosystem.
- SuperSign CMS
- SuperSign Control+
- SuperSign WB
- SuperSign Cloud
- Mobile CMS
- LG ConnectedCare
These tools provide options for local, networked and cloud-based professional display management.
75-Inch Commercial Display
Large-format visibility with a slim 58.5mm chassis.
The LG 86UL3Q-E measures approximately 1926.6 × 1098 × 60mm without IR and weighs 31.8kg.

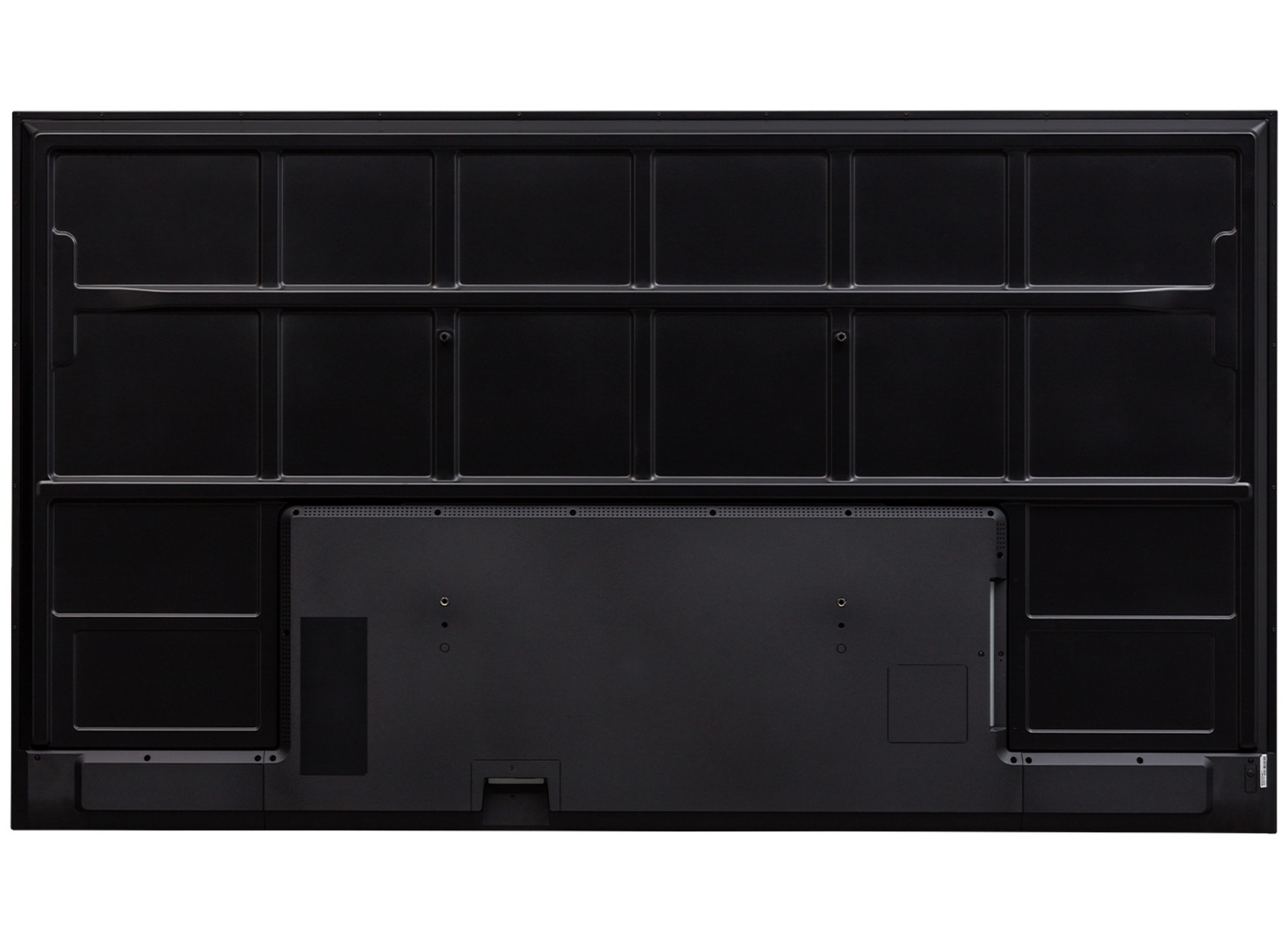

The display uses a 600 × 400mm VESA mounting pattern for compatible professional mounting solutions.
- 1926.6mm overall width
- 1098mm overall height
- 60mm depth
- 31.8kg display weight
- 42.6kg packed weight
- 600 × 400mm VESA

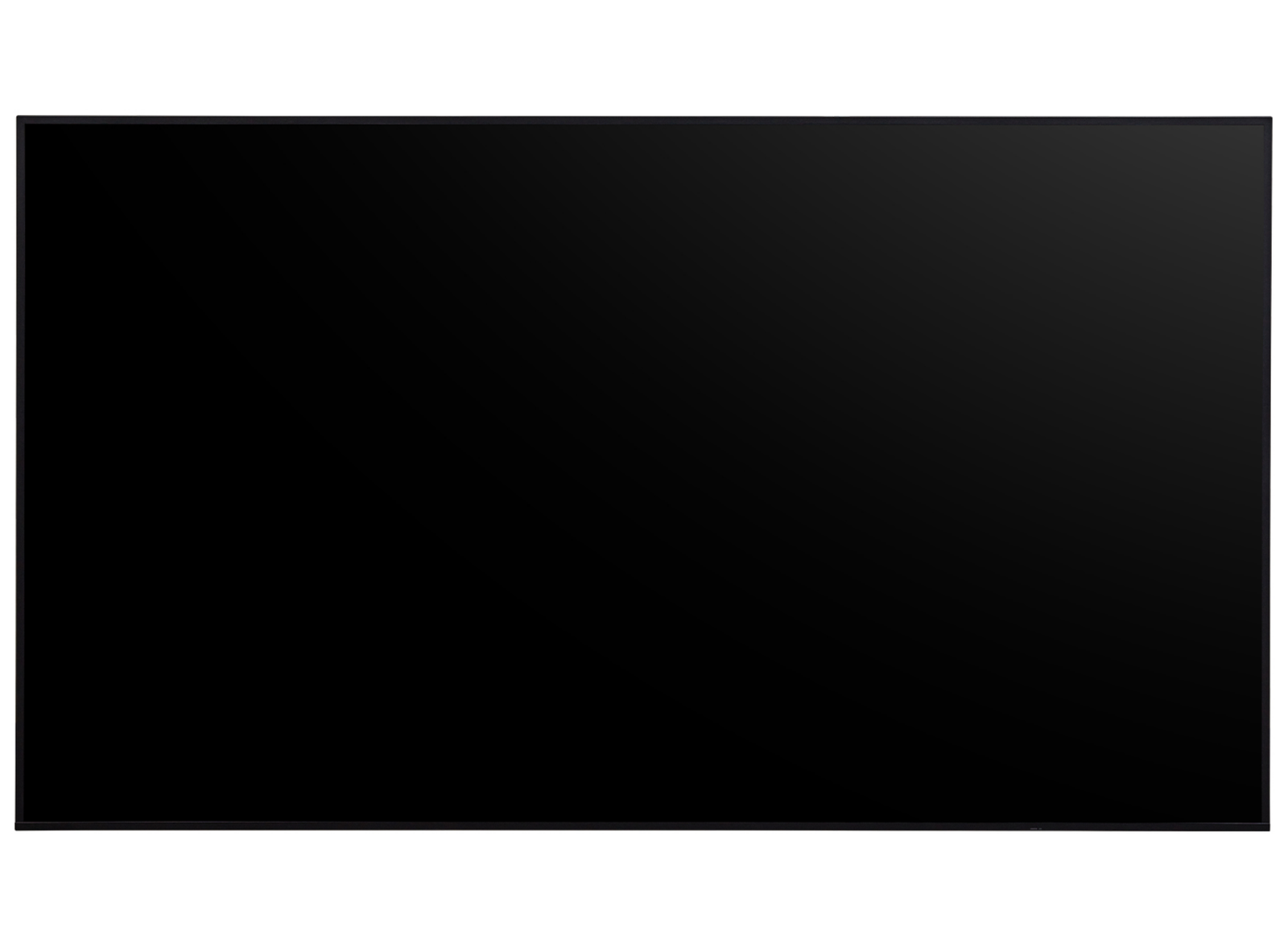

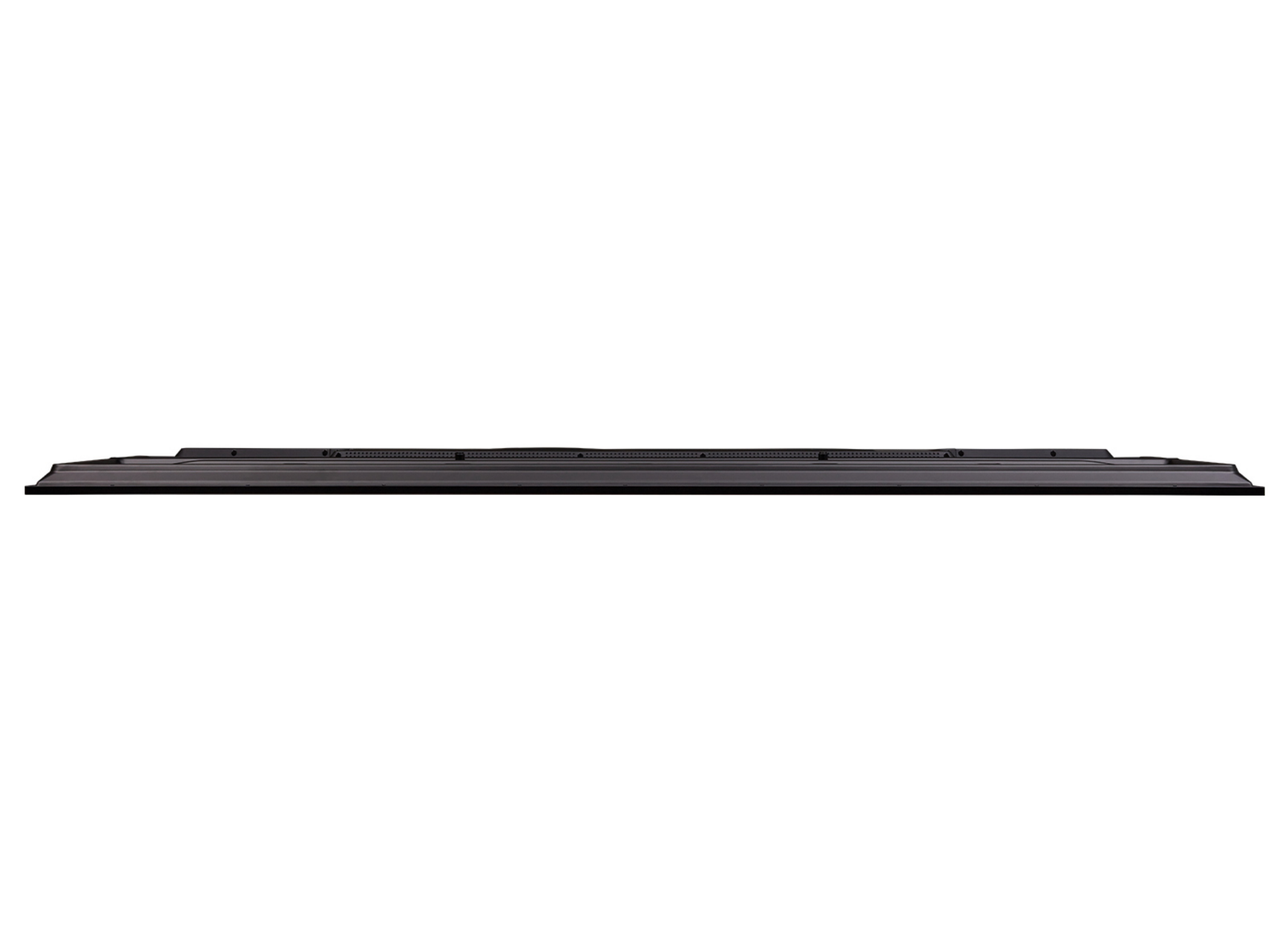

LG 86UL3Q-E Product Gallery
LG 86UL3Q-E product views.
86" Commercial Displays
Compare the LG 86UL3Q-E with other 86-inch professional displays.
Browse ScreenMoove's 86-inch commercial display collection to compare the LG 86UL3Q-E with alternative professional digital signage displays.
Specifications
LG 86UL3Q-E Technical Specification
LG 86UL3Q-E specifications.
Technical specifications for the LG 86UL3Q-E 86-inch 4K UHD digital signage display with webOS 6.1.
| Specification | LG 86UL3Q-E Details |
|---|---|
| Display | |
| Model | LG 86UL3Q-E |
| Series | UL3Q-E UHD Signage |
| Screen Size | 86" |
| Panel Technology | ADS |
| Backlight Type | Direct |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840 × 2160 - 4K UHD |
| Refresh Rate | 60Hz |
| Brightness | 350 nits typical |
| Typical Contrast Ratio | 1,200:1 |
| Dynamic Contrast Ratio | 1,000,000:1 |
| Colour Gamut | DCI 80% |
| Viewing Angle | 178° horizontal × 178° vertical |
| Colour Depth | 1.07 billion colours - 8 bit + FRC |
| Response Time | 8ms G-to-G |
| Surface Treatment / Haze | 1% |
| Minimum Lifetime | 30,000 hours |
| Operation Hours | 16 hours/day, 7 days/week |
| Portrait / Landscape | Yes / Yes |
| Smart Platform & Sensors | |
| Operating Platform | LG webOS 6.1 |
| Internal Memory | 8GB |
| Built-In Wi-Fi | Yes |
| Temperature Sensor | Yes |
| Automatic Brightness Sensor | Yes |
| Acceleration / Gyro Sensor | Yes |
| Local Key Operation | Power On / Off only |
| Professional Signage Features | |
| Local Content Scheduling | Yes |
| Group Manager | Yes |
| USB Plug & Play | Yes |
| Fail Over | Yes |
| Booting Logo Image | Yes |
| No Signal Image | Yes |
| RS-232C Sync | Yes |
| Local Network Sync | Yes |
| Screen Share | Yes |
| Video Tag | 4 - maximum one HDMI input |
| Play via URL | Yes |
| Screen Rotation | Yes |
| External Input Rotation | Yes |
| Gapless Playback | Yes |
| Tile Mode Setting | Yes |
| Setting Data Cloning | Yes |
| SNMP | Yes |
| ISM Method | Yes |
| Auto Set ID | Yes |
| Status Mailing | Yes |
| Control Manager | Yes |
| Smart Energy Saving | Yes |
| PM Mode | Yes |
| Wake on LAN | Yes |
| Network Ready | Yes |
| Beacon | Yes |
| HDMI-CEC | Yes |
| SI Server Setting | Yes |
| webRTC | Yes |
| Pro:Idiom | Supported |
| Crestron Connected | Supported |
| Connectivity | |
| HDMI Inputs | 3 × HDMI - HDCP 2.2 / 1.4 |
| USB | 2 × USB 2.0 Type-A |
| RJ45 LAN | Yes |
| RS-232C Input | 4-pin phone jack |
| RS-232C Output | Yes |
| Audio Output | Yes |
| Built-In Wi-Fi | Yes |
| Audio | |
| Built-In Speakers | 10W × 2 |
| Software Compatibility | |
| SuperSign CMS | Yes |
| SuperSign Control+ | Yes |
| SuperSign WB | Yes |
| SuperSign Cloud | Yes |
| Mobile CMS | Yes |
| LG ConnectedCare | Compatible - optional service |
| Mechanical | |
| Bezel Colour | Black |
| Bezel Width | 12.9mm even |
| Dimensions | 1926.6 × 1098 × 60mm - without IR |
| Display Weight | 31.8kg |
| Packed Weight | 42.6kg |
| Carton Dimensions | 2080 × 220 × 1255mm |
| Handle | No |
| VESA | 600 × 400mm |
| Environment | |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 80% |
| Power | |
| Power Supply | AC 100-240V~, 50/60Hz |
| Power Type | Built-in power |
| Typical Power Consumption | 205W |
| Maximum Power Consumption | 287W |
| Smart Energy Saving - 70% | 143.5W |
| DPM | 0.5W |
| Power Off | 0.5W |
| BTU - Typical | 699.489 BTU/hr |
| BTU - Maximum | 979.284 BTU/hr |
| Certification | |
| Safety | CB |
| EMC | FCC Class B / CE |
| ErP / Energy Star | No - NewErP / Yes |
| OPS Compatibility | |
| OPS Compatible | No |
| OPS Power Built-In | No |
| Special Features | |
| Conformal Coating - Power Board | Yes |
| Included Accessories | |
| Basic Accessories | Remote controller, power cord, regulation book, Easy Setup Guide, warranty card and Phone-to-D-Sub9 gender adapter |
Downloads
LG 86UL3Q-E Downloads
LG 86UL3Q-E technical resources.
LG UL3Q-E Datasheet
Download the ScreenMoove-hosted LG UL3Q-E technical datasheet.
View Specifications Online
View the complete LG 86UL3Q-E technical specification table.
86" Commercial Displays
Compare the LG 86UL3Q-E with other professional 86-inch displays.
LG Digital Signage
Browse ScreenMoove's wider range of LG professional displays.
Commercial Applications
Where can the LG 86UL3Q-E be used?
Retail Digital Signage
Use the 86-inch screen for promotions, brand campaigns and high-impact customer communications.
Corporate Environments
Suitable for boardrooms, larger meeting spaces, receptions and internal communications.
Hospitality
Display guest information, venue communications, promotions and branded content.
Education
Use for large information screens, presentations and campus communications.
Digital Menu Boards
The large 86-inch format provides strong visibility for menus and promotional content across larger venues.
86" Commercial Displays
Compare alternative commercial screens within the same 86-inch display category.
LG UL3Q-E Size Range
Compare alternative LG UL3Q-E digital signage sizes.
The LG UL3Q-E range is available from 43 inches through to 86 inches, allowing businesses to deploy the same professional signage family across rooms with different viewing distances and installation requirements.
Choose the Right UL3Q-E
43", 50", 55", 65", 86" or 86".
The 86UL3Q-E is the largest display in this UL3Q-E size range, providing substantially more screen area than the 43-inch, 50-inch, 55-inch, 65-inch and 75-inch versions.
For alternatives from LG and other manufacturers, browse ScreenMoove's 86-inch commercial display collection .
43"
LG 43UL3Q-E
View size
50"
LG 50UL3Q-E
View size
55"
LG 55UL3Q-E
View size
65"
LG 65UL3Q-E
View size
75"LG 75UL3Q-EView size
86"LG 86UL3Q-EYou are viewing this
Frequently Asked Questions
LG 86UL3Q-E FAQs.
What is the LG 86UL3Q-E?
The LG 86UL3Q-E is a 86-inch professional 4K UHD digital signage display with an ADS panel, 350 nit brightness, webOS 6.1 and commercial signage features.
What resolution does the LG 86UL3Q-E have?
The LG 86UL3Q-E has a native 3840 × 2160 4K UHD resolution.
What panel does the LG 86UL3Q-E use?
The LG 86UL3Q-E uses an ADS panel with Direct LED backlighting.
How bright is the LG 86UL3Q-E?
LG specifies 350 nits typical brightness.
What contrast ratio does the LG 86UL3Q-E have?
The display has a 1,200:1 typical contrast ratio and 1,000,000:1 dynamic contrast ratio.
Is the LG 86UL3Q-E a 24/7 display?
No. LG specifies operation of 16 hours per day, seven days per week, with a minimum stated lifetime of 30,000 hours.
What operating system does the LG 86UL3Q-E use?
The display uses LG webOS 6.1 with 8GB internal memory.
Does the LG 86UL3Q-E have built-in Wi-Fi?
Yes. Built-in Wi-Fi is included alongside RJ45 LAN connectivity.
Does the LG 86UL3Q-E support portrait installation?
Yes. The 86UL3Q-E supports both portrait and landscape installation.
Does the LG 86UL3Q-E support Screen Share?
Yes. Screen Share is included among the display's professional signage functions.
Does the LG 86UL3Q-E support Fail Over?
Yes. The display supports Fail Over.
Does the LG 86UL3Q-E support LG SuperSign?
Yes. Compatible LG signage software includes SuperSign CMS, SuperSign Control+, SuperSign WB and SuperSign Cloud.
Does the LG 86UL3Q-E support LG ConnectedCare?
Yes. The display is compatible with optional LG ConnectedCare remote monitoring services.
Does the LG 86UL3Q-E have built-in speakers?
Yes. The display includes 2 × 10W built-in speakers.
What VESA mount does the LG 86UL3Q-E use?
The LG 86UL3Q-E uses a 600 × 400mm VESA mounting pattern.
How large is the LG 86UL3Q-E?
The display measures approximately 1926.6 × 1098 × 60mm.
How much does the LG 86UL3Q-E weigh?
The display weighs approximately 31.8kg.
What other LG UL3Q-E sizes are available?
ScreenMoove also offers the 43UL3Q-E, 50UL3Q-E, 55UL3Q-E, 65UL3Q-E and 86UL3Q-E.
Where can I compare other 86-inch commercial displays?
Browse ScreenMoove's 86-inch commercial displays to compare other professional screens.
Where can I download the LG 86UL3Q-E datasheet?
Download the LG UL3Q-E datasheet .
LG 86" UHD Commercial Signage
Is the LG 86UL3Q-E right for your digital signage project?
The LG 86UL3Q-E combines a large 86-inch 4K UHD ADS panel, 350 nit brightness, webOS 6.1, built-in Wi-Fi, automatic brightness sensing, SuperSign compatibility, Screen Share, Fail Over and professional network control.
Technical Highlights
- Display size / Screen sizes
- 86"
- Resolution
- Ultra HD (4K)
- Panel type
- ADS Panel
- Screen type
- Flat
- Brightness
- 350 cd/m2
- Response time
- 8ms
- Screen ratio
- 16:9
- Refresh rate
- 60Hz
- Display orientation
- Landscape & Portrait
- Operating hours
- 16/7
- Operating system
- WebOS
- Player features
- USB Plug and Play
- VESA patterns
- 600x400
- Warranty
- 3 Year Warranty
LG 86UL3Q-E 86" 4K Ultra HD Digital Signage DisplaySKU: 86UL3Q-E
£1,657.00
See Before You Decide
Book a Free Product Demonstration
Compare picture quality, touchscreen performance, software and connectivity with guidance from a commercial display specialist.
Remote or on-site
No obligation
Expert-led session
For Integrators and Resellers
Open a Screen Moove Trade Account
Access project pricing, volume discounts, product sourcing support and faster commercial quotations for your client projects.
Trade pricing
Project support
Volume discounts
Education & Public Sector
A simpler procurement route for schools and public organisations
Access education pricing, purchase-order support, installation services and account management for schools, academies, colleges, universities, NHS organisations, councils and government bodies.
Purchasing for a school, academy, university or NHS organisation?
Register your organisation to request institutional pricing and
purchase-order support.
Register Your Organisation
Trusted Store Status
Top Quality Store
Rating status, Exceptional, based on Google’s shopping experience metrics.
Why it matters
Demonstrates consistently strong fulfilment, service, and post-sale experience across Google signals.
Google
Top Quality Store
Built for confidence, next-day delivery options, UK-based support, trade-ready operations.
Request a quote
JO
Josh
Jan 6, 2026
Great products and service! The guys always go above and beyond to make sure they supply you with the product that best fits your needs. I’ve been using Screen Moove for a number of years now and woul...
See moreSD
Sandy Dobson
Nov 28, 2025
Verified
Screen Moove went above and beyond for my requirements. Ordering system was super easy it just take 2 minutes to complete my order and I have received my tracking details right away after few minutes...
See moreS
St Peter's Church
Dec 17, 2025
Moe Khan, one of the team at Screen Move has been a fantastic help as we have navigated the process of choosing and buying screens and stands for our church. Helpful at every step of the way, patient...
See moreFS
Furniture Store
Nov 27, 2025
We originally planned to purchase a cheap TV for our showrooms. After speaking with screen moove, we ended up investing in floorstanding displays across multiple retail sites and showrooms. The bright...
See moreFT
Felix Thomas
Sep 4, 2025
Verified
I placed my order late at night but realized I had entered the wrong address. I immediately sent an email asking for it to be changed, not really expecting a reply until the next day. To my surprise,...
See moreAS
ava singh
Aug 27, 2025
Verified
I’ve been looking ultra high brightness display despite I checked everywhere I didn’t trust. They got my trust and I ordered. It arrived safely next day we have installed screen is awesome and high qu...
See moreGK
Glenn Khan
Nov 27, 2025
Verified
This is second time I used Screen Moove, I have bought double sided 55 inch display. The first order was a bit delayed I don't blame it might be happen, but customer service over the phone was excell...
See moreBY
Burcu Yesilova
Feb 12, 2025
Screenmoove, perfect customer satisfaction from start to finish! Their customer service is incredibly helpful and fast. It’s amazing to be able to reach out and get quick solutions for any issue. We a...
See moreTE
Tina e Edwards
Dec 17, 2025
We found that we needed a video call to work out the set up. The tech team at screenmoove were very very good. I would suggest that the instructions that come with the screen offer two key info. 1. Set...
See moreMA
Miss Akthar
Nov 21, 2025
Verified
Great experience with Jonathan Gray, previously I was looking for other companies and randomly ordering our needs from elsewhere. after I met with him, since 2024 we are keep purchasing from screen m...
See moreGet in touch
Speak directly with Screen Moove about your display, digital signage, meeting-room or AV project.
Need help choosing the right product?
Speak directly with a dedicated Screen Moove expert and get the right solution first time.
Call us: 020 8191 9223
Email: info@screenmoove.com
Contact us
Simply complete our contact form, and we will promptly respond to your inquiries.
If you have any questions or enquiry, please fill out the form below with all of your details and we'll get back to you shortly.
Ready to start your next AV project?
Contact our team of experts today!
