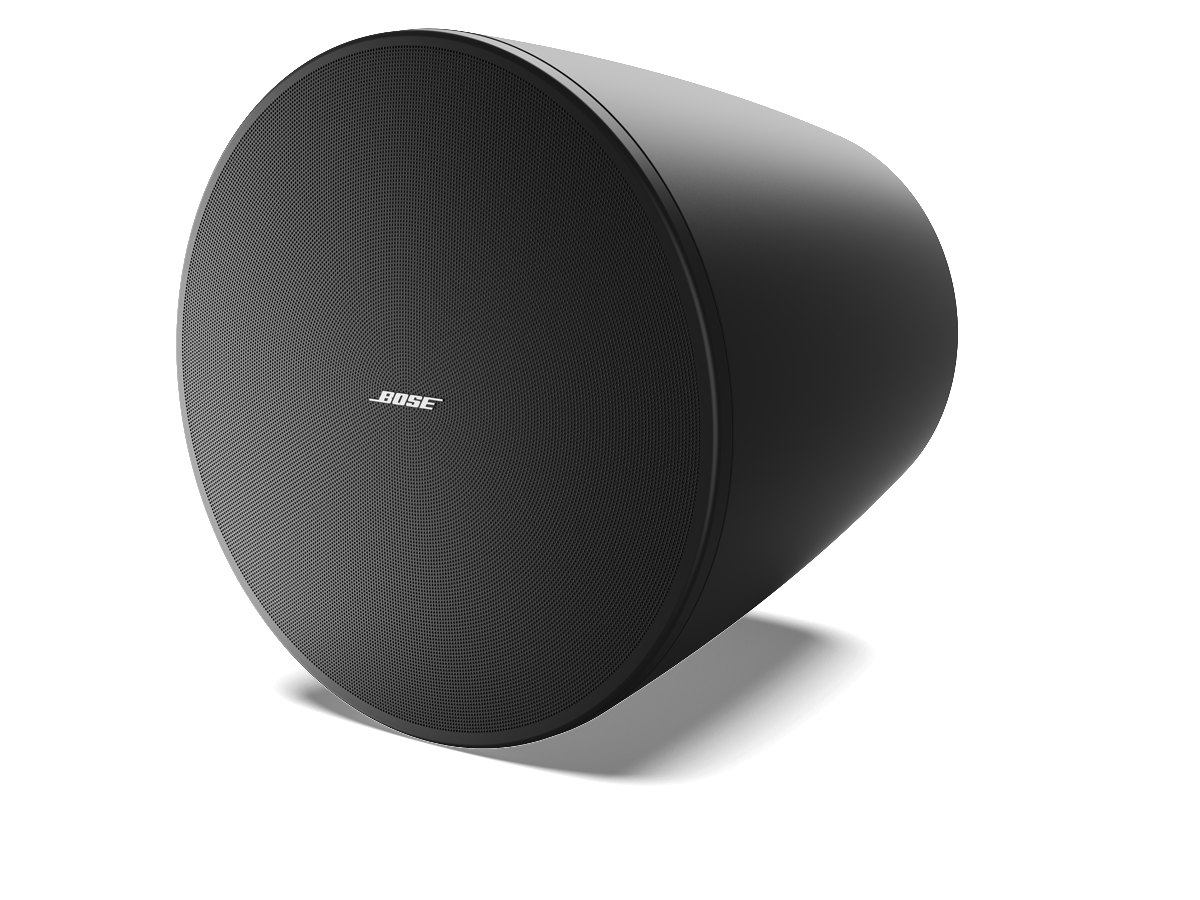

BOSE DesignMax DM10P-SUB Subwoofer - Black

Delivering rich low-end performance, the DesignMax subwoofers bring instantly impressive bass to any commercial sound installation. The 300-watt Bose Professional DM10P-SUB is a 10-inch pendant subwoofer with a 40–125 Hz frequency range and has a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.

FEATURES
Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options

Choose from three DesignMax subwoofer models — the 180-watt in-ceiling DM8C-SUB, the 300-watt surface-mounted DM10S-SUB, and the sleek 300-watt DM10P-SUB pendant subwoofer

Deliver rich bass performance with custom drivers; for optimal performance, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

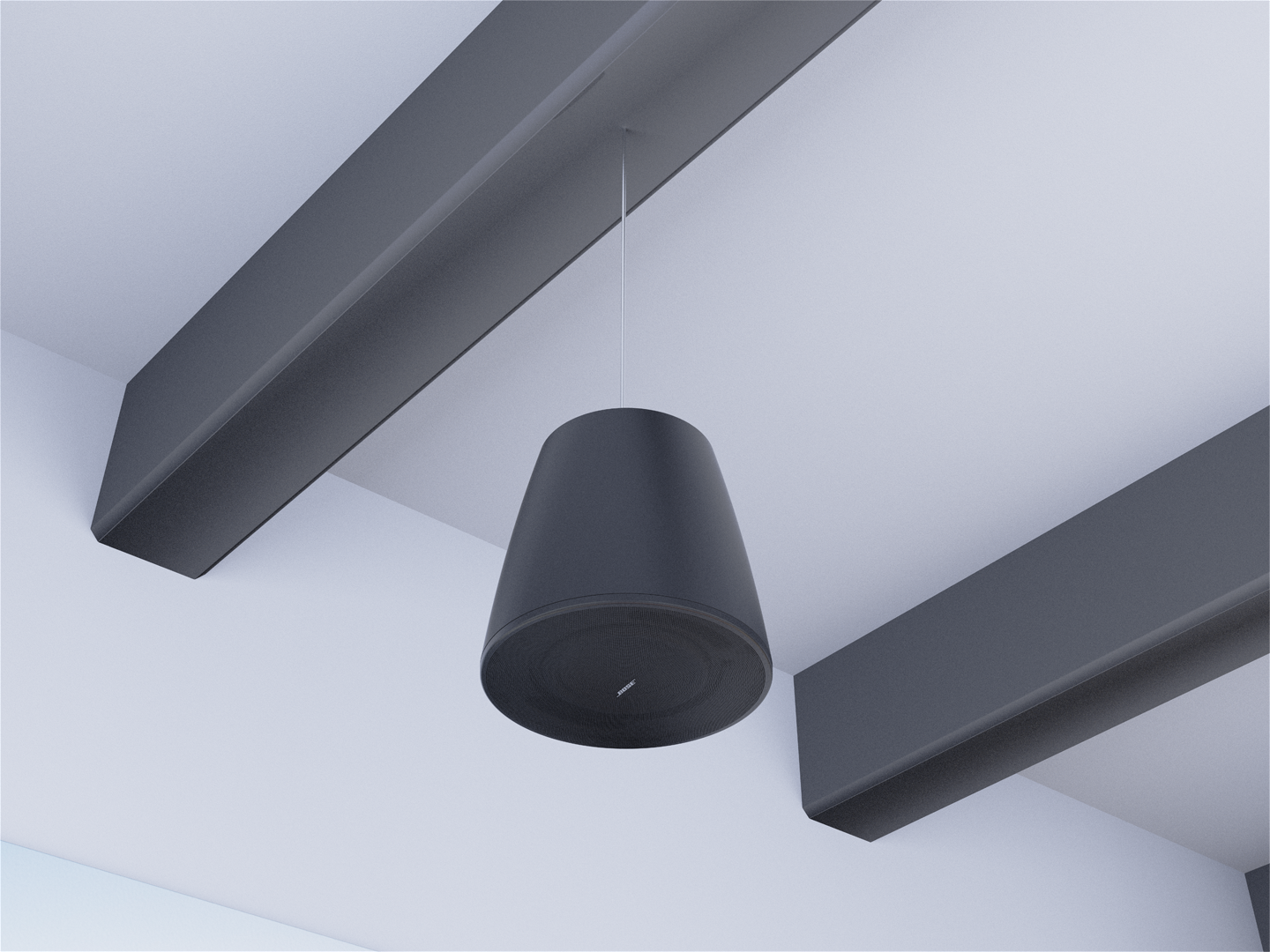

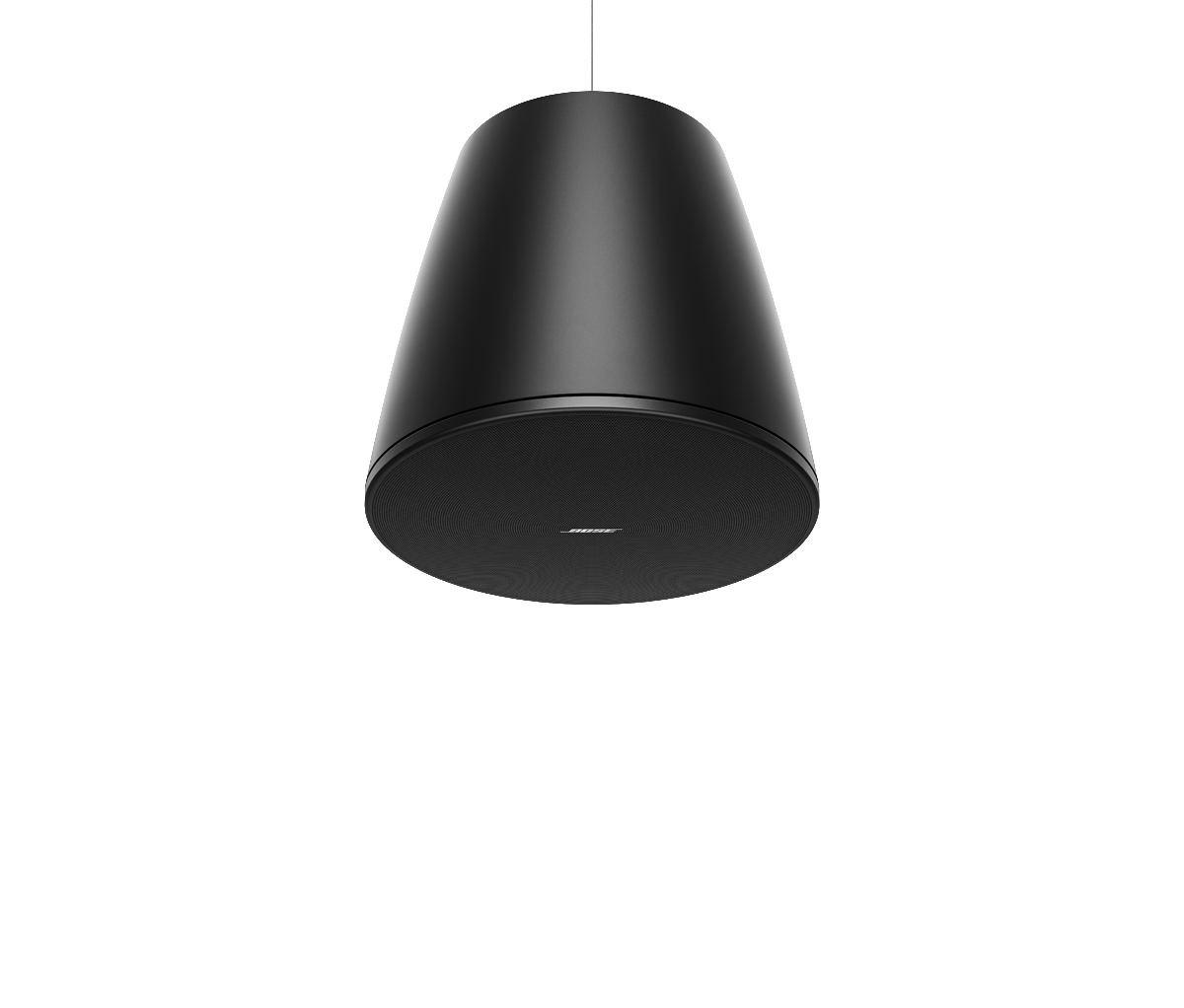

Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access

Category	Specifications
COMPLIANCE
Safety Agency Ratings	UL-1480A, S5591/UL Listed, NFPA70 & NFPA90-A, CE compliant, UL 2239 for suspension cable
PHYSICAL
Colors	Black (similar to RAL 9005), white (similar to RAL 9003), paintable
Enclosure Material	Engineered plastics
Environmental Testing	Indoor only
Grille Material	Perforated steel, powder-coated finish
Logo	Rotatable, removable
Mounting/Rigging Provisions	1 suspension attachment point, 1 safety cable attachment point
Net Weight	19.7 lb (8.9 kg)
Operating Temperature	0 °C to 50 °C (32 °F to 122 °F)
Product Dimensions (H×W×D)	15.7 in × 15.1 in (400 mm × 383 mm), loudspeaker diameter × depth
Shipping Weight	27.9 lb (12.7 kg)
PERFORMANCE
Frequency Range (-10 dB)	40 Hz – 125 Hz
Coverage, Horizontal	Omnidirectional below 200 Hz
Maximum SPL at 1 m	110 dB
Nominal Impedance	8 Ω (transformer bypass)
Power Handling, Continuous	250 W
Power Handling, Peak	1000 W
Recommended Signal Processing	Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m)	85 dB

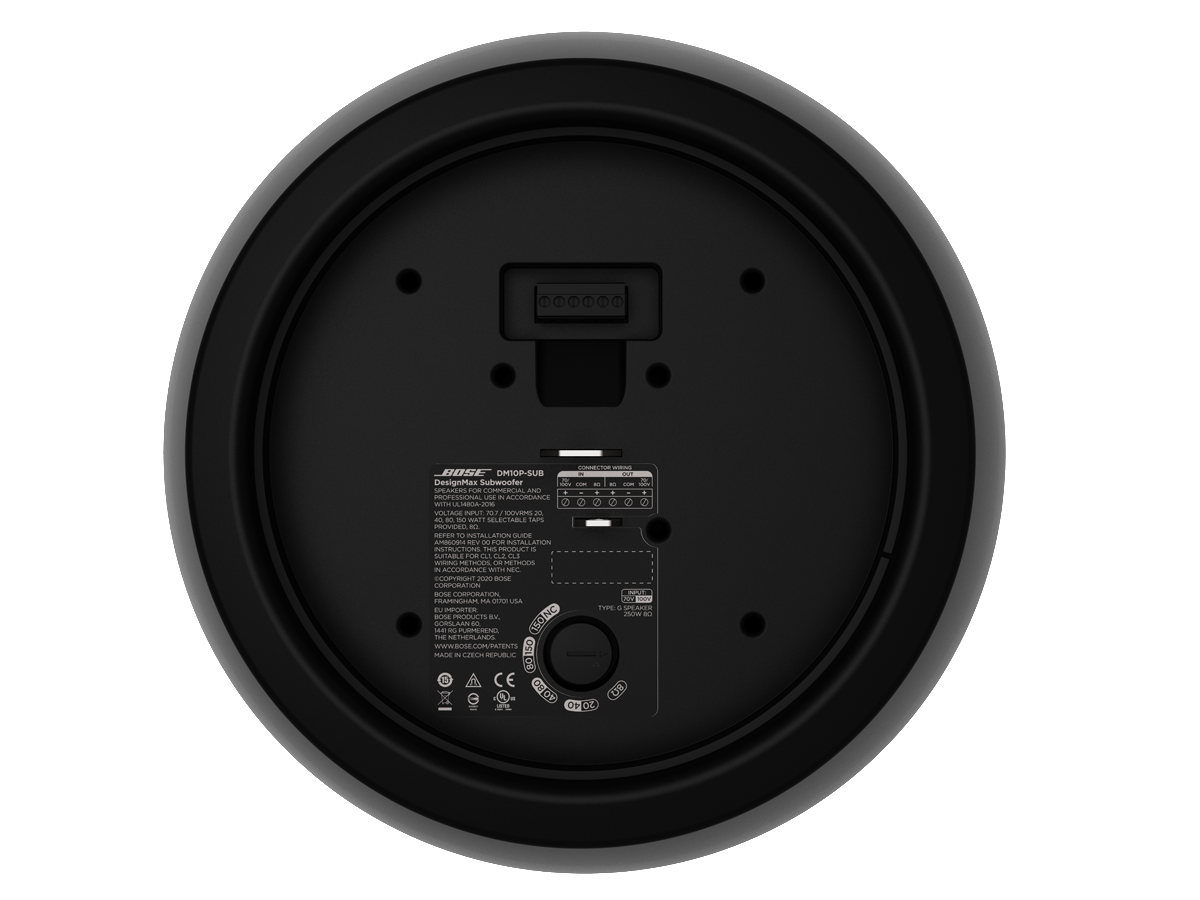

Transformer Taps, 100V	40, 80, 150 W, bypass
Transformer Taps, 70V	20 W, 40 W, 80 W, 150 W, bypass
Coverage, Vertical	Omnidirectional below 200 Hz
TRANSDUCERS
Crossover Frequency	80 Hz – 200 Hz via active crossover in DSP
Driver Protection	Recommended high-pass protection 45 Hz with recommended 24 dB/octave filter
Low-Frequency Transducer Quantity and Size	1 × 10 in (254 mm) woofer

835265-0110 : Datasheet
