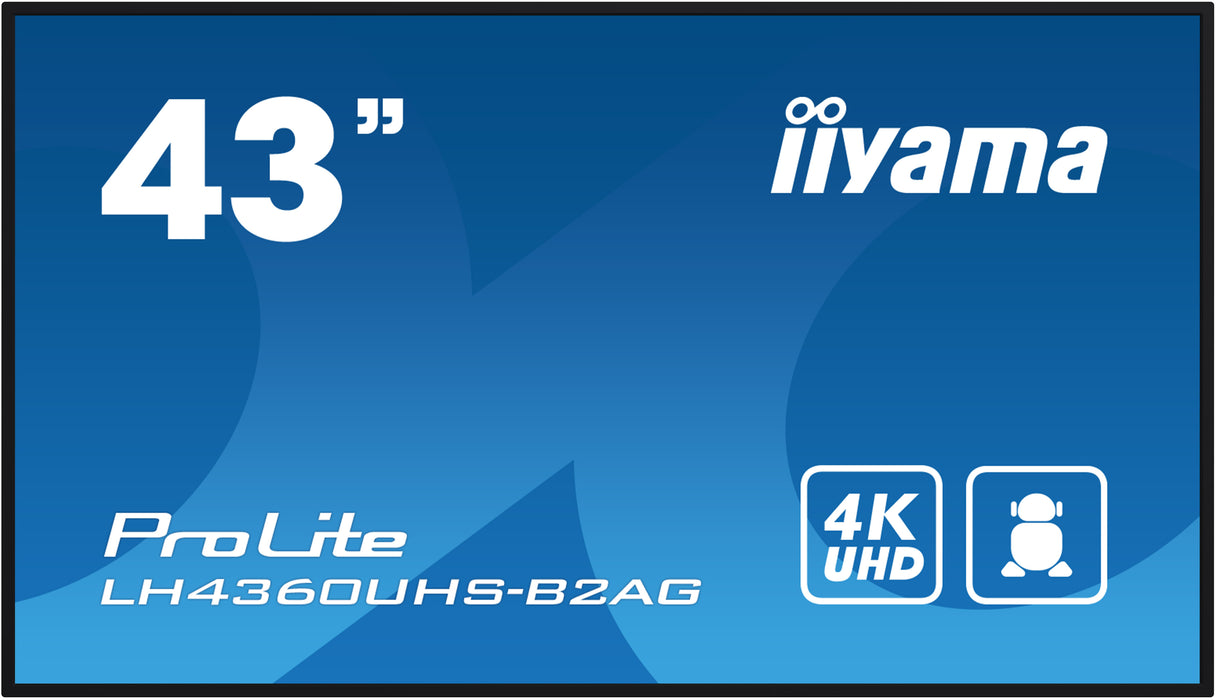

iiyama ProLite LH4360UHS-B2AG 43" 4K Ultra HD professional Digital Signage Display

Elevate your visual communication with the LH4360UHS-B2AG and unlock the new possibilities for your business. This 500cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With its Android 11 OS, iiSignage² content management software, Signal FailOver and EShare features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze.

This ELED VA display consumes significantly less power compared to DLED IPS while maintaining the same level of brightness. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH4360UHS-B2AG will undoubtedly captivate your audience and leave a lasting impression.

Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

Ultra Slim
With 50 percent depth saving over similar models, the jaw-dropping and best in class 40mm total depth display can be installed discretely and elegantly in all areas.

Flexible Orientation
With the option to switch between landscape and portrait mode, these displays let you get creative with any space. Whether it’s messaging, ads, videos, or safety info, you can tailor your content to grab attention exactly how you want.

Speakers
The built-in speakers offer high-quality sound, ensuring crystal-clear audio during multimedia playback.

Cable Management
Cables can be neatly tied and routed with the special cable ducts, so they cannot come loose or move around.

Category	Details
DISPLAY CHARACTERISTICS
Design	Thin bezel
Diagonal	42.5", 108cm
Panel	VA, AG coated glass, matte finish, hard coating (3H), haze 25%
Native resolution	3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio	16:9
Panel brightness	500 cd/m²
Static contrast	4000:1
Response time (GTG)	6.5ms
Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support	1.07G (8 Bits+FRC) (NTSC 87%)
Horizontal Sync	28 - 160kHz
Viewable area W x H	941.2 x 529.4mm, 37.1 x 20.8"
Bezel width	9mm, sides, top, bottom
Pixel pitch	0.245mm
Bezel colour and finish	black, matte
INTERFACES / CONNECTORS / CONTROLS
Digital signal input	HDMI x3 (v.2.0, max. 3840x2160 @60Hz)
Monitor control input	RS-232c x1, RJ45 (LAN) x1
Audio output	Mini jack x1 (3.5mm)
Speakers	2 x 10W
HDCP	v.1.4 & 2.2
USB ports	x2 (v.2.0)
FEATURES
Integrated software	Android 11 OS, iiSignage², FailOver, EShare
WiFi	yes (Built-in, 802.11ac)
Hardware	CPU: A53*4, GPU: G52 MP2, RAM: 2GB, ROM: 16GB
Extra	Wall mounting kit included (VESA 400x300mm)
Max. non-stop operating time	24/7
Anti image retention	yes
Media playback	yes
Housing (bezel)	plastic
GENERAL
OSD languages	EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
Control buttons	Power button, Power Indicator, Remote Sensor
MECHANICAL
Orientation	landscape, portrait
Fanless design	yes
VESA mounting	400 x 300mm
Operation temperature range	0°C - 40°C
Storage temperature range	- 20°C - 60°C
MTBF	50.000 hours (excluding backlight)
ACCESSORIES INCLUDED	Cables: power, HDMI, RS-232c, Guides: quick start guide, safety guide, Other: Wall mount bracket, etc.
Remote control	yes (batteries included)
POWER MANAGEMENT	Power supply unit: internal, Power supply: AC 100 - 240V, 50/60Hz, Power usage: 45W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY	Regulations: CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, Energy efficiency class: E
DIMENSIONS / WEIGHT	Product dimensions W x H x D: 967.4 x 555.9 x 40mm, Box dimensions W x H x D: 1075 x 652 x 144mm, Weight (without box): 9.1kg, Weight (with box): 12.7kg
EAN code	4948570124442
