800 cd/m²
High-brightness performance for demanding indoor digital signage.
Official Partner

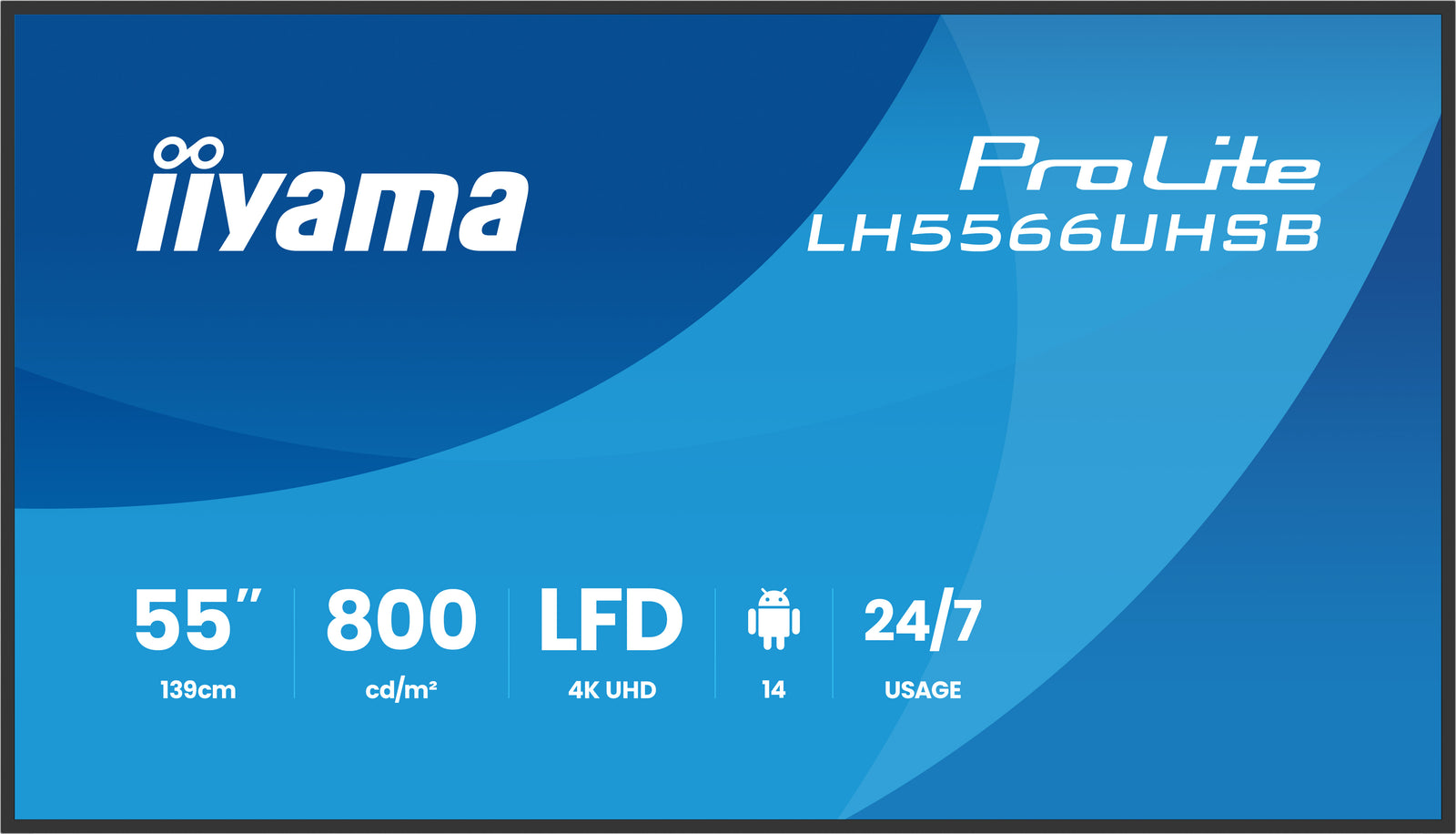

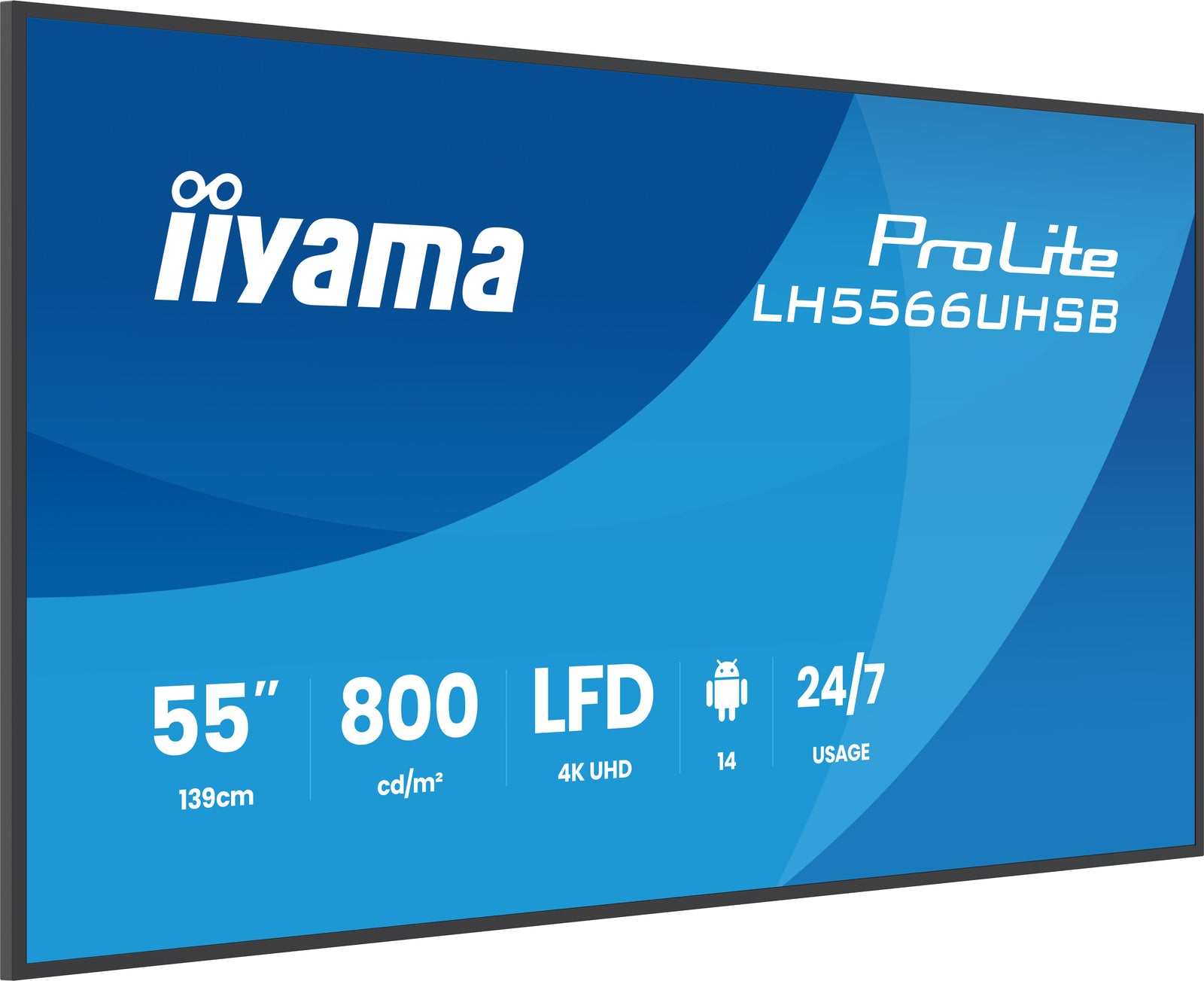

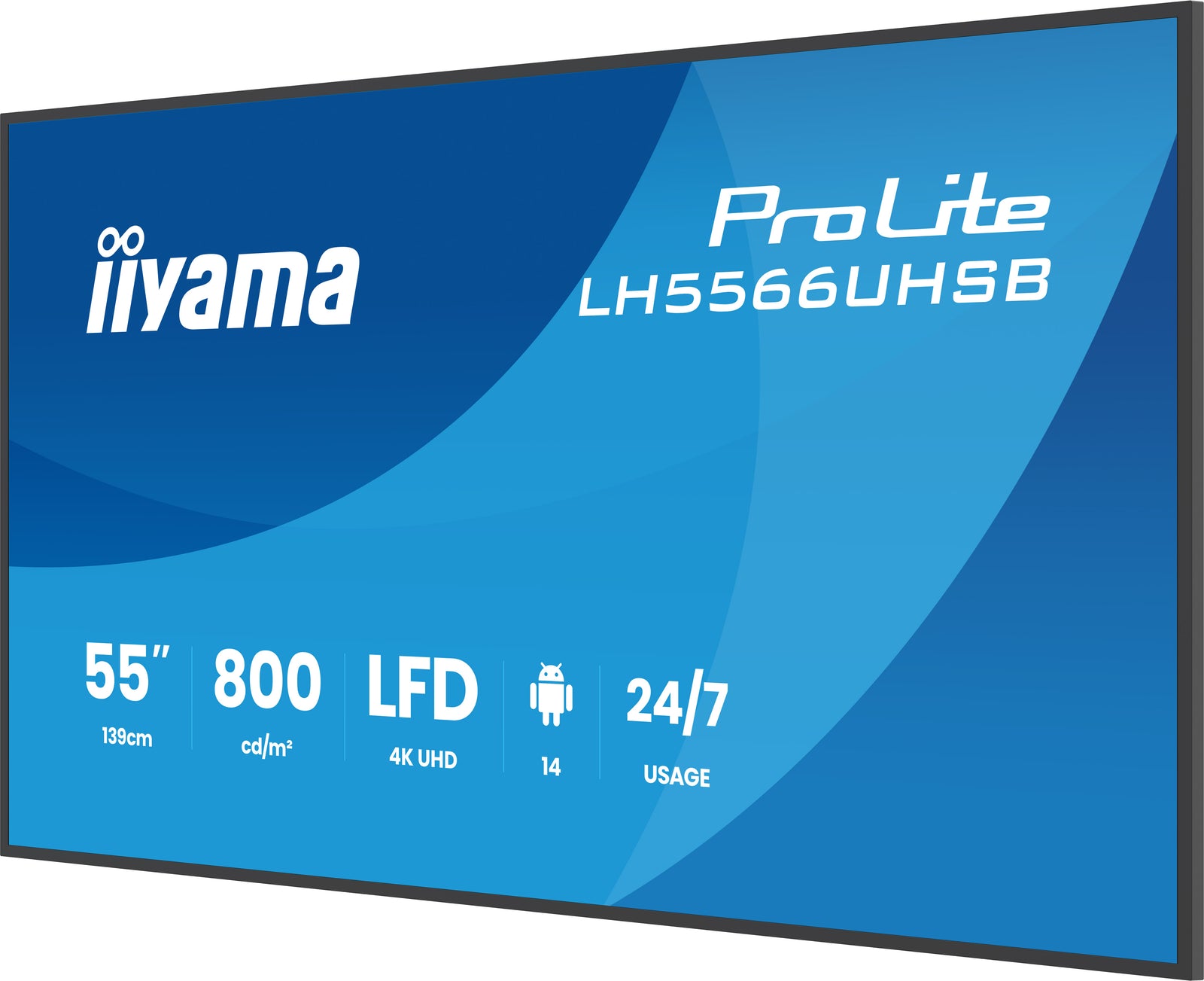

iiyama ProLite LH5566UHSB-B1AG 55" 4K UHD Professional Digital Signage Display
In Stock10 available
Express DeliveryFast UK delivery where eligible
3 Year WarrantyManufacturer-backed cover
UK Expert SupportPre-sales and technical advice
Product description
iiyama ProLite LH5566UHSB-B1AG
iiyama ProLite LH5566UHSB-B1AG 55" 4K UHD 800 cd/m² Professional Digital Signage Display
The iiyama ProLite LH5566UHSB-B1AG is a 55-inch high-brightness professional digital signage display combining 4K UHD resolution, 800 cd/m² brightness, Android 14 and reliable 24/7 commercial operation.
Designed for retail, hospitality, restaurants, corporate environments and other professional installations, the LH5566UHSB-B1AG combines iiSignage², iiControl, iiShare, EShare, Signal FailOver, USB-C, Wi-Fi 5 and professional AV control in one powerful 55-inch display.
55" 4K UHD 3840 × 2160 @ 60Hz
800 cd/m² High-brightness signage
Android 14 Integrated smart signage
24/7 Operation Continuous commercial use
Description
LH5566UHSB-B1AG Professional Signage
55-inch high-brightness digital signage for demanding commercial environments.
The iiyama LH5566UHSB-B1AG combines a 55-inch professional VA panel with a powerful 800 cd/m² brightness output, making it suitable for brightly illuminated indoor spaces where lower-brightness signage can lose visual impact.
Its native 3840 × 2160 4K UHD resolution, 5000:1 static contrast ratio and wide 178° viewing angles provide a strong visual platform for advertising, promotions, menus, presentations, dashboards and corporate communications.
Integrated Android 14 also allows the screen to operate as an all-in-one smart digital signage platform without necessarily requiring an external media player.
- iiyama ProLite LH5566UHSB-B1AG
- 55" / 138.7cm professional display
- 3840 × 2160 4K UHD resolution
- 800 cd/m² brightness
- VA panel
- 5000:1 static contrast
- Android 14
- iiSignage² CMS
- iiControl DMS
- iiShare and EShare
- USB-C with 15W Power Delivery
- 24/7 professional operation
LH5566UHSB-B1AG Key Features
iiyama LH5566UHSB-B1AG specifications at a glance.
55" 4K UHD
3840 × 2160 resolution across a professional 55-inch VA panel.
5000:1 Contrast
Strong static contrast for high-impact commercial content.
Android 14
Integrated smart signage with 4GB RAM and 32GB storage.
USB-C
DisplayPort Alt Mode with up to 15W Power Delivery.
24/7 Operation
Designed for continuous professional commercial use.
800 cd/m² High Brightness
More visual impact in brightly illuminated indoor spaces.
The 800 cd/m² panel brightness gives the LH5566UHSB-B1AG considerably more output than many standard indoor commercial signage screens.
This makes the display especially useful in brightly lit retail stores, showrooms, restaurants, reception spaces and public areas where ambient lighting can reduce the perceived impact of conventional professional screens.
- 800 cd/m² brightness
- Professional VA panel
- 5000:1 static contrast
- 25% anti-glare haze
- 178° horizontal and vertical viewing
4K UHD Digital Signage
3840 × 2160 detail across a 55-inch professional display.
The LH5566UHSB-B1AG provides native 3840 × 2160 4K UHD resolution at 60Hz.
Its 8.3-megapixel canvas provides detailed reproduction for promotional imagery, menus, dashboards, presentations, advertising and professional video content.
- 3840 × 2160 resolution
- 4K UHD at 60Hz
- 8.3 megapixels
- 16:9 aspect ratio
- 1209.6 × 680.4mm viewable area
Android 14
Integrated Android professional signage platform.
The LH5566UHSB-B1AG runs Android 14, providing an embedded operating platform for compatible signage applications and professional content.
Its MT9679 system-on-chip combines four A73 CPU cores with a G52 MC1 GPU, 4GB RAM and 32GB internal storage.
- Android 14 OS
- MT9679 SoC
- A73 × 4 CPU
- G52 MC1 GPU
- 4GB RAM
- 32GB storage
- Wi-Fi 5 at 2.4GHz / 5GHz
iiSignage² CMS
Manage professional digital signage content remotely.
Integrated iiSignage² provides a content management system for publishing, scheduling and managing professional signage content remotely.
It is suitable for promotions, advertising, menu content, announcements, internal communications and other managed commercial messaging.
- Integrated iiSignage² CMS
- Remote content publishing
- Content scheduling
- Professional signage management
iiControl & iiShare
Device management and wireless presentation built in.
iiControl provides compatible device-management functionality while iiShare supports wireless presentation and screen-sharing workflows.
EShare and TeamViewer are also built into the Android environment, helping the LH5566UHSB-B1AG support both signage and collaborative business use cases.
- iiControl Device Management System
- iiShare wireless presentation
- EShare
- TeamViewer
- Meeting room functionality
Signal FailOver
Help keep commercial signage content continuously active.
Signal FailOver automatically monitors available input sources and can move to a prioritised backup source when the primary signal is lost.
This can help reduce blank-screen time in commercial environments where content needs to remain visible throughout the day.
- Automatic input detection
- Prioritised backup sources
- Automatic source switching
- Designed to minimise blank-screen time

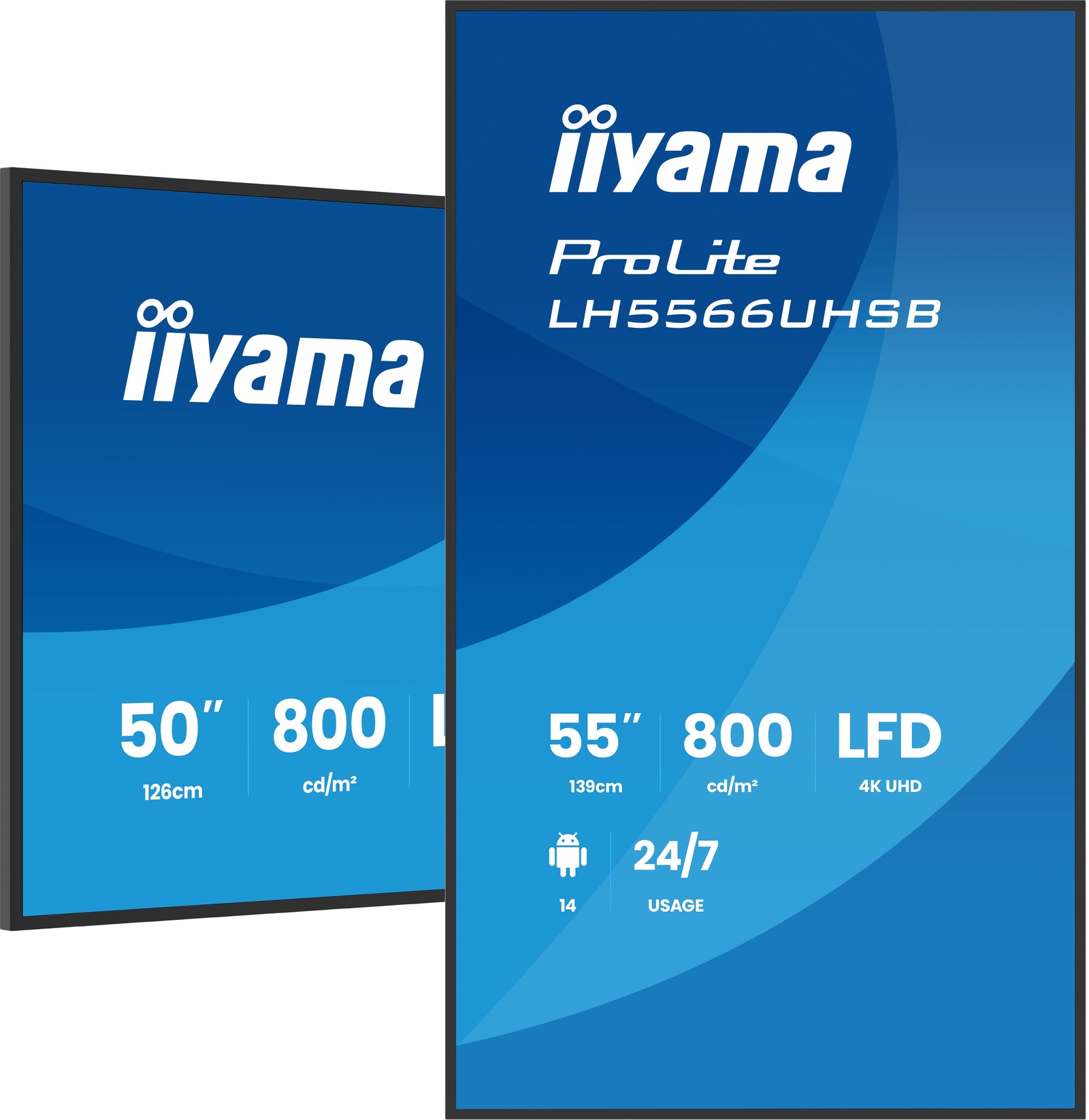

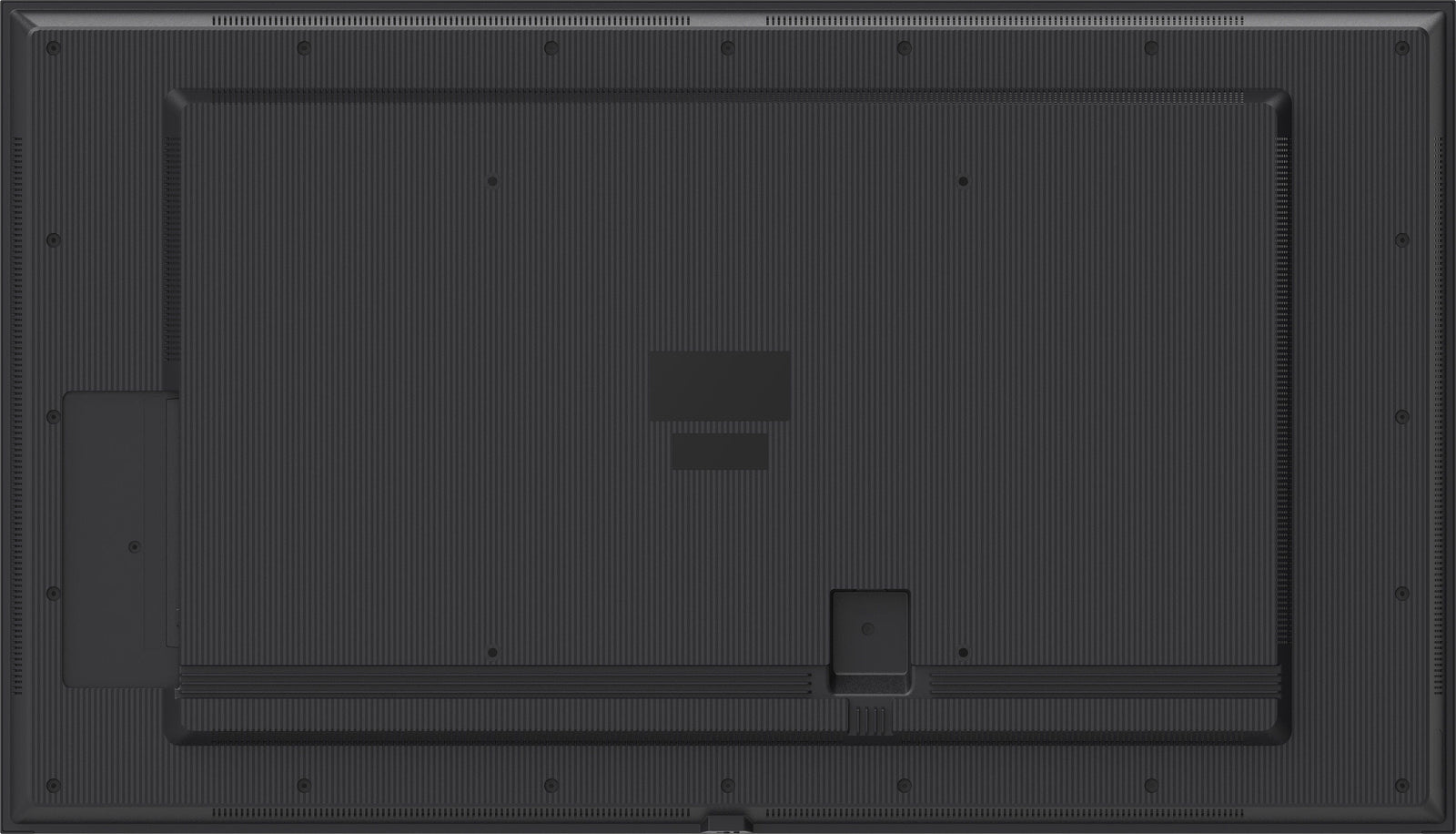

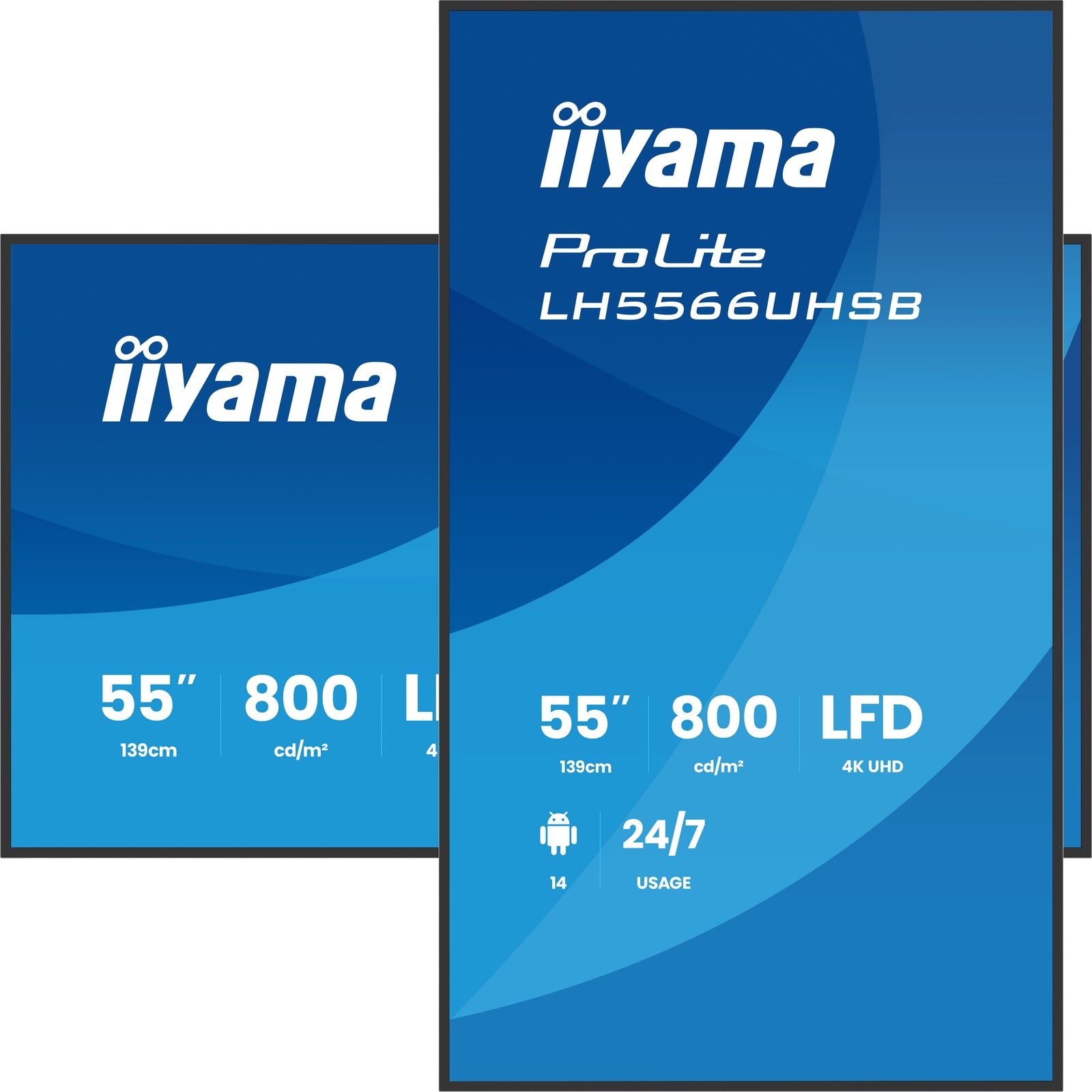

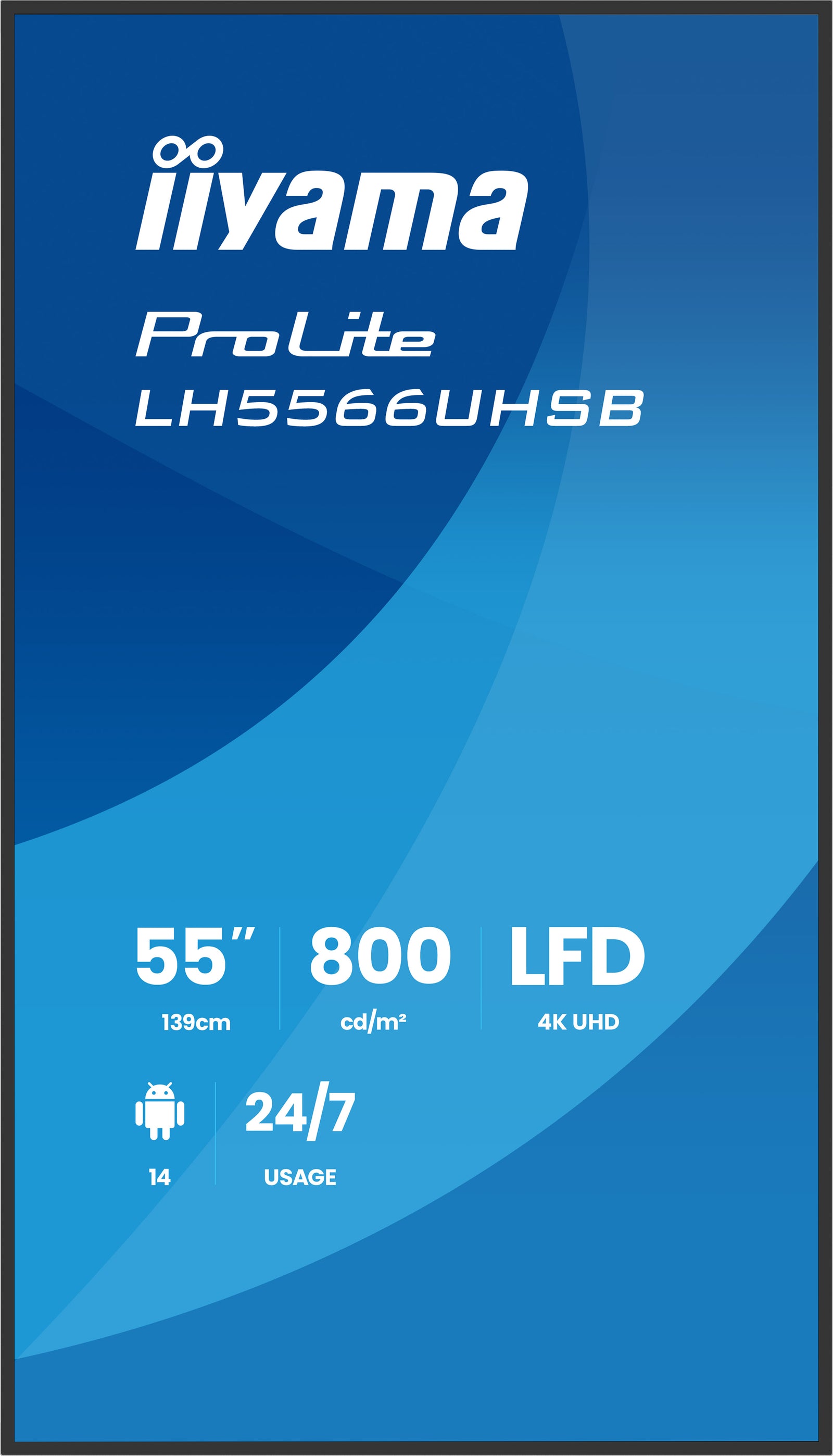

Flexible Orientation
Landscape or portrait 55-inch digital signage.
The LH5566UHSB-B1AG supports both landscape and portrait orientation, allowing professional installers to adapt the screen to different content formats.
Landscape orientation is useful for widescreen advertising, presentations and menu boards, while portrait mode creates a high-impact digital poster.
- Landscape mounting
- Portrait mounting
- 400 × 400mm VESA
- Wall mounting kit included
- Fanless professional design
USB-C Connectivity
DisplayPort Alt Mode with 15W Power Delivery.
USB-C adds a modern professional connection option for compatible computers and content sources.
The connection supports DisplayPort Alt Mode and up to 15W Power Delivery.
- 1 × USB-C
- DisplayPort Alt Mode
- 15W Power Delivery
- Professional AV connectivity

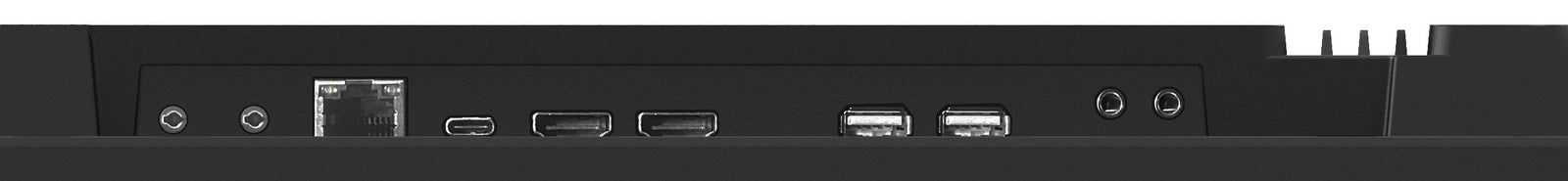

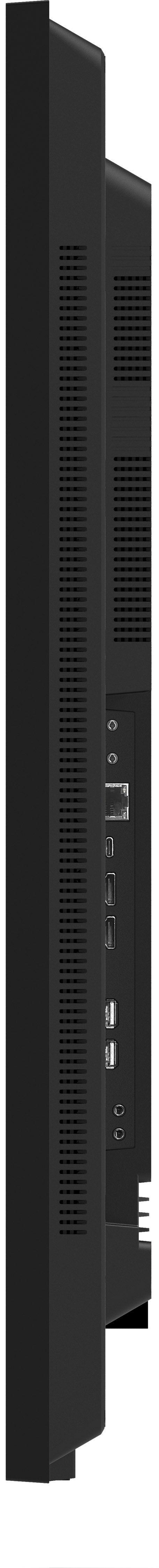

Professional Connectivity
HDMI, USB-C, LAN, USB, RS-232C and IR.
The LH5566UHSB-B1AG provides a broad set of interfaces for professional signage and commercial AV installations.
- 2 × HDMI 2.0 inputs
- 1 × USB-C
- 2 × USB 2.0
- RJ45 LAN
- RS-232C input
- 2 × RS-232C outputs
- IR input
- IR loop-through
- 3.5mm audio output
- 2 × 10W speakers
Professional Display Control
Integrate into centrally managed commercial AV environments.
LAN, RS-232C and IR interfaces allow compatible professional control systems to communicate with the LH5566UHSB-B1AG.
Two RS-232C outputs provide additional flexibility in more complex commercial installations.
- RJ45 LAN control
- RS-232C input
- 2 × RS-232C outputs
- IR control
- Automatic source switching
Commercial AV Hardware
Built for professional content and control systems.
Built-in Android, Wi-Fi and professional input connectivity allow the display to work with local apps, network content, PCs and external signage players.
Professional Input Options
Connect PCs, media players and commercial signage sources.
HDMI, USB-C, USB media playback and integrated Android provide several ways to supply and manage professional signage content.
Front IP5X Protection
Added dust resistance for commercial environments.
The front of the LH5566UHSB-B1AG carries an IP5X dust-protection rating.
Combined with 24/7 operation, anti-image-retention technology and fanless construction, this helps support long-term professional deployment.
- Front IP5X protection
- 24/7 operation
- Anti-image-retention technology
- Fanless design
- 50,000-hour MTBF excluding backlight

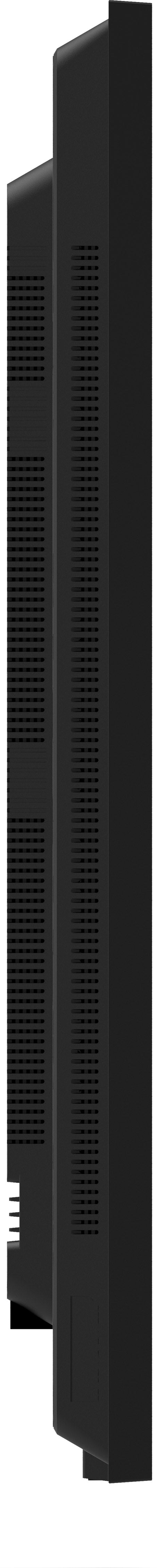

55-Inch Commercial Display
Large visual impact with a 70mm professional chassis.
The LH5566UHSB-B1AG measures 1238.5 × 709.2 × 70mm and weighs 13.09kg without packaging.
Its 12.8mm bezels provide a clean appearance while the 55-inch size offers a popular balance between visibility and manageable installation dimensions.
- 1238.5mm width
- 709.2mm height
- 70mm depth
- 13.09kg product weight
- 18.17kg packaged weight
- 12.8mm bezels

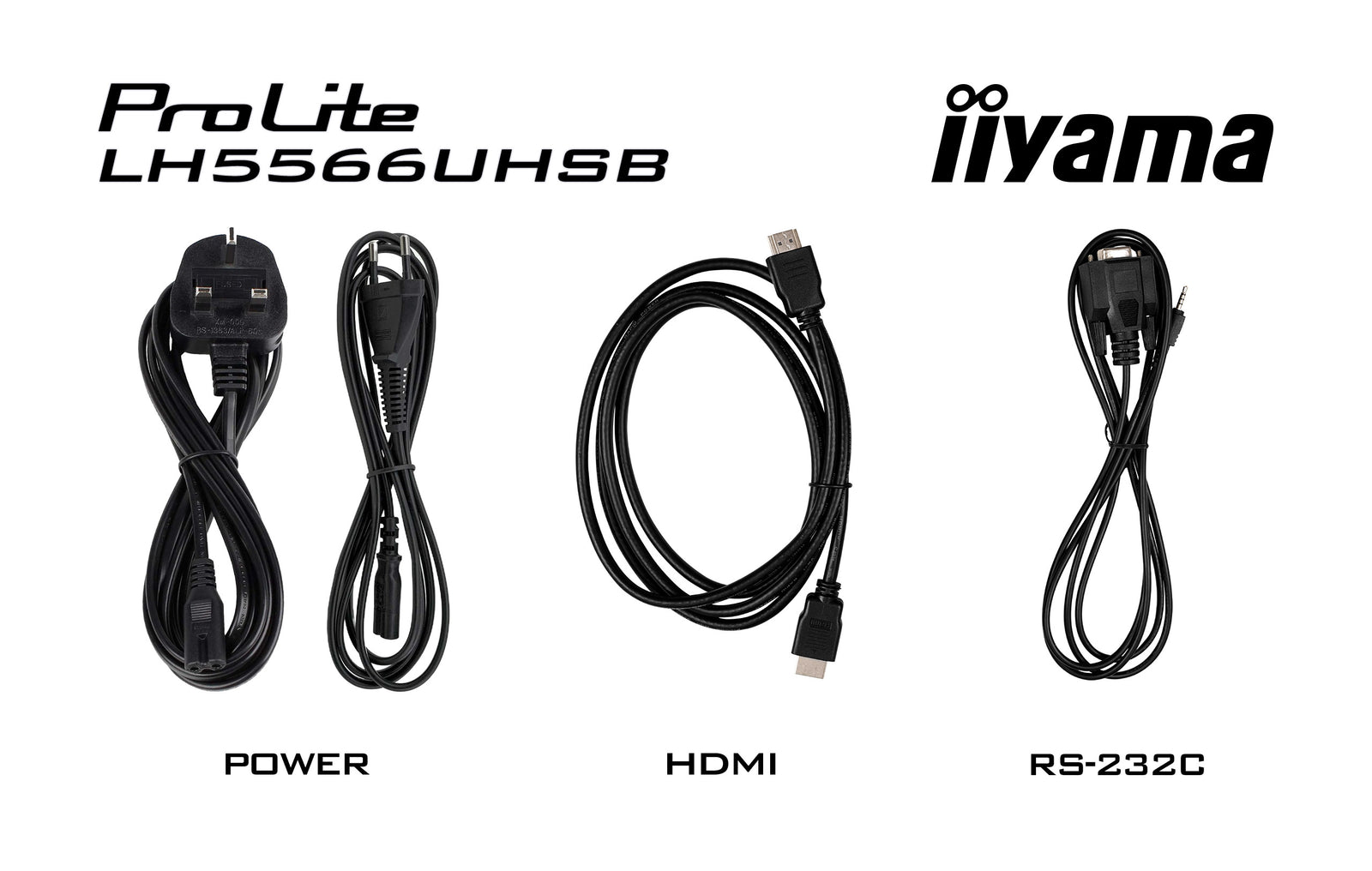

Included Accessories
Professional wall mounting kit included.
The LH5566UHSB-B1AG includes the essential accessories for professional installation, including a wall mounting bracket, cables and remote control.
- 1.8m power cable
- 1.8m HDMI cable
- 1.8m RS-232C cable
- Wall mount bracket
- Wall mount guide
- Screws and screw anchors
- Quick Start Guide
- Safety Guide
- Remote control with batteries
55" Commercial Displays
Comparing the LH5566UHSB-B1AG with other 55-inch professional displays?
Browse the ScreenMoove 55-inch commercial display collection to compare other professional digital signage screens.
Specifications
LH5566UHSB-B1AG Technical Specification
iiyama ProLite LH5566UHSB-B1AG specifications.
Technical specifications for the iiyama LH5566UHSB-B1AG 55-inch 800 cd/m² 4K UHD professional digital signage display.
| Specification | iiyama LH5566UHSB-B1AG Details |
|---|---|
| Display Characteristics | |
| Model | iiyama ProLite LH5566UHSB-B1AG |
| Design | Thin bezel |
| Diagonal | 55" / 138.7cm |
| Panel | VA, anti-glare coated glass, matte finish, haze 25% |
| Native Resolution | 3840 × 2160 @ 60Hz - 8.3 megapixels 4K UHD |
| Aspect Ratio | 16:9 |
| Panel Brightness | 800 cd/m² |
| Static Contrast | 5000:1 |
| Response Time | 6.5ms GTG |
| Viewing Zone | 178° horizontal / 178° vertical; 89° right / left; 89° up / down |
| Colour Support | 1.07 billion colours - 8-bit + FRC - NTSC 72% |
| Horizontal Sync | 57 - 62kHz |
| Viewable Area | 1209.6 × 680.4mm |
| Bezel Width | 12.8mm sides, top and bottom |
| Pixel Pitch | 0.315mm |
| Bezel Colour / Finish | Black, matte |
| Interfaces / Connectors / Controls | |
| HDMI Inputs | 2 × HDMI 2.0, maximum 3840 × 2160 @ 60Hz |
| USB-C | 1 × USB-C - DisplayPort Alt Mode, 15W Power Delivery |
| RS-232C Input | 1 × 2.5mm sub-mini jack |
| RS-232C Outputs | 2 × 2.5mm |
| RJ45 LAN | 1 |
| IR Input | 1 × 3.5mm stereo mini |
| IR Loop Through | 1 × 3.5mm |
| Audio Output | 1 × 3.5mm mini jack |
| Speakers | 2 × 10W |
| HDCP | v1.4 and v2.0 |
| USB Ports | 2 × USB 2.0 |
| Software & Hardware | |
| Operating System | Android 14 |
| Integrated Software | iiSignage², iiControl, iiShare, EShare, FailOver, TeamViewer, PDF & Media Player, iiBrowser and File Manager |
| Wi-Fi | Wi-Fi 5 - 2.4GHz / 5GHz |
| System on Chip | MT9679 |
| CPU | A73 × 4 |
| GPU | G52 MC1 |
| RAM | 4GB |
| Internal Storage | 32GB ROM |
| Professional Features | |
| Maximum Non-Stop Operating Time | 24/7 |
| Anti Image Retention | Yes |
| Media Playback | Yes |
| Water / Dust Protection | IP5X front |
| Housing / Bezel | Plastic |
| Wall Mount Included | Yes - VESA 400 × 400mm |
| General | |
| OSD Languages | EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB |
| Control Buttons | Power indicator, power button and remote sensor |
| Network Controls | Status, Wi-Fi, Ethernet and hotspot |
| Picture Controls | Brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma, colour temperature, colour control and picture reset |
| Audio Controls | Balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio-out sync, speaker setting and audio reset |
| Professional Controls | Scheduling, off timer, zoom, rotation, power-on status, RS-232 routing, IR control, power saving, source switching, HDMI CEC, screen sharing, Miracast standby and system management |
| Mechanical | |
| Orientation | Landscape and portrait |
| Fanless Design | Yes |
| VESA Mounting | 400 × 400mm |
| Operating Temperature | 0°C - 40°C |
| Storage Temperature | -10°C - 60°C |
| MTBF | 50,000 hours excluding backlight |
| Included Accessories | |
| Cables | 1.8m power cable, 1.8m HDMI cable and 1.8m RS-232C cable |
| Guides | Quick Start Guide and Safety Guide |
| Wall Mount Hardware | Wall mount bracket, wall mount guide, screws and screw anchors |
| Other | Stickers for screw holes |
| Remote Control | Yes - batteries included |
| Power Management | |
| Energy Star 8.0 POn at 230V | 92.7W |
| Power Supply Unit | Internal |
| Power Supply | AC 100 - 240V, 50/60Hz |
| Typical Power Usage | 144W |
| Standby | 0.5W |
| Off Mode | 0.3W |
| Sustainability | |
| Energy Efficiency Class | G |
| Regulations | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, RoHS 2.0 and PFOS |
| REACH SVHC | Above 0.1%: Lead, Lead monoxide |
| Dimensions & Weight | |
| Product Dimensions | 1238.5 × 709.2 × 70mm |
| Box Dimensions | 1390 × 144 × 830mm |
| Pallet Volume | 12 units |
| Pallet Dimensions | 1400 × 1162 × 1660mm |
| Weight Without Box | 13.09kg |
| Weight With Box | 18.17kg |
| EAN | 4948570128228 |
Warranty
Professional Display Support
LH5566UHSB-B1AG warranty and ScreenMoove support.
The iiyama ProLite LH5566UHSB-B1AG is designed as a professional large-format digital signage display for continuous commercial use.
Professional Display Cover
Supplied with the applicable professional commercial display warranty.
Installation Support
ScreenMoove can assist with professional mounting, cabling and commercial AV installation.
ScreenMoove Support
Contact ScreenMoove for product, integration, installation and digital signage support.
Downloads
LH5566UHSB-B1AG Downloads
LH5566UHSB-B1AG manuals, specification, drawing and energy labels.
Download ScreenMoove-hosted documentation for the iiyama ProLite LH5566UHSB-B1AG.
Technical Specification
Download the LH5566UHSB-B1AG technical specification PDF.
User Manual
Download the English user manual for installation, configuration and operation.
Technical Drawing
Download the dimensional drawing for professional mounting and installation planning.
UK Energy Label
Download the UK energy label for the LH5566UHSB-B1AG.
EU Energy Label
Download the EU energy label for the LH5566UHSB-B1AG.
View Specifications Online
View the complete LH5566UHSB-B1AG technical specification table.
55" Commercial Displays
Compare the LH5566UHSB-B1AG with other professional 55-inch digital signage screens.
Installation Support
Speak to ScreenMoove about professional mounting, commercial AV integration and digital signage installation.
Product Details
iiyama LH5566UHSB-B1AG product gallery.
Explore detailed product views of the LH5566UHSB-B1AG, including professional connectivity, mounting and installation features.
Commercial Applications
Where can the iiyama LH5566UHSB-B1AG be used?
Its combination of a 55-inch 4K VA panel, 800 cd/m² brightness, Android 14 and 24/7 operation makes the LH5566UHSB-B1AG suitable for demanding indoor digital signage and commercial AV environments.
Retail Digital Signage
Display high-impact promotions, advertising and product content in brightly illuminated retail environments.
Hospitality
Use the display for menus, promotions, guest information and venue communications.
Corporate AV
Present dashboards, presentations and company communications using USB-C and wireless sharing.
Education
Display campus announcements, presentations, information and wayfinding.
Reception & Public Spaces
Create visitor information, directories and high-impact public-facing communications.
Professional Installation
Add professional mounting, cabling and commercial AV integration.
iiyama LH66 Series
Compare alternative iiyama LH66 digital signage sizes.
The LH66 series offers high-brightness commercial digital signage across several screen sizes. Compare the LH5566UHSB-B1AG with other ScreenMoove models in the same range.
43" LH4366UHSB-B1AG View alternative 50" LH5066UHSB-B1AG View alternative
55" LH5566UHSB-B1AG You are viewing this
65" LH6566UHSB-B1AG View alternative 75" LH7566UHSB-B1AG View alternative
55" Commercial Displays
Want to compare more professional 55-inch screens?
Browse the ScreenMoove 55-inch commercial display collection for more professional digital signage options.
Frequently Asked Questions
iiyama ProLite LH5566UHSB-B1AG FAQs.
What is the iiyama ProLite LH5566UHSB-B1AG?
The iiyama ProLite LH5566UHSB-B1AG is a 55-inch professional 4K UHD digital signage display with a VA panel, 800 cd/m² brightness, Android 14 and 24/7 operation.
How bright is the LH5566UHSB-B1AG?
The display has a rated brightness of 800 cd/m².
What resolution is the LH5566UHSB-B1AG?
The display has a native 3840 × 2160 4K UHD resolution at 60Hz.
What panel does the LH5566UHSB-B1AG use?
It uses a VA professional display panel with 5000:1 static contrast and wide 178° viewing angles.
Can the LH5566UHSB-B1AG operate 24/7?
Yes. It is rated for 24/7 continuous professional operation.
What operating system does the LH5566UHSB-B1AG use?
The display runs Android 14.
How much RAM and storage does the LH5566UHSB-B1AG have?
The integrated platform provides 4GB RAM and 32GB storage.
Does the LH5566UHSB-B1AG have Wi-Fi?
Yes. It includes Wi-Fi 5 at 2.4GHz and 5GHz.
Does the LH5566UHSB-B1AG have USB-C?
Yes. USB-C supports DisplayPort Alt Mode and up to 15W Power Delivery.
Can the LH5566UHSB-B1AG be installed vertically?
Yes. It supports both landscape and portrait orientation.
What VESA mounting pattern does the LH5566UHSB-B1AG use?
The display uses a 400 × 400mm VESA mounting pattern, and a wall mounting kit is included.
What is the IP rating of the LH5566UHSB-B1AG?
The front of the display has an IP5X dust-protection rating.
What are the dimensions of the LH5566UHSB-B1AG?
The display measures 1238.5 × 709.2 × 70mm.
How much does the LH5566UHSB-B1AG weigh?
The display weighs 13.09kg without packaging and 18.17kg packaged.
What alternative LH66 sizes are available?
ScreenMoove also offers the LH4366UHSB-B1AG 43", LH5066UHSB-B1AG 50", LH6566UHSB-B1AG 65" and LH7566UHSB-B1AG 75".
Where can I download the LH5566UHSB-B1AG technical specification?
Download the LH5566UHSB-B1AG technical specification PDF directly from ScreenMoove.
55" High-Brightness Digital Signage
Is the iiyama ProLite LH5566UHSB-B1AG right for your project?
The LH5566UHSB-B1AG combines a 55-inch 4K UHD VA panel, 800 cd/m² brightness, 5000:1 contrast, Android 14, iiSignage², iiControl, iiShare, USB-C, Wi-Fi 5, front IP5X protection and reliable 24/7 professional operation.
Technical Highlights
- Display size / Screen sizes
- 55"
- Resolution
- Ultra HD (4K)
- Panel type
- VA Panel
- Screen type
- Flat
- Brightness
- 800 cd/m2
- Response time
- 6.5ms
- Screen ratio
- 16:9
- Refresh rate
- 60Hz
- Display orientation
- Landscape & Portrait
- Operating hours
- 24/7
- Operating system
- Android 14
- Player features
- USB Plug and Play
- VESA patterns
- 400x400
- Warranty
- 3 Year Warranty
iiyama ProLite LH5566UHSB-B1AG 55" 4K UHD Professional Digital Si...SKU: LH5566UHSB-B1AG
£698.00
See Before You Decide
Book a Free Product Demonstration
Compare picture quality, touchscreen performance, software and connectivity with guidance from a commercial display specialist.
Remote or on-site
No obligation
Expert-led session
For Integrators and Resellers
Open a Screen Moove Trade Account
Access project pricing, volume discounts, product sourcing support and faster commercial quotations for your client projects.
Trade pricing
Project support
Volume discounts
Education & Public Sector
A simpler procurement route for schools and public organisations
Access education pricing, purchase-order support, installation services and account management for schools, academies, colleges, universities, NHS organisations, councils and government bodies.
Purchasing for a school, academy, university or NHS organisation?
Register your organisation to request institutional pricing and
purchase-order support.
Register Your Organisation
Trusted Store Status
Top Quality Store
Rating status, Exceptional, based on Google’s shopping experience metrics.
Why it matters
Demonstrates consistently strong fulfilment, service, and post-sale experience across Google signals.
Google
Top Quality Store
Built for confidence, next-day delivery options, UK-based support, trade-ready operations.
Request a quote
JO
Josh
Jan 6, 2026
Great products and service! The guys always go above and beyond to make sure they supply you with the product that best fits your needs. I’ve been using Screen Moove for a number of years now and woul...
See moreSD
Sandy Dobson
Nov 28, 2025
Verified
Screen Moove went above and beyond for my requirements. Ordering system was super easy it just take 2 minutes to complete my order and I have received my tracking details right away after few minutes...
See moreS
St Peter's Church
Dec 17, 2025
Moe Khan, one of the team at Screen Move has been a fantastic help as we have navigated the process of choosing and buying screens and stands for our church. Helpful at every step of the way, patient...
See moreFS
Furniture Store
Nov 27, 2025
We originally planned to purchase a cheap TV for our showrooms. After speaking with screen moove, we ended up investing in floorstanding displays across multiple retail sites and showrooms. The bright...
See moreFT
Felix Thomas
Sep 4, 2025
Verified
I placed my order late at night but realized I had entered the wrong address. I immediately sent an email asking for it to be changed, not really expecting a reply until the next day. To my surprise,...
See moreAS
ava singh
Aug 27, 2025
Verified
I’ve been looking ultra high brightness display despite I checked everywhere I didn’t trust. They got my trust and I ordered. It arrived safely next day we have installed screen is awesome and high qu...
See moreGK
Glenn Khan
Nov 27, 2025
Verified
This is second time I used Screen Moove, I have bought double sided 55 inch display. The first order was a bit delayed I don't blame it might be happen, but customer service over the phone was excell...
See moreBY
Burcu Yesilova
Feb 12, 2025
Screenmoove, perfect customer satisfaction from start to finish! Their customer service is incredibly helpful and fast. It’s amazing to be able to reach out and get quick solutions for any issue. We a...
See moreTE
Tina e Edwards
Dec 17, 2025
We found that we needed a video call to work out the set up. The tech team at screenmoove were very very good. I would suggest that the instructions that come with the screen offer two key info. 1. Set...
See moreMA
Miss Akthar
Nov 21, 2025
Verified
Great experience with Jonathan Gray, previously I was looking for other companies and randomly ordering our needs from elsewhere. after I met with him, since 2024 we are keep purchasing from screen m...
See moreGet in touch
Speak directly with Screen Moove about your display, digital signage, meeting-room or AV project.
Need help choosing the right product?
Speak directly with a dedicated Screen Moove expert and get the right solution first time.
Call us: 020 8191 9223
Email: info@screenmoove.com
Contact us
Simply complete our contact form, and we will promptly respond to your inquiries.
If you have any questions or enquiry, please fill out the form below with all of your details and we'll get back to you shortly.
Ready to start your next AV project?
Contact our team of experts today!
