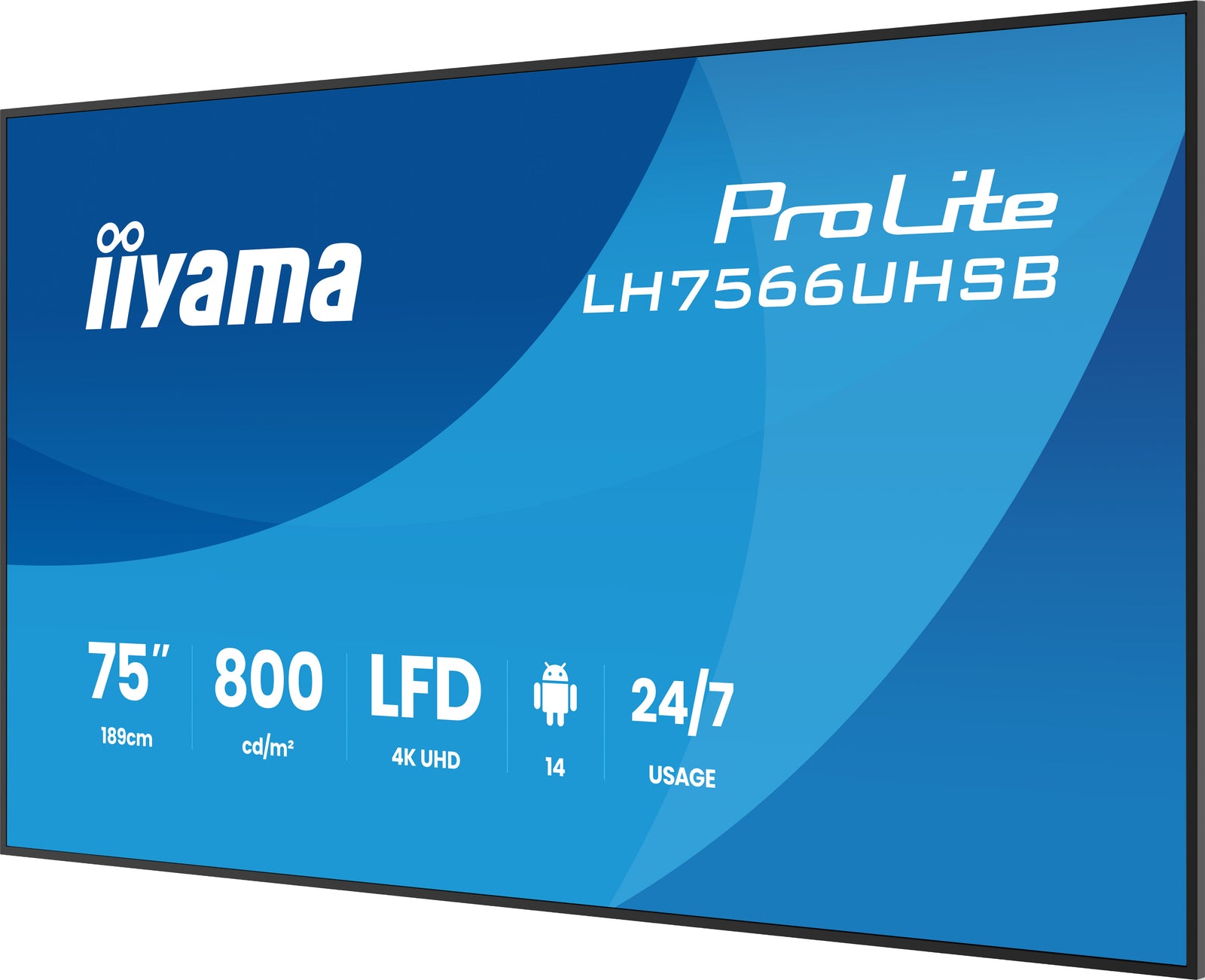

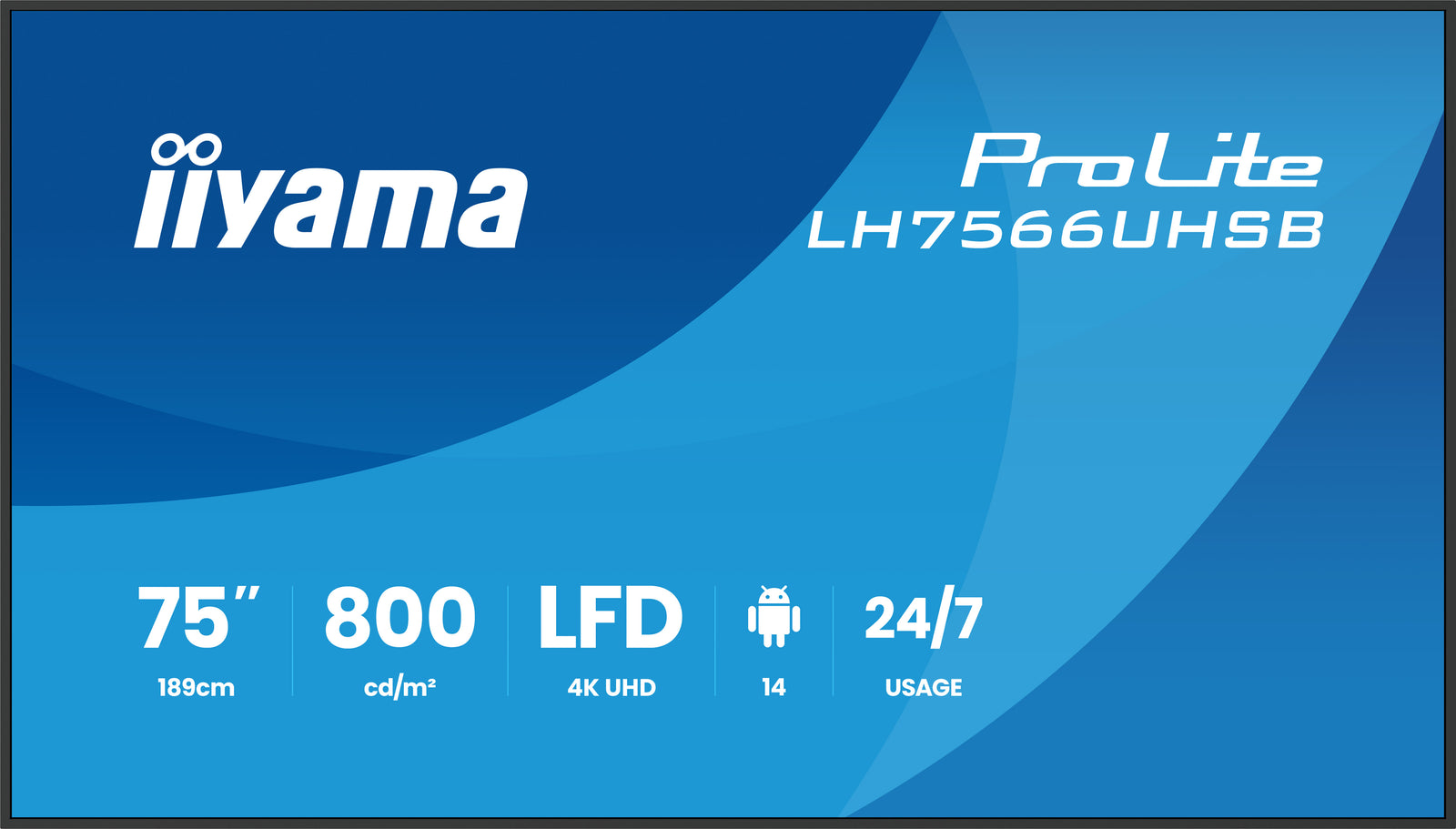

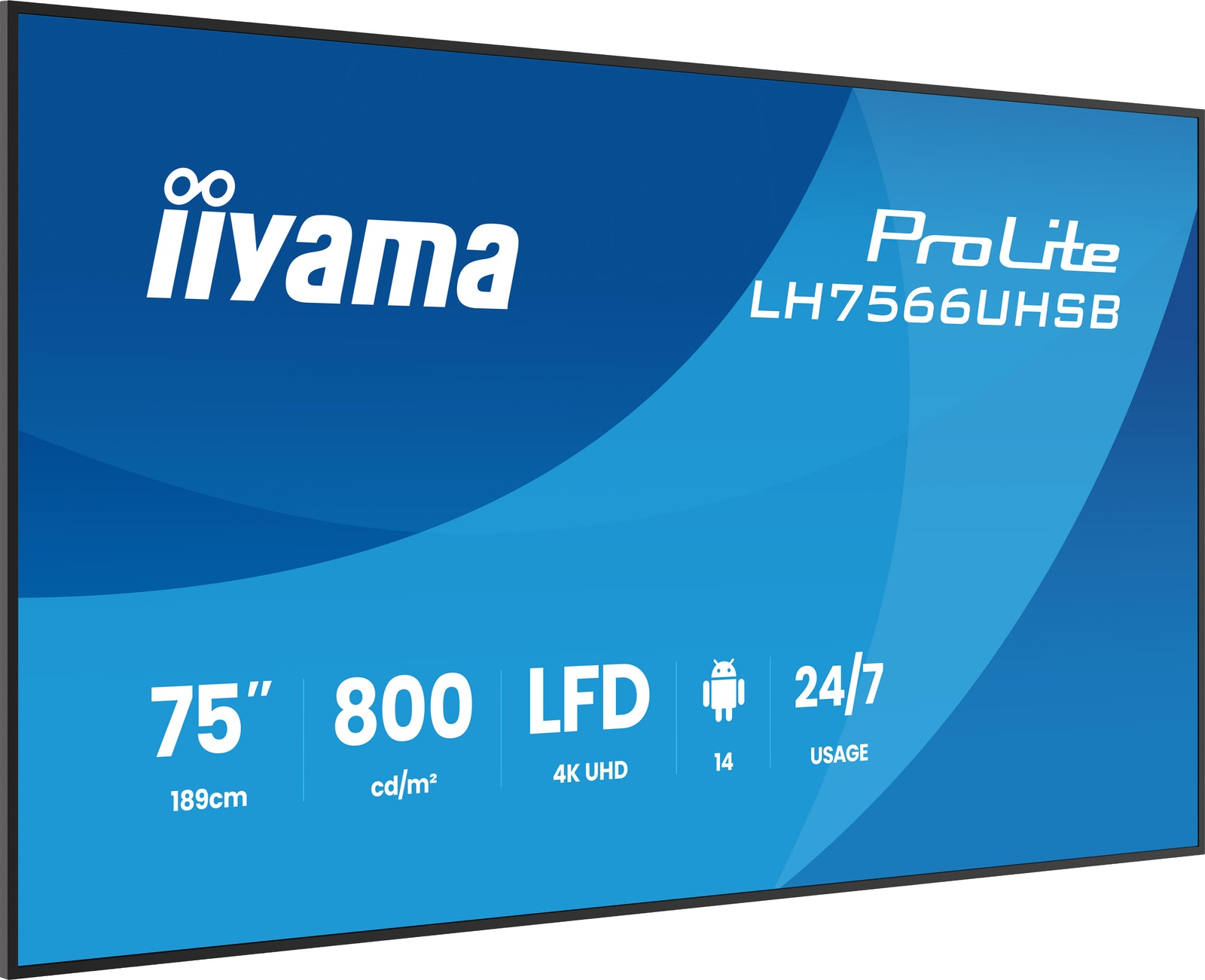

The ProLite LH7566UHSB-B1AG is a 75" 4K UHD digital signage powerhouse designed to elevate your business's visual communication. With Android 14 OS, iiSignage² (CMS), iiControl (DMS), and iiShare (Wireless Presentation), managing content is effortless. It's WiFi enabled for remote content delivery and offers reliable 24/7 operation. Perfect for retail, corporate, hospitality, or restaurant settings, this display ensures a captivating audience experience with its versatile design and high brightness of 800cd/m².
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

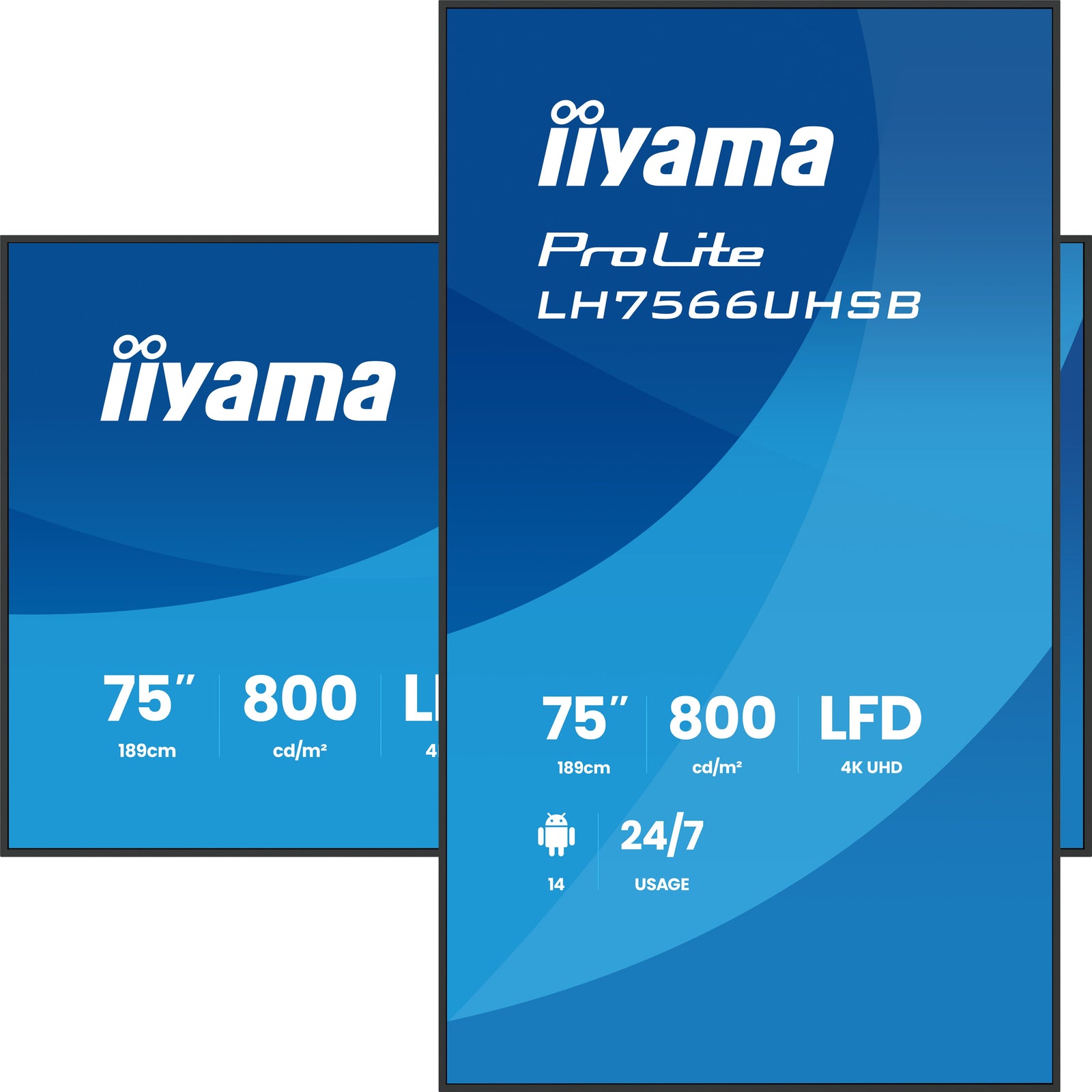

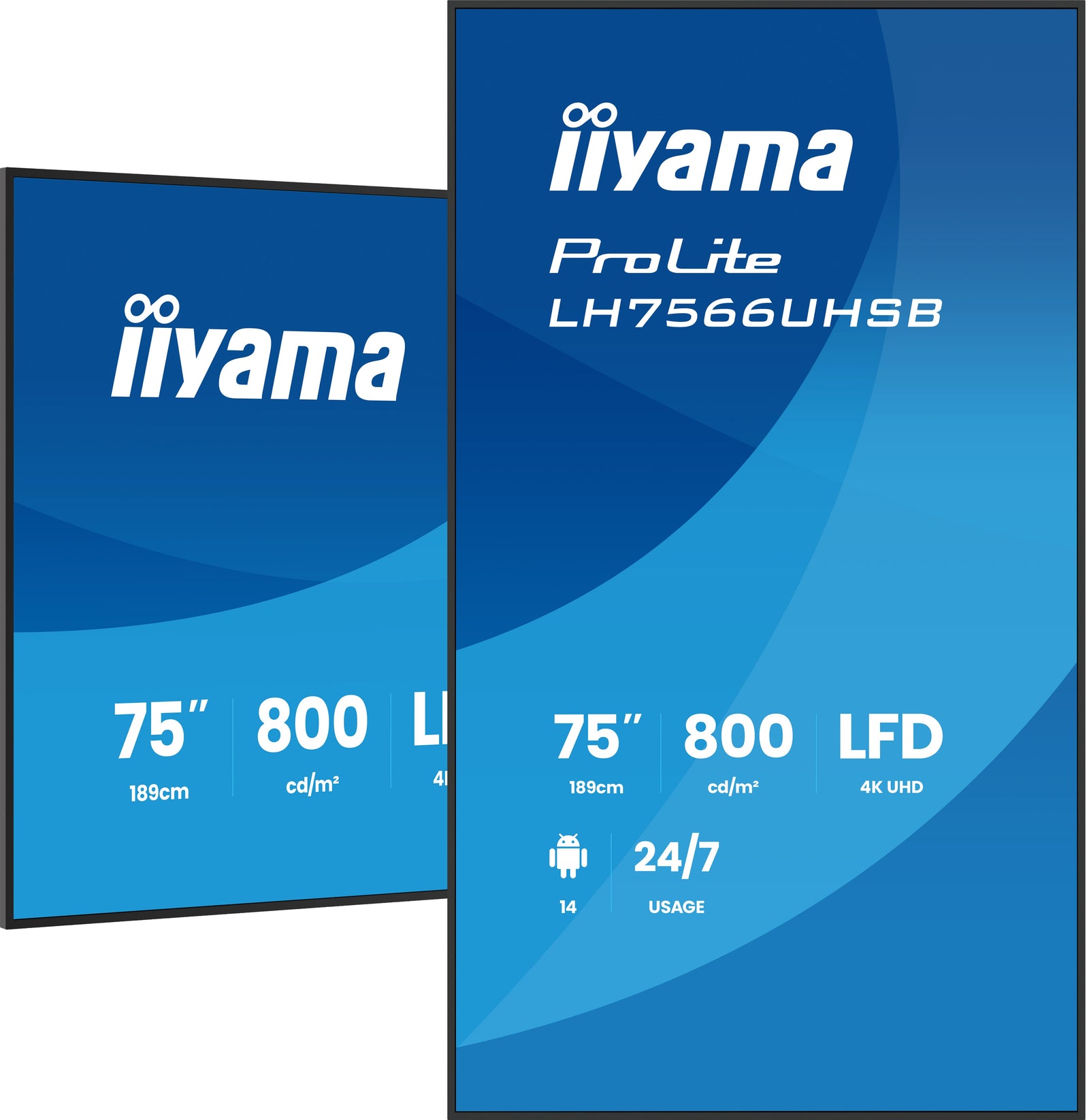

Flexible Orientation

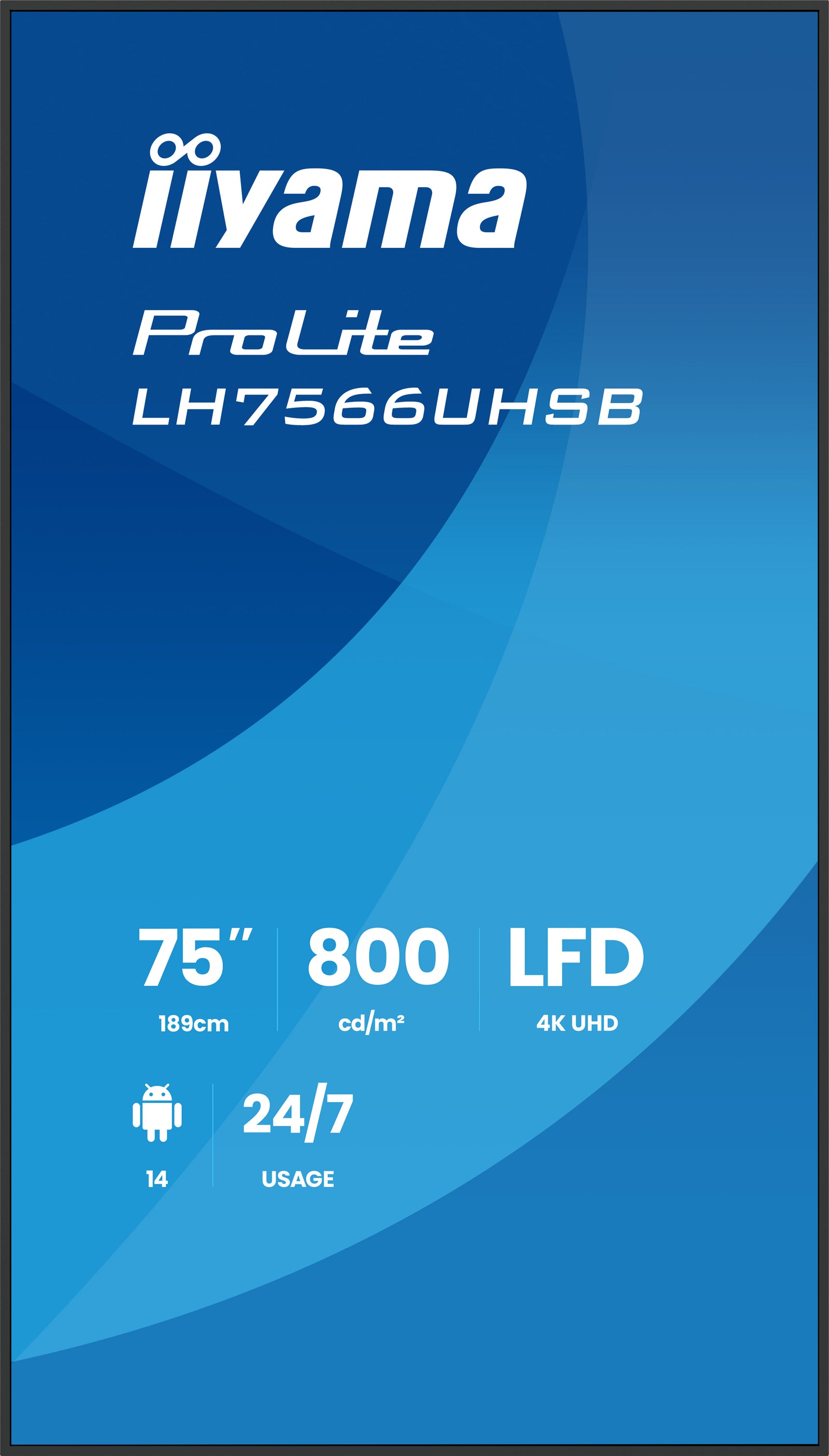

With the option to switch between landscape and portrait mode, these displays let you get creative with any space. Whether it’s messaging, ads, videos, or safety info, you can tailor your content to grab attention exactly how you want.
| Display Characteristics | |||
| Design | Thin bezel | Diagonal | 75", 189.5cm |
| Panel | VA, Anti-Glare coated glass, matte finish, haze 25% | Native Resolution | 3840 × 2160 @ 60Hz (8.3 MegaPixels, 4K UHD) |
| Aspect Ratio | 16:9 | Panel Brightness | 800 cd/m² |
| Static Contrast | 5000:1 | Response Time (GTG) | 6.5ms |
| Viewing Zone | Horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° | Colour Support | 1.07G (8 Bits + FRC), NTSC 72% |
| Horizontal Sync | 57 - 62kHz | Viewable Area (W × H) | 1650.24 × 928.26mm |
| Bezel Width (Sides, Top, Bottom) | 12.8mm, 12.8mm, 12.8mm | Pixel Pitch | 0.429mm |
| Bezel Colour and Finish | Black, matte | ||

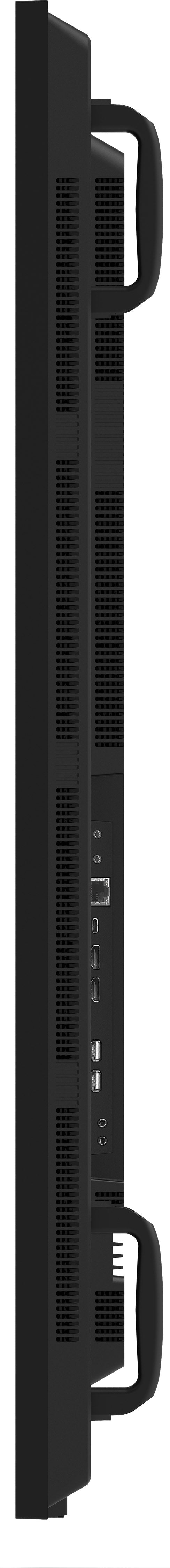

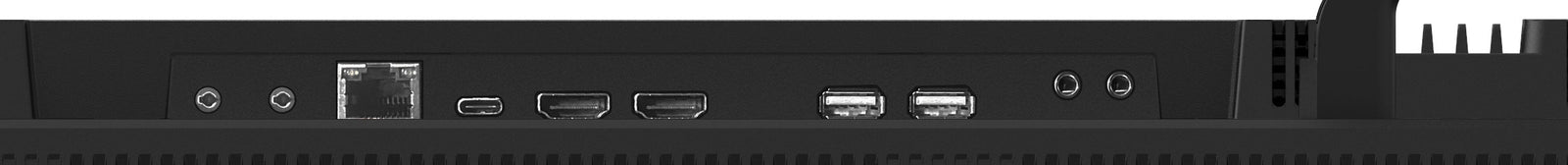

| Interfaces / Connectors / Controls | |||
| Digital Signal Input | HDMI × 2 (v2.0, maximum 3840 × 2160 @ 60Hz) | USB-C | USB-C × 1 (DP Alt, 15W PD) |
| Monitor Control Input | RS-232C × 1 (2.5mm sub-mini jack) | RJ45 (LAN) | RJ45 (LAN) × 1 |
| IR Input | IR × 1 (3.5mm stereo mini) | Audio Output | Mini jack × 1 (3.5mm) |
| Speakers | 2 × 10W | Monitor Control Output | RS-232C × 2 (2.5mm) |
| IR Loop Through | IR loop through × 1 (3.5mm) | HDCP | v1.4 & v2.0 |
| USB Ports | 2 × USB 2.0 | ||
| Features | |||
| Integrated Software | Android 14 OS, iiSignage², iiControl, iiShare, EShare, FailOver, TeamViewer, PDF & Media Player, iiBrowser, File Manager | WiFi | Yes, WiFi 5 @ 2.4G/5G |
| Hardware | SoC: MT9679, CPU: A73 × 4, GPU: G52 MC1, RAM: 4GB, ROM: 32GB | Extra | Wall mounting kit included (VESA 500 × 500mm) |
| Maximum Non-Stop Operating Time | 24/7 | Anti-Image Retention | Yes |
| Media Playback | Yes | Water and Dust Protection | IP5X (front) |
| Housing (Bezel) | Plastic | ||
| General | |||
| OSD Languages | EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB | Control Buttons | Power Indicator, Power Button, Remote Sensor |
| User Controls | Network: status, WiFi, Ethernet, hotspot; Picture: brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, picture reset; Audio: balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio out sync, speaker setting, audio reset; OSD settings: OSD timeout, OSD H-position, OSD V-position, OSD transparency, information OSD; General: logo and animation, wallpaper, no signal image, schedule, off timer; Screen: zoom mode, custom zoom, system rotation, screen reset; Device: power-on status, RS-232 routing, IR control, power saving, panel saving, monitor information, other; Channel: boot-on source, rename input channel, automatic source switching, signal lost detection, HDMI version; System: language, system update, settings reset, factory reset, Android settings; Admin: menu lock, meeting room, HDMI CEC, screen share, Miracast standby, log export | ||
| Mechanical | |||
| Orientation | Landscape, portrait | Fanless Design | Yes |

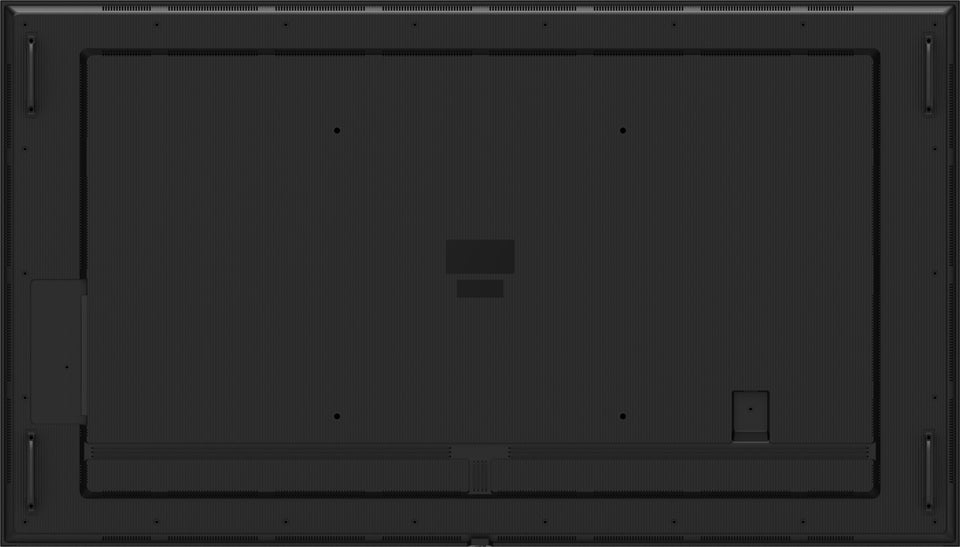

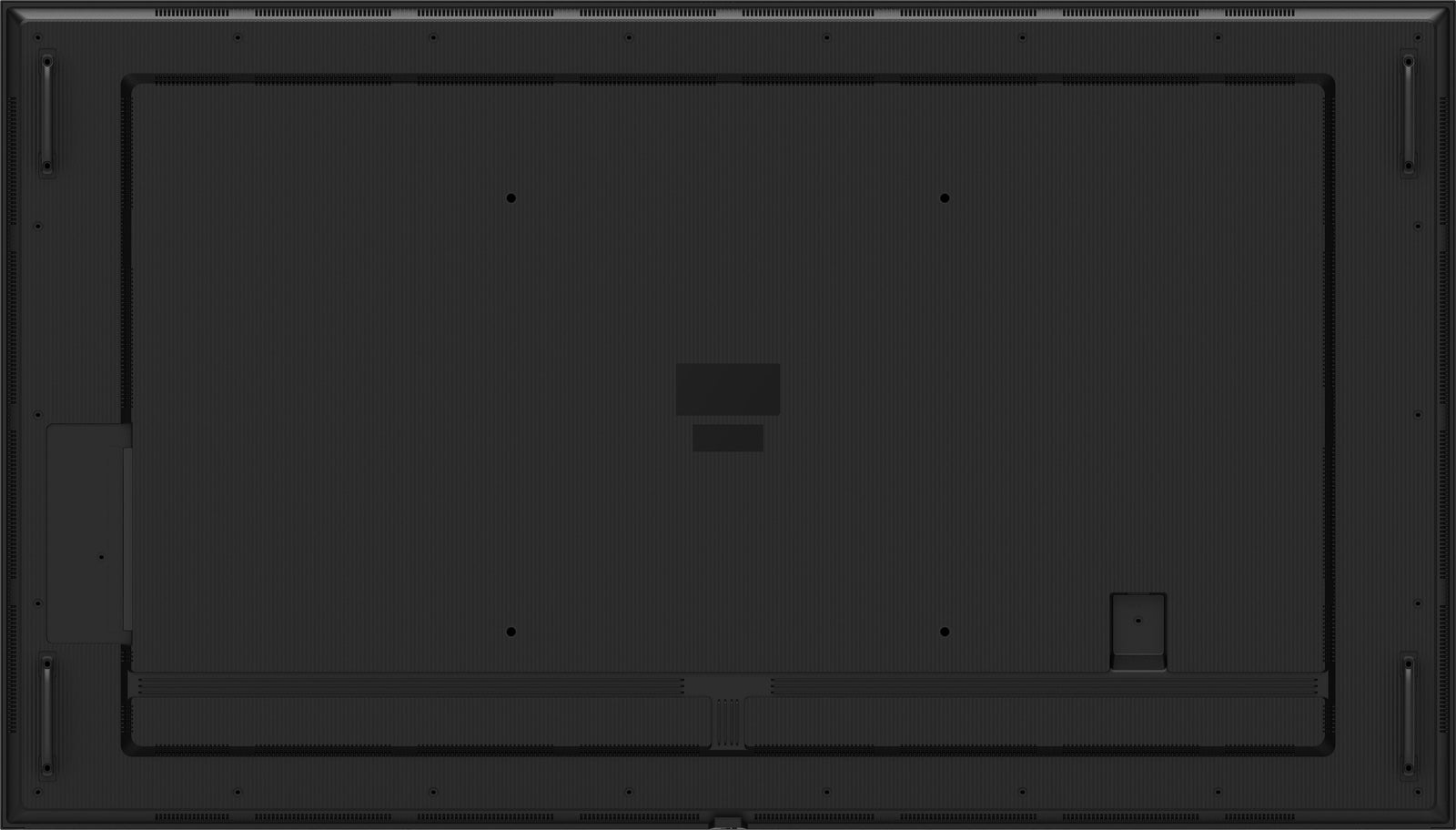

| VESA Mounting | 500 × 500mm | Operating Temperature Range | 0°C - 40°C |
| Storage Temperature Range | -10°C - 60°C | MTBF | 50,000 hours (excluding backlight) |
| Accessories Included | |||

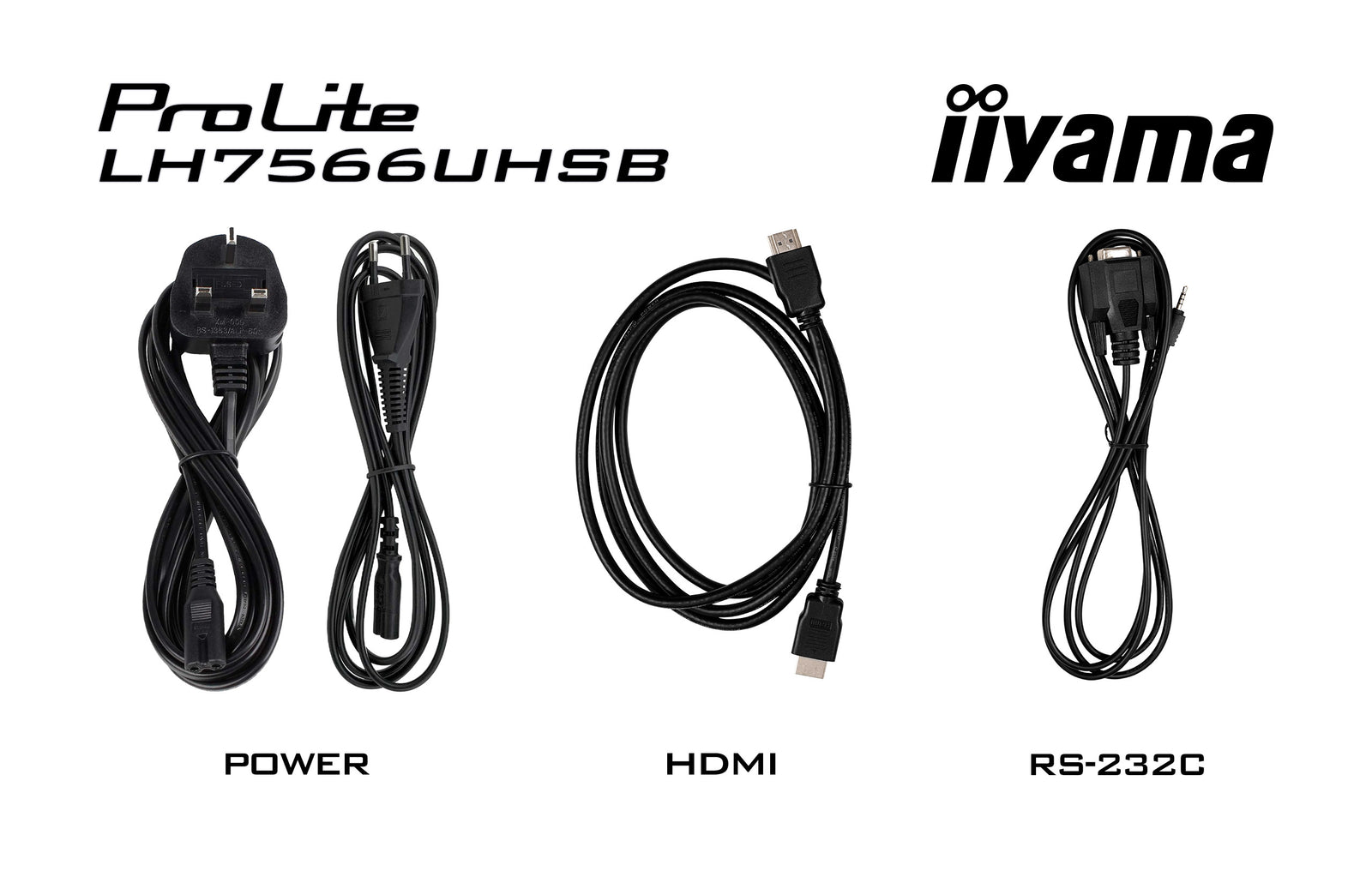

| Cables | Power (1.8m), HDMI (1.8m), RS-232C (1.8m) | Guides | Quick Start Guide, Safety Guide |
| Other Accessories | Wall Mount Bracket, Wall Mount Guide, Screws, Screw Anchors, Stickers for Screw Holes | Remote Control | Yes, batteries included |
| Power Management | |||
| Energy Star 8.0 (POn at 230V) | 147.8W | Power Supply Unit | Internal |
| Power Supply | AC 100 - 240V, 50/60Hz | Power Usage | 219W typical, 0.5W standby, 0.3W off mode |
| Sustainability | |||
| Regulations | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (UKCA, RoHS 2.0, PFOS) | Energy Efficiency Class | G (Regulation EU 2017/1369) |
| REACH SVHC | Above 0.1%: Lead | ||
| Dimensions / Weight | |||
| Product Dimensions (W × H × D) | 1679 × 957.1 × 69mm | Box Dimensions (W × H × D) | 1840 × 177 × 1112mm |
| Pallet Volume | 12pcs | Pallet Dimensions (W × H × D) | 1850 × 1072 × 1112mm |
| Weight Without Box | 28kg | Weight With Box | 39.63kg |
| EAN Code | 4948570128242 | ||
