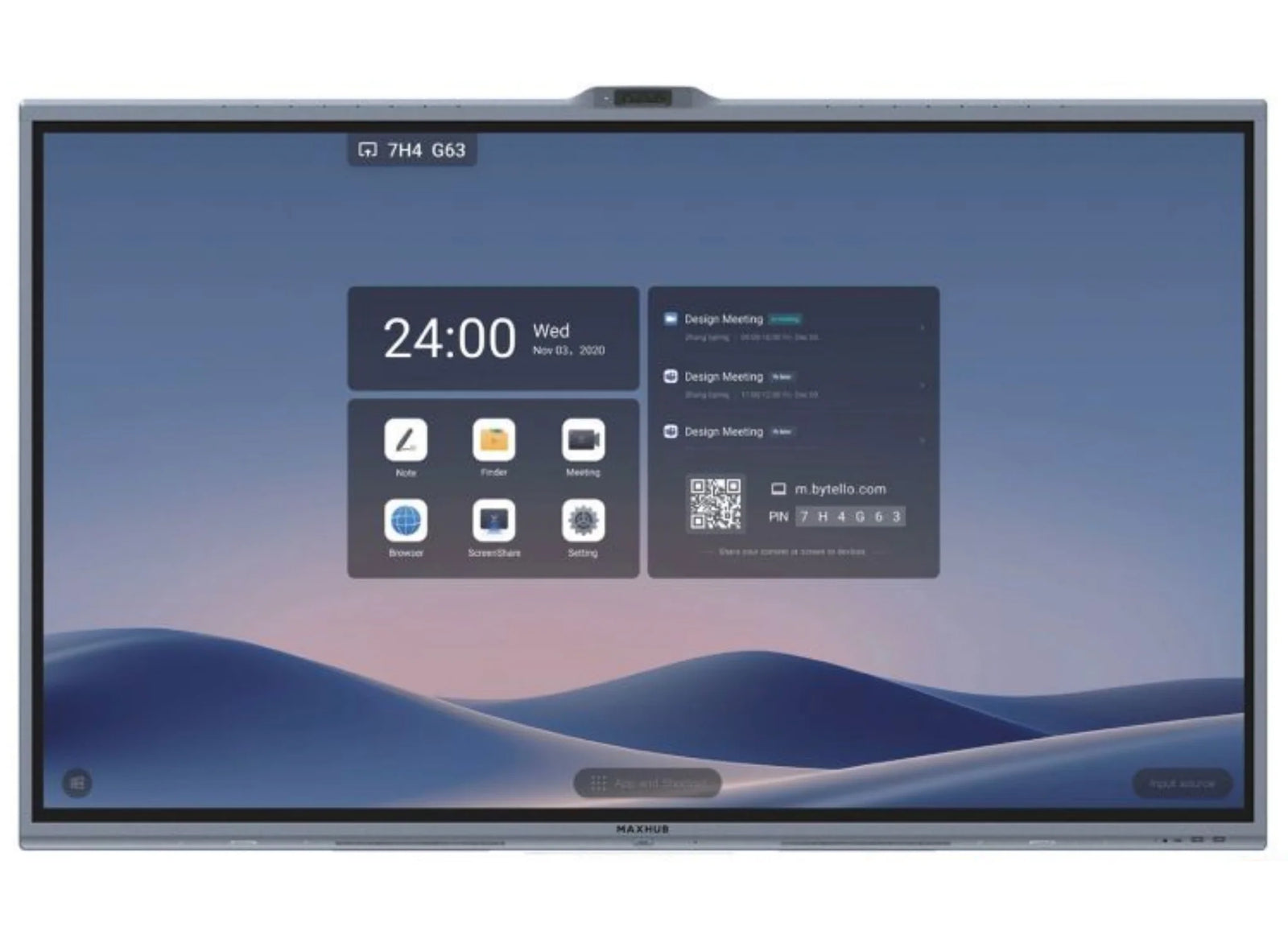

MAXHUB XBoard V8650 86” 4K Ultra HD All-in-One Interactive Display
SKU: V8650
£4,939.00 (Excl. VAT)
- Display Size86"
- Touch Capabilities50pt multi-touch
- Net Weight59.95kg
- Operating SystemAndroid
- VESA Patterns800x600
- Panel TypeIPS Panel
- ResolutionUltra HD (4K)
- Screen TypeFlat
- Response Time8ms
- Screen Ratio16:9
- Brightness350 cd/m2
- Operating Hours16/7
- Description
- Specifications
- Downloads
-
MAXHUB XBoard V8650 Interactive Collaboration Display
Experience the ultimate in video conferencing and collaboration with the MAXHUB XBoard V7 series.Powered by a Windows PC module, this all-in-one design device seamlessly integrates an intelligent triple camera, cutting-edge audio processing, interactive whiteboarding, and an intuitive meeting launcher, all housed within a single comprehensive collaboration display. This powerful combination enhances the dynamism of meetings and introduces a flexible and creative interaction to your organization.
Professional 4K Display
High color accuracy, ∆E≤1.5 Wide color gamut, NTSC 90% Non-glare technology, 25% haze
Precise Touch
Intelligent Touchscreen Technology Revolutionary writing experience, Windows Ink supported
BYOM Anytime
Embrace seamless efficiency enabled by MAXHUB Share App or wireless dongle
Smart Whiteboard
Direct annotation Real-time collaboration
Get Spatial with Sound
16-mic array, 15 meters pick-up range. Multiple AI-enhanced audio algorithms
Built-in Speaker
2 × 10W + 20W speaker 2.1 sound channel
Trident Lens System
50 MP+50 MP+50 MP cameras 5x hybrid zoom, 99° ultra-wide FOV
Peak Performance
Unleash the power with MT71 series PC module. 12th Gen Intel Processor with Windows system, stably smooth -
Display Model V8650 Screen Size (Inch) 86 Aspect Ratio 16:9 Panel IPS Backlight DLED Brightness (Typ.) 350 nits Glass Zero parallax
3mm thickness
9H temperedSurface Technology 25% haze
Non-glare technologyResolution 3840 × 2160 Refresh Rate 60 Hz Contrast Ratio 1200:1 (typ.) Viewing Angle (H × V) 178° / 178° Color Gamut 90% NTSC Display Orientation Landscape Response Time 8 ms Life Time >50,000 hours Operation Hours (Hours / Day) 16 / 7 Display Color 1.07B (10 bit) Color Accuracy Delta E ≤ 1.5 Sensor Ambient light sensor
Ultrasonic detection sensorPixel Pitch 0.4935(H) × 0.4935(V) mm Display Area 1895.04(H) × 1065.96(V) mm Connectivity HDMI IN × 2 Up to 4K@60Hz, HDCP 2.2, CEC USB 2.0 × 1 For system upgrades USB 3.0 × 2 For external peripherals USB Type-C IN × 1 USB 2.0, supports DP 1.2 input, wireless dongle pairing, and BYOD TOUCH 2.0 × 1 USB 2.0 Type B AUDIO IN × 1 3.5mm Jack AUDIO OUT × 1 3.5mm Jack RS232 × 1 Baud rate 9600 RJ45 IN × 1 Mic in, supports 30W POE, microphone cascade, AES67 protocol HDMI OUT × 1 Up to 4K@30Hz USB 2.0 × 3 For external peripherals USB 3.0 × 3 For external peripherals RJ45 IN × 1 10M/100M/1000Mbps MIC IN × 1 3.5 mm Jack, input for microphone PC Module Slot Module slot × 1 PC Module System Windows 10 IOT
Windows 11 ProWi-Fi Slot Module slot × 1 Wi-Fi (PC Module) Wi-Fi 6 supported
802.11ax, 2.4GHz/5GHzBluetooth (PC Module) 5.2 Touch System Touch Technology Intelligent Touchscreen Technology (infrared recognition) Touch Point 50 points touch Object Recognition Range ≥1.5 mm Accuracy ±0.5 mm Response Time ≤2.5 ms Writing Height ≤1 mm System (Touch Return) Windows11/Windows10/Windows8/Windows7/Android/Linux/Mac OS X/Chrome OS Feature Windows Ink / Direct Annotation / Palm Rejection / Sharp Erase
Multi-input Recognition / Handwriting RecognitionCamera, Audio & Microphone Wide Camera 50MP × 1
DFOV 99°, HFOV 86°Telephoto Camera 50MP × 2
DFOV 68° (combined), HFOV 63° (combined)Zoom 5x hybrid zoom Privacy Shutter Yes Camera Feature Personalized presets
Auto framing
Speaker tracking
Multiple-speaker tracking
Intelligent focusSound Channel 2.1 Speaker Power 2 × 10W + 20W Microphone Quantity 16-mic array Pick-up Angle 180° Pick-up Range 0~15m Microphone Feature Intelligent audio fence
AI spatial sound
AEC (Auto echo cancellation)
ANC (AI noise cancellation)
AGC (Auto gain control)Feature System OS MAXHUB OS 7.0 powered by Windows Screen Share MAXHUB Share
Support BYOM / Miracast / Airplay / Chromecast / P2PDevice Management MAXHUB Pivot Protocol Control RS232 / IP control
Supports integration with Crestron / Extron / Q-sysSpecial Features Microsoft Intune Accessory & Physical Specification Power Cord 3m × 1 HDMI Cable 1.5m × 1 Stylus × 2 Wall Mount WIB9060H Wireless Adapter SI07B Dimension (W × H × D) 1957 × 1180.1 × 103 mm Shipping Dimension (W × H × D) 2110 × 1283 × 225 mm Thickness of Machine and Wall Mount 130 mm Wall-hanging Screw Spec M8 × 25 mm VESA 800 × 600 mm Net Weight 59.95 Kg Gross Weight 74.55 Kg Environmental Conditions, Power, Certification & Warranty Operating Temperature 0°C~40°C Storage Temperature -20°C~60°C Operating Humidity 10%~90%RH Storage Humidity 10%~90%RH Altitude Below 5000 meters Power Supply 100-240V~ 50/60Hz 5.0A Standby Power ≤ 0.5 W Power Consumption (Typ.) 175 W Power Consumption (Max.) 465 W Safety IEC 62368-1 EMC Class B Environment Energy Star IP Rating IP5X design standards Warranty 3 years warranty -
Description Downloads Datasheet Download
